SYSTEM DESCRIPTION

AV-197

[WITH MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

TKWT5159E

AV-198

[WITH MOBILE ENTERTAINMENT SYSTEM]

SYSTEM DESCRIPTION

Component Parts Location

NKS004AJ

SKIB8876E

SYSTEM DESCRIPTION

AV-199

[WITH MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

Location of Antenna

NKS004AK

SKIB8873E

AV-200

[WITH MOBILE ENTERTAINMENT SYSTEM]

TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT

TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT

PFP:00000

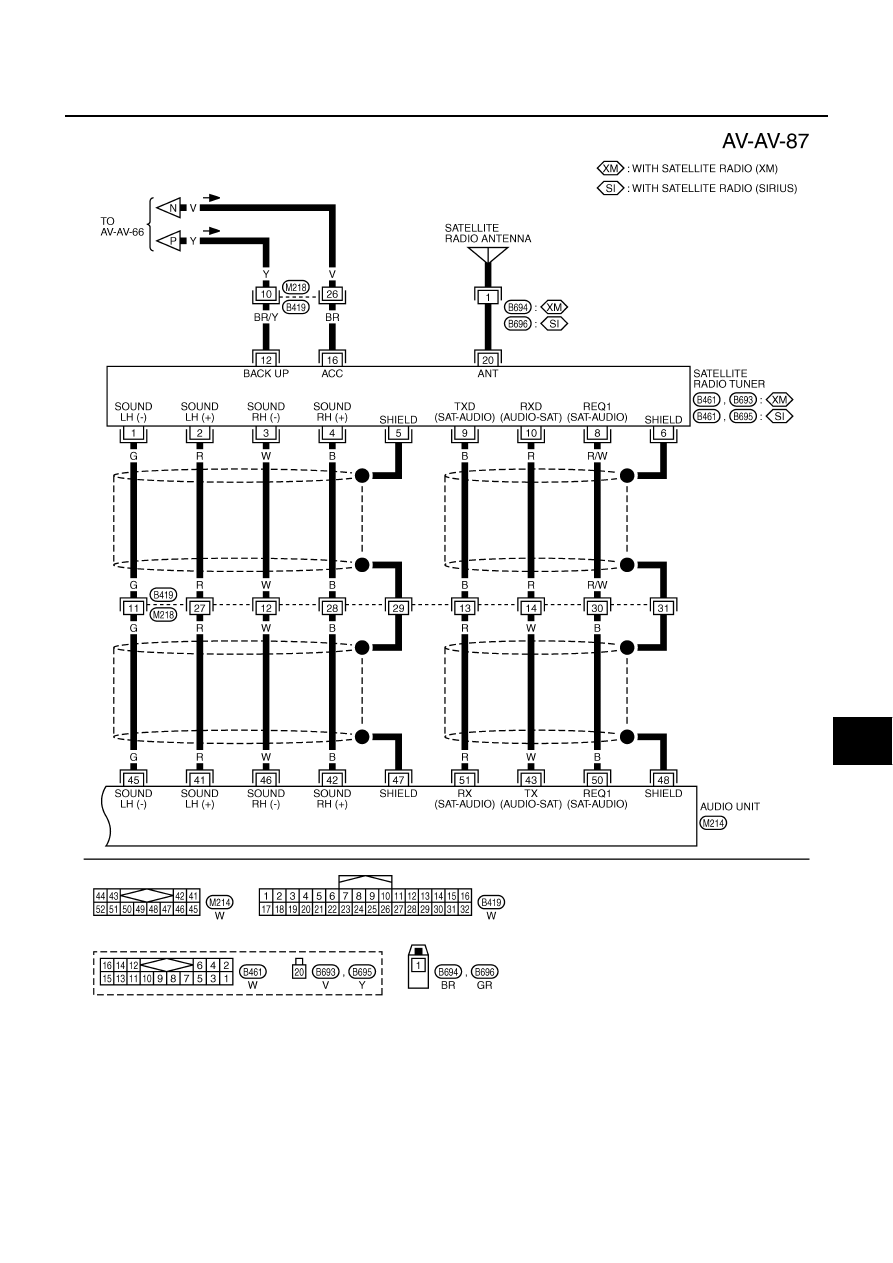

Audio Unit

NKS004AL

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

+

–

Ignition

switch

Operation

2

(R/L)

3

(W)

Audio signal LH

Output

ON

Receive audio signal.

6

(BR)

15

(G)

Steering switch signal A

Input

ON

Keep pushing SOURCE
switch.

Approx. 0 V

Keep pushing MENU UP
switch.

Approx. 1.2 V

Keep pushing MENU DOWN
switch.

Approx. 2.5 V

Keep pushing ENTER
switch.

Approx. 3.7 V

Except for above.

Approx. 5 V

7

(V)

Ground

ACC power supply

Input

ACC

−

Battery voltage

8

(B/W)

Ground

Illumination control signal

Input

OFF

Illumination control switch is
operated by lighting switch
in ON position.

Change between approx. 0 V

and approx. 12 V

9

(R)

Ground

Illumination signal

Input

OFF

Lighting switch is OFF.

Approx. 0 V

Lighting switch is  ON.

Approx. 12 V

11

(P)

12

(L)

Audio signal RH

Output

ON

Receive audio signal.

15

(G)

Ground

Steering switch signal
ground

–

ON

–

Approx. 0 V

16

(O)

15

(G)

Steering switch signal B

Input

ON

Keep pushing VOL DOWN
switch.

Approx. 0 V

Keep pushing VOL UP
switch.

Approx. 1.2 V

Keep pushing TEL, PTT
switch.

Approx. 2.5 V

Keep pushing BACK switch.

Approx. 3.7 V

Except for above.

Approx. 5 V

19

(Y)

Ground

Battery power supply

Input

OFF

−

Battery voltage

20

(B)

Ground

Ground

–

ON

–

Approx. 0 V

SKIB3609E
