AUTOMATIC DRIVE POSITIONER

SE-29

C

D

E

F

G

H

J

K

L

M

A

B

SE

TIWT2053E

SE-30

AUTOMATIC DRIVE POSITIONER

TIWT2054E

AUTOMATIC DRIVE POSITIONER

SE-31

C

D

E

F

G

H

J

K

L

M

A

B

SE

Terminals and Reference Values for BCM

NIS0025W

Terminals and Reference Value for Intelligent Key Unit

NIS0025X

Termi-

nal

Wire

color

Item

Signal

Input/Output

Condition

Voltage (V)

(Approx)

11

V

Power source (ACC)

Input

Ignition switch
(ACC or ON position)

Battery voltage

37

LG

Key switch signal

Input

Key switch ON
(Key is inserted in key slot)

Battery voltage

Key switch OFF
(Key is remove from key slot)

0

38

W

Power source (IGN)

Input

Ignition switch
(ON or START position)

Battery voltage

39

L

CAN-H

Input/Output

—

—

40

P

CAN-L

Input/Output

—

—

42

P

Power source (Fuse)

Input

—

Battery voltage

52

B

Ground

—

—

0

55

W

Power source (Fusible link)

Input

—

Battery voltage

62

V

Drive side door switch

Input

ON (Open)

→

 OFF (Closed)

0

→

 Battery voltage

Termi-

nal

Wire

Color

Item

Signal

Input/Output

Condition

Voltage (V)

Approx.

Ignition

Switch

Position

Operation or Conditions

1

SB

Power source (Fuse)

Input

—

—

Battery voltage

19

BR/Y

Key switch signal

Input

LOCK

Insert Intelligent Key into key slot.

Battery voltage

Remove Intelligent Key from key slot.

0

20

B

Ground

—

ON

—

0

27

V

P range switch

Input

—

Selector lever is in “P” position.

0

Other than above

Battery voltage

37

P

CAN-L

Input/Output

—

—

—

38

L

CAN-H

Input/Output

—

—

—

40

B

Ground

—

ON

—

0

41

Y

Power source (Fuse)

Input

—

—

Battery voltage

56

B

Ground

—

—

—

0

57

L

Power source (Fuse)

Input

—

—

Battery voltage

58

O

A/T device power
supply

Output

—

Wake up state

Battery voltage

Sleep state

0

72

B

Ground

—

ON

0

SE-32

AUTOMATIC DRIVE POSITIONER

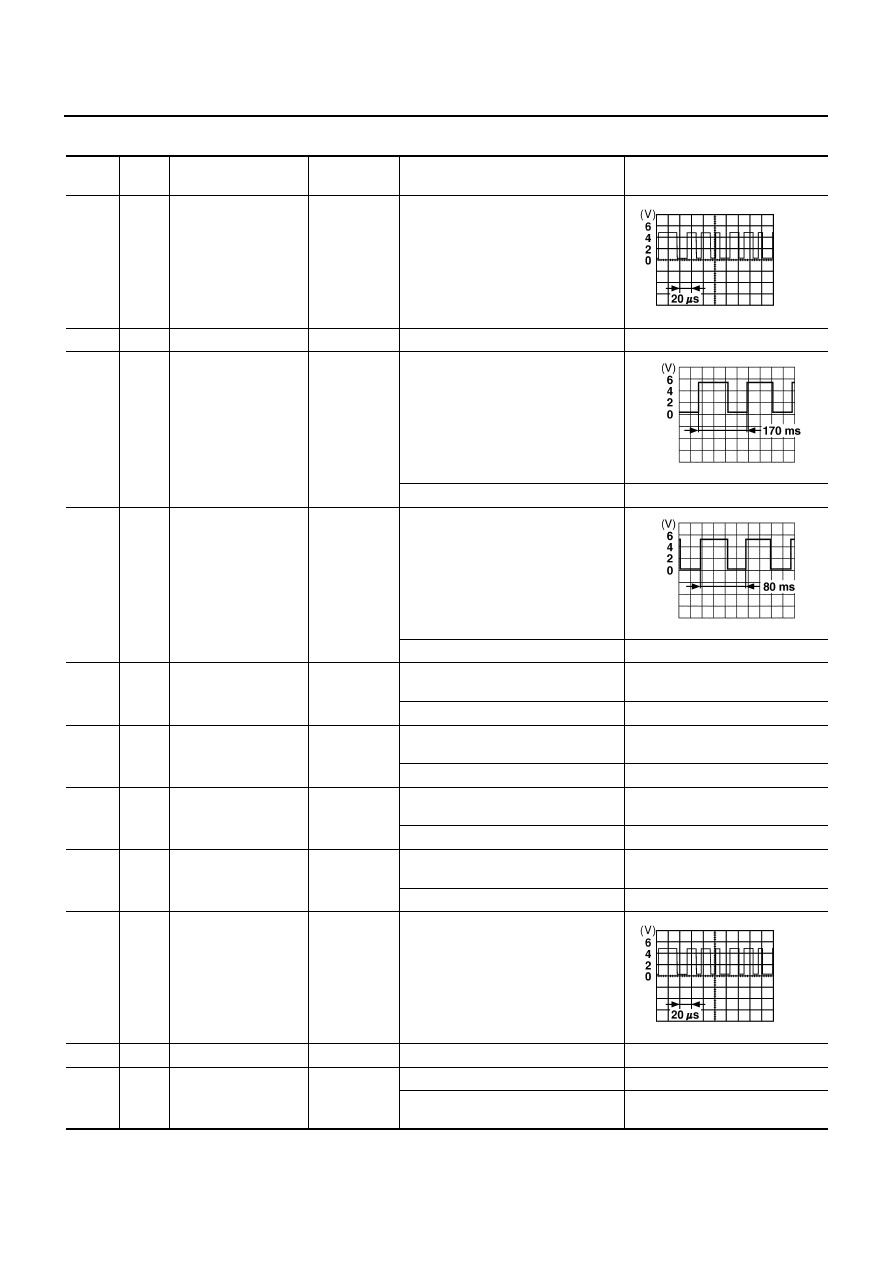

Terminals and Reference Values for Driver Seat Control Unit

NIS0025Y

Termi-

nal

Wire

color

Item

Signal

Input/Output

Condition

Voltage (V)

(Approx)

1

P/L

UART LINE (RX)

Input

Tilt switch operated

3

BR/W

CAN-H

Input/Output

—

—

9

W/R

Reclining
sensor signal

Input

ON (seat reclining motor operation)

Other than above

0 or 5

10

W/G

Rear lifting
sensor signal

Input

ON (rear lifting motor operation)

Other than above

0 or 5

11

R/W

Sliding switch
backward signal

Input

ON (seat sliding switch backward
operation)

0

Other than above

Battery voltage

12

G/W

Reclining switch
backward signal

Input

ON (seat reclining switch backward
operation)

0

Other than above

Battery voltage

13

Y/W

Front lifting switch
DOWN signal

Input

ON
(front lifting switch DOWN operation)

0

Other than above

Battery voltage

14

L/W

Rear lifting switch
DOWN signal

Input

ON
(rear lifting switch DOWN operation)

0

Other than above

Battery voltage

17

P/B

UART LINE (TX)

Output

Tilt switch operated

19

G/O

CAN-L

Input/Output

—

—

21

G/R

Detention
switch signal

Input

A/T selector lever is in P position.

0

A/T selector lever is in other than
P position.

Battery voltage

SKIA0175E

PIIB2807E

PIIB2809E

SKIA0175E
