OVERHAUL

AT-291

D

E

F

G

H

I

J

K

L

M

A

B

AT

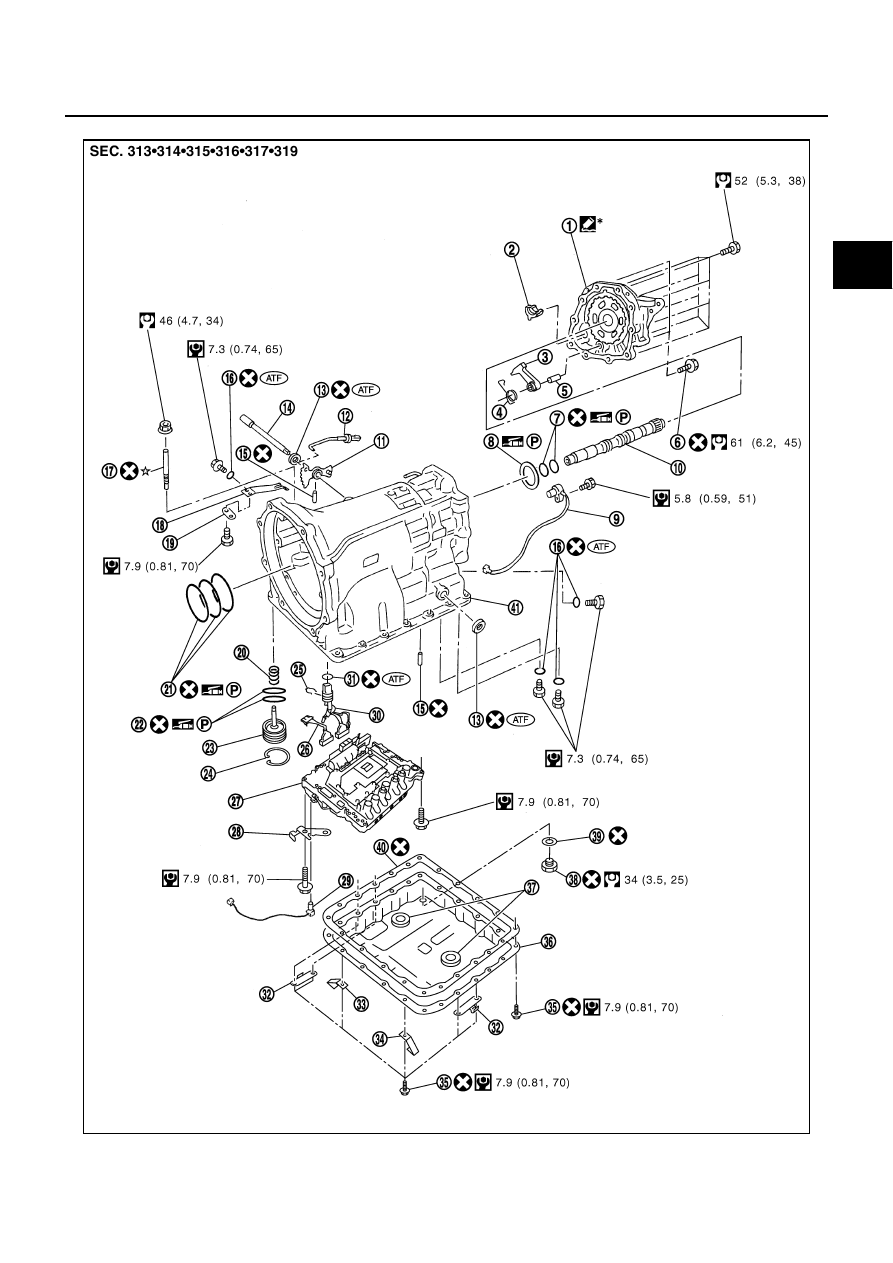

VK45DE models for 2WD

SCIA8048E

AT-292

OVERHAUL

1.

Output shaft & companion flange
complement

2.

Parking actuator support

3.

Parking pawl

4.

Return spring

5.

Pawl shaft

6.

Self-sealing bolt

7.

Seal ring

8.

Needle bearing

9.

Revolution sensor

10.

Intermediate shaft

11.

Manual plate

12.

Parking rod

13.

Manual shaft oil seal

14.

Manual shaft

15.

Retaining pin

16.

O-ring

17.

Band servo anchor end pin

18.

Detent spring

19.

Spacer

20.

Return spring

21.

Seal ring

22.

O-ring

23.

Servo assembly

24.

Snap ring

25.

Snap ring

26.

Sub-harness

27.

Control valve with TCM

28.

Bracket

29.

A/T fluid temperature sensor 2

30.

Terminal cord assembly

31.

O-ring

32.

Clip

33.

Bracket

34.

Bracket

35.

Oil pan mounting bolt

36.

Oil pan

37.

Magnet

38.

Drain plug

39.

Drain plug gasket

40.

Oil pan gasket

41.

Transmission case

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-11, "Components"

 .

However, refer to the following symbols for others.

*

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-47, "Recommended Chemical Products and Sealants"

 .

OVERHAUL

AT-293

D

E

F

G

H

I

J

K

L

M

A

B

AT

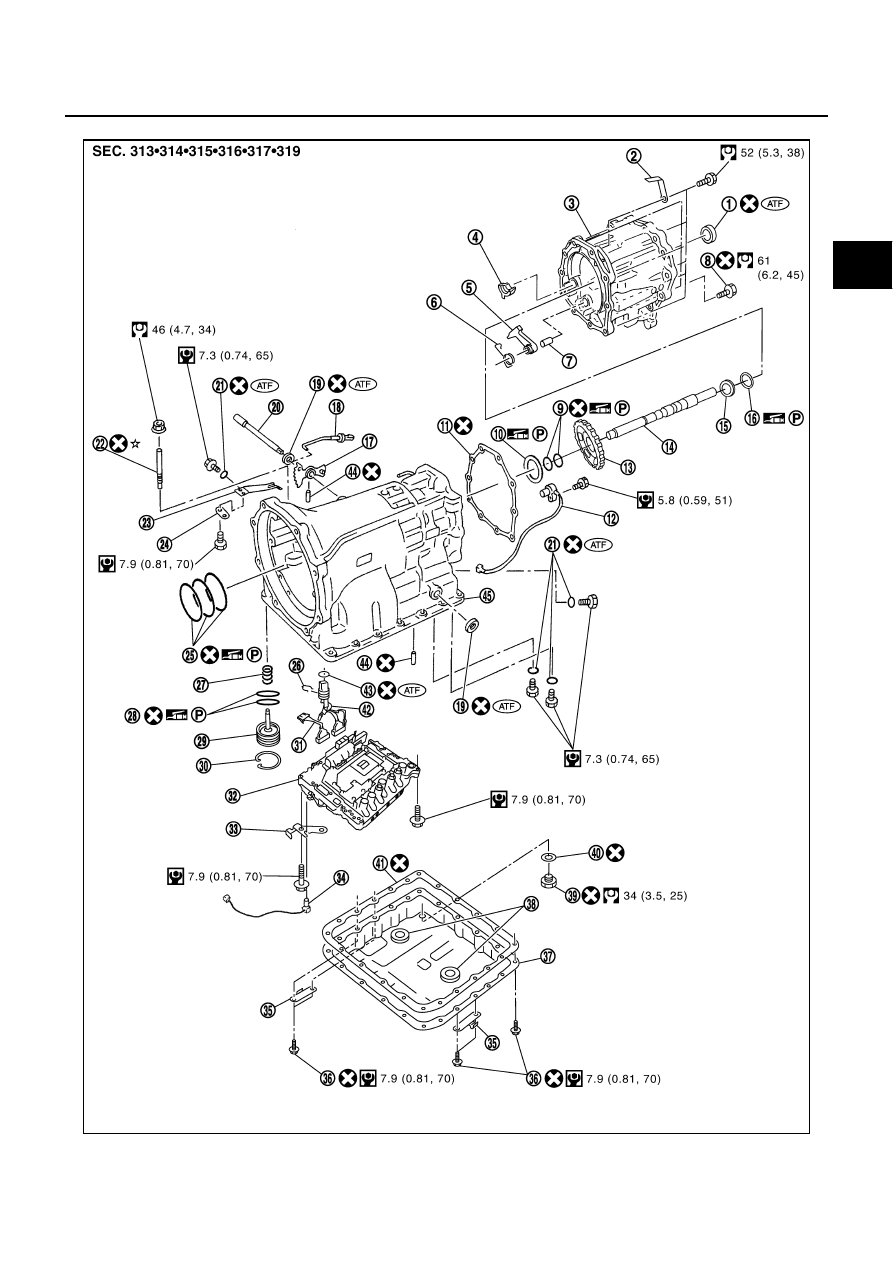

AWD models

SCIA8042E

1.

Rear oil seal

2.

Bracket

3.

Adapter case

4.

Parking actuator support

5.

Parking pawl

6.

Return spring

AT-294

OVERHAUL

7.

Pawl shaft

8.

Self-sealing bolt

9.

Seal ring

10.

Needle bearing

11.

Gasket

12. Revolution sensor

13.

Parking gear

14. Output shaft

15. Bearing race

16.

Needle bearing

17. Manual plate

18. Parking rod

19.

Manual shaft oil seal

20. Manual shaft

21. O-ring

22.

Band servo anchor end pin

23. Detent spring

24. Spacer

25.

Seal ring

26. Snap ring

27. Return spring

28.

O-ring

29. Servo assembly

30. Snap ring

31.

Sub-harness

32. Control valve with TCM

33. Bracket

34.

A/T fluid temperature sensor 2

35. Clip

36. Oil pan mounting bolt

37.

Oil pan

38. Magnet

39. Drain plug

40.

Drain plug gasket

41. Oil pan gasket

42. Terminal cord assembly

43.

O-ring

44. Retaining pin

45. Transmission case

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-11, "Components"

 .
