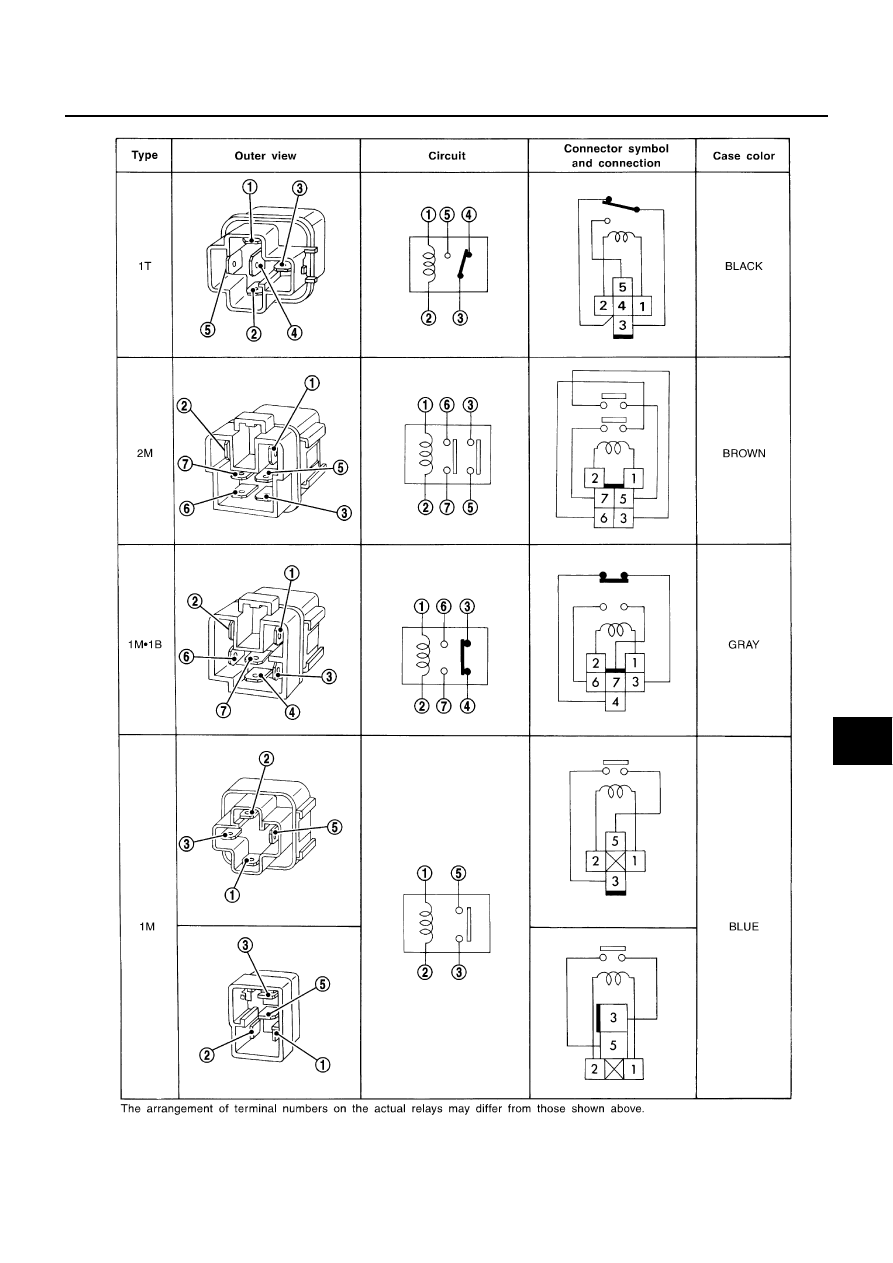

STANDARDIZED RELAY

PG-65

C

D

E

F

G

H

I

J

L

M

A

B

PG

SEL188W

PG-66

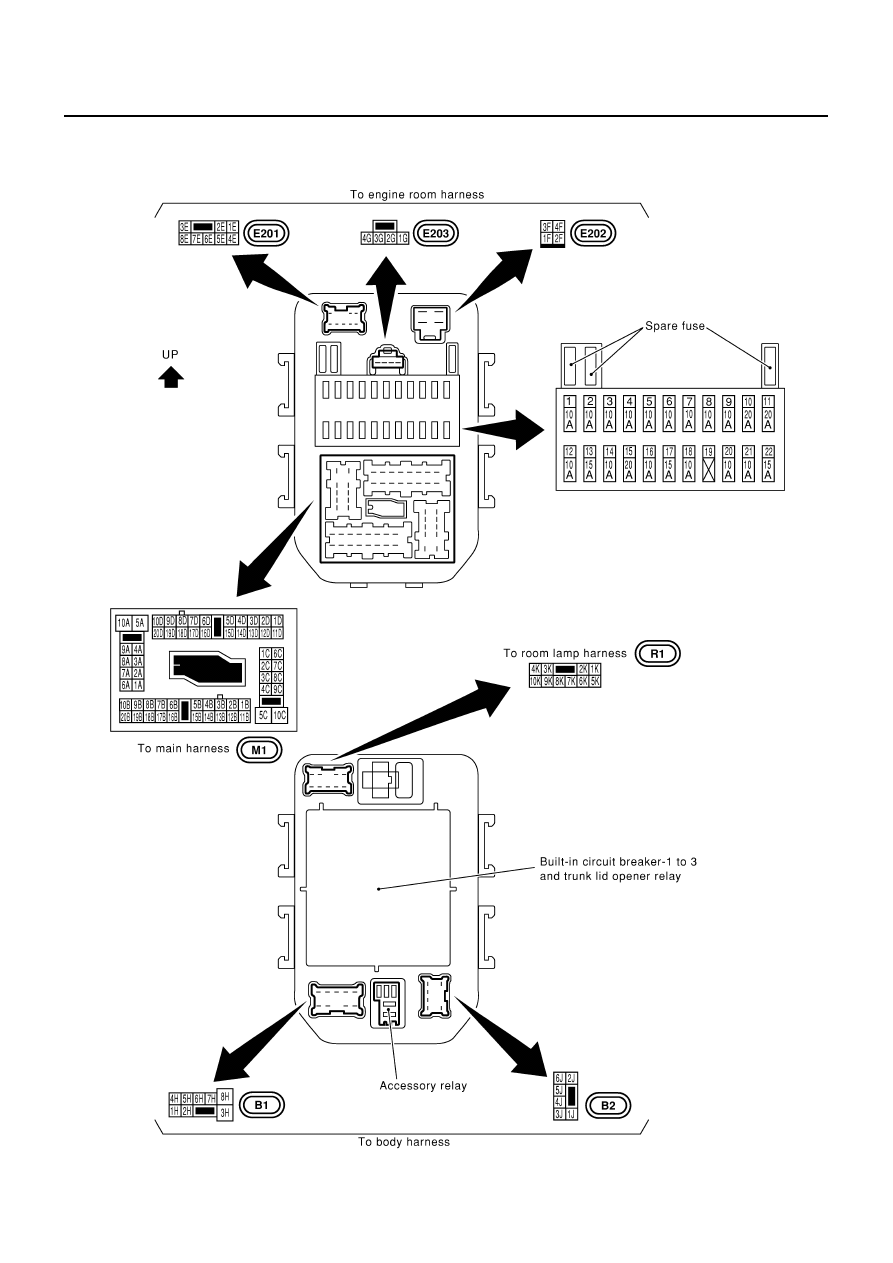

FUSE BLOCK - JUNCTION BOX (J/B) NO.1

FUSE BLOCK - JUNCTION BOX (J/B) NO.1

PFP:24350

Terminal Arrangement

EKS00178

CKIM0064E

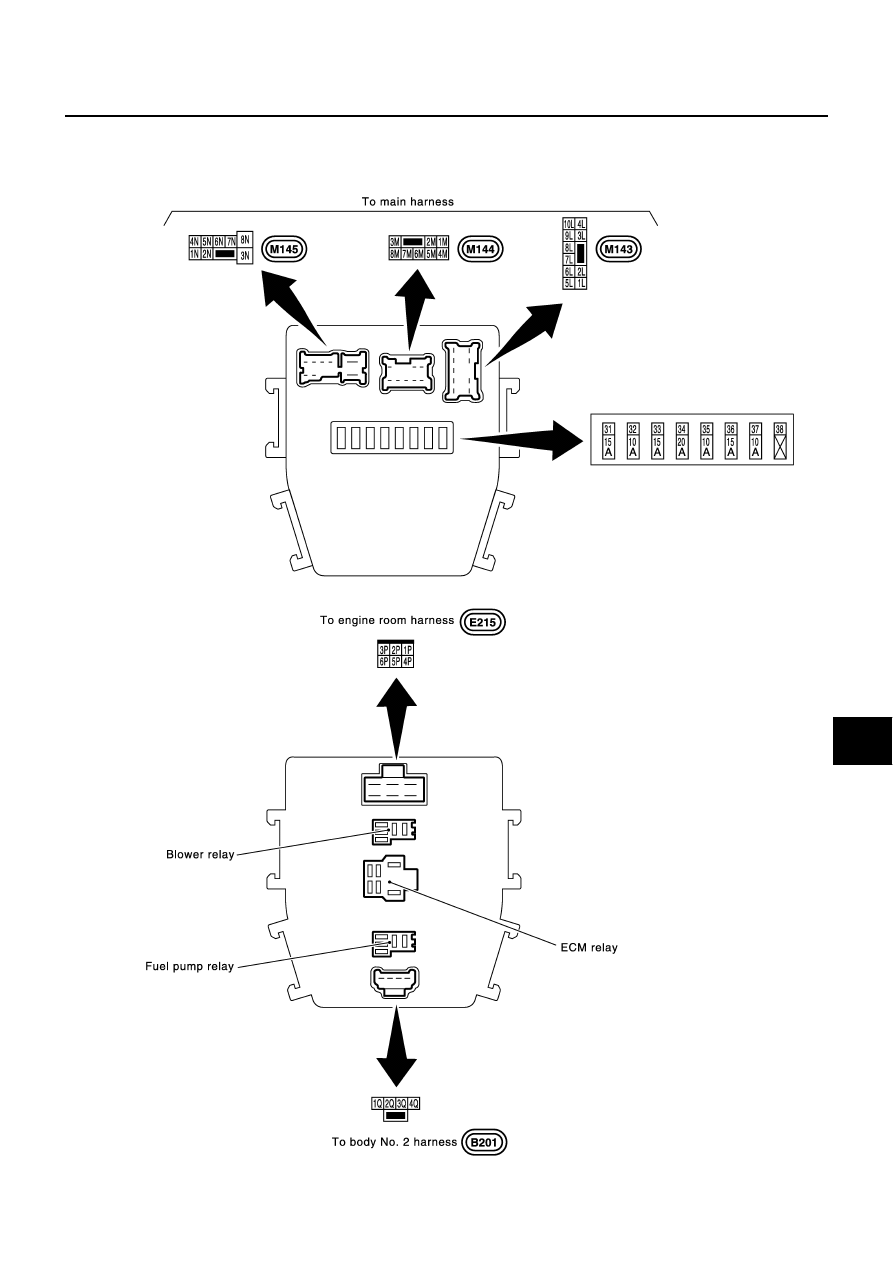

FUSE BLOCK - JUNCTION BOX (J/B) NO.2

PG-67

C

D

E

F

G

H

I

J

L

M

A

B

PG

FUSE BLOCK - JUNCTION BOX (J/B) NO.2

PFP:24350

Terminal Arrangement

EKS00175

CKIM0065E

PG-68

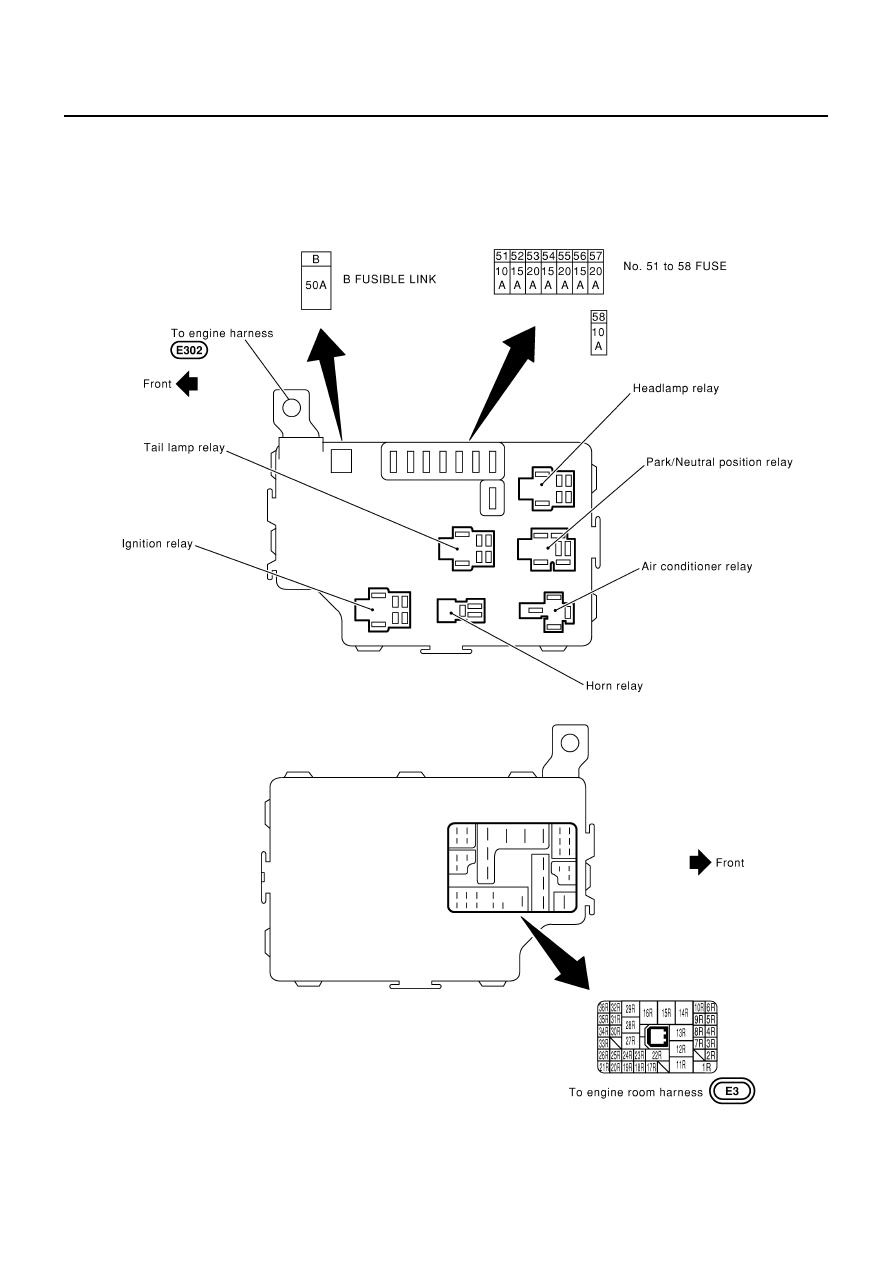

FUSE, FUSIBLE LINK AND RELAY BLOCK (J/B)

FUSE, FUSIBLE LINK AND RELAY BLOCK (J/B)

PFP:24382

Terminal Arrangement

EKS00176

CKIM0066E
