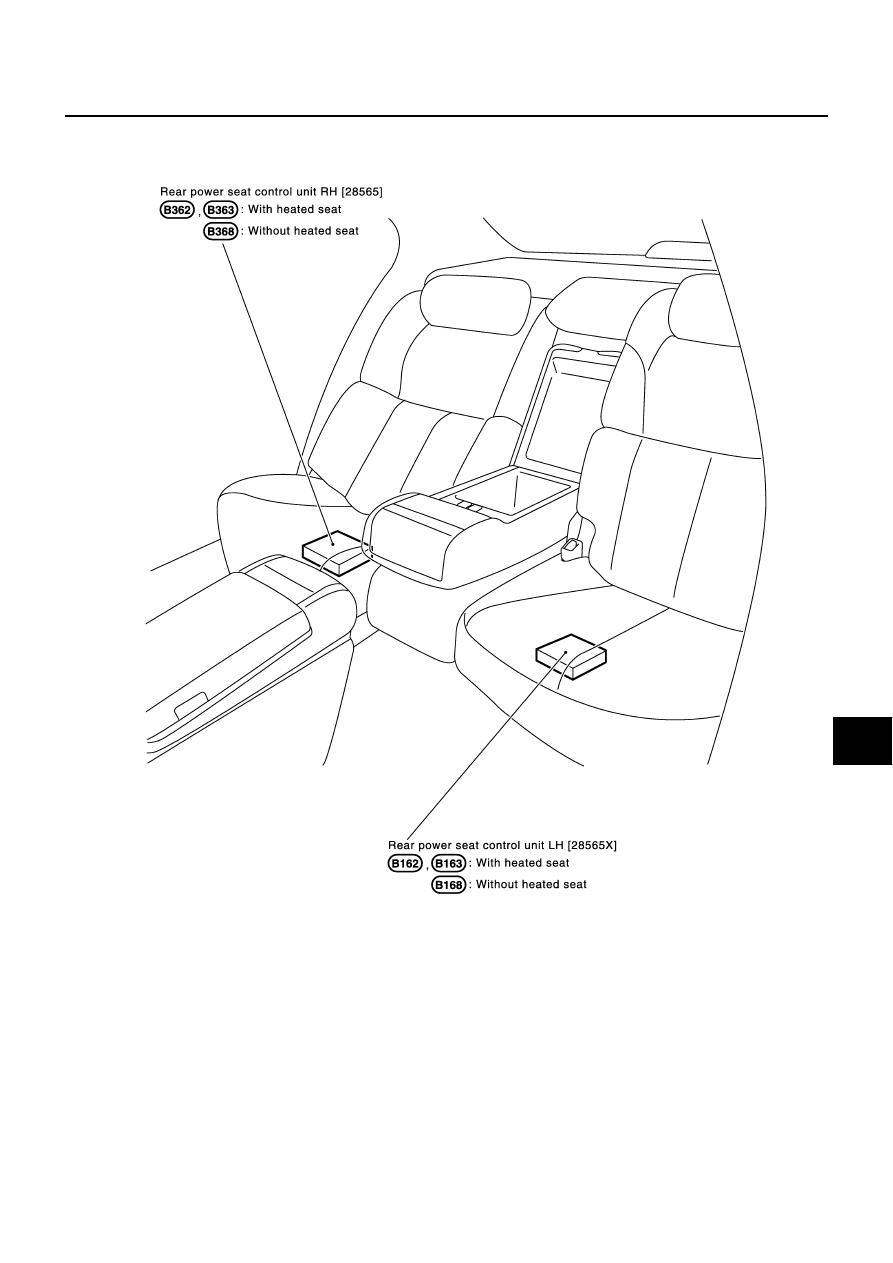

ELECTRICAL UNITS LOCATION

PG-53

C

D

E

F

G

H

I

J

L

M

A

B

PG

CKIM0028E

PG-54

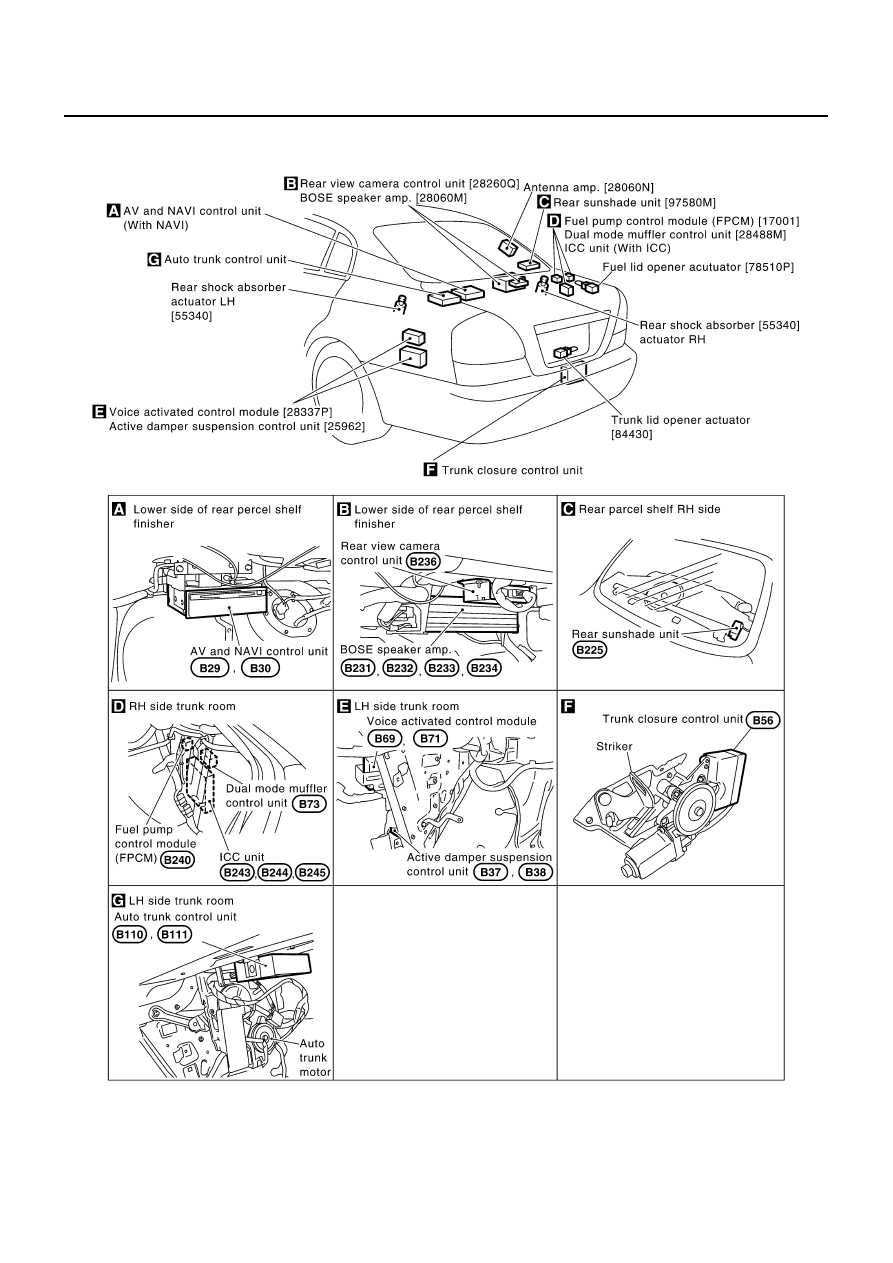

ELECTRICAL UNITS LOCATION

LUGGAGE COMPARTMENT

CKIM0192E

ELECTRICAL UNITS LOCATION

PG-55

C

D

E

F

G

H

I

J

L

M

A

B

PG

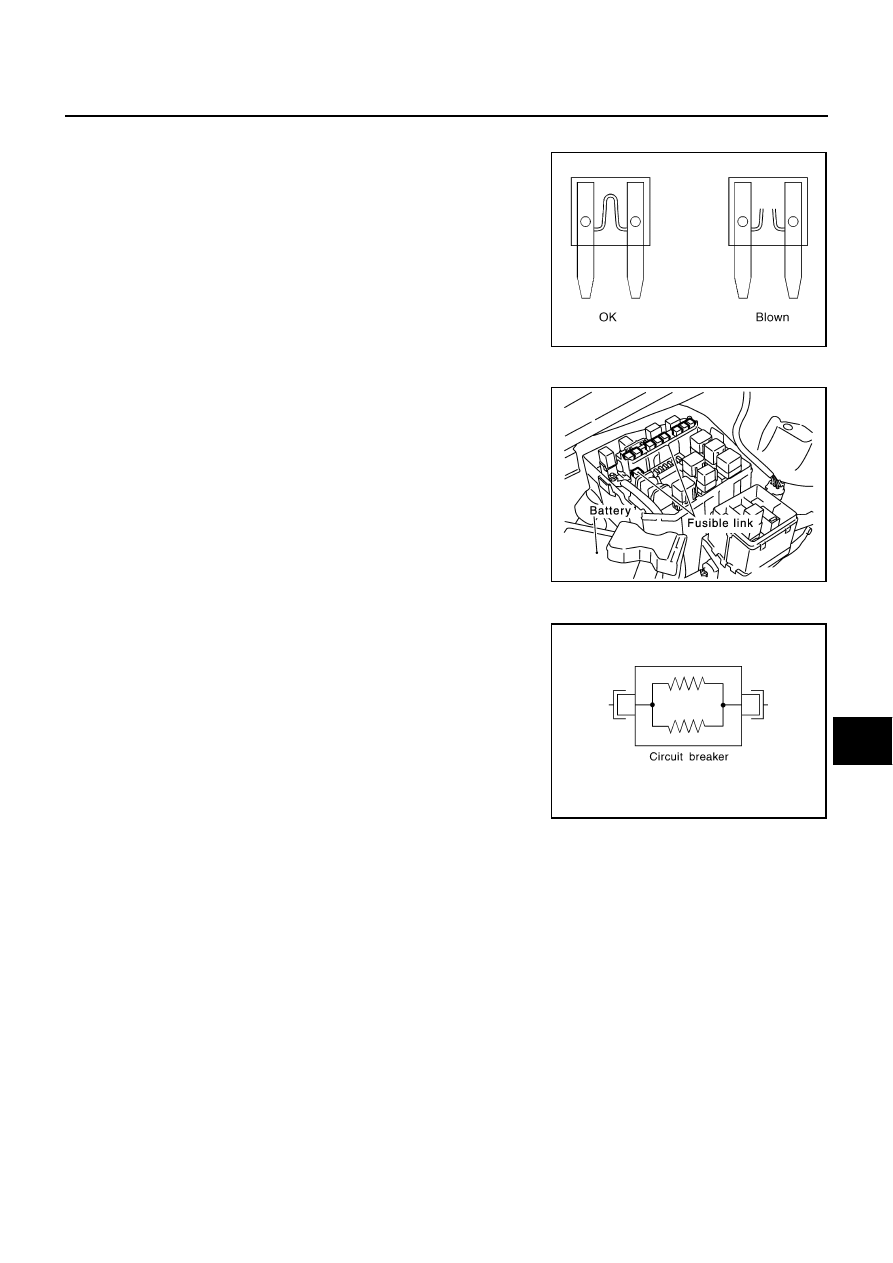

Fuse

EKS003SB

●

If fuse is blown, be sure to eliminate cause of incident before
installing new fuse.

●

Use fuse of specified rating. Never use fuse of more than speci-
fied rating.

●

Do not partially install fuse; always insert it into fuse holder prop-
erly.

●

Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not
used for a long period of time.

Fusible Link

EKS003SC

A melted fusible link can be detected either by visual inspection or by
feeling with finger tip. If its condition is questionable, use circuit
tester or test lamp.

CAUTION:

●

If fusible link should melt, it is possible that critical circuit
(power supply or large current carrying circuit) is shorted.
In such a case, carefully check and eliminate cause of inci-
dent.

●

Never wrap outside of fusible link with vinyl tape. Important:
Never let fusible link touch any other wiring harness, vinyl
or rubber parts.

Circuit Breaker

EKS003SD

The PTC thermistor generates heat in response to current flow. The
temperature (and resistance) of the thermistor element varies with
current flow. Excessive current flow will cause the element's temper-
ature to rise. When the temperature reaches a specified level, the
electrical resistance will rise sharply to control the circuit current.
Reduced current flow will cause the element to cool. Resistance falls
accordingly and normal circuit current flow is allowed to resume.

CEL083

CKIM0070E

SEL109W

PG-56

HARNESS CONNECTOR

HARNESS CONNECTOR

PFP:00011

Description

EKS000DY

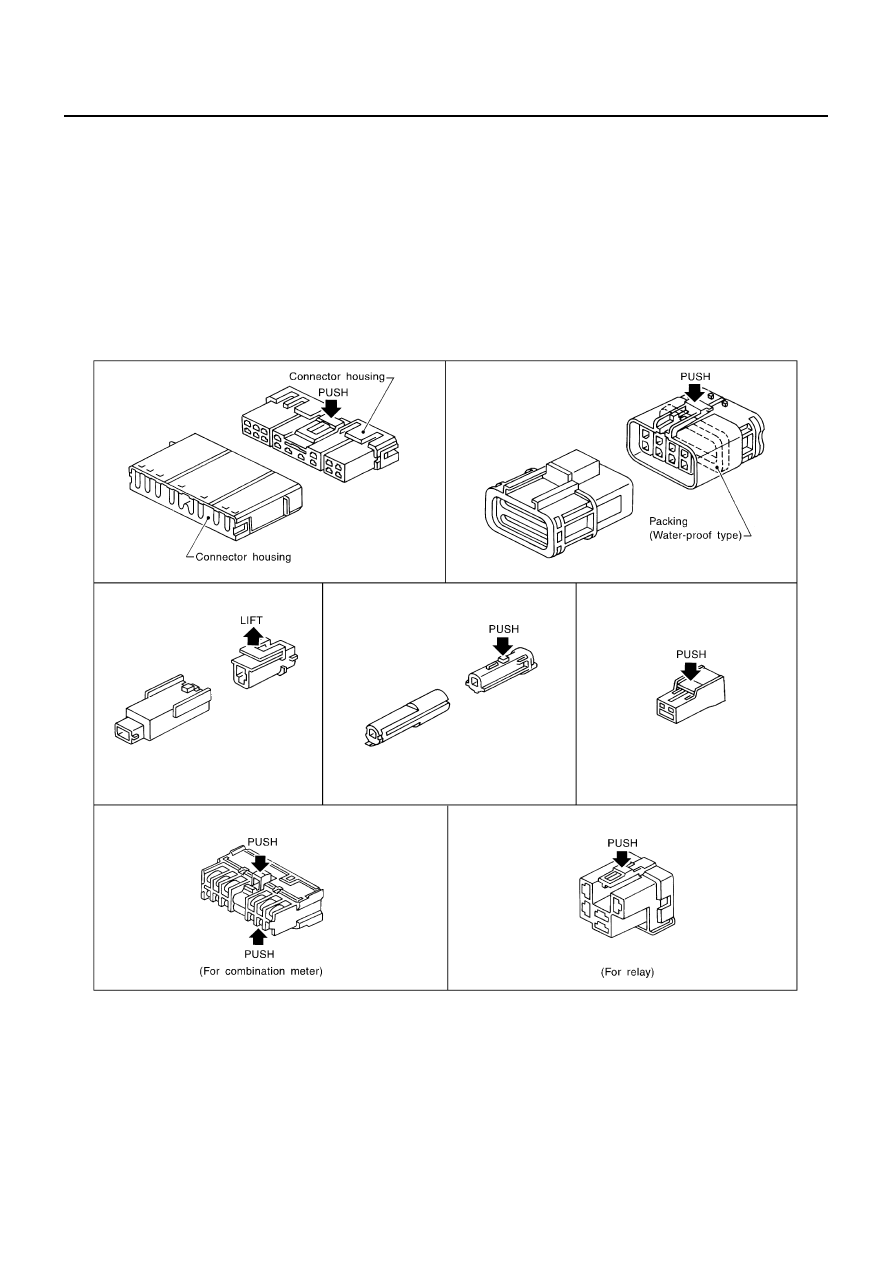

HARNESS CONNECTOR (TAB-LOCKING TYPE)

●

The tab-locking type connectors help prevent accidental looseness or disconnection.

●

The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the
illustration below.

Refer to the next page for description of the slide-locking type connector.

CAUTION:

Do not pull the harness or wires when disconnecting the connector.

[Example]

SEL769DA
