DTC P1217 ENGINE OVER TEMPERATURE

EC-509

Specification data are reference values and are measured between each terminal and body ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

EBS00MJV

CHECK COOLING FAN OPERATION-I

Start engine and make sure that cooling fan operates.

OK or NG

OK (With CONSULT-II)>>GO TO 3.
OK (With CONSULT-II)>>GO TO 4.
NG

>> GO TO 2.

DETECT MALFUNCTIONING PART

Check the following.

●

Cooling fan fluid for leak

●

Drive belts (Refer to

EM-12, "DRIVE BELTS"

)

●

Cooling fan pump (Refer to

CO-7, "COOLING SYSTEM"

)

●

Cooling fan drive pump (Refer to

CO-7, "COOLING SYSTEM"

)

>> Repair or replace.

CHECK COOLING FAN OPERATION-II

With CONSULT-II

Select “TARGET FAN RPM” in “ACTIVE TEST” mode with CON-
SULT-II.

Change “TRGT FAN RPM” indication by touching “UP” and
“DOWN”, then make sure that the cooling fan operating speed
changes according to “TRGT FAN RPM” indication.

OK or NG

>> GO TO 8.

>> GO TO 5.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

Cooling fan speed control
solenoid valve ground

[Engine is running]

Approximately 0V

Cooling fan speed control
solenoid valve

[Engine is running]

●

Idle speed

6.5 - 8V

PBIB0049E

PBIB0143E

EC-510

DTC P1217 ENGINE OVER TEMPERATURE

CHECK COOLING FAN OPERATION-II

Without CONSULT-II

Turn ignition switch “OFF”.

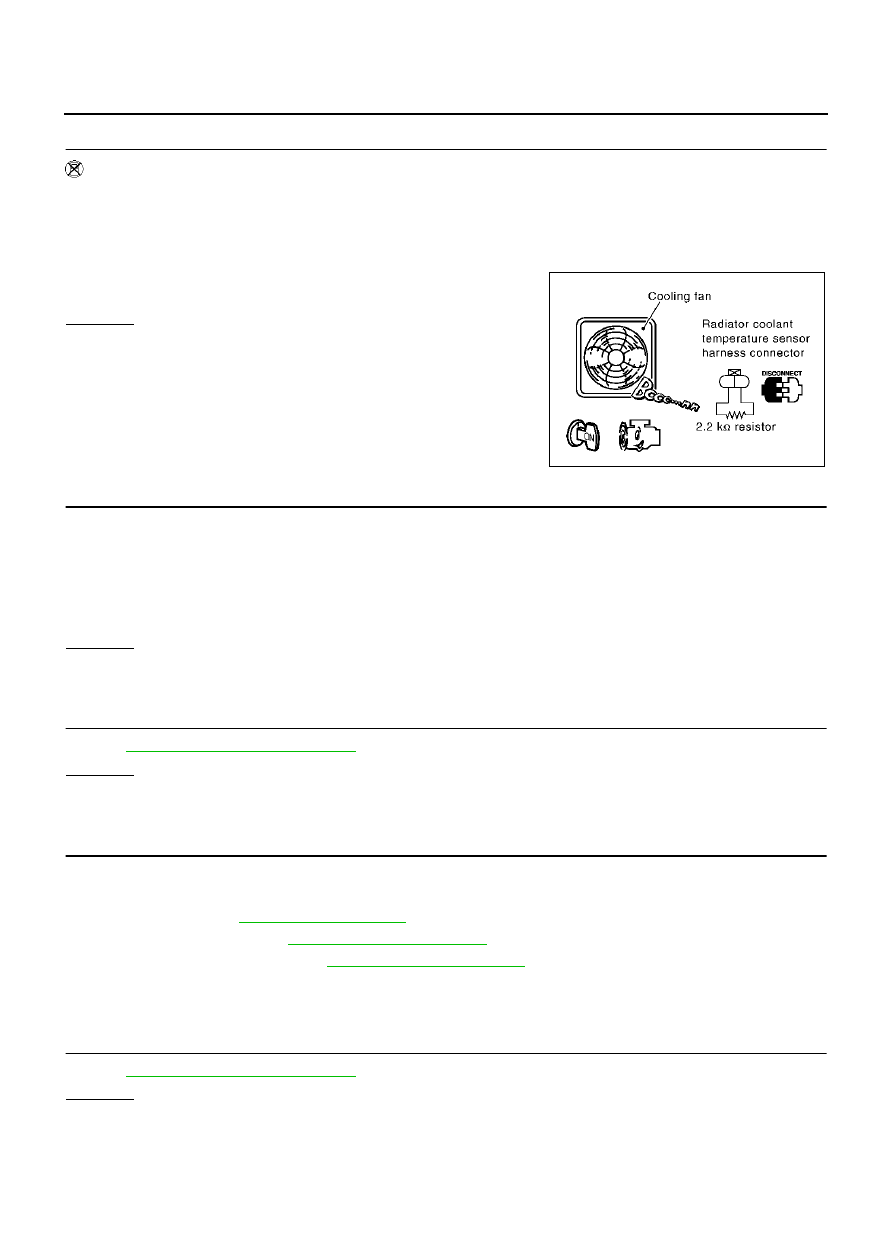

Disconnect radiator coolant temperature sensor harness connector.

Connect 2.2k

Ω

resistor to radiator coolant temperature sensor connector.

Start engine.

Make sure that cooling fan operates at higher speed than the
speed at test No. 1.

OK or NG

>> GO TO 8.

>> GO TO 5.

CHECK COOLING FAN SPEED CONTROL SOLENOID VALVE CIRCUIT

Turn ignition switch “OFF”.

Disconnect ECM harness connector.

Check harness continuity between ECM terminal 28 and ground.
Refer to Wiring Diagram.

OK or NG

>> GO TO 6.

>> Repair short to ground in harness or connectors.

CHECK COOLING FAN SPEED CONTROL SOLENOID VALVE

Refer to

EC-576, "Component Inspection"

OK or NG

>> GO TO 7.

>> Replace cooling fan speed control solenoid valve.

DETECT MALFUNCTIONING PART

Check the following.

●

Cooling fan fluid for leak

●

Drive belts (Refer to

EM-12, "DRIVE BELTS"

)

●

Cooling fan pump (Refer to

CO-7, "COOLING SYSTEM"

)

●

Cooling fan drive pump (Refer to

CO-7, "COOLING SYSTEM"

)

>> Repair or replace.

CHECK RADIATOR COOLANT TEMPERATURE SENSOR

Refer to

EC-434, "Component Inspection"

OK or NG

>> GO TO 9.

>> Replace radiator coolant temperature sensor.

PBIB1861E

Continuity should not exist.

DTC P1217 ENGINE OVER TEMPERATURE

EC-511

CHECK COOLING SYSTEM FOR LEAK

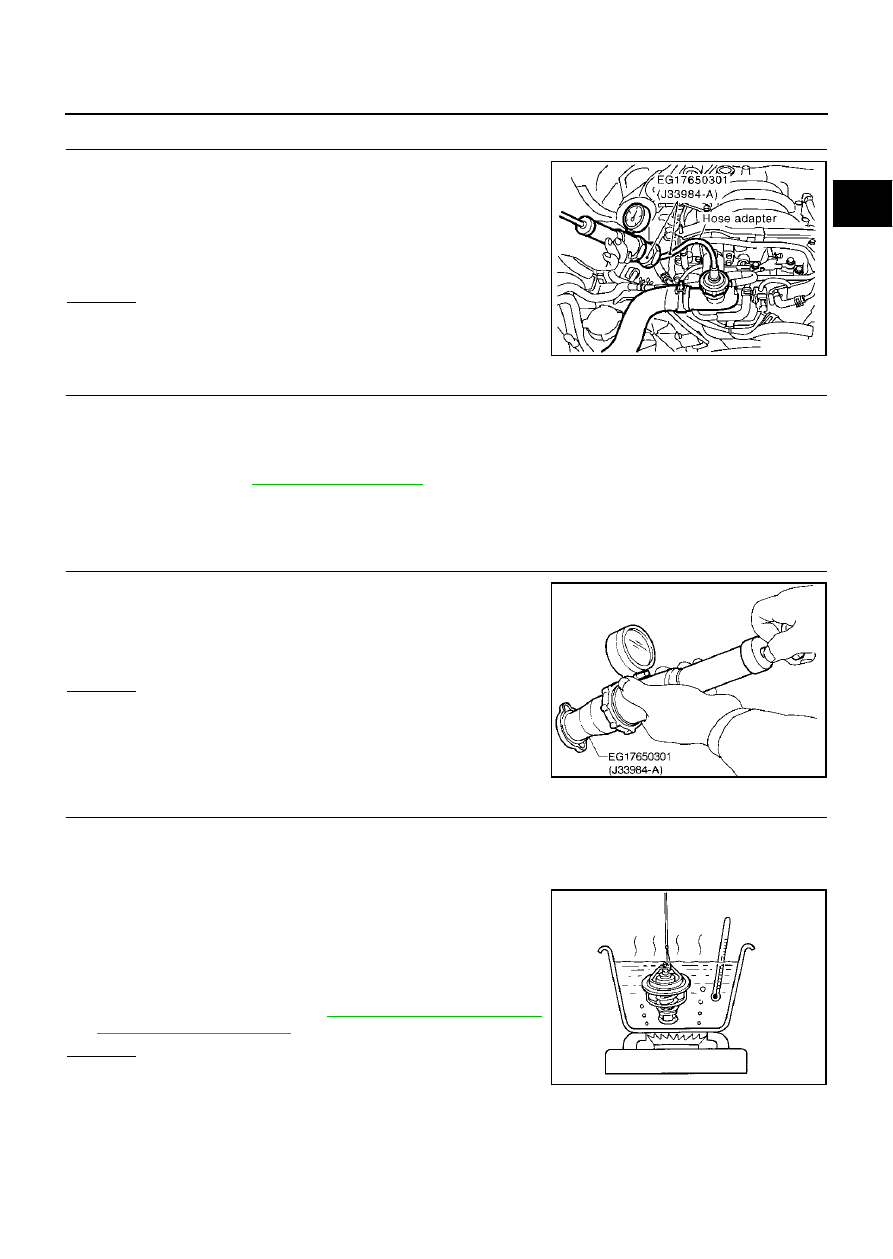

Apply pressure to the cooling system with a tester, and check if the
pressure drops.

CAUTION:

Higher than the specified pressure may cause radiator damage.
Pressure should not drop.

OK or NG

>> GO TO 11.

>> GO TO 10.

10.

DETECT MALFUNCTIONING PART

Check the following for leak.

●

Radiator

●

Hose

●

Water pump (Refer to

CO-22, "WATER PUMP"

)

>> Repair or replace.

11.

CHECK RADIATOR CAP

Apply pressure to cap with a tester and check radiator cap relief
pressure.

OK or NG

>> GO TO 12.

>> Replace radiator cap.

12.

CHECK THERMOSTAT

Remove thermostat.

Check valve seating condition at normal room temperatures.
It should seat tightly.

Check valve opening temperature and valve lift.

Check if valve is closed at 5

C (9

F) below valve opening tem-

perature. For details, refer to

CO-24, "THERMOSTAT AND

WATER CONTROL VALVE"

OK or NG

>> GO TO 13.

>> Replace thermostat.

Testing pressure: 157 kPa (1.6 kg/cm

, 23 psi)

PBIC1528E

Radiator cap relief pressure:

59 - 98 kPa (0.6 - 1.0 kg/cm

, 9 - 14 psi)

SLC755A

Valve opening temperature:

C (203

F) [standard]

Valve lift:

More than 8.0 mm/108

(0.315 in/226

SLC343

EC-512

DTC P1217 ENGINE OVER TEMPERATURE

13.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Refer to

EC-194, "Component Inspection"

OK or NG

>> GO TO 14.

>> Replace engine coolant temperature sensor.

14.

CHECK MAIN 12 CAUSES

If the cause cannot be isolated, go to

EC-512, "Main 12 Causes of Overheating"

>> INSPECTION END

Main 12 Causes of Overheating

EBS00MJW

*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (56 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to

CO-5, "OVERHEATING CAUSE ANALYSIS"

Engine

Step

Inspection item

Equipment

Standard

Reference page

OFF

●

Blocked radiator

●

Blocked condenser
