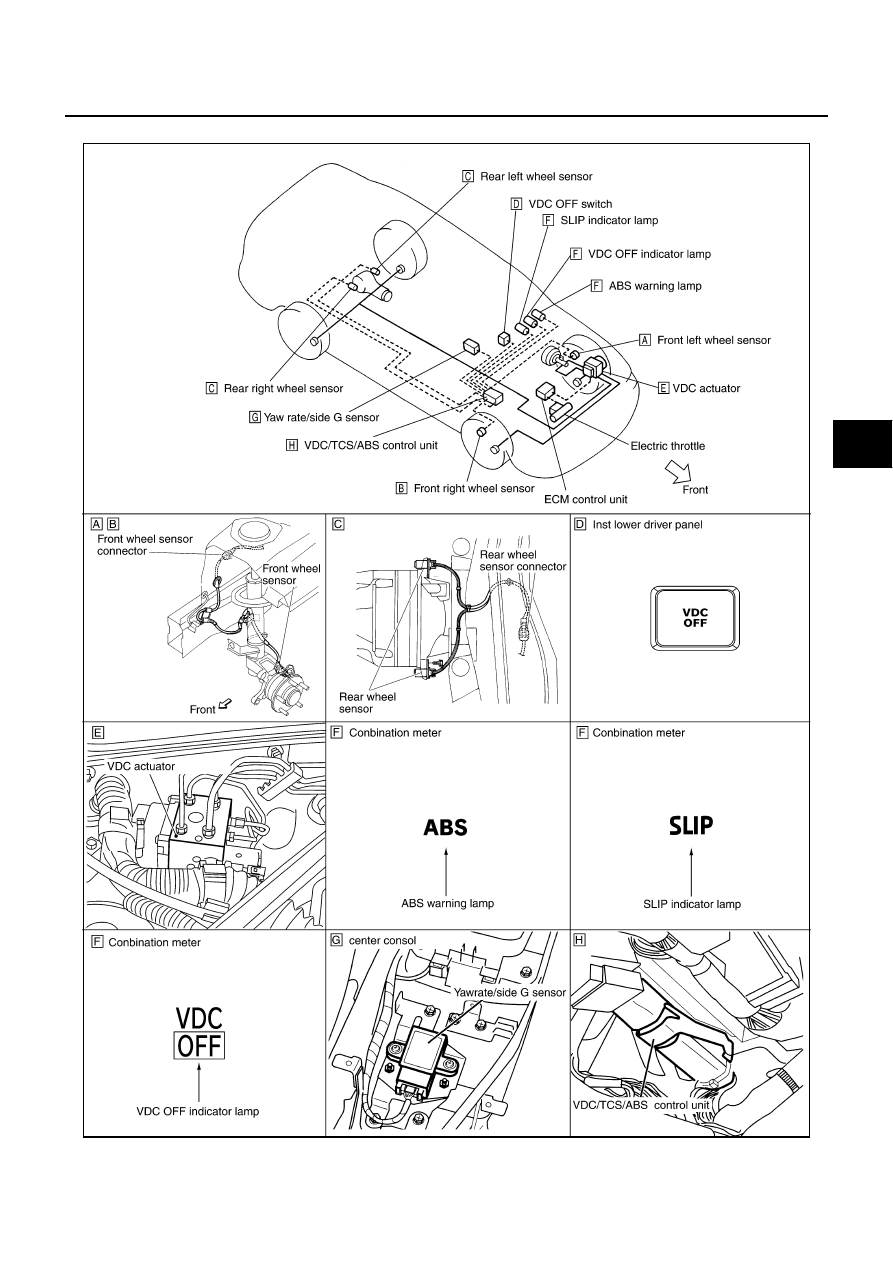

Component Installation Location

EFS001Z5

SFIA0849E

BRC-16

TROUBLE DIAGNOSIS

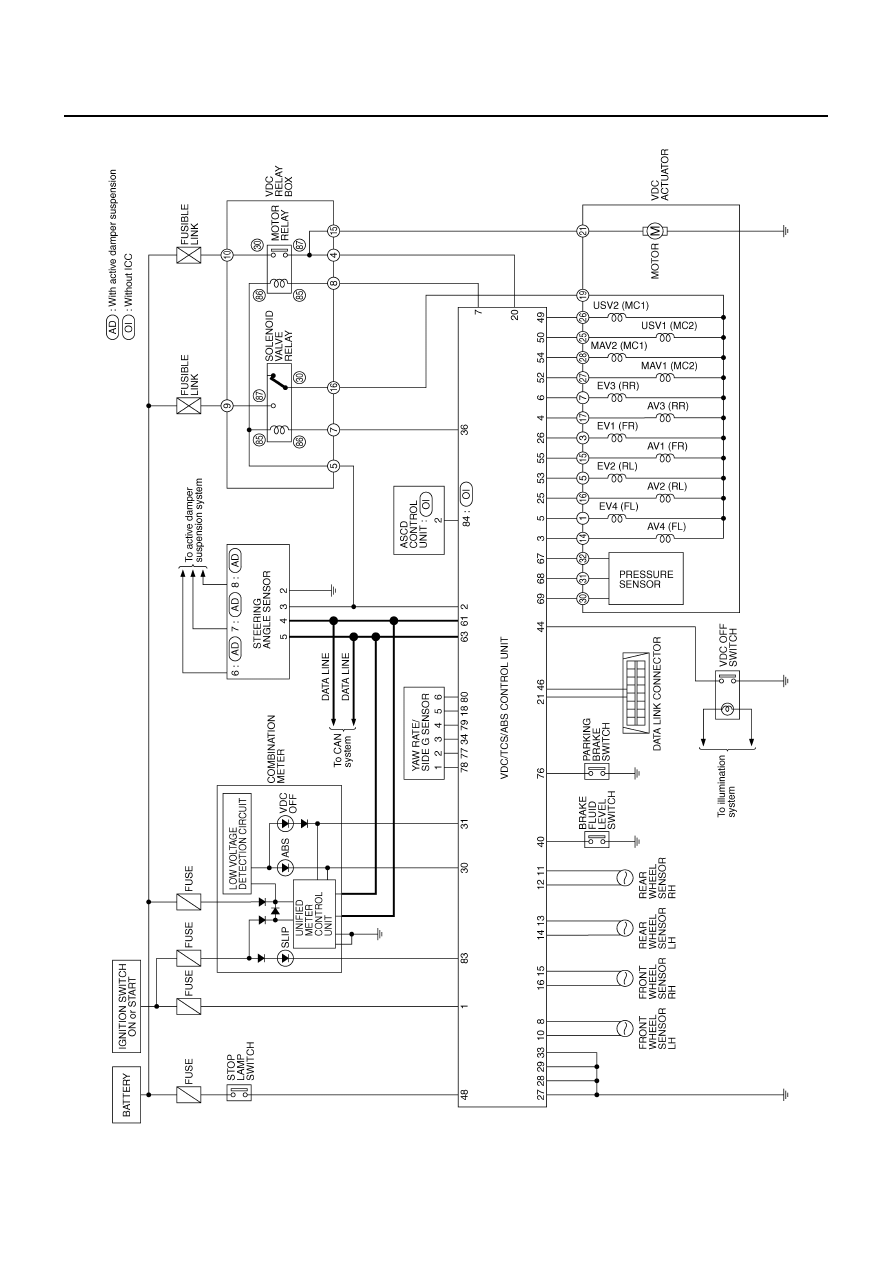

Schematic

EFS001Z6

TFWM0023E

TROUBLE DIAGNOSIS

BRC-17

C

D

E

G

H

I

J

K

L

M

A

B

BRC

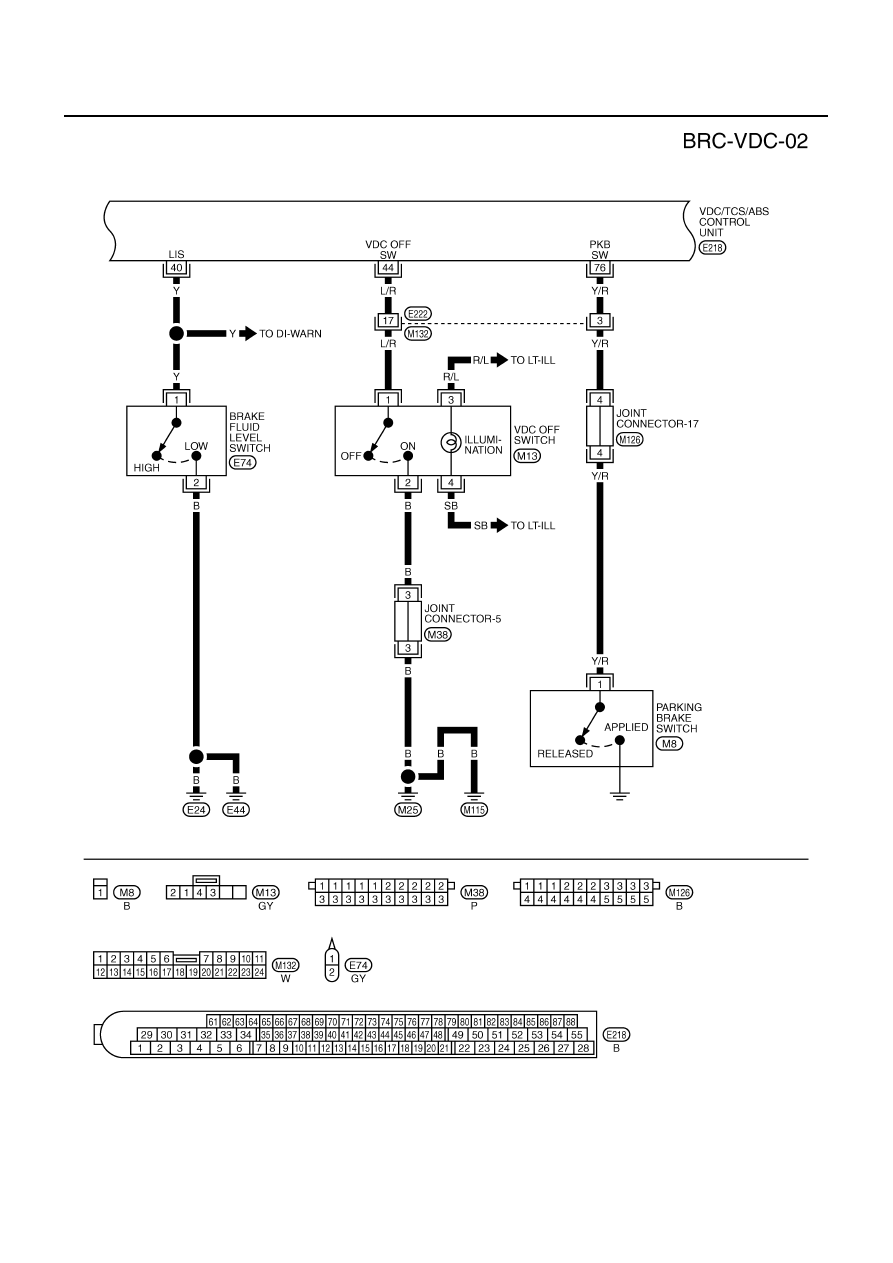

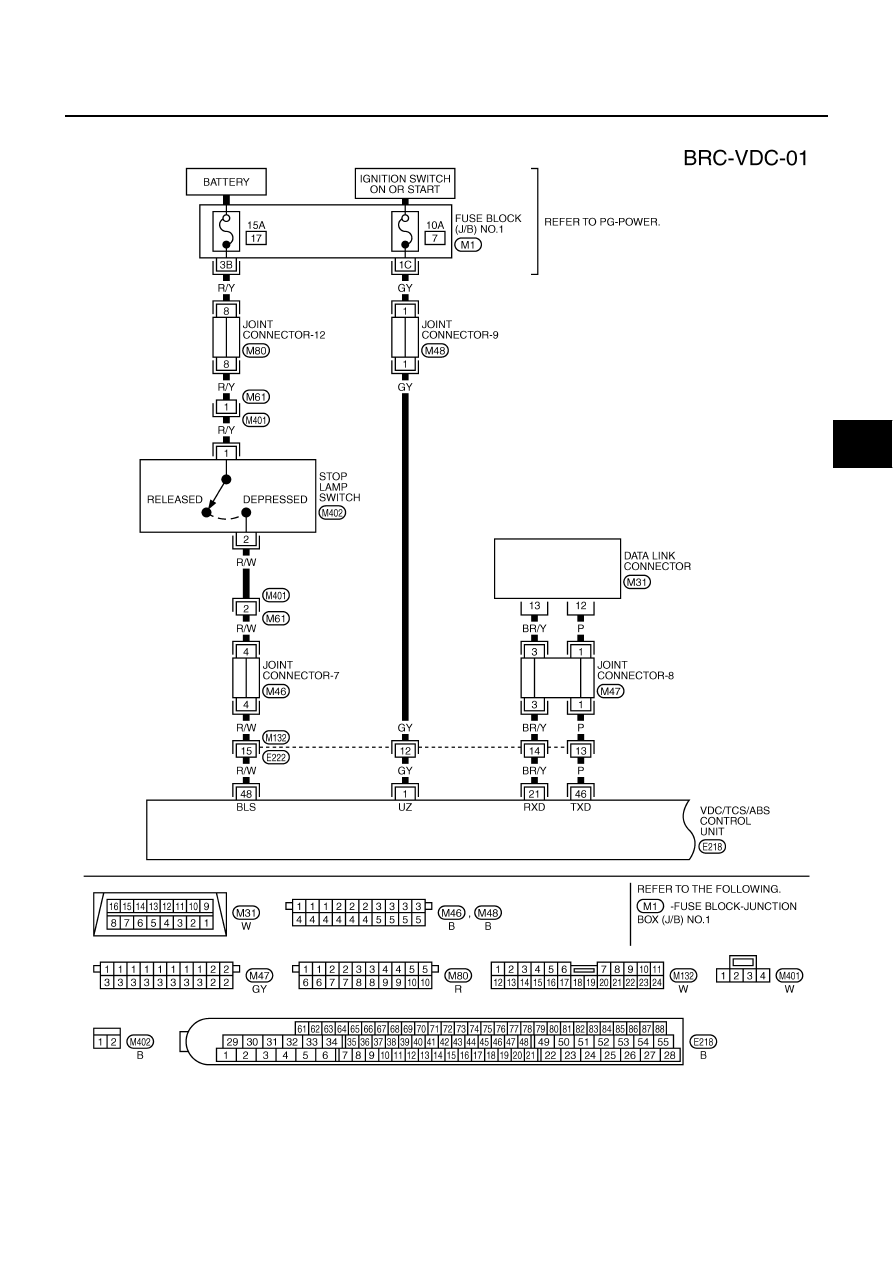

Wiring Diagram — VDC —

EFS001Z7

TFWM0024E

BRC-18

TROUBLE DIAGNOSIS

TFWM0025E
