SQUEAK AND RATTLE TROUBLE DIAGNOSES

BL-11

C

D

E

F

G

H

J

K

L

M

A

B

BL

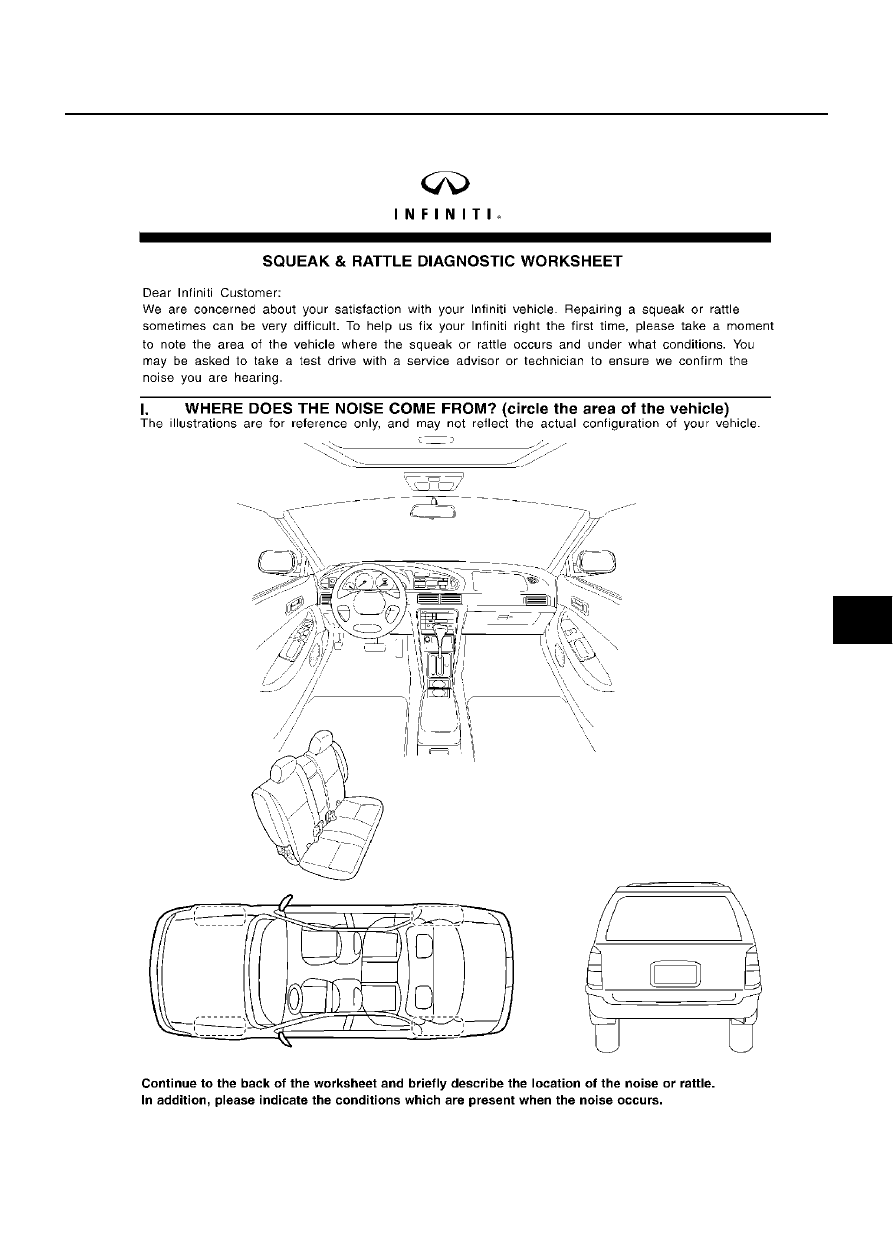

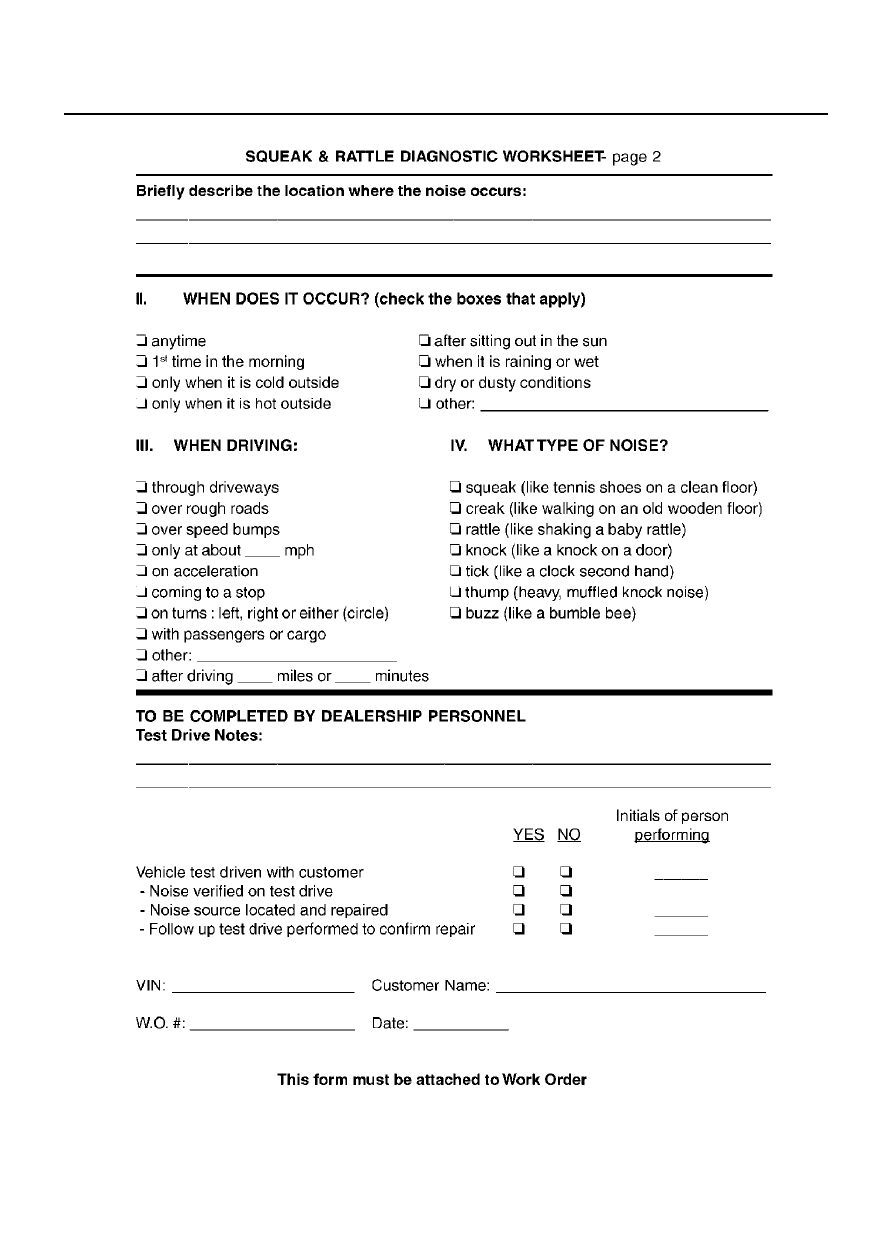

Diagnostic Worksheet

EIS000Z3

SBT860

BL-12

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SBT844

HOOD

BL-13

C

D

E

F

G

H

J

K

L

M

A

B

BL

HOOD

PFP:F5100

Fitting Adjustment

EIS000GD

FRONT END HEIGHT ADJUSTMENT AND LATERAL/LONGITUDINAL CLEARANCE ADJUST-
MENT

1.

Remove the hood lock and adjust the height by rotating the bumper rubber until the hood becomes 1 to
1.5 mm (0.04 to 0.059 in) higher than the fender.

2.

Temporarily tighten the hood lock, and position it by engaging it with the hood striker. Check the lock and
striker for looseness, and tighten the lock mounting bolt to the specified torque.

CAUTION:

Adjust right/left gap between hood and each part to the following specification.

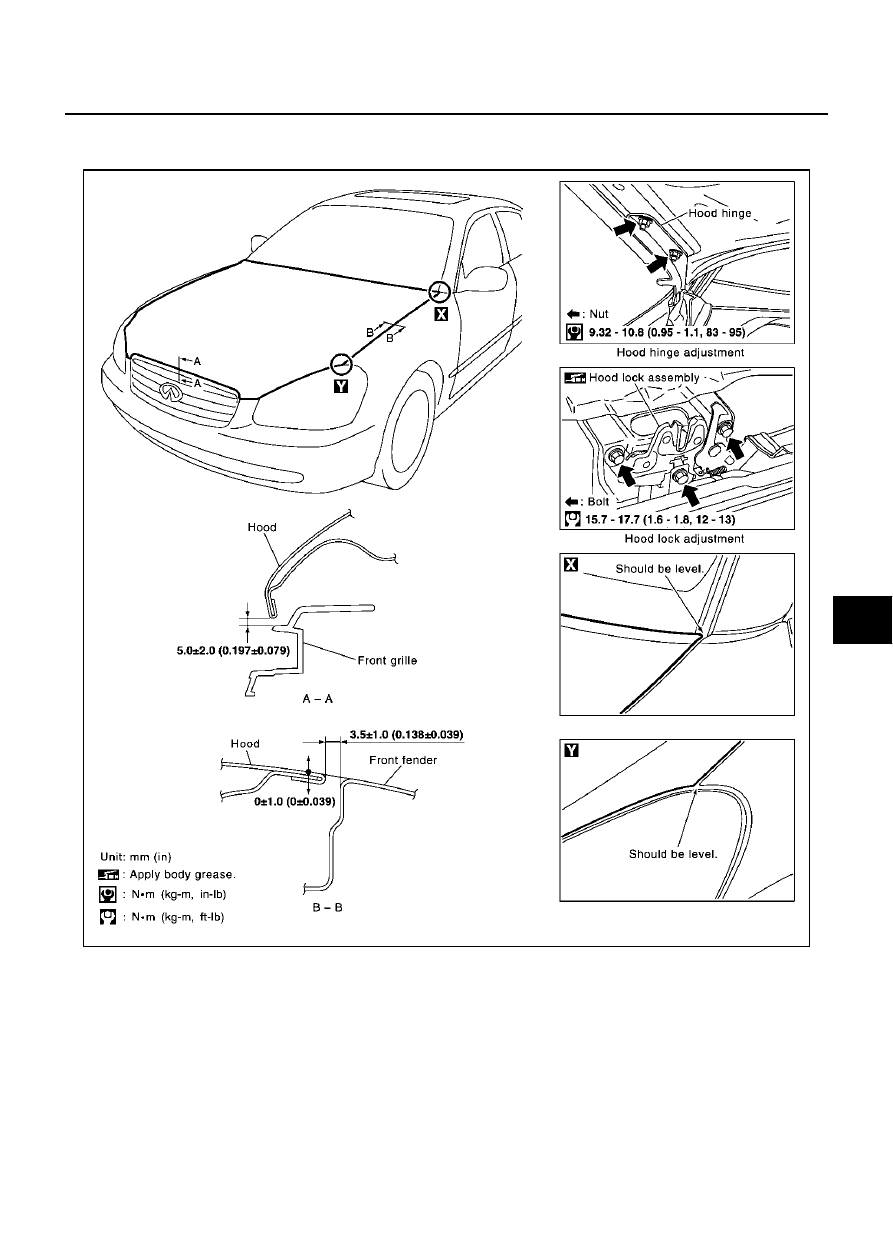

PIIA3410E

Hood and headlamp (B–B)

: Less than 1.0 mm

BL-14

HOOD

SURFACE HEIGHT ADJUSTMENT

1.

Remove the hood lock, and adjust the surface height difference of the hood and fender according to the
fitting standard dimension, by rotating RH and LH bumper rubbers.

2.

Install the hood lock temporarily, and align the food striker and lock so that the centers of striker and lock
become vertical viewed from the front, by moving the hood lock laterally.

3.

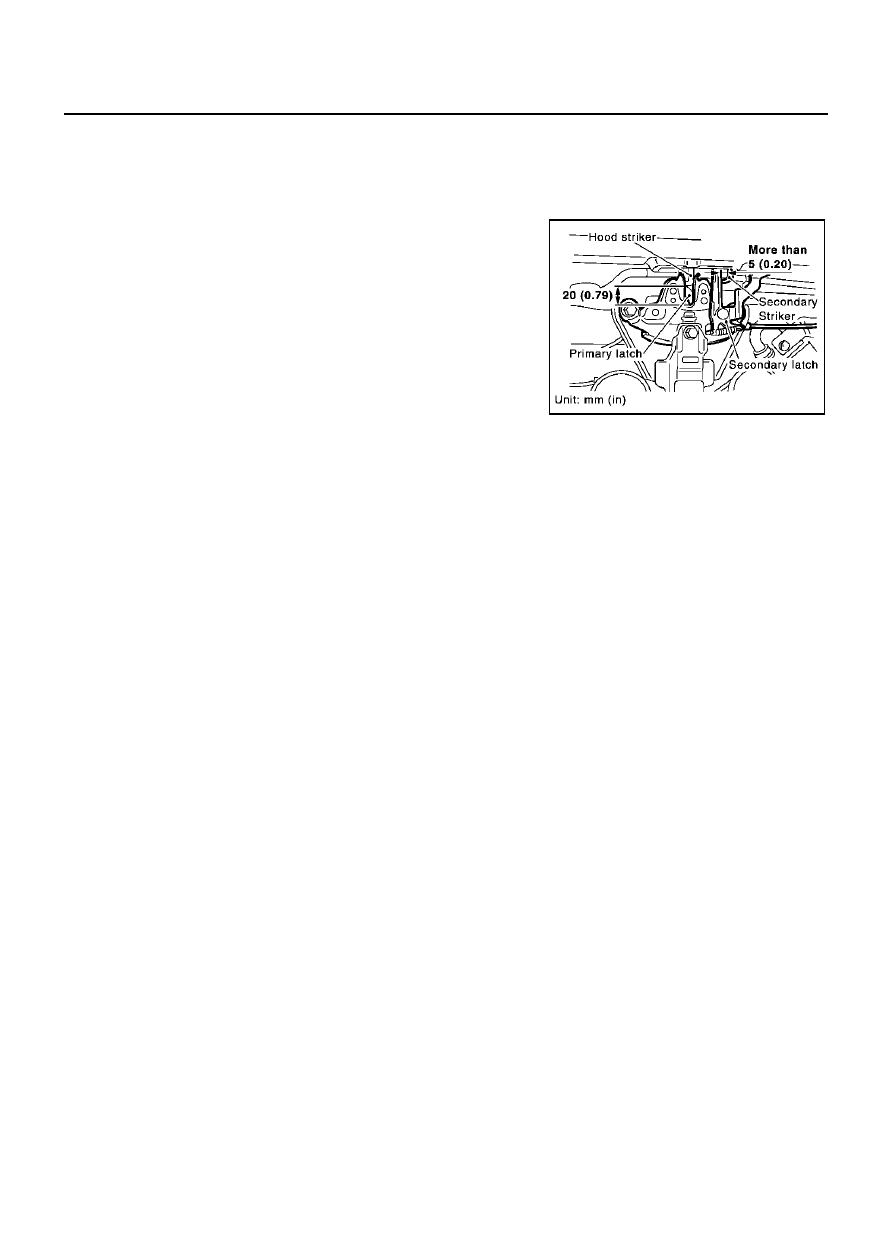

Check that the secondary latch is properly engaged with the
secondary striker with hood's own weight by dropping it from
approx. 200 mm (7.87 in) height or by pressing it lightly approx.
3 kg (29 N).

CAUTION:

Do not drop the hood from 300 mm (11.81 in) height or
higher.

4.

Move the hood lock up and down so that the striker and lock are
engaged firmly with the hood closed.

5.

Tighten the lock mounting bolts to the specified torque.

PIIA3806E
