Infiniti I35 (A33). Manual - part 470

MEL247O

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

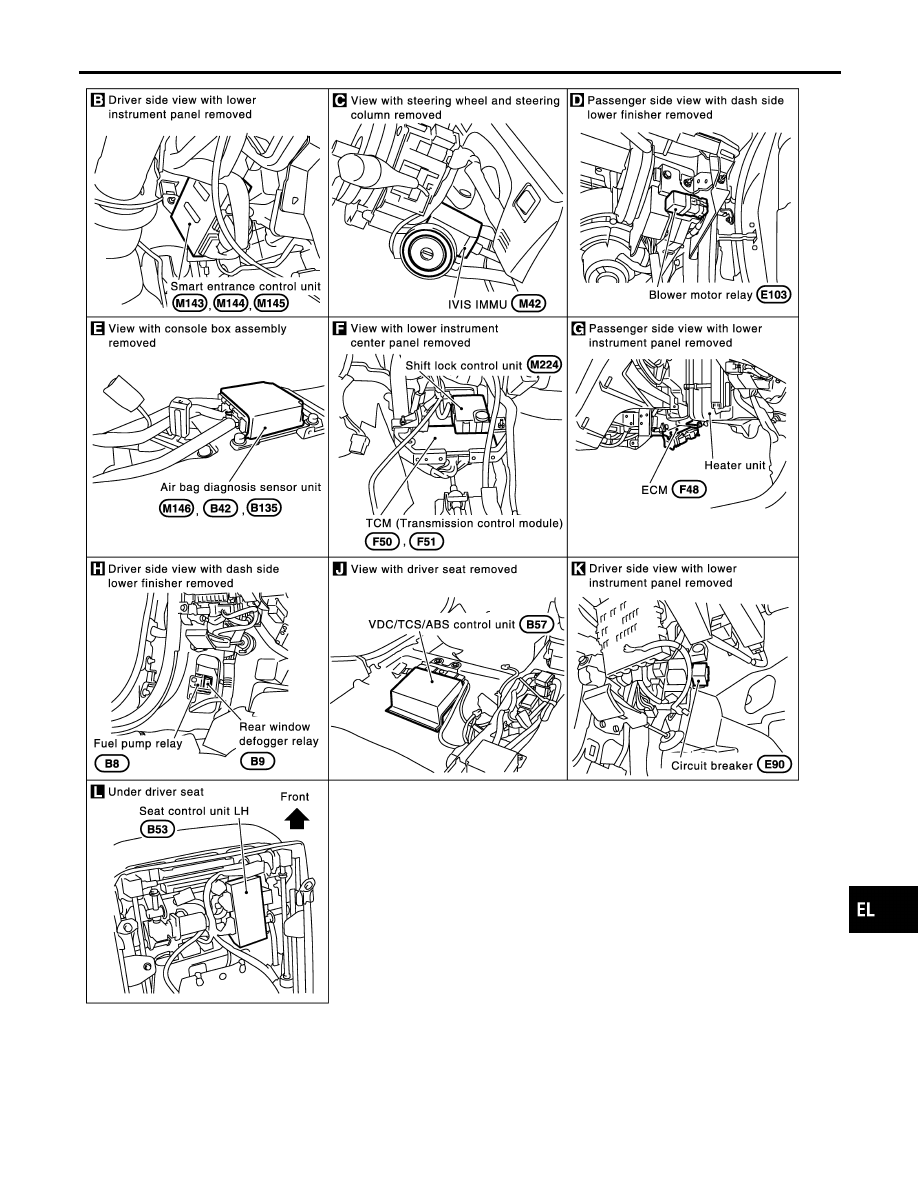

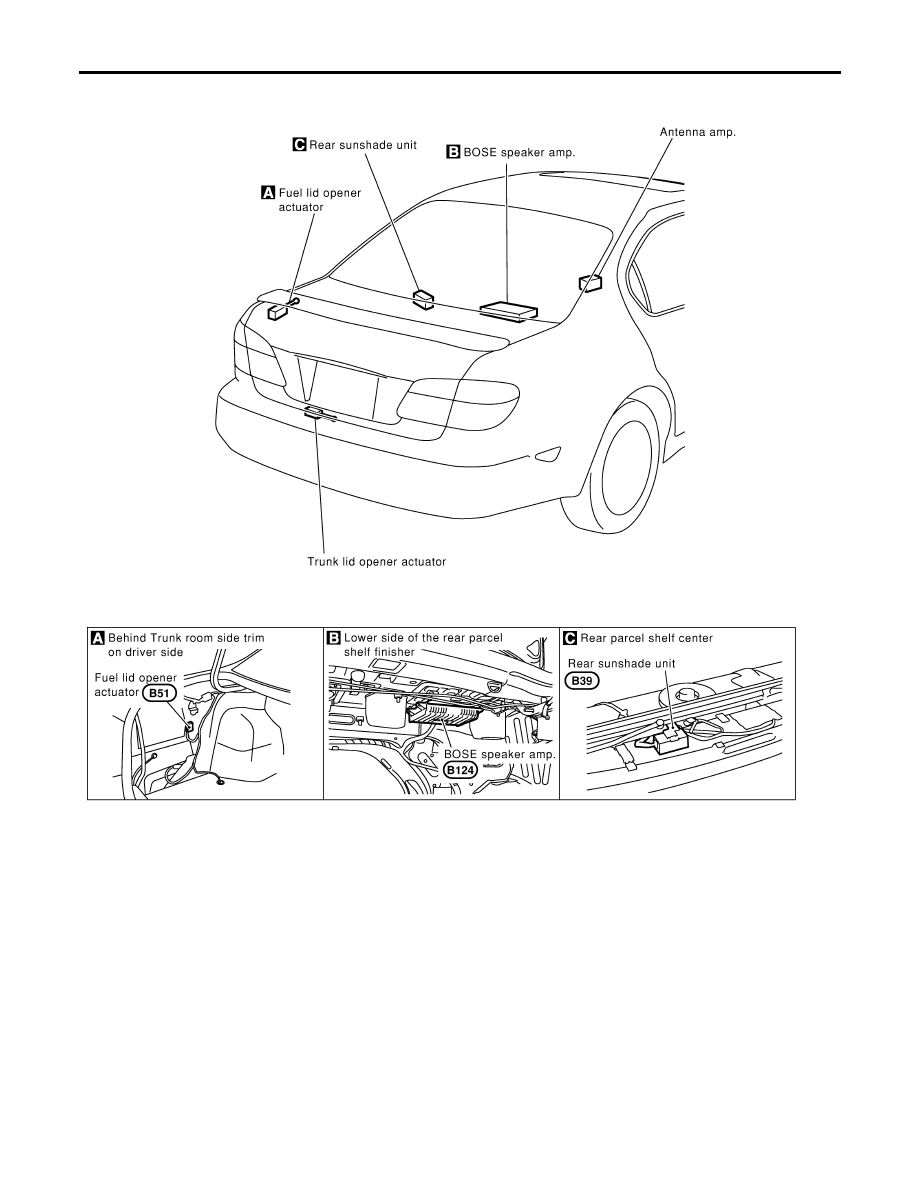

ELECTRICAL UNITS LOCATION

Passenger Compartment (Cont’d)

EL-481

MEL248O

ELECTRICAL UNITS LOCATION

Passenger Compartment (Cont’d)

EL-482

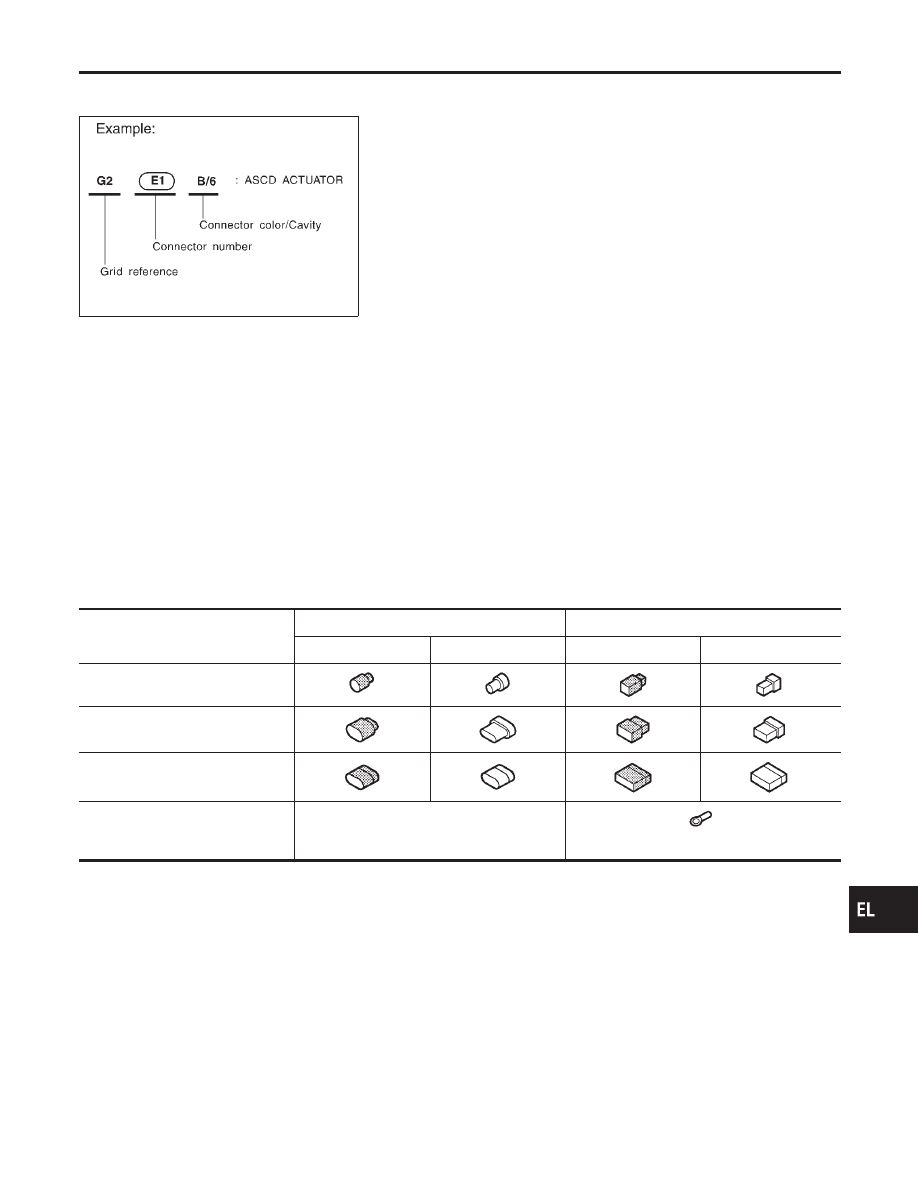

How to Read Harness Layout

NHEL0131

SEL252V

The following Harness Layouts use a map style grid to help locate connectors on the drawings:

I

Main Harness

I

Engine Room Harness (Engine Compartment)

I

Engine Control Harness

I

Body Harness (Passenger Compartment)

TO USE THE GRID REFERENCE

NHEL0131S01

1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

CONNECTOR SYMBOL

NHEL0131S02

Main symbols of connector (in Harness Layout) are indicated in the below.

Connector type

Water proof type

Standard type

Male

Female

Male

Female

I

Cavity: Less than 4

I

Relay connector

I

Cavity: From 5 to 8

I

Cavity: More than 9

I

Ground terminal etc.

—

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HARNESS LAYOUT

How to Read Harness Layout

EL-483

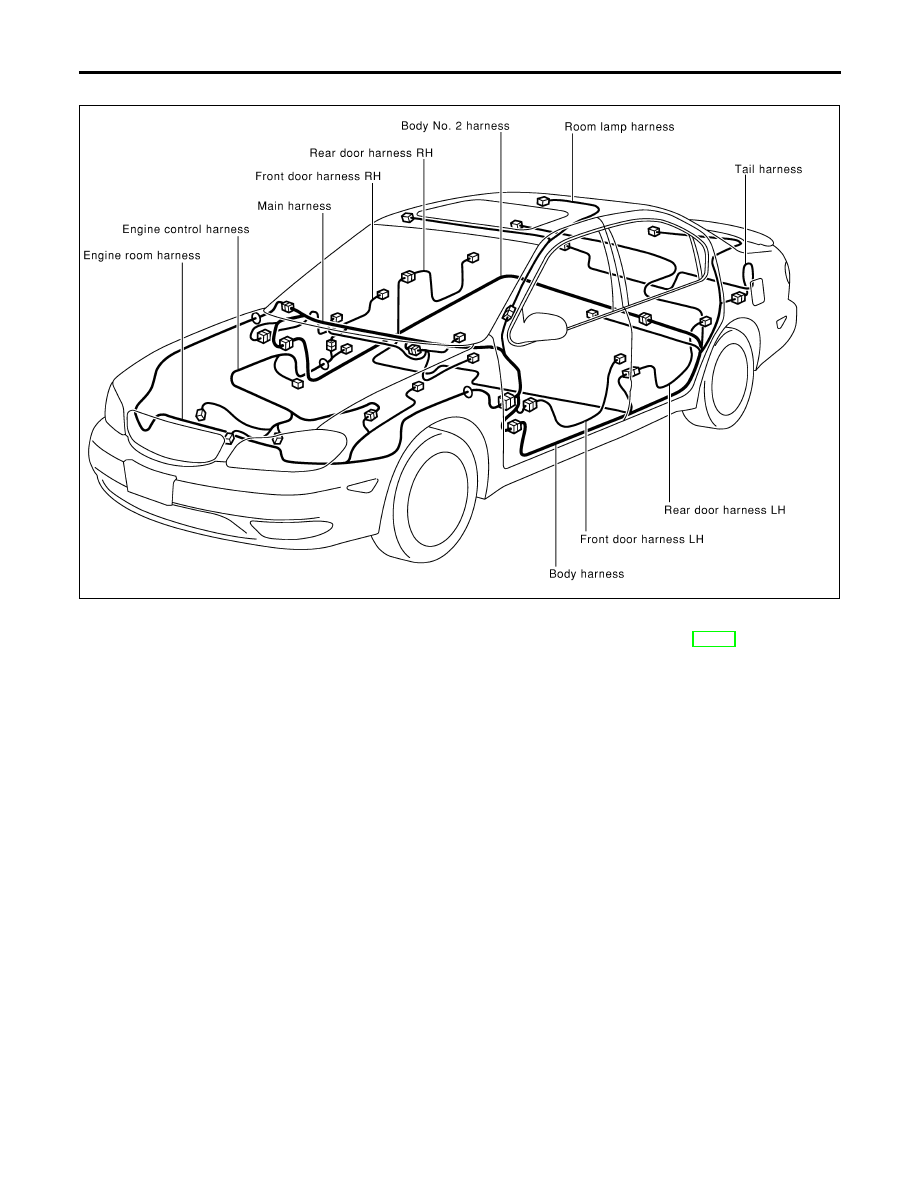

Outline

NHEL0132

MEL211O

NOTE:
For detailed ground distribution information, refer to “Ground Distribution”, “GROUND”, EL-20.

HARNESS LAYOUT

Outline

EL-484
