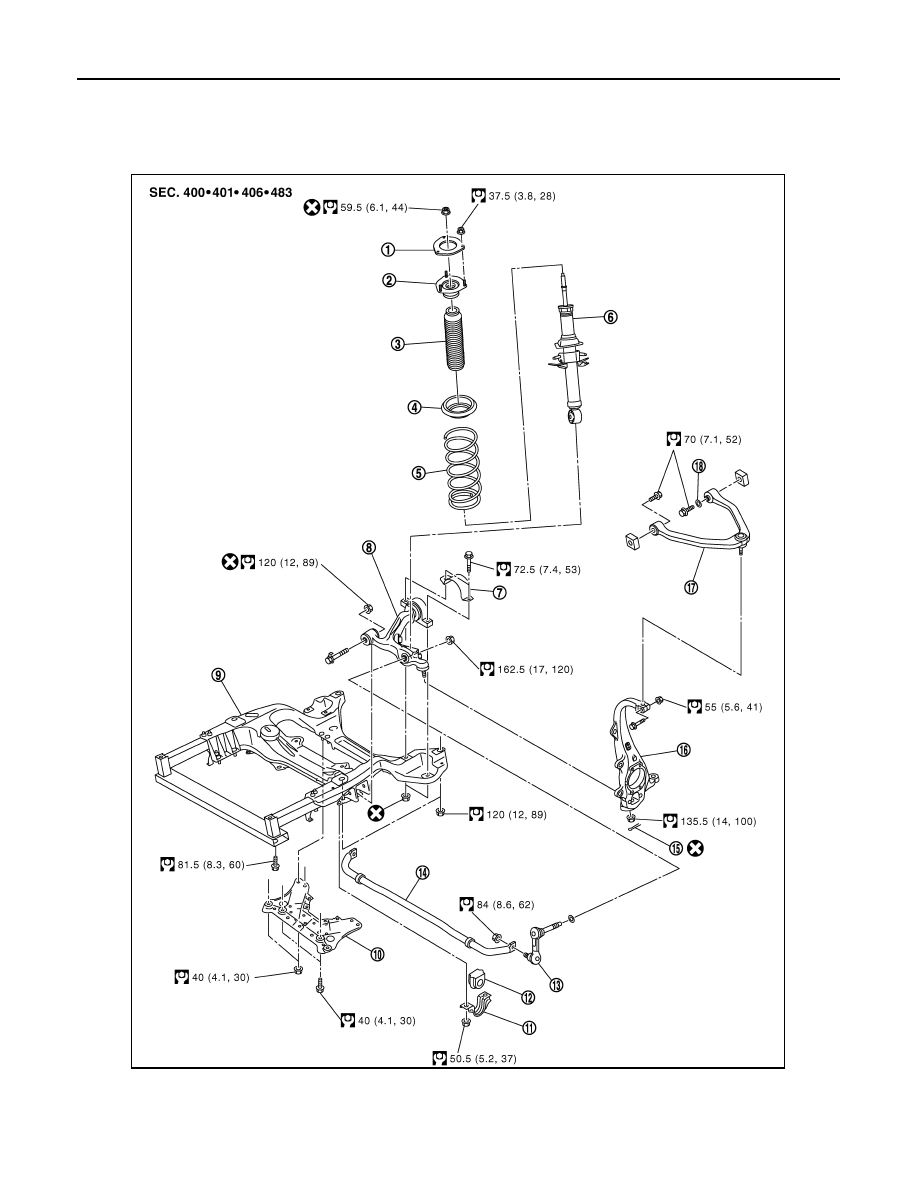

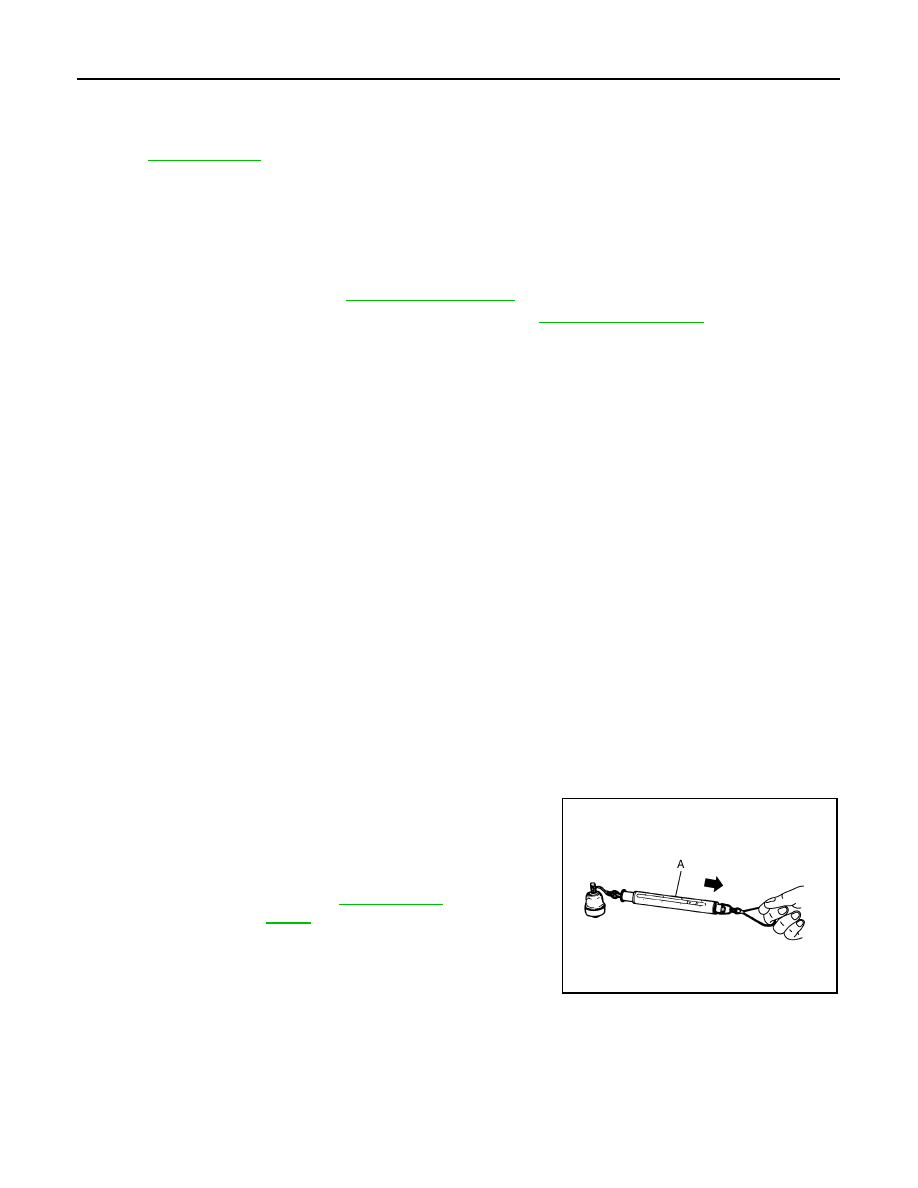

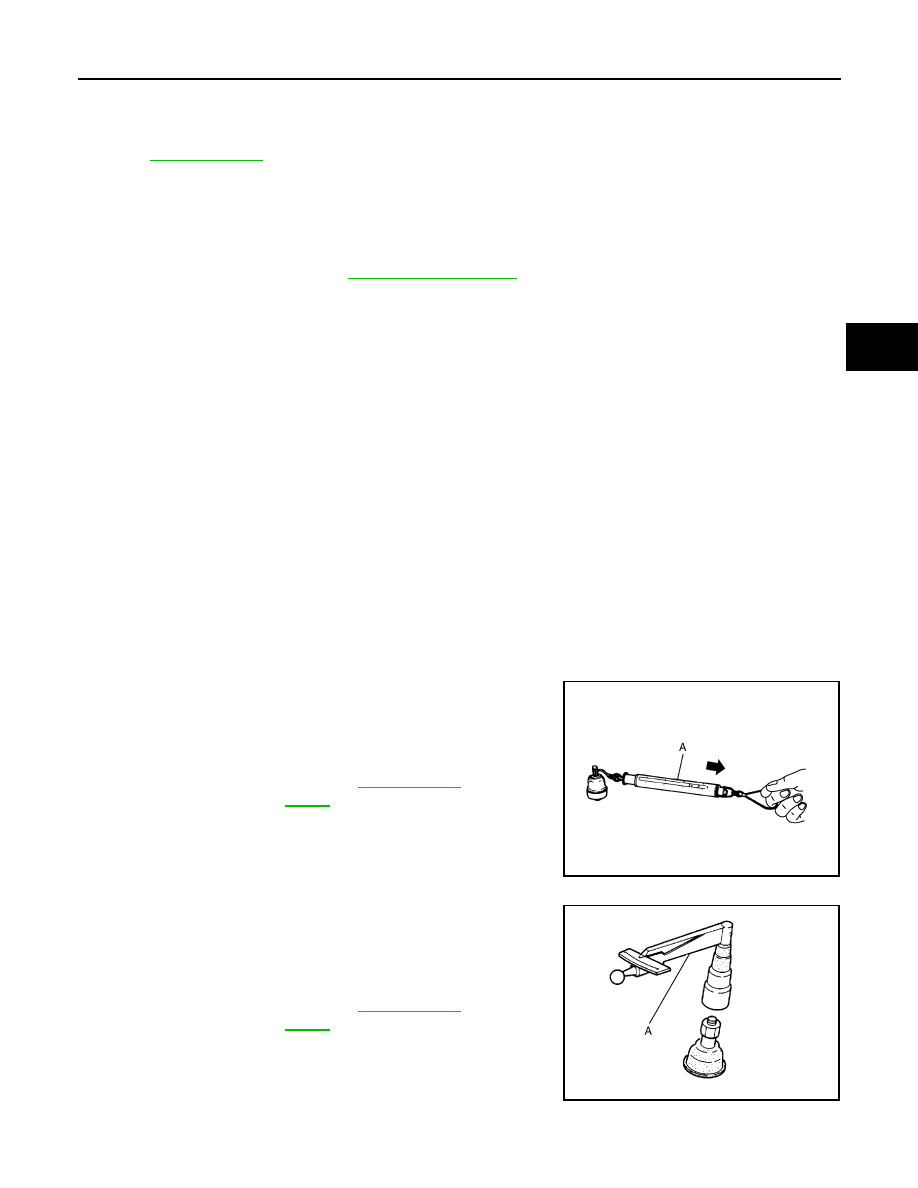

FSU-14 < ON-VEHICLE REPAIR > TRANSVERSE LINK Removal and Installation INFOID:0000000001666557 REMOVAL 1. Remove tires with power tool. 2. Remove under cover with power tool. 3. Remove shock absorber. Refer to . 4. Remove steering outer socket from steering knuckle. Refer to . 5. Remove transverse link from steering knuckle. 6. Set suitable jack under transverse link. 7. Remove mounting bolts and nuts, and then remove transverse link. INSTALLATION Note the following, and install in the reverse order of removal. CAUTION: Never tap on the ball joint cap of the stabilizer connecting rod with a hammer or a similar item when lower side (rubber bushing), under unladen conditions with tires on level ground. Inspection INFOID:0000000001666558 INSPECTION AFTER REMOVAL Visual Inspection Check the following: detected. Ball Joint Inspection Manually move ball stud to confirm it moves smoothly with no binding. Swing Torque Inspection NOTE: spring balance measurement value is within specifications when - If it is outside the specified range, replace transverse link assem- bly. Rotating Torque Inspection 10. Suspension member stay 11. Stabilizer clamp 12. Stabilizer bushing 13. Stabilizer connecting rod 14. Stabilizer bar 15. Cotter pin 16. Steering knuckle 17. Upper link 18. Stopper rubber Refer to for symbols in the figure. Standard Swing toque : Refer to JPEIA0005ZZ |
