FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

Use the following procedure to check for fuel leaks.

1.

Turn ignition switch “ON” (with engine stopped), then check connections for leakage by applying fuel pres-
sure to fuel piping.

2.

Start engine and let it idle and check there are no fuel leaks at the fuel system connections.

FL-10

< ON-VEHICLE REPAIR >

FUEL TANK

FUEL TANK

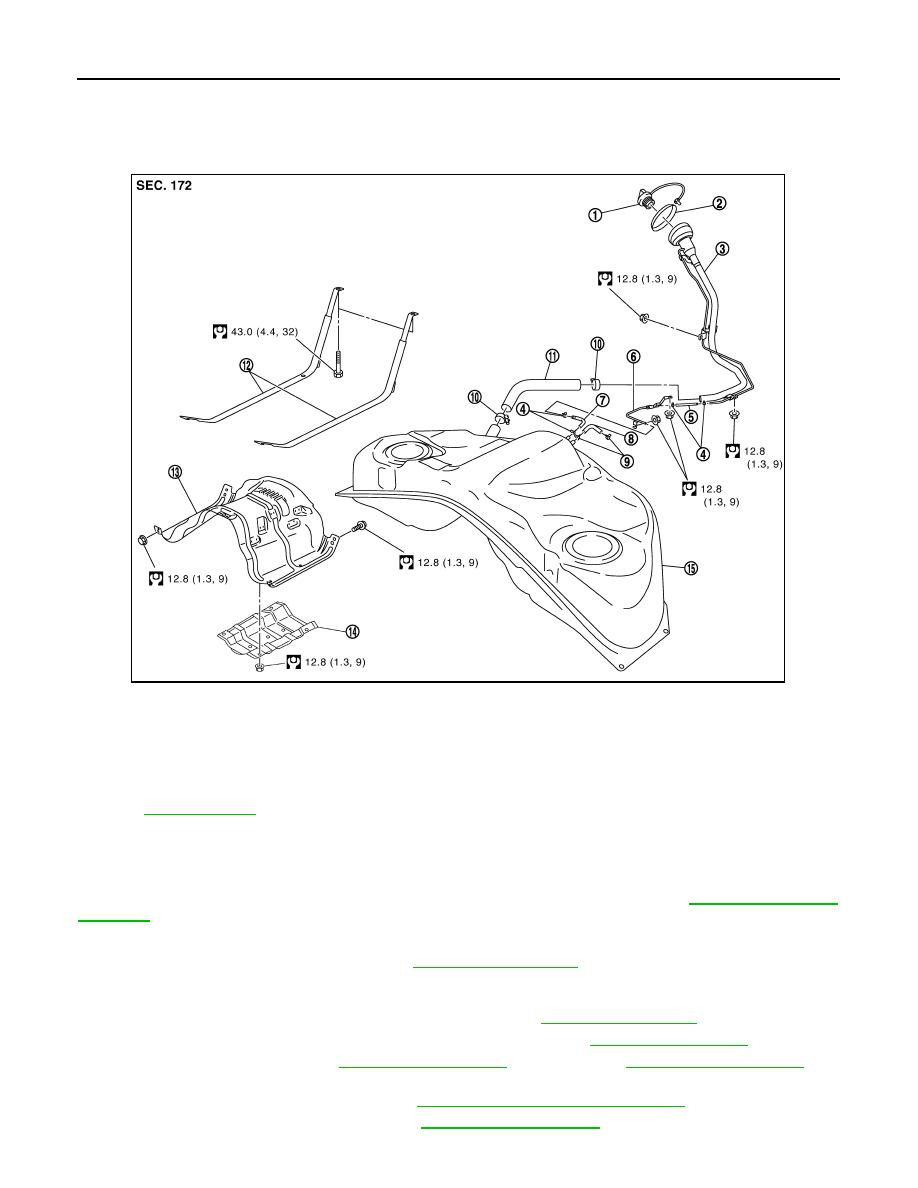

Exploded View

INFOID:0000000001547700

Removal and Installation

INFOID:0000000001547701

WARNING:

Be sure to read “General Precautions” when working on the fuel system. Refer to

GI-25, "General Pre-

cautions"

.

REMOVAL

• Drain fuel from fuel tank if necessary. Refer to

FL-10, "Exploded View"

.

• Perform work on level place.
1.

Perform steps 2 to 7 of “REMOVAL” in “ FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP
ASSEMBLY” on main and sub fuel level sensor units. Refer to

FL-5, "Exploded View"

.

2.

Remove exhaust front tube, center muffler and main muffler. Refer to

EX-5, "Exploded View"

.

3.

Remove propeller shaft. Refer to

DLN-7, "Exploded View"

 (M/T models) or

DLN-14, "Exploded View"

 (A/T

models).

4.

Remove parking rear brake cables. Refer to

PB-8, "LEVER TYPE : Exploded View"

.

5.

Remove rear suspension assembly. Refer to

RSU-23, "Exploded View"

.

1.

Fuel filler cap

2.

Grommet

3.

Fuel filler tube

4.

Clamp

5.

Vent hose

6.

Vent tube

7.

Vent hose

8.

EVAP hose

9.

Clamp

10. Clamp

11.

Fuel filler hose

12. Fuel tank mounting band

13. Fuel tank protector

14.

Insulator

15. Fuel tank

Refer to

GI-4, "Components"

 for to symbols in the figure.

JPBIA0155GB

FUEL TANK

FL-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

6.

Remove fuel tank protector.

7.

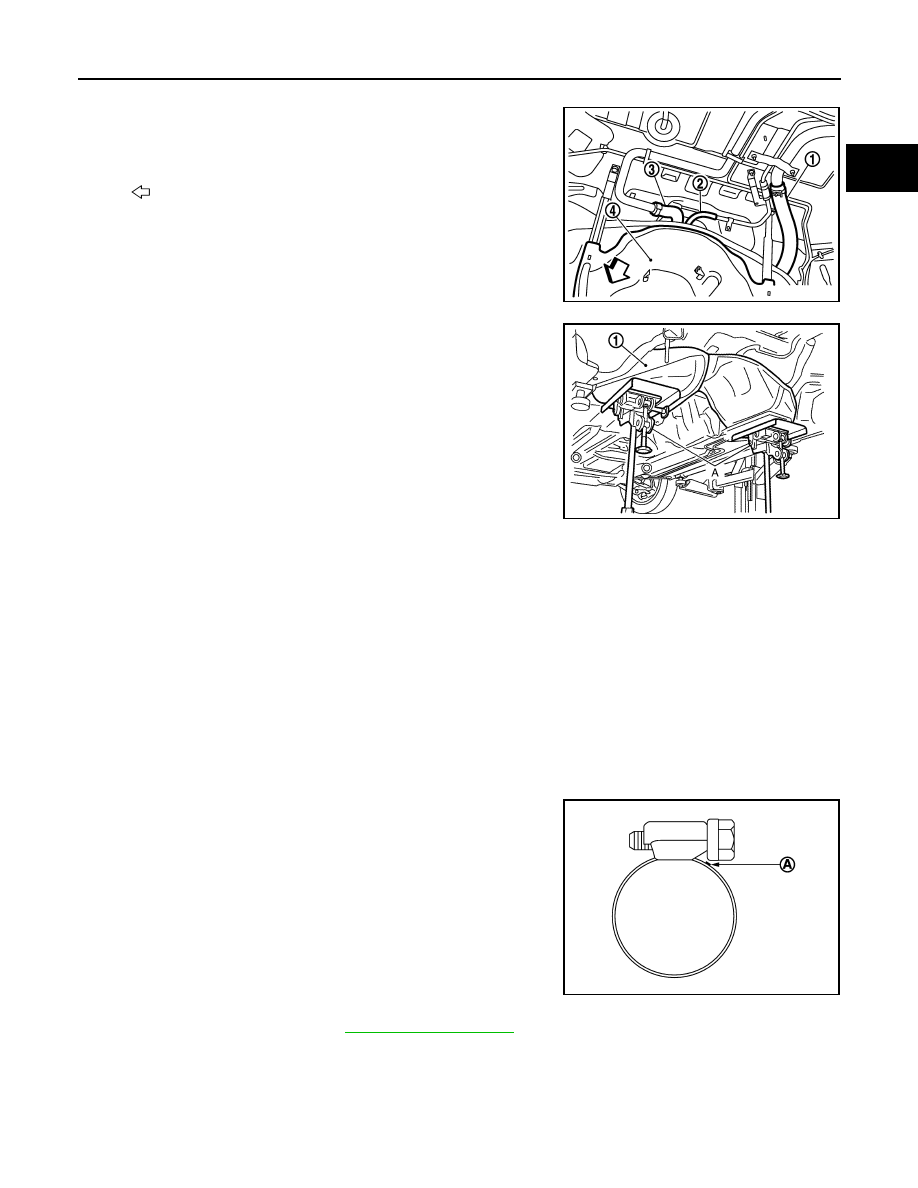

Disconnect fuel filler hose (1), vent hose (2) and EVAP hoses (3)
at fuel tank side.

8.

Support the lower part of fuel tank (1) with transmission jack (A).

CAUTION:

Support the position that fuel tank mounting bands  never
engage.

9.

Remove fuel tank mounting bands.

10. Supporting with hands, descend transmission jack carefully, and remove fuel tank.

CAUTION:

• Check that all connection points have been disconnected.
• Confirm there is no interference with vehicle.

11. Remove fuel filler tube, as necessary.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Surely clamp fuel hoses and insert hose to the length below.

• Be sure hose clamp is not placed on swelled area of fuel tube.
• Tighten the clamp hand with the top mark until the mark is on the

bolt head flange “A”.

• To connect quick connector, refer to

FL-4, "Quick Connector"

.

Inspection

INFOID:0000000001547702

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leaks.

4

: Fuel tank protector

: Vehicle front

JPBIA0144ZZ

JPBIA0145ZZ

Fuel filler hose

: 35 mm (1.38 in)

The other hoses

: 25 mm (0.98 in)

JPBIA0146ZZ

FL-12

< ON-VEHICLE REPAIR >

FUEL TANK

1.

Turn ignition switch “ON” (with engine stopped), and check connections for leakage by applying fuel pres-
sure to fuel piping.

2.

Start engine and rev it up and check there are no fuel leaks at the fuel system tube and hose connections.

• After removing/installing rear suspension assembly, check to adjust wheel alignment and then, adjust neutral

position of steering angle sensor. Refer to

RSU-6, "Wheel Alignment Inspection"

 and

STC-27, "4WAS

FRONT ACTUATOR NEUTRAL POSITION ADJUSTMENT : Description"

.
