CYLINDER HEAD

EM-107

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2.

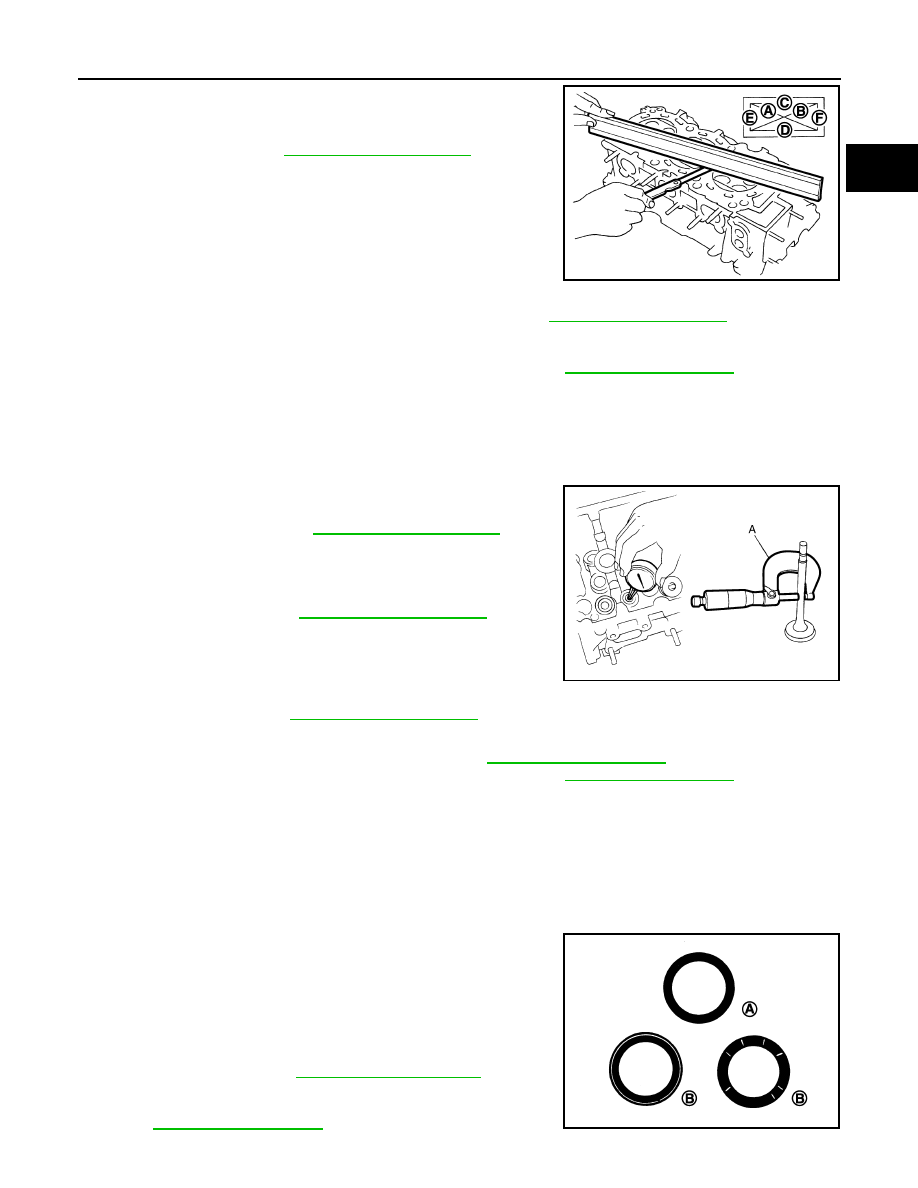

At each of several locations on bottom surface of cylinder head,
measure the distortion in six directions (A - F).

• If it exceeds the limit, replace VVEL ladder assembly & cylinder

head assembly.
NOTE:
Cylinder head assembly cannot be replaced as a single part,
because it is machined together with VVEL ladder assembly.

Valve Dimensions

• Check the dimensions of each valve. For the dimensions, refer to

EM-141, "Cylinder Head"

.

• If dimensions are out of the standard.
- Replace valve (EXH) and check valve seat contact. Refer to "VALVE SEAT CONTACT". (Exhaust side)
- Replace VVEL ladder assembly & cylinder head assembly. Refer to

EM-83, "Exploded View"

. (Intake side)

NOTE:
Since the valve (INT) cannot be replaced by the piece, VVEL ladder assembly & cylinder head assembly
replacement are required.

Valve Guide Clearance

Valve Stem Diameter

• Measure the diameter of valve stem with micrometer (A).

Valve Guide Inner Diameter

• Measure the inner diameter of valve guide with bore gauge.

Valve Guide Clearance

• (Valve guide clearance) = (Valve guide inner diameter) – (Valve

stem diameter)

• If the calculated value exceeds the limit.
- Replace valve (EXH) and/or valve guide (EXH). Refer to

EM-100, "Exploded View"

. (Exhaust side)

- Replace VVEL ladder assembly & cylinder head assembly. Refer to

EM-83, "Exploded View"

. (Intake side)

NOTE:
Since the valve (INT) and valve guide (INT) cannot be replaced by the piece, VVEL ladder assembly & cylin-
der head assembly replacement are required.

Valve Seat Contact

• After confirming that the dimensions of valve guides and valves are within the specifications, perform this

procedure.

• Apply prussian blue (or white lead) onto contacting surface of valve seat to check the condition of the valve

contact on the surface.

• Check if the contact area band is continuous all around the circum-

ference.

- If not, grind to adjust valve fitting and check again. If the contacting

surface still has “NG” conditions even after the re-check, replace
valve seat (EXH). Refer to

EM-100, "Exploded View"

. (Exhaust

side)

- If not, replace VVEL ladder assembly & cylinder head assembly.

Refer to

EM-83, "Exploded View"

. (Intake side)

Limit

: Refer to

EM-141, "Cylinder Head"

.

JPBIA0176ZZ

Standard :

Refer

to

EM-141, "Cylinder Head"

.

Standard

: Refer to

EM-141, "Cylinder Head"

.

Standard

: Refer to

EM-141, "Cylinder Head"

.

JPBIA0183ZZ

A

:  OK

B

:  NG

JPBIA0187ZZ

EM-108

< DISASSEMBLY AND ASSEMBLY >

CYLINDER HEAD

NOTE:
Since the valve seat (INT) cannot be replaced by the piece, VVEL ladder assembly & cylinder head assem-
bly replacement are required.

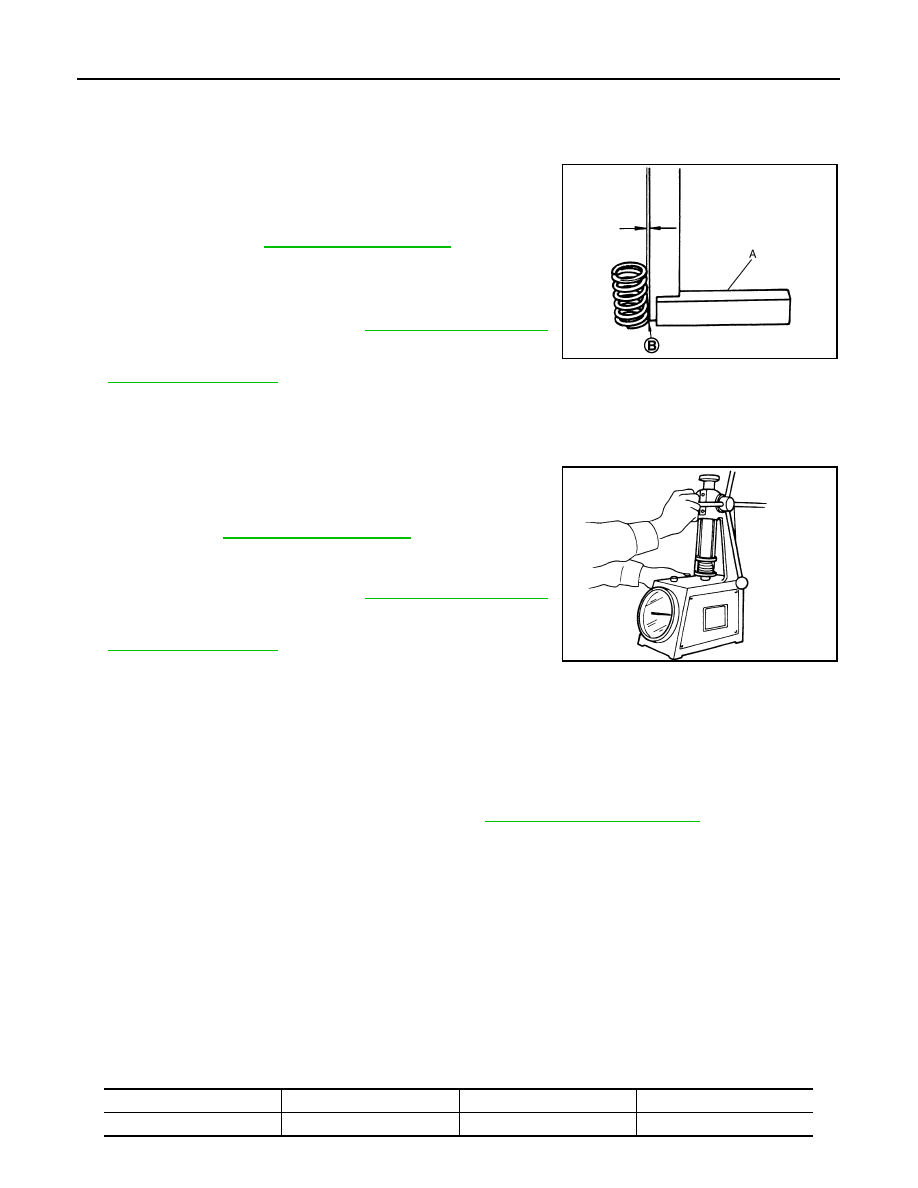

Valve Spring Squareness

• Set a try square (A) along the side of valve spring and rotate

spring. Measure the maximum clearance between the top of spring
and try square.

• If it exceeds the limit.
- Replace valve spring (EXH). Refer to

EM-100, "Exploded View"

.

(Exhaust side)

- Replace VVEL ladder assembly & cylinder head assembly. Refer

to

EM-83, "Exploded View"

. (Intake side)

NOTE:
Since the valve spring (INT) cannot be replaced by the piece, VVEL ladder assembly & cylinder head
assembly replacement are required.

Valve Spring Dimensions and Valve Spring Pressure Load

• Check the valve spring pressure at specified spring height.

• If the installation load or load with valve open is out of the stan-

dard.

- Replace valve spring (EXH). Refer to

EM-100, "Exploded View"

.

(Exhaust side)

- Replace VVEL ladder assembly & cylinder head assembly. Refer

to

EM-83, "Exploded View"

. (Intake side)

NOTE:
Since the valve spring (INT) cannot be replaced by the piece, VVEL ladder assembly & cylinder head
assembly replacement are required.

INSPECTION AFTER INSTALLATION

Inspection for Leakage

The following are procedures for checking fluid leakage, lubricant leakage.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If any are less than the

required quantity, fill them to the specified level. Refer to

MA-10, "Fluids and Lubricants"

.

• Follow the procedure below to check for fuel leakage.
- Turn ignition switch to the “ON” position (with engine stopped). With fuel pressure applied to fuel piping,

check for fuel leakage at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.

NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate a malfunction. The
noise will stop after hydraulic pressure rises.

• Warm up engine thoroughly to check that there is no leakage of fuel, or any oil/fluids including engine oil and

engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill them to

the specified level, if necessary.

Summary of the inspection items:

Limit

: Refer to

EM-141, "Cylinder Head"

.

B

: Contact

JPBIA0189ZZ

Standard

: Refer to

EM-141, "Cylinder Head"

.

SEM113

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

CYLINDER HEAD

EM-109

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

Engine oil

Level

Leakage

Level

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

EM-110

< DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

CYLINDER BLOCK

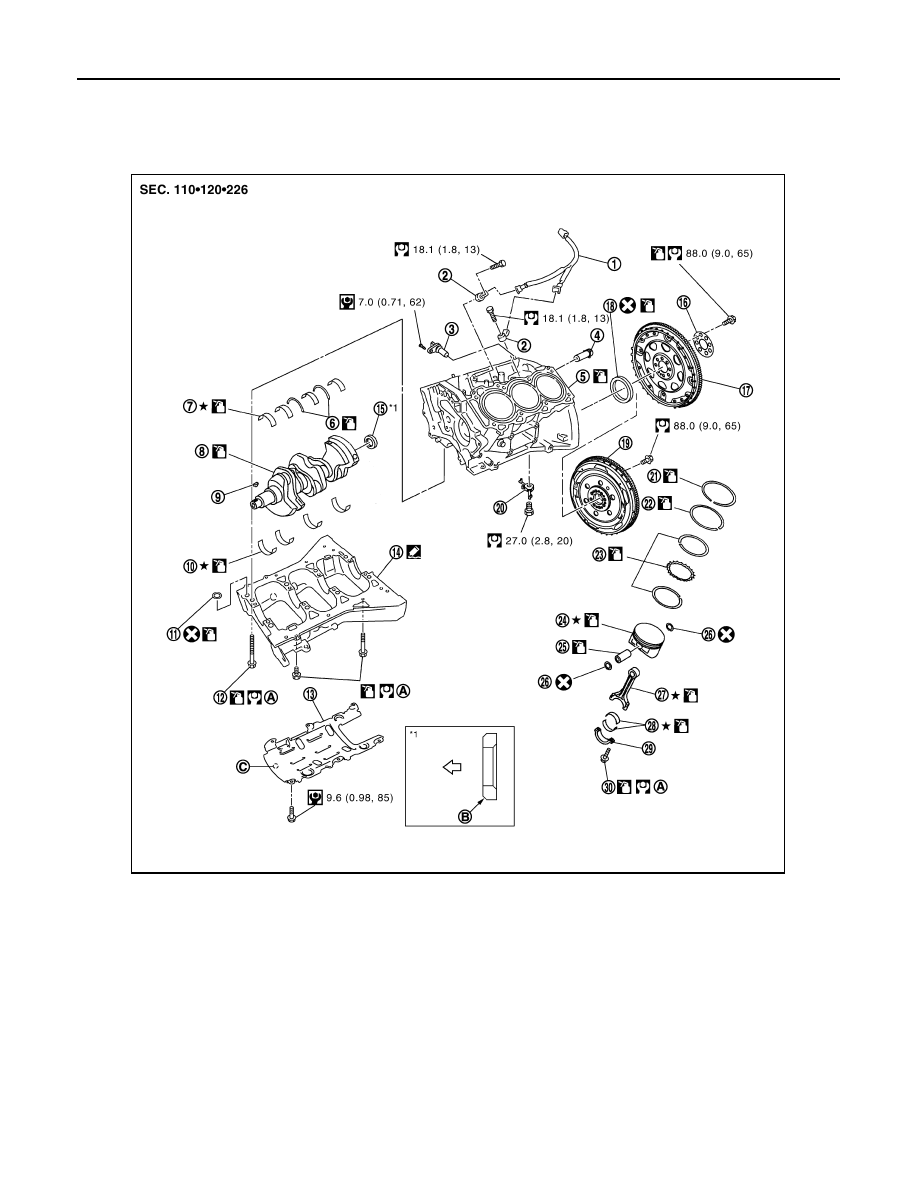

Exploded View

INFOID:0000000001547565

1.

Sub harness

2.

Knock sensor

3.

Crankshaft position sensor

4.

Cylinder block heater (for Canada)

5.

Cylinder block

6.

Thrust bearing

7.

Main bearing (upper)

8.

Crankshaft

9.

Crankshaft key

10. Main bearing (lower)

11. O-ring

12. Lower cylinder block bolt

13. Baffle plate

14. Lower cylinder block

15.

Pilot converter (A/T models)
Pilot bush (M/T models)

16. Reinforcement plate (A/T models)

17. Drive plate (A/T models)

18. Rear oil seal

19. Flywheel (M/T models)

20. Oil jet

21. Top ring

22. Second ring

23. Oil ring

24. Piston

25. Piston pin

26. Snap ring

27. Connecting rod

28. Connecting rod bearing

29. Connecting rod bearing cap

30. Connecting rod bolt

JPBIA1351GB
