TRANSMISSION ASSEMBLY

TM-293

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

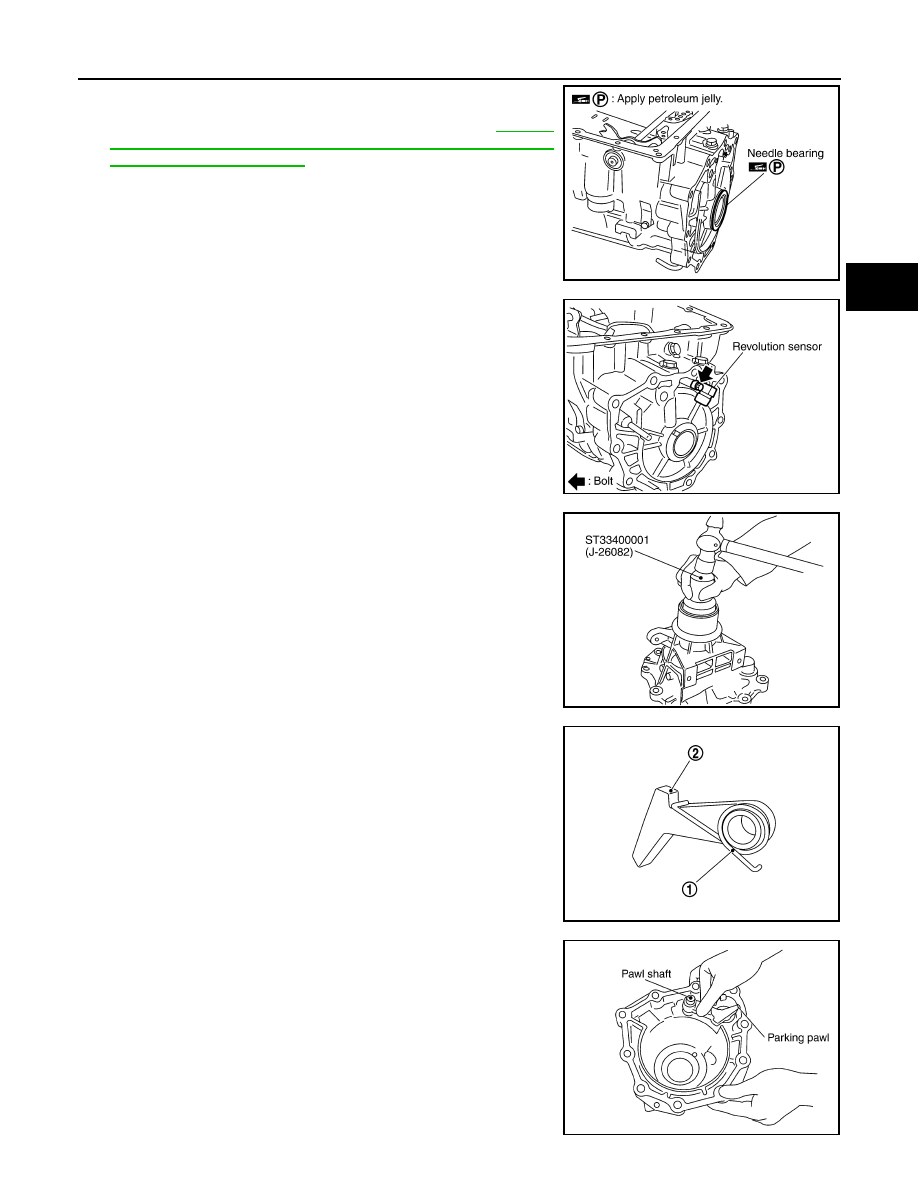

23. Install needle bearing to transmission case.

CAUTION:

Check the direction of needle bearing. Refer to

TM-272,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

24. Install revolution sensor to transmission case. Tighten revolution

sensor bolt to the specified torque.

CAUTION:

• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings, etc. to get on the sensor's front

edge magnetic area.

• Do not place in an area affected by magnetism.

25. As shown in the figure, use the drift to drive rear oil seal into the

rear extension until it is flush.

CAUTION:

• Do not reuse rear oil seal.
• Apply ATF to rear oil seal.

26. Install return spring (1) to parking pawl (2).

27. Install parking pawl (with return spring) and pawl shaft to rear

extension.

SCIA5031E

SCIA2320E

SCIA5311E

SCIA6180J

SCIA3424E

TM-294

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

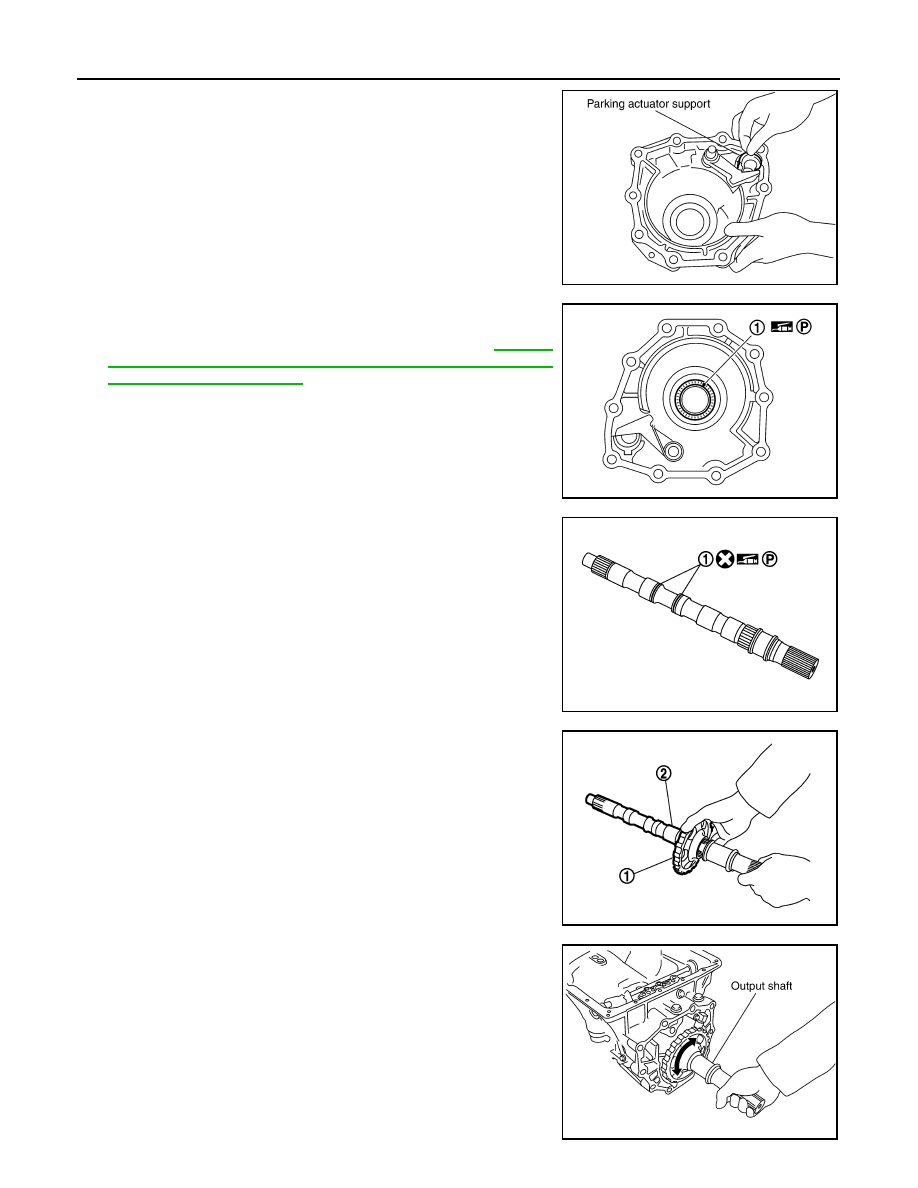

28. Install parking actuator support from rear extension.

29. Install needle bearing (1) to rear extension.

CAUTION:

Check the direction of needle bearing. Refer to

TM-272,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

30. Install seal rings (1) to output shaft.

31. Install parking gear (1) to output shaft (2).

32. Install output shaft in transmission case.

CAUTION:

Be careful not to mistake front for rear because both sides
look similar. (Thinner end is front side.)

SCIA3423E

SCIA6179J

JPDIA0030ZZ

JPDIA0029ZZ

SCIA5030E

TRANSMISSION ASSEMBLY

TM-295

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

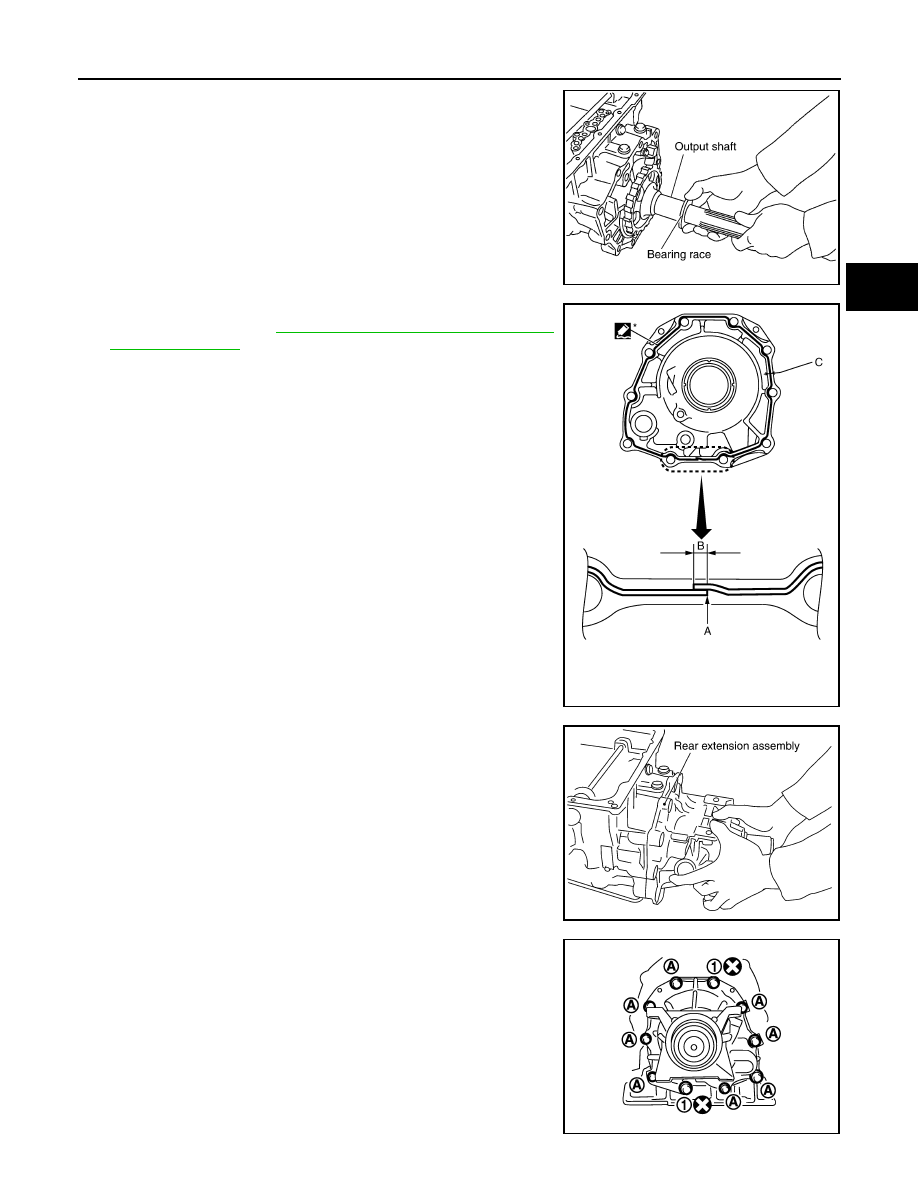

33. Install bearing race to output shaft.

34. Apply recommended sealant (Genuine Anaerobic Liquid Gasket

or equivalent. Refer to

GI-15, "Recommended Chemical Prod-

ucts and Sealants"

.) to rear extension assembly as shown in the

figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.

35. Install rear extension assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.

36. Tighten rear extension assembly bolts to the specified torque.

SCIA5245E

A

: Start and finish point shall be in
the center of two bolts.

B

: 3 – 5 mm (0.12 – 0.20 in)

Sealant
width (C)

: 1.0 – 2.0 mm (0.04 – 0.08 in)

Sealant
height (C)

: 0.4 – 1.0 mm (0.016 – 0.04 in)

JPDIA0036ZZ

SCIA5029E

1

: Self-sealing bolt

A

:  Bolt

JPDIA0026ZZ

TM-296

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

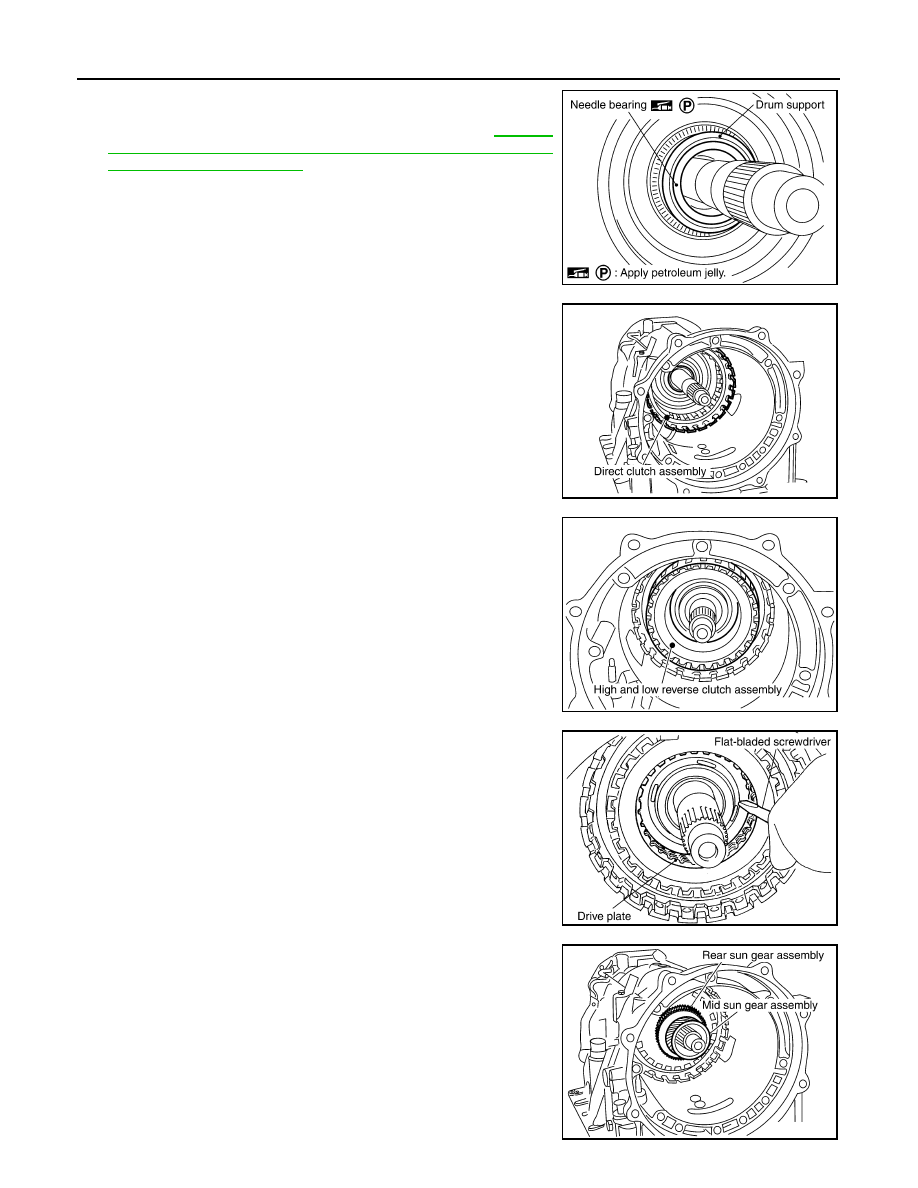

37. Install needle bearing in drum support.

CAUTION:

Check the direction of needle bearing. Refer to

TM-272,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

38. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch
inner boss edge surface come to almost same place.

39. Install high and low reverse clutch assembly in direct clutch.

40. Using a flat-bladed screwdriver, align the drive plate.

41. Install high and low reverse clutch hub, mid sun gear assembly

and rear sun gear assembly as a unit.

SCIA5198E

SCIA5019E

SCIA2306E

SCIA3169E

SCIA5018E
