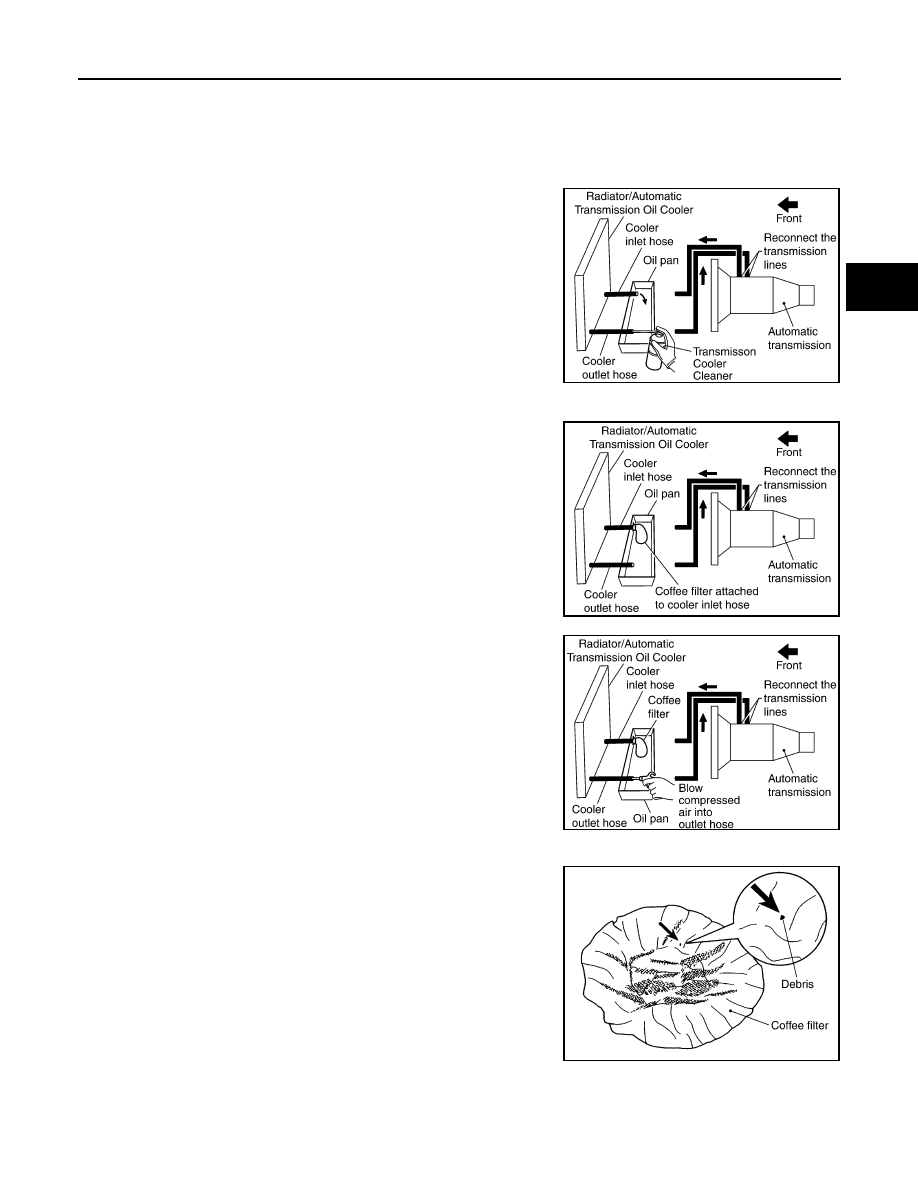

A/T FLUID COOLER TM-217 < ON-VEHICLE MAINTENANCE > [5AT: RE5R05A] C E F G H I J K L M A B TM N O P DIAGNOSIS PROCEDURE NOTE: 1. Position an oil pan under the A/T inlet and outlet cooler hoses. 2. Clean the exterior and tip of the cooler inlet hose. 3. Insert the extension adapter hose of a can of Transmission CAUTION: • Wear safety glasses and rubber gloves when spraying the Transmission Cooler Cleaner. • Spray Transmission Cooler Cleaner only with adequate ventilation. • Avoid contact with eyes and skin. 4. Hold the hose and can as high as possible and spray Transmis- 5. Tie a common white, basket-type coffee filter to the end of the 6. Insert the tip of an air gun into the end of the cooler outlet hose. 7. Wrap a shop rag around the air gun tip and end of cooler outlet 8. Blow compressed air regulated to 5 to 9 kg/cm 2 (70 to130 psi) through the cooler outlet hose to force any remaining ATF into 9. Remove the coffee filter from the end of the cooler inlet hose. 10. Perform “INSPECTION PROCEDURE”. INSPECTION PROCEDURE 1. Inspect the coffee filter for debris. a. If small metal debris less than 1 mm (0.040 in) in size or metal SCIA3831E SCIA3833E SCIA3834E SCIA2967E |
