RSU-22

< ON-VEHICLE REPAIR >

REAR STABILIZER

Removal and Installation

INFOID:0000000001671767

REMOVAL

1.

Remove mounting bracket of center muffler and remove mounting rubber of main muffler. Refer to

EX-5,

"Exploded View"

.

2.

Remove lower side mounting nuts on stabilizer connecting rod and remove stabilizer connecting rod from
stabilizer bar with power tool.

3.

Remove mounting nuts on stabilizer clamp and remove stabilizer bar with power tool.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000001671768

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp for deformation, cracks
or damage. Replace it if a malfunction is detected.

7.

Suspension member

8.

Stabilizer bar

9.

Stabilizer bushing

10. Stabilizer clamp

11. Upper seat

12. Coil spring

13. Ball seat

14. Rubber seat

15. Rear lower link

16. Front lower link

17. Radius rod

18. Cotter pin

19. Axle assembly

20. Shock absorber

21. Bound bumper cover

22. Shock absorber mounting bracket

23. Mounting seal

24. Cap

Refer to

GI-4, "Components"

 for symbols in the figure.

REAR SUSPENSION MEMBER

RSU-23

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

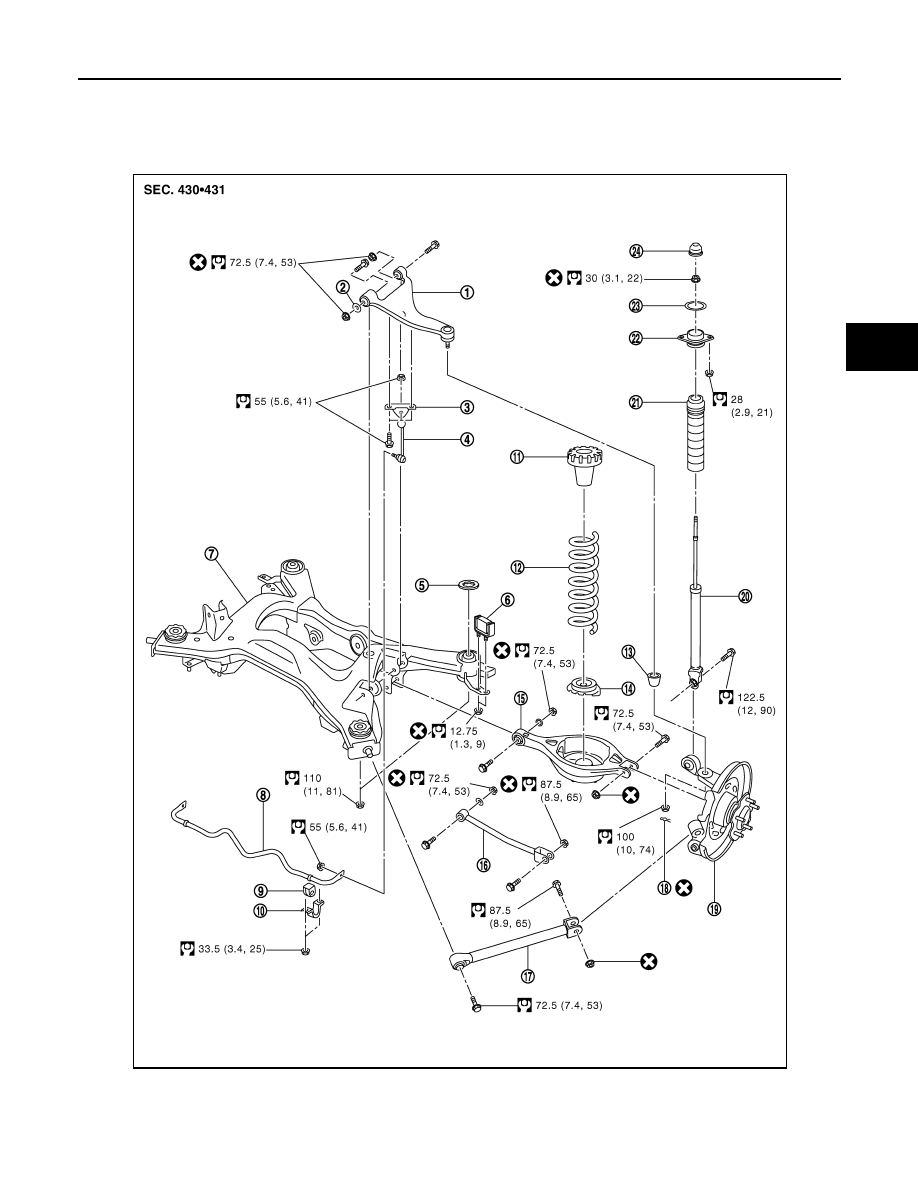

REAR SUSPENSION MEMBER

Exploded View

INFOID:0000000001686612

1.

Suspension arm

2.

Stopper rubber

3.

Stabilizer connecting rod mounting
bracket

4.

Stabilizer connecting rod

5.

Mount stopper

6.

Damper assembly

JPEIB0059ZZ

RSU-24

< ON-VEHICLE REPAIR >

REAR SUSPENSION MEMBER

Removal and Installation

INFOID:0000000001671770

REMOVAL

1.

Remove tires from vehicle with power tool.

2.

Remove brake caliper with power tool. Hang it in a place where it will not interfere with work. Refer to

BR-

56, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Exploded View"

 (1 piston type),

BR-59, "BRAKE

CALIPER ASSEMBLY (2 PISTON TYPE) : Exploded View"

 (2 piston type).

CAUTION:

Avoid depressing brake pedal while brake caliper is removed.

3.

Put matching marks on both disc rotor and the wheel hub and bearing assembly, and then remove disc
rotor. Refer to

BR-56, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal and Installation"

 (1

piston type),

BR-60, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal and Installation"

 (2 pis-

ton type).

4.

Remove wheel sensor and sensor harness from axle assembly and suspension arm. Refer to

BRC-100,

"Exploded View"

.

5.

Remove height sensor harness from rear suspension member. Refer to

EXL-199, "Exploded View"

.

6.

Remove center muffler and main muffler. Refer to

EX-5, "Exploded View"

.

7.

Remove stabilizer bar. Refer to

RSU-21, "Exploded View"

.

8.

Remove drive shaft. Refer to

RAX-10, "Exploded View"

.

9.

Remove propeller shaft. Refer to

DLN-7, "Exploded View"

 (M/T models),

DLN-14, "Exploded View"

 (A/T

models).

10. Remove harness from rear final drive and rear suspension member.
11. Remove final drive. Refer to

DLN-88, "M/T : Exploded View"

 (M/T models),

DLN-36, "Exploded View"

(without LSD A/T models),

DLN-89, "A/T : Exploded View"

 (with LSD A/T models).

12. Remove parking brake cable mounting bolt and separate parking brake cable from vehicle and rear sus-

pension member. Refer to

PB-7, "PEDAL TYPE : Exploded View"

 (pedal type),

PB-8, "LEVER TYPE :

Exploded View"

 (lever type).

13. Remove mounting bolts in lower side of shock absorber.
14. Remove rear lower link and coil spring. Refer to

RSU-8, "Exploded View"

.

15. Set suitable jack under rear suspension member.

16. Remove mounting nuts rear suspension member.
17. Slowly lower jack, then remove rear suspension member, suspension arm, radius rod, front lower link and

axle from vehicle as a unit.

18. Remove mounting bolts and nuts, then remove suspension arm, front lower link, and radius rod from rear

suspension member.

INSTALLATION

Note the following, and install in the reverse order of the removal.
• Perform the final tightening of each of parts under unladen conditions, which were removed when removing

rear suspension assembly.

• Check wheel sensor harness for proper connection. Refer to

BRC-100, "Exploded View"

.

Inspection

INFOID:0000000001671771

INSPECTION AFTER REMOVAL

Check front suspension member for deformation, cracks, or any other damage. Replace if necessary.

INSPECTION AFTER INSTALLATION

7.

Suspension member

8.

Stabilizer bar

9.

Stabilizer bushing

10. Stabilizer clamp

11. Upper seat

12. Coil spring

13. Ball seat

14. Rubber seat

15. Rear lower link

16. Front lower link

17. Radius rod

18. Cotter pin

19. Axle assembly

20. Shock absorber

21. Bound bumper cover

22. Shock absorber mounting bracket

23. Mounting seal

24. Cap

Refer to

GI-4, "Components"

 for symbols in the figure.

REAR SUSPENSION MEMBER

RSU-25

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

• Check wheel alignment. Refer to

RSU-28, "Wheel Alignment"

.

• Adjust neutral position of steering angle sensor after checking wheel alignment. Refer to

BRC-8, "ADJUST-

MENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

• Adjust parking brake operation (stroke).

PB-3, "PEDAL TYPE : Inspection and Adjustment"

 (pedal type),

PB-

4, "LEVER TYPE : Inspection and Adjustment"

 (lever type).
