14. Install crankshaft pulley as follows:

a.

Fix crankshaft using the ring gear stopper [SST: KV10118600 (J-48641)].

b.

Install crankshaft pulley, taking care not to damage front oil seal.
• When press-fitting crankshaft pulley with plastic hammer, tap on its center portion (not circumference).

c.

Tighten crankshaft pulley bolt.

d.

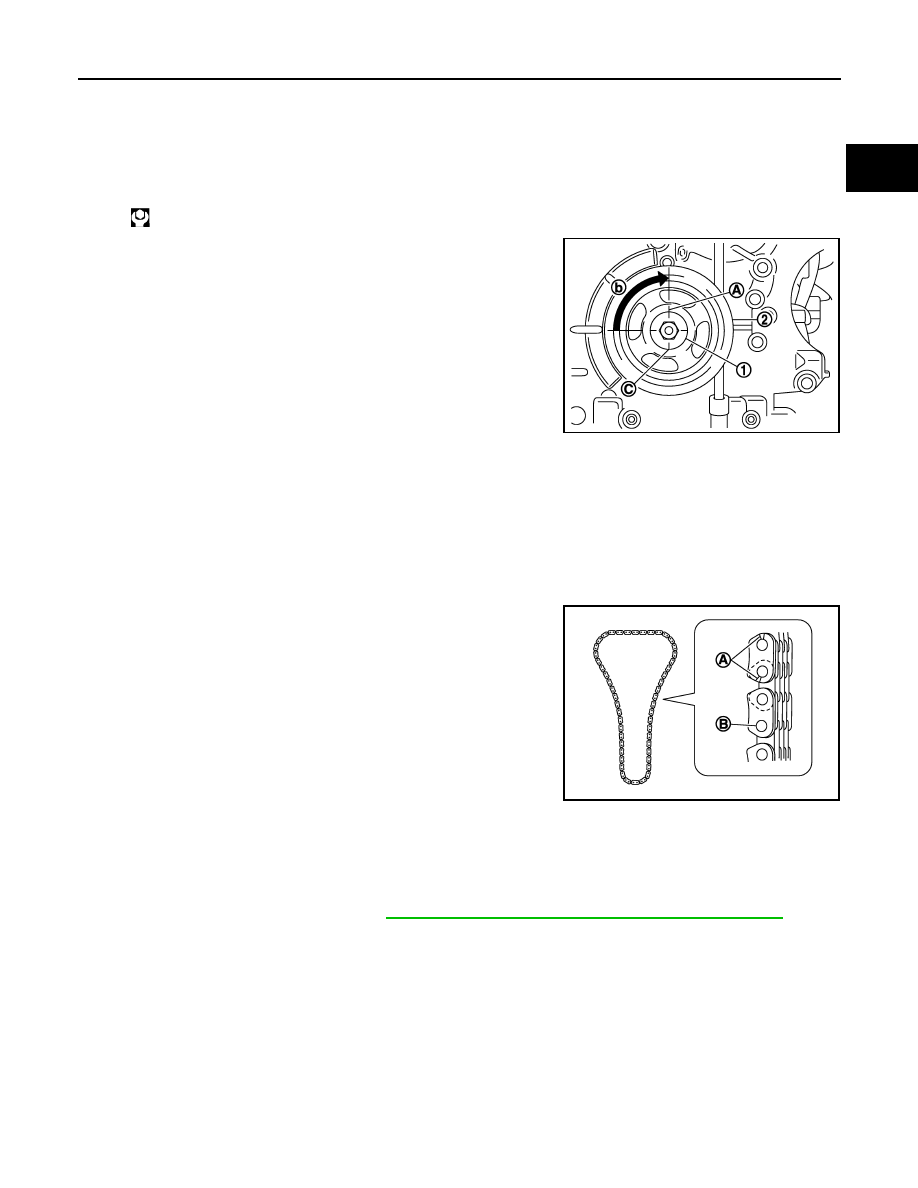

Place a matching mark (A) on crankshaft pulley (2) aligning with
the matching (C) of crankshaft pulley bolt (1). Tighten the bolt 90
degrees (one marks) (b).

e.

Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns
smoothly.

15. For the following operations, perform steps in the reverse order of removal.

Inspection

INFOID:0000000000956258

INSPECTION AFTER REMOVAL

Timing Chain

Check for cracks and any excessive wear at link plates and roller
links of timing chain. Replace timing chain as necessary.

INSPECTION AFTER INSTALLATION

Inspection for Leaks

The following are procedures for checking fluids leak, lubricates leak.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.

NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate an unusualness. Noise
will stop after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there is no leakage of fuel, or any oil/fluids including engine oil and

engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.

: 44.1 N·m (4.5 kg-m, 33 ft-lb)

JPBIA0120ZZ

A

:  Crack

B

:  Wear

JPBIA0091ZZ

EM-64

< ON-VEHICLE REPAIR >

TIMING CHAIN

• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluid*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

CAMSHAFT

EM-65

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CAMSHAFT

Exploded View

INFOID:0000000000956259

Removal and Installation

INFOID:0000000000956260

REMOVAL

1.

Camshaft bracket (No. 3, 4)

2.

Camshaft bracket (No. 2)

3.

Seal washer

4.

Camshaft bracket (No. 1)

5.

Dowel pin

6.

Camshaft (EXH) (right bank)

7.

Camshaft signal plate (EXH)

8.

Camshaft sensor bracket

9.

Dowel pin

10. Camshaft signal plate (INT)

11.

Camshaft (INT) (right bank)

12. Valve lifter

13. Cylinder head (right bank)

14.

Plunger

15. Spring

16.

Timing chain tensioner (secondary)
(right bank)

17.

Camshaft bracket (No. 3, 4)

18. Camshaft bracket (No. 2)

19. Camshaft bracket (No. 1)

20.

Camshaft signal plate (INT)

21. Camshaft signal plate (EXH)

22. Camshaft sensor bracket

23.

Cylinder head (left bank)

24.

Timing chain tensioner (secondary)
(left bank)

25. Camshaft (EXH)

26.

Camshaft (INT)

A.

Refer to

EM-65

.

Refer to

GI-4, "Components"

 for symbol marks in the figure.

JPBIA0067GB

EM-66

< ON-VEHICLE REPAIR >

CAMSHAFT

1.

Remove front timing chain case, camshaft sprocket and timing chain. Refer to

EM-48, "Exploded View"

.

2.

Remove fuel sub tube. Refer to

EM-35, "Exploded View"

.

3.

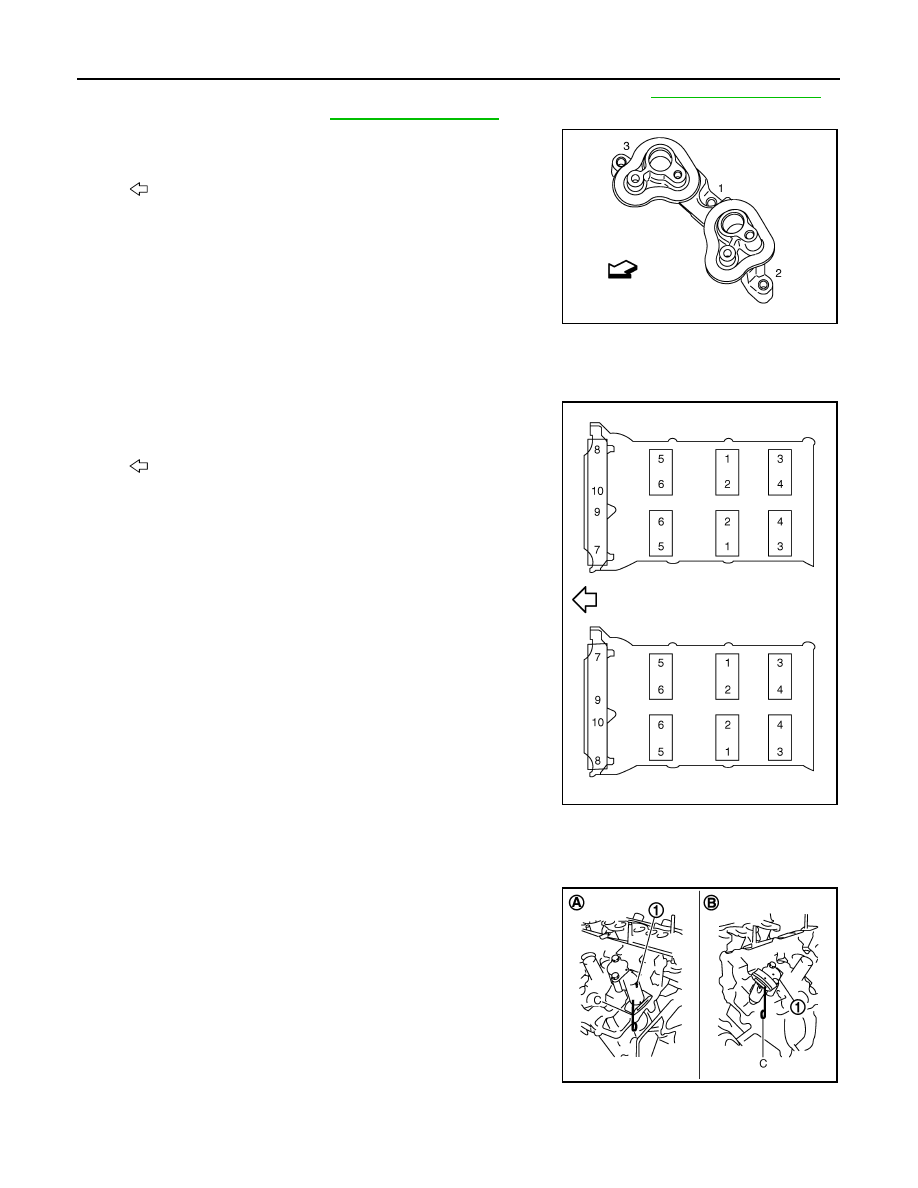

Loosen camshaft sensor bracket bolts in reverse order as
shown in the figure.

NOTE:
The order of loosening bolts is the same for bank 1 and bank 2.

4.

Remove camshaft brackets.
• Mark camshafts, camshaft brackets and bolts so they are placed in the same position and direction for

installation.

• Equally loosen camshaft bracket bolts in several steps in

reverse order as shown in the figure.

5.

Remove camshaft.

6.

Remove valve lifter.
• Identify installation positions, and store them without mixing them up.

7.

Remove timing chain tensioners (secondary) (1) from cylinder
head.

• Remove timing chain tensioners (secondary) with its stopper

pin (C) attached.

NOTE:
Stopper pin should be attached when timing chain (secondary)
is removed.

INSTALLATION

: Engine front

JPBIA0357ZZ

: Engine front

JPBIA0257ZZ

A

: Right bank

B

: Left bank

JPBIA0121ZZ
