BODY ALIGNMENT

BRM-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY ALIGNMENT

Body Center Marks

INFOID:0000000000961828

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.

Unit: mm (in)

Points

Portion

Marks

A, B

Upper dash

Embossment

C

Front roof

Embossment

D

Rear roof

Embossment

E

Rear waist panel

Embossment

F

Rear panel

Indent

G

Front floor

Hole 14

×

12 (0.55

×

0.47)

H

Rear floor

Hole

φ

6 (0.24)

JSKIA0012GB

BRM-18

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

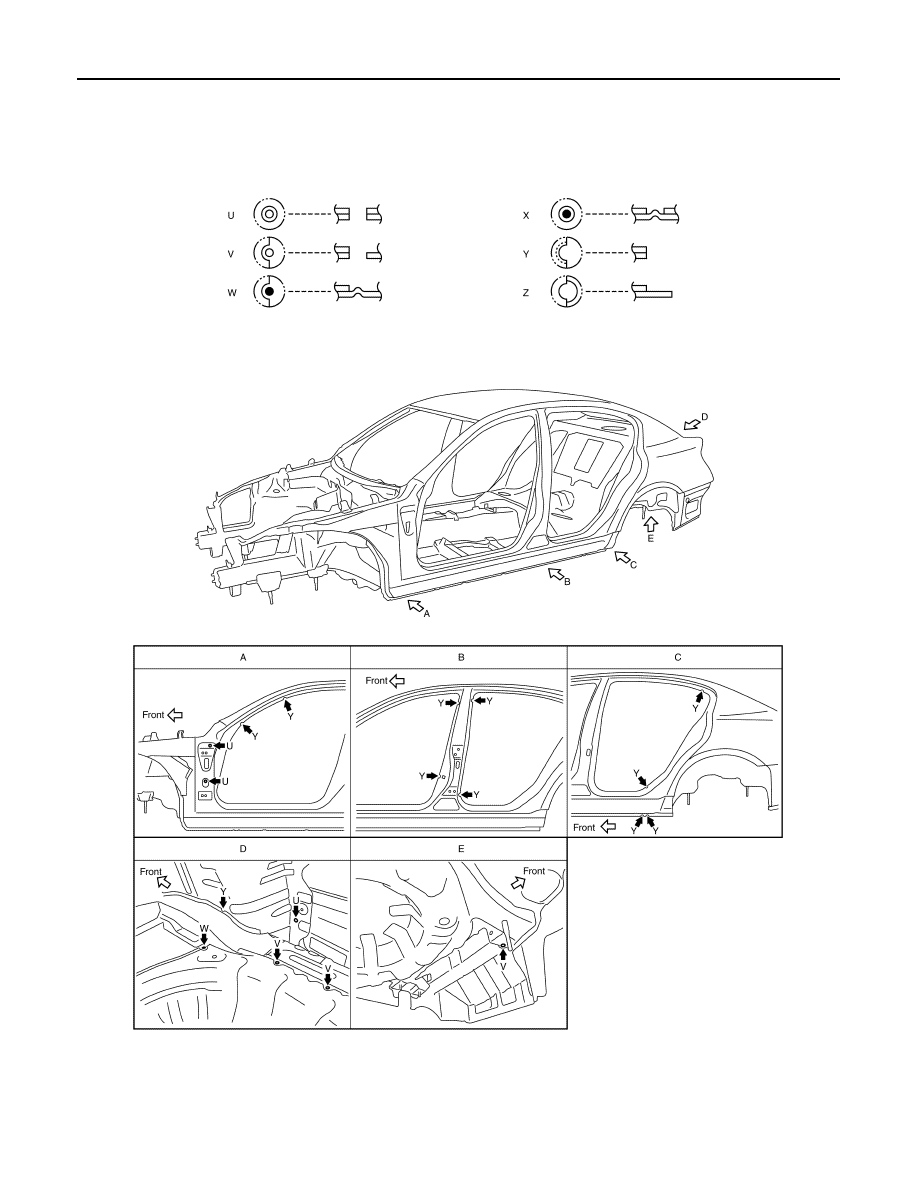

Panel Parts Matching Marks

INFOID:0000000000961829

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.

Description

INFOID:0000000000961830

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

JSKIA0013GB

JSKIA0014GB

BODY ALIGNMENT

BRM-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

• The coordinates of the measurement points are the distances measured from the standard line of

″

X

″

,

″

Y

″

and

″

Z

″

.

Engine Compartment

INFOID:0000000000961831

Measurement

Figures marked with a (*) indicate symmetrically identical dimensions on both right and left hand of the vehicle.

«Engine room»

PIIA0104E

JSKIA0015GB

BRM-20

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

Unit: mm (in)

«The others»

Unit: mm (in)

Measurement Points

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

A - B

761 (29.96)*

B - C

558 (21.97)*

C - c

786 (30.94)

M - m

938 (36.93)

A - C

551 (21.69)*

B - c

1227 (48.31)*

F - f

1350 (53.15)

M - n

940 (37.01)*

A - F

897 (35.31)*

B - f

1561 (61.46)*

G - g

829 (32.64)

N - n

939 (36.97)

A - G

992 (39.06)*

b - f

623 (24.53)*

H - h

826 (32.52)

A - H

975 (38.39)*

B - g

1498 (58.98)*

J - j

903 (35.55)

2WD

B - b

1518 (59.76)

b - g

993 (39.09)*

J - j

906 (35.67)

AWD

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

A - D

706 (27.80)*

C - j

875 (34.45)*

2WD

D - d

1393 (54.84)

K - k

903 (35.55)

2WD

A - E

734 (28.90)*

C - j

878 (34.57)*

AWD

E - e

1374 (54.09)

K - k

906 (35.67)

AWD

JSKIA0016GB
