RGB (G: GREEN) SIGNAL CIRCUIT

RGB (G: GREEN) SIGNAL CIRCUIT

Description

INFOID:0000000000964853

Transmit the image displayed with AV control unit with RGB signal to the display unit.

Diagnosis Procedure

INFOID:0000000000964854

1.

CHECK CONTINUITY RGB (G: GREEN) SIGNAL  CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect display unit connector and AV control unit connector.

3.

Check continuity between display unit harness connector terminal 6 and AV control unit harness connec-
tor terminal 62.

4.

Check continuity between display unit harness connector terminal 6 and ground.

Is inspection result OK?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB (G: GREEN) SIGNAL

1.

Connect display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between display unit harness connector terminal 6 and ground.

Is inspection result OK?

YES

>> Replace display unit.

NO

>> Replace AV control unit.

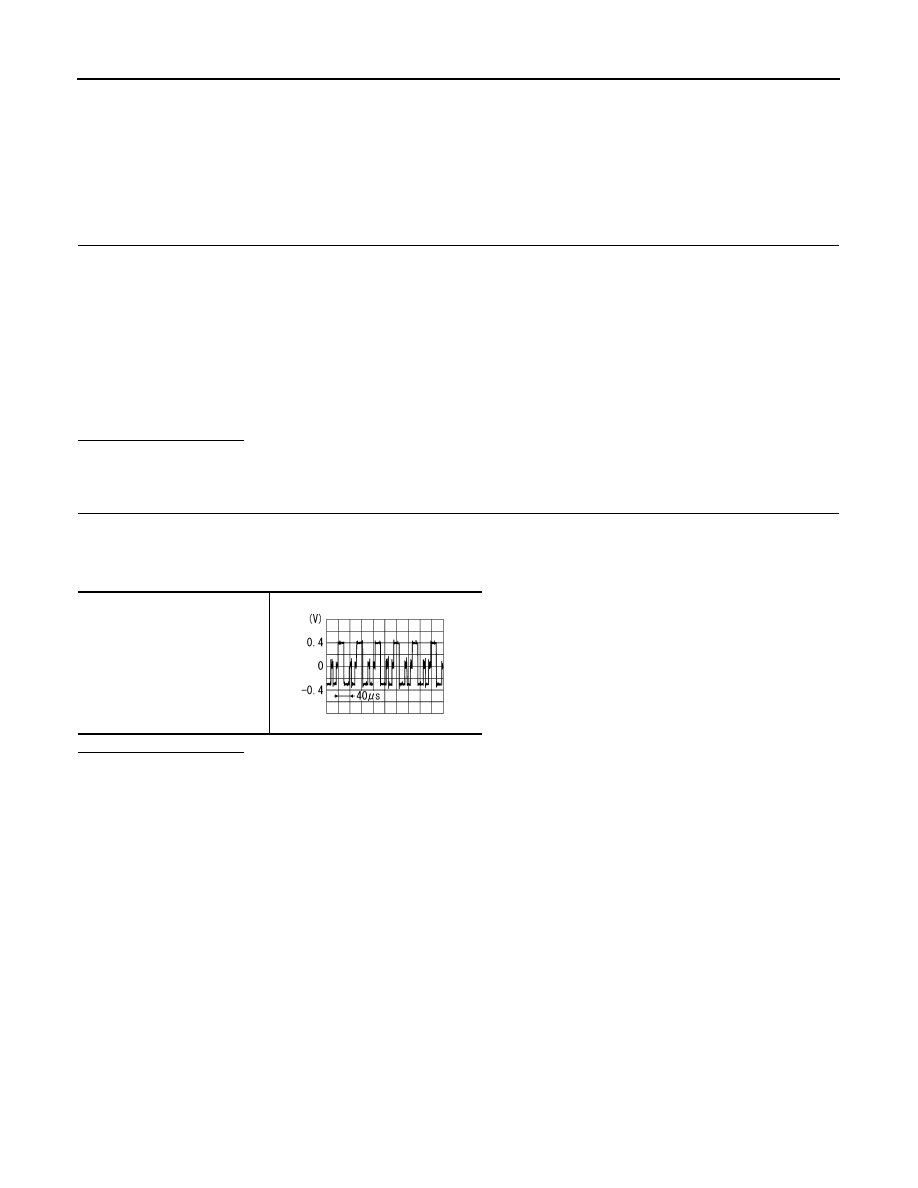

6 - 62

: Continuity should exist.

6 - Ground

: Continuity should not exist.

6 - Ground

SKIB2236J

AV

RGB (B: BLUE) SIGNAL CIRCUIT

AV-385

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

RGB (B: BLUE) SIGNAL CIRCUIT

Description

INFOID:0000000000964855

Transmit the image displayed with AV control unit with RGB signal to the display unit.

Diagnosis Procedure

INFOID:0000000000964856

1.

CHECK CONTINUITY RGB (B: BLUE) SIGNAL  CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect display unit connector and AV control unit connector.

3.

Check continuity between display unit harness connector terminal 18 and AV control unit harness connec-
tor terminal 63.

4.

Check continuity between display unit harness connector terminal 18 and ground.

Is inspection result OK?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB (B: BLUE) SIGNAL

1.

Connect display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between display unit harness connector terminal 18 and ground.

Is inspection result OK?

YES

>> Replace display unit.

NO

>> Replace AV control unit.

18 - 63

: Continuity should exist.

18 - Ground

: Continuity should not exist.

18 - Ground

SKIB2237J

AV-386

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

RGB SYNCHRONIZING SIGNAL CIRCUIT

RGB SYNCHRONIZING SIGNAL CIRCUIT

Description

INFOID:0000000000964857

Transmit the RGB synchronizing signal to the display unit so as to synchronize the RGB image displayed with
AV control unit.

Diagnosis Procedure

INFOID:0000000000964858

1.

CHECK CONTINUITY RGB SYNCHRONIZING SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect display unit connector and AV control unit connector.

3.

Check continuity between display unit harness connector terminal 19 and AV control unit harness connec-
tor terminal 65.

4.

Check continuity between display unit harness connector terminal 19 and ground.

Is inspection result OK?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB SYNCHRONIZING SIGNAL

1.

Connect display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between display unit harness connector terminal 19 and ground.

Is inspection result OK?

YES

>> Replace display unit.

NO

>> Replace AV control unit.

19 - 65

: Continuity should exist.

19 - Ground

: Continuity should not exist.

19 - Ground

SKIB3603E

AV

RGB AREA (YS) SIGNAL CIRCUIT

AV-387

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

RGB AREA (YS) SIGNAL CIRCUIT

Description

INFOID:0000000000964859

Transmits the display area of RGB image displayed by AV control unit with RGB area (YS) signal to display
unit.

Diagnosis Procedure

INFOID:0000000000964860

1.

CHECK CONTINUITY RGB AREA (YS) SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect display unit connector and AV control unit connector.

3.

Check continuity between display unit harness connector terminal 9 and AV control unit harness connec-
tor terminal 67.

4.

Check continuity between display unit harness connector terminal 9 and ground.

Is inspection result OK?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK RGB SYNCHRONIZING SIGNAL

1.

Connect display unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between display unit harness connector terminal 9 and ground.

Is inspection result OK?

YES

>> Replace display unit.

NO

>> Replace AV control unit.

9 - 67

: Continuity should exist.

9 - Ground

: Continuity should not exist.

9 - Ground

At RGB image displayed

: Approx. 5 V

At rear view camera image displayed

PKIB4948J
