Infiniti G35 (V35) Sedan. Manual - part 139





AV-328

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW MONITOR SYSTEM

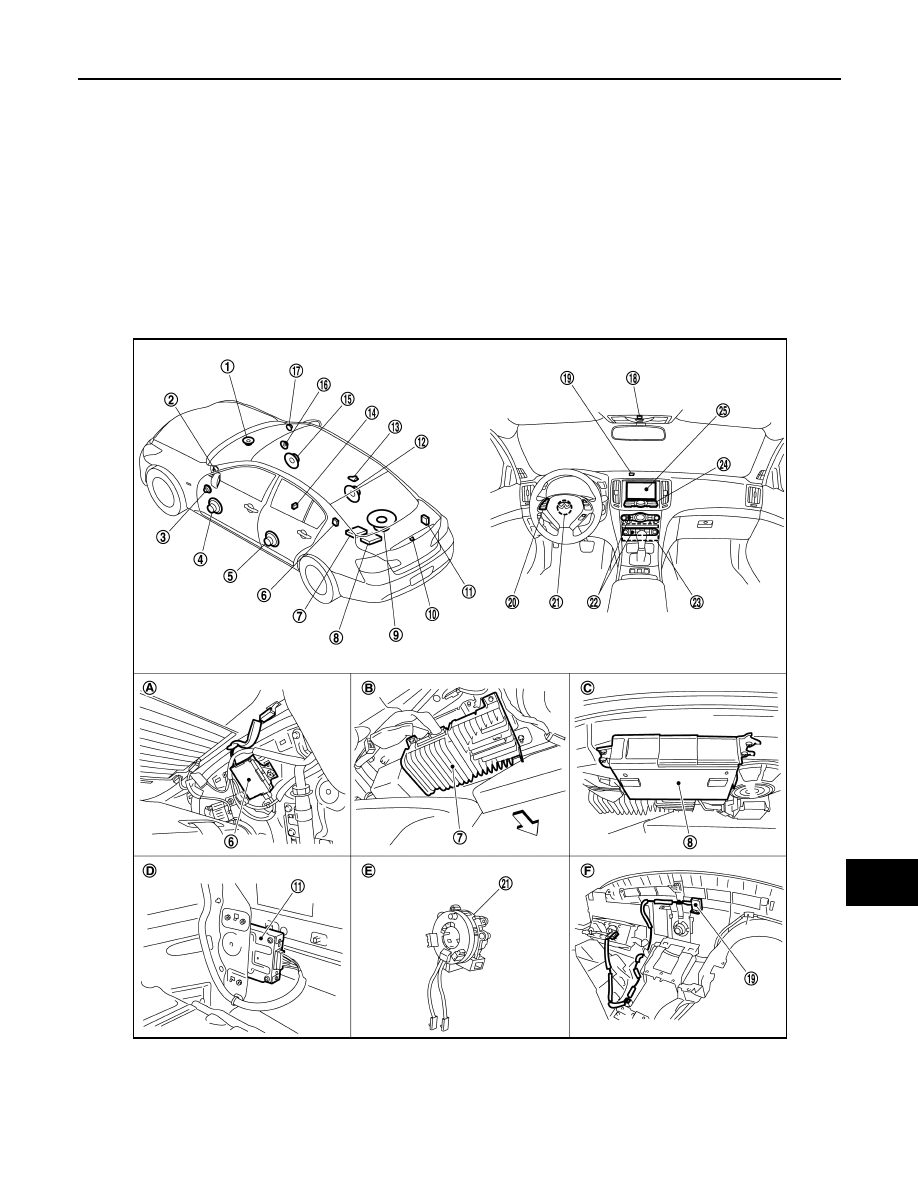

Component Description

INFOID:0000000000964775

1.

Center speaker

2.

Tweeter LH

3.

Front door squawker LH

4.

Front door woofer LH

5.

Rear door speaker

6.

Antenna amp.

7.

BOSE amp.

8.

CD changer

9.

Woofer

10. Rear view camera

11. Camera control unit

12. Rear door speaker RH

13. Satellite radio antenna

14. Auxiliary input jacks

15. Front door woofer RH

16. Front door squawker RH

17. Tweeter RH

18. Microphone

19. GPS antenna

20. Steering switch

21. Steering angle sensor

22. Preset switch

23. AV control unit

24. Multifunction switch

25. Display unit

A.

Within rear pillar finisher LH

B.

Lower part of rear parcel shelf (inside
of CD changer)

C.

Rear parcel shelf lower part (left side)

D.

Trunk room right side

E.

Spiral cable part

F.

Instrument panel rear side

JSNIA0170ZZ

AV

REAR VIEW MONITOR SYSTEM

AV-329

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

Part name

Description

AV CONTORL UNIT

• Image on display is changed to rear view monitor with the communication for

camera control unit and display unit.

• Warning displayed in rear view monitor image is illustrated.

DISPLAY UNIT

• Camera image signal is sent from camera control unit, and RGB signal for

warning display is sent from AV control unit.

• Rear view monitor image is changed with the communication for AV control

unit.

CAMERA CONTROL UNIT

• Camera image signal is input from rear view camera, and camera image is

indicated on the display.

• Power (camera ON signal) is sent to rear view camera.
• Controlled by AV communication sent from AV control unit.
• AV control unit recognizes the presence of camera system with camera con-

nection recognition signal.

REAR VIEW CAMERA

The image of vehicle rear view is sent to camera control unit.

STEERING ANGLE SENSOR

Steering signal necessary for possible route line control is sent to camera con-
trol unit.

AV-330

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AUDIO SYSTEM

AUDIO SYSTEM

System Diagram

INFOID:0000000000964776

System Description

INFOID:0000000000964777

The audio system is equipped with following function. Each function is operated with multifunction switch, preset switch, touch panel, steering
switch or audio recognition. Operation status of AUDIO is indicated at display.

Function description

Operating signal

Audio system operation can be performed with multi function switch, preset switch, steering switch, touch
panel function or voice recognition function.
• Operating signal is transmitted to AV control unit with AV communication when it is operated by multi func-

tion switch or preset switch. The CD ejection operating signal is performed by hardwire.

• Operating signal is transmitted to AV control unit with steering switch signal when it is operated by steering

switch.

• Refer to

AV-316, "System Description"

 for explanation of voice recognition function and touch panel function.

Screen display

• Switching of display is performed with serial communication between display and AV control unit.
• The image signal to display operating condition is performed with RGB signal, RGB area signal and RGB

image synchronizing signal.

AM/FM Radio Mode

• AM/FM radio tuner is built into AV control unit.
• Audio signal is received by glass antenna, next it is amplified by antenna amp., and finally it is input to AV

control unit. Audio signal is input to BOSE amp. and BOSE amp. outputs to each speaker for AV control unit.

Satellite Radio Mode

• Satellite radio tuner is built into AV control unit.
• Audio signal (satellite radio) is received by satellite antenna, and it is input to AV control unit. Audio signal

(satellite radio) is output to BOSE amp. and it is output to BOSE amp. to each speaker for AV control unit.

CD Mode

• CD function is built into AV control unit.

JSNIA0058GB

Function

AM/FM radio

satellite radio

CD

Music Box (Hard Disk Drive)

CF (Compact Flash)

AV

AUDIO SYSTEM

AV-331

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

•  AV control unit outputs audio signal to BOSE amp. and BOSE amp. outputs to each speaker when CD is

inserted to AV control unit.

Music Box Mode

• Music CD data is stored on HDD that is built into AV control unit, and it can be played.
• AV control unit outputs music (audio signal) that is stored on HDD to BOSE amp., and BOSE amp. outputs to

each speaker.

CF Mode

• AV control unit has built in CF replay function.
• Music (audio signal) that is stored in CF outputs to BOSE amp., and BOSE amp. outputs to each speaker

when CF is inserted into AV control unit.

Component Parts Location

INFOID:0000000000964778

1.

Center speaker

2.

Tweeter LH

3.

Front door squawker LH

4.

Front door woofer LH

5.

Rear door speaker

6.

Antenna amp.

7.

BOSE amp.

8.

CD changer

9.

Woofer

10. Rear view camera

11. Camera control unit

12. Rear door speaker RH

JSNIA0170ZZ
