SE-2

Check Lifting Switch (Front and Rear) Ground Cir-
cuit .......................................................................... 65
Check Telescopic Switch Circuit  ............................. 65
Check Tilt Switch Circuit  ......................................... 67
Check P Range Switch Circuit (A/T Models)  .......... 69
Check Parking Brake Switch Circuit (M/T Models) ... 71
Check Key Switch and Ignition Knob Switch Circuit
(With Intelligent Key)  .............................................. 72
Check Key Switch Circuit (Without Intelligent Key) ... 73
Check Seat Memory and Set Switch Circuit  ........... 75
Check Memory Indicator Lamp Circuit .................... 76
Check UART Communication Line Circuit .............. 78
Check Sliding Limit Switch Signal  .......................... 79
Check Seatback Switch Signal  ............................... 80
Check Power Walk-in Switch Signal  ....................... 81
Check Seat Belt Buckle Switch Signal  ................... 82

POWER SEAT  ........................................................... 84

Component Parts and Harness Connector Location ... 84
System Description ................................................. 85

POWER WORK–IN SYSTEM  ............................. 85
FORWARD OPERATION  .................................... 85
BACKWARD OPERATION  .................................. 85
CONDITION OF POWER WALK-IN SYSTEM
OPERATING PERMISSION  ................................ 85
OPERATION STOP CONDITION OF POWER
WORK–IN SYSTEM  ............................................ 85

Schematic/For Driver Seat  ..................................... 86
Wiring Diagram — SEAT —/For Driver Seat  .......... 87
Schematic/For Passenger Seat  .............................. 93
Wiring Diagram — SEAT —/For Passenger Seat ... 94
Terminal and Reference Value for Driver Side Seat
Control Unit ............................................................. 98
Terminal and Reference Value for Passenger Side
Seat Control Unit  .................................................... 99
Work Flow ............................................................. 100
Symptom Chart ..................................................... 100
Check BCM Power Supply and Ground Circuit  .... 101
Check Driver Seat Control Unit Power Supply and
Ground Circuit  ...................................................... 102

Check Passenger Seat Control Unit Power Supply
and Ground Circuit ................................................102
Check Sliding Switch (Driver Side)  .......................104
Check Sliding Switch (Passenger Side) ................105
Check Sliding Motor ..............................................106
Check Sliding Sensor ............................................107
Check Reclining Motor (Driver Side) .....................108
Check Reclining Motor (Passenger Side)  .............109
Check Lifting Motor (Rear)  .................................... 111
Check Lifting Motor (Front)  ................................... 112
Check Passenger Side Door Switch  ..................... 113
Check Passenger Side Seat Belt Buckle Switch  .. 114
Check Door Switch and Seat Belt Buckle Switch . 116
Check A/T Shift Lever P Position Signal (with A/T
Models) ................................................................. 119
Check Parking Brake Signal (with M/T Models) ....121
Check Vehicle Speed Signal .................................122
Check Sliding Limit Switch Signal .........................123
Check Seatback Switch Signal  .............................124
Check Power Walk-in Switch Signal  .....................125

HEATED SEAT  ........................................................126

Description ............................................................126
Schematic .............................................................127
Wiring Diagram — HSEAT —/With A/T Models  ....128
Wiring Diagram — HSEAT —/With M/T Models  ...131

FRONT SEAT  ..........................................................134

Removal and Installation .......................................134

REMOVAL ..........................................................136
INSTALLATION ..................................................136

Disassembly and Assembly  ..................................137

SEATBACK TRIM AND PAD  .............................137
REMOVAL OF SEATBACK ASSEMBLY ............138
INSTALLATION OF SEATBACK ASSEMBLY ....138
SEAT CUSHION TRIM AND PAD ......................138

REAR SEAT .............................................................140

Removal and Installation .......................................140

REMOVAL ..........................................................140
INSTALLATION ..................................................140

PRECAUTIONS

SE-3

C

D

E

F

G

H

J

K

L

M

A

B

SE

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

NIS000HF

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Service Notice

NIS000HG

●

When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.

●

Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to oil or
damage them.

●

Apply sealing compound where necessary when installing parts.

●

When applying sealing compound, be careful that the sealing compound does not protrude from parts.

●

When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust pre-
vention measures.

Precautions for Battery Service

NIS000HH

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

Precautions for Work

NIS000HI

●

When removing or disassembling each component, be careful not to damage or deform it. If a component
may be subject to interference, be sure to protect it with a cloth.

●

When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the compo-
nent with a cloth or vinyl tape to protect it.

●

Protect the removed parts with a cloth and keep them.

●

Replace a deformed or damaged clip.

●

If a part is specified as a non-reusable part, always replace it with new one.

●

Be sure to tighten bolts and nuts securely to the specified torque.

●

After re-installation is completed, be sure to check that each part works normally.

●

Follow the steps below to clean components.

–

Water soluble foul: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the
fouled area.
Then rub with a soft and dry cloth.

–

Oily foul: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe
the fouled area.
Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub
with a soft and dry cloth.

SE-4

PRECAUTIONS

●

Do not use organic solvent such as thinner, benzene, alcohol, and gasoline.

●

For genuine leather seats, use a genuine leather seat cleaner.

PREPARATION

SE-5

C

D

E

F

G

H

J

K

L

M

A

B

SE

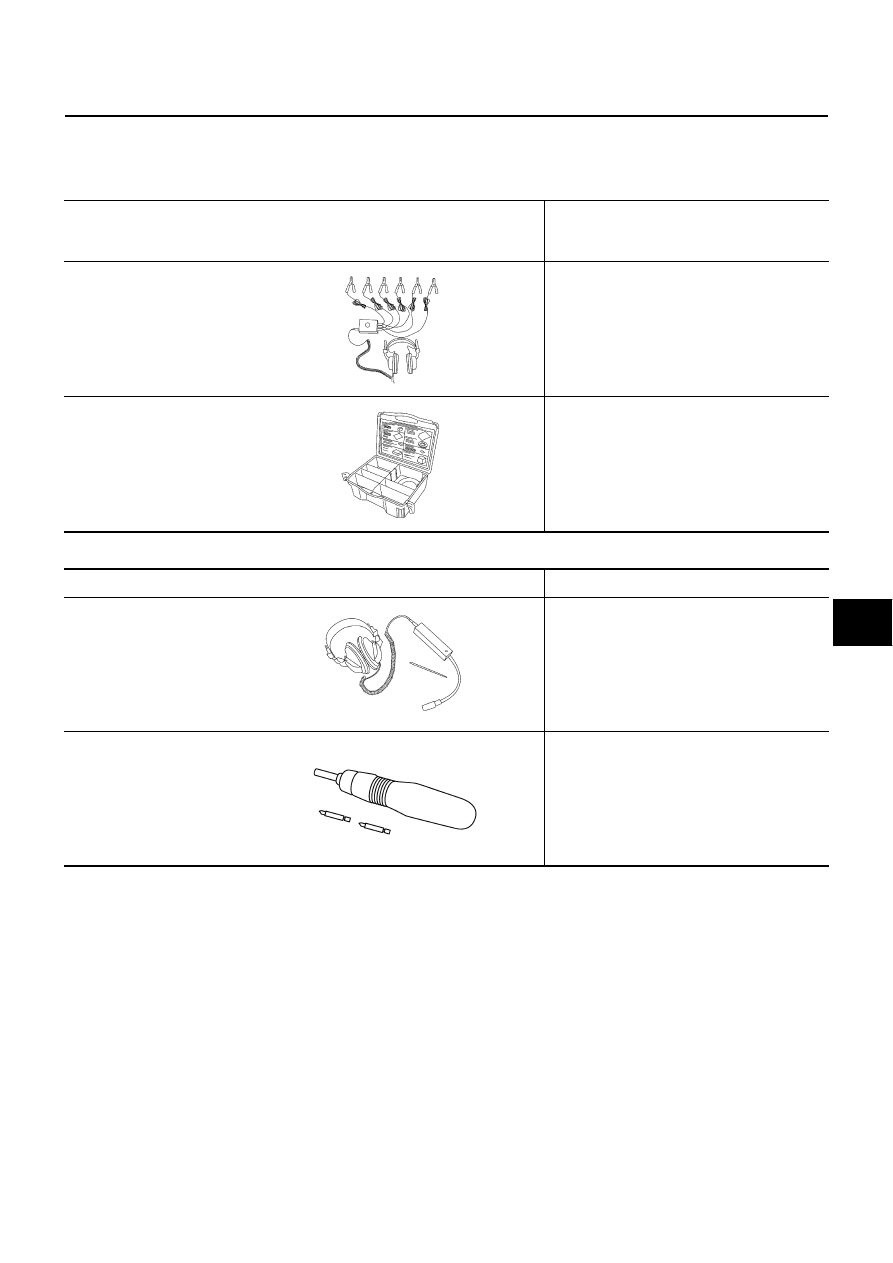

PREPARATION

PFP:00002

Special Service Tools

NIS000HJ

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

NIS000HK

Tool number
(Kent-Moore No.)
Tool name

Description

(J39570)
Chassis ear

Locating the noise

(J43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locating the noise

Power tool

SIIA0995E

PBIC0191E
