Infiniti G35 (V35). Manual - part 709

RSU-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

Cautions

NES0002H

●

When installing rubber bushings, final tightening must be carried out under unladen conditions with tires
on level ground. Oil will shorten the life of rubber bushings. Be sure to wipe off any spilled oil.

–

Unladen conditions means that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and
mats are in designated positions.

●

After servicing suspension parts, be sure to check wheel alignment.

●

Caulking nuts are not reusable. Always use new ones when installing. Since new caulking nuts are pre-
oiled, tighten as they are.

PREPARATION

RSU-3

C

D

F

G

H

I

J

K

L

M

A

B

RSU

PREPARATION

PFP:00002

Special Service Tools

NES0002I

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

NES0002J

Tool number
(Kent-Moore No.)
Tool name

Description

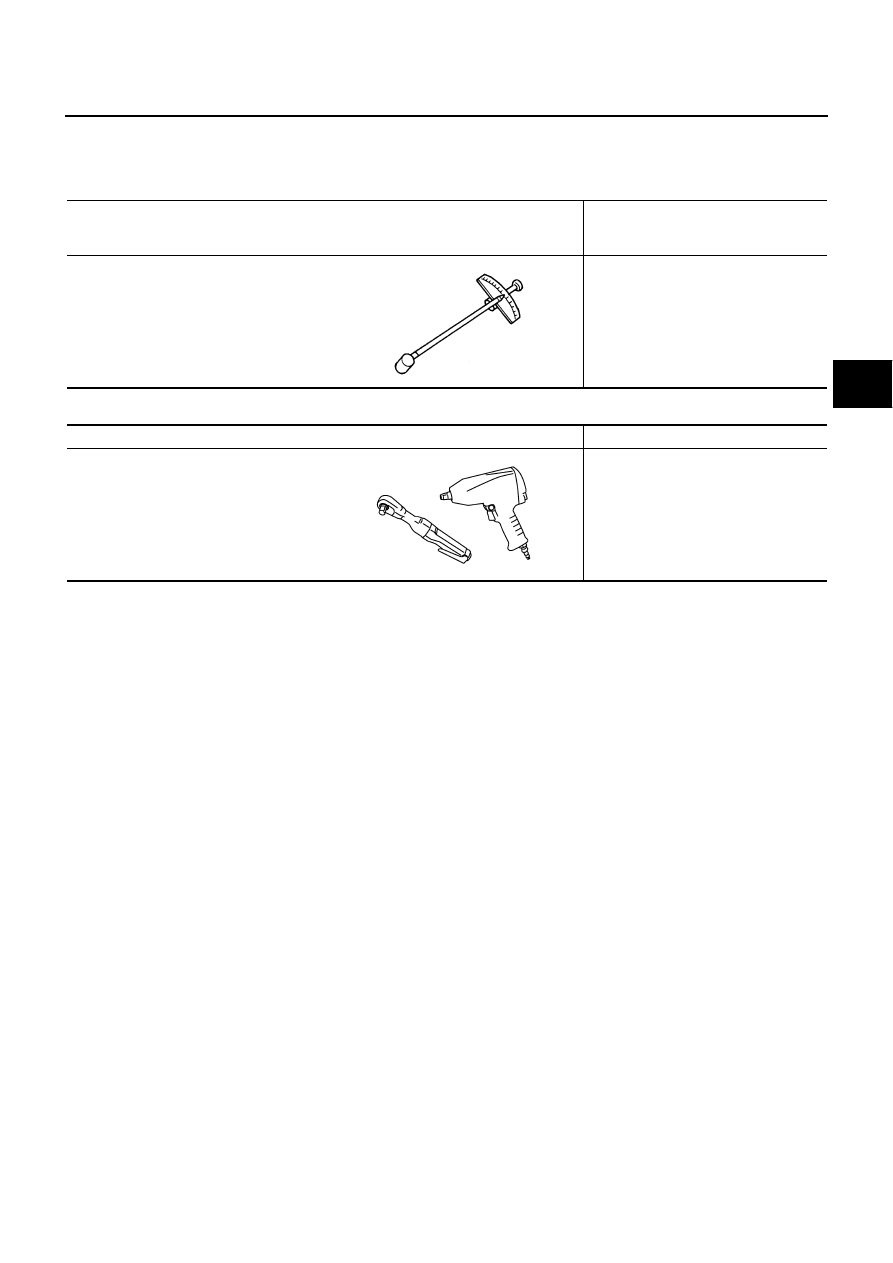

ST3127S000
(J-25765-A)
Preload gauge

Measuring rotating torque of ball joint

ZZA0806D

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

RSU-4

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

PFP:00003

NVH Troubleshooting Chart

NES0002K

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

RSU-

7

RSU-

9

—

—

—

RSU-

7

FSU-

6

RSU-

1

6

NVH in

 PR

s

e

c

ti

o

n

.

NVH i

n

 RFD s

e

c

tio

n

.

NVH

in

 RAX

 a

n

d

 RS

U

 s

e

c

ti

o

n

s

.

NVH

in

 W

T

 s

e

c

ti

o

n

.

NVH

in

 W

T

 s

e

c

ti

o

n

.

NVH i

n

 RAX s

e

c

tio

n

.

NVH in

 BR

s

e

c

ti

o

n

.

NVH in

 PS

s

e

c

ti

o

n

.

Possible cause and SUSPECTED PARTS

Im

pr

o

per

 i

n

st

al

la

ti

on

, l

o

osen

ess

Sho

ck abs

or

b

e

r def

or

m

a

ti

on

, dam

ag

e

o

r def

le

ct

io

n

Bus

h

ing or

 m

oun

ti

ng det

er

io

ra

ti

on

P

a

rt

s

 in

te

rf

e

re

n

c

e

Spr

ing f

a

ti

gue

Sus

pens

io

n l

o

o

s

ene

ss

In

co

rr

ect

 w

h

e

e

l al

ignm

en

t

S

ta

b

ili

z

er

 bar

 f

a

ti

g

u

e

PROPELL

E

R SHAF

T

DIFFERENTIAL

REAR AXLE AND

RE

AR

SUSPENSION

TIRES

ROAD

 W

H

E

E

L

DRIVE SHA

F

T

BRAKES

STEERING

Symptom

REAR SUSPENSION

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

×

×

×

Judder

×

×

×

×

×

×

×

×

Poor quality ride or
handling

×

×

×

×

×

×

×

×

×

×

REAR SUSPENSION ASSEMBLY

RSU-5

C

D

F

G

H

I

J

K

L

M

A

B

RSU

REAR SUSPENSION ASSEMBLY

PFP:55020

On-Vehicle Inspection

NES0002L

Make sure the mounting conditions (looseness, back lash) of each component and component status (wear,
damage) are normal.

INSPECTION SUSPENSION ARM BALL JOINT AXIAL END PLAY

Measure axial end play by placing and moving up/down with an iron pry bar or something similar between sus-
pension arm and axle assembly.

CAUTION:

Be careful not to damage ball joint boot.

SHOCK ABSORBER INSPECTION

Check shock absorber for oil leakage, damage and replace if necessary.

Wheel Alignment Inspection

NES000DQ

DESCRIPTION

●

Measure wheel alignment under unladen conditions. “Unladen conditions” means that fuel, engine cool-
ant, and lubricant are full. Spare tire, jack, hand tools and mats in designated positions.

PRELIMINARY INSPECTION

●

Check tires for improper air pressure and wear.

●

Check road wheels for runout.

●

Check wheel bearing axial end play.

●

Check ball joint axial end play of suspension arm.

●

Check shock absorber operation.

●

Check each mounting point of axle and suspension for looseness and deformation.

●

Check each link, arm and member for cracks, deformation, and other damage.

●

Check vehicle posture.

GENERAL INFORMATION AND RECOMMENDATIONS

●

A four-wheel thrust alignment should be performed.

–

This type of alignment is recommended for any NISSAN/INFINITI vehicle.

–

The four-wheel “thrust” process helps ensure that the vehicle is properly aligned and the steering wheel is
centered.

–

The alignment rack itself should be capable of accepting any NISSAN/INFINITI vehicle.

–

The rack should be checked to ensure that it is level.

●

Make sure the machine is properly calibrated.

–

Your alignment equipment should be regularly calibrated in order to give correct information.

–

Check with the manufacturer of your specific equipment for their recommended Service/Calibration
Schedule.

Axial end play

: 0 mm (0 in)
