Infiniti G35 (V35). Manual - part 682





PS-38

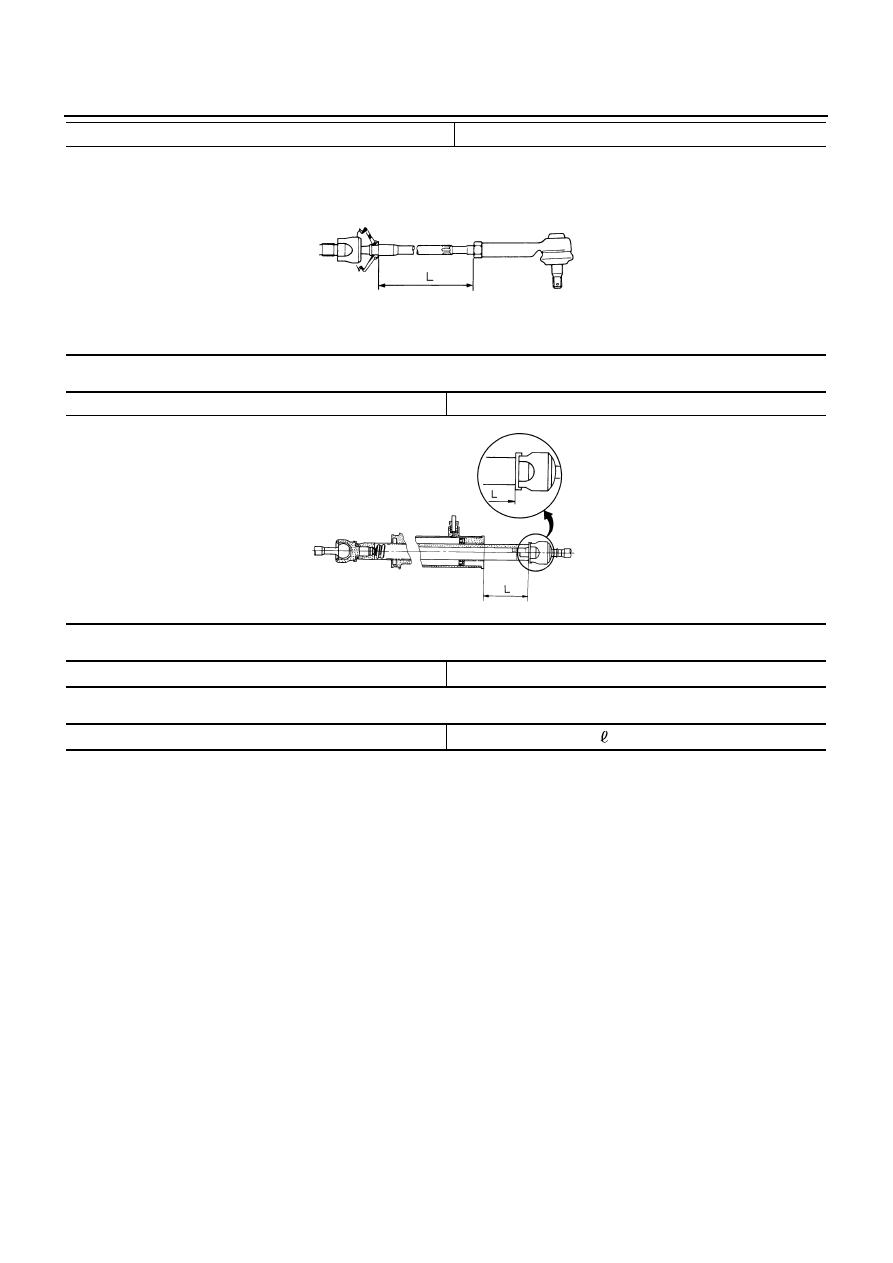

SERVICE DATA AND SPECIFICATIONS (SDS)

Steering Gear

NGS0001G

Oil Pump

NGS0001H

Steering Fluid

NGS0001I

Inner socket length“ L”

106.3 mm (4.19 in)

STC1030D

Rack neutral position, dimension “L” (rack stroke)

64.5 mm (2.539 in)

SGIA0629J

Oil pump relief hydraulic pressure

9,600 - 10,200 kPa (97.9 - 104 kg/cm

2

 , 1,392 - 1,479 psi)

Fluid capacity

Approx. 1.0

(1-1/8 US qt, 7/8 Imp qt)

RAX-1

REAR AXLE

D  DRIVELINE/AXLE

CONTENTS

C

E

F

G

H

I

J

K

L

M

SECTION

A

B

RAX

REAR AXLE

PRECAUTIONS .......................................................... 2

Caution ..................................................................... 2

PREPARATION ........................................................... 3

Special Service Tools  ............................................... 3
Commercial Service Tools ........................................ 4

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 5

NVH Troubleshooting Chart  ..................................... 5

WHEEL HUB  .............................................................. 6

On-Vehicle Inspection  .............................................. 6

WHEEL BEARING INSPECTION  ......................... 6

Removal and Installation  .......................................... 6

COMPONENTS .................................................... 6
REMOVAL ............................................................. 6
INSPECTION AFTER REMOVAL  ......................... 7

INSTALLATION ..................................................... 7

Disassembly and Assembly ...................................... 7

DISASSEMBLY ..................................................... 7
INSPECTION AFTER DISASSEMBLY .................. 8
ASSEMBLY ........................................................... 8
INSPECTION AFTER ASSEMBLY ........................ 9

REAR DRIVE SHAFT  ............................................... 10

Removal and Installation  ........................................ 10

COMPONENTS ................................................... 10
REMOVAL ........................................................... 10
INSPECTION AFTER REMOVAL  ....................... 10
INSTALLATION ................................................... 10

Disassembly and Assembly .................................... 11

COMPONENTS ................................................... 11
DISASSEMBLY ................................................... 11
INSPECTION AFTER DISASSEMBLY ................ 12
ASSEMBLY ......................................................... 13

SERVICE DATA AND SPECIFICATIONS (SDS)  ...... 16

Wheel Bearing  ........................................................ 16
Drive Shaft .............................................................. 16

RAX-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

Caution

NDS0001Z

Observe the following precautions when disassembling and servicing drive shaft.

Joint sub-assembly does not disassemble because it is non-overhaul parts.

Perform work in a location which is as dust-free as possible.

Before disassembling and servicing, clean the outside of parts.

Prevention of the entry of foreign objects must be taken into account during disassembly of the service
location.

Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean
cover must be placed over parts.

Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adher-
ing to parts.

Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by
blowing with air or wiping with paper shop cloths.

PREPARATION

RAX-3

C

E

F

G

H

I

J

K

L

M

A

B

RAX

PREPARATION

PFP:00002

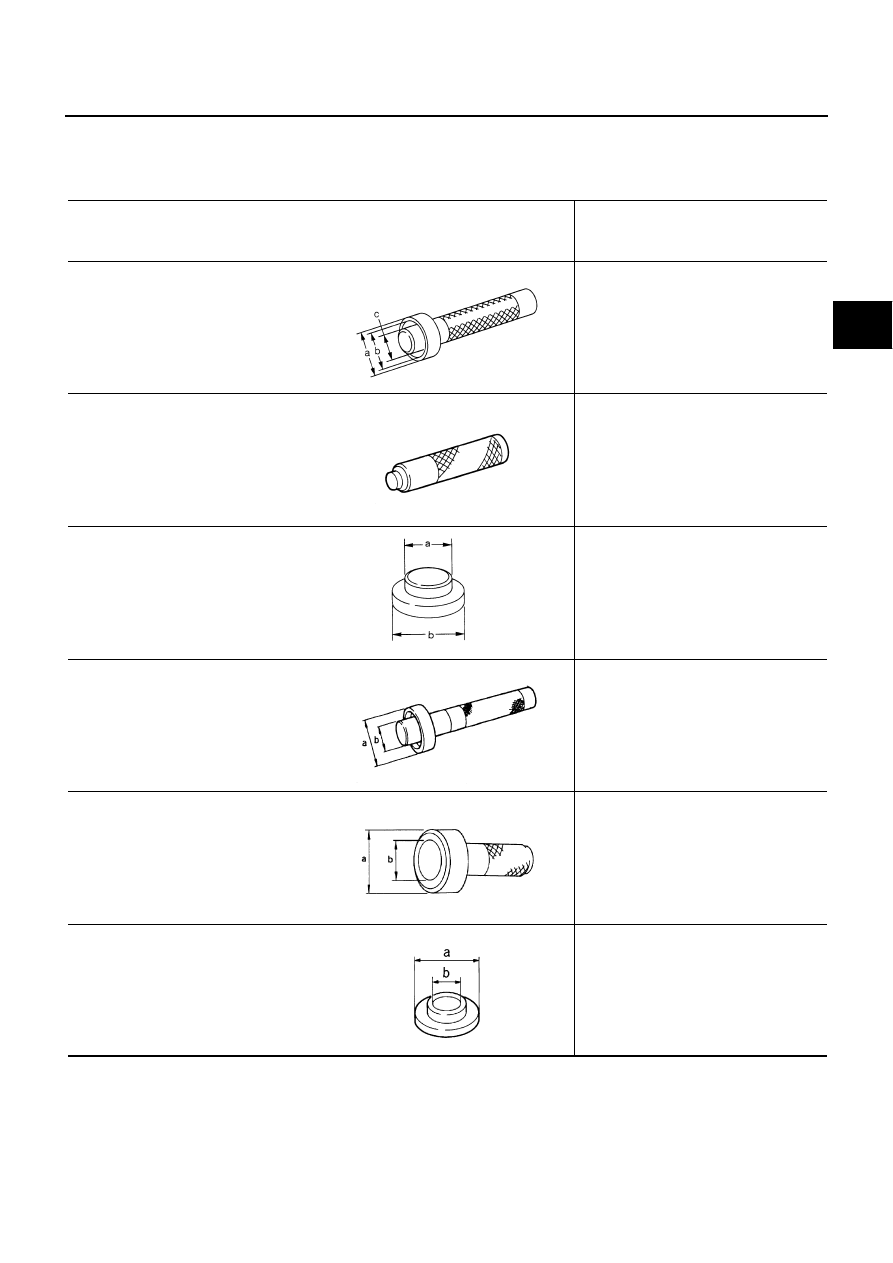

Special Service Tools

NDS00020

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
 (Kent-Moore No.)
Tool name

Description

ST33220000
 (      —      )
Drift
a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.

Removing wheel hub

Removing wheel bearing outer side
inner race

Inspection of wheel bearing rotating
torque

ST33251000
(       —       )
Drift

Installing wheel hub

ST35300000
(       —       )
Drift
a: 45 mm (1.77 in) dia.
b: 59 mm (2.32 in) dia.

Installing wheel hub

Inspection of wheel bearing rotating
torque

KV40100900
(       —        )
Drift
a: 52 mm (2.05 in) dia.
b:     —

Wheel bearing rotating torque inspection

KV38100500
(        —       )
Drift
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.

Installing drive shaft plug

KV38102200
(       —        )
Drift
a: 90 mm (3.54 in) dia.
b: 31 mm (1.22 in) dia.

Installing drive shaft plug

ZZA1046D

ZZA0982D

ZZA0881D

ZZA0539D

ZZA0701D

ZZA0920D
