FRONT FOG LAMP

Front Fog lamps Do Not Illuminate (Both Sides)

NKS002OI

1.

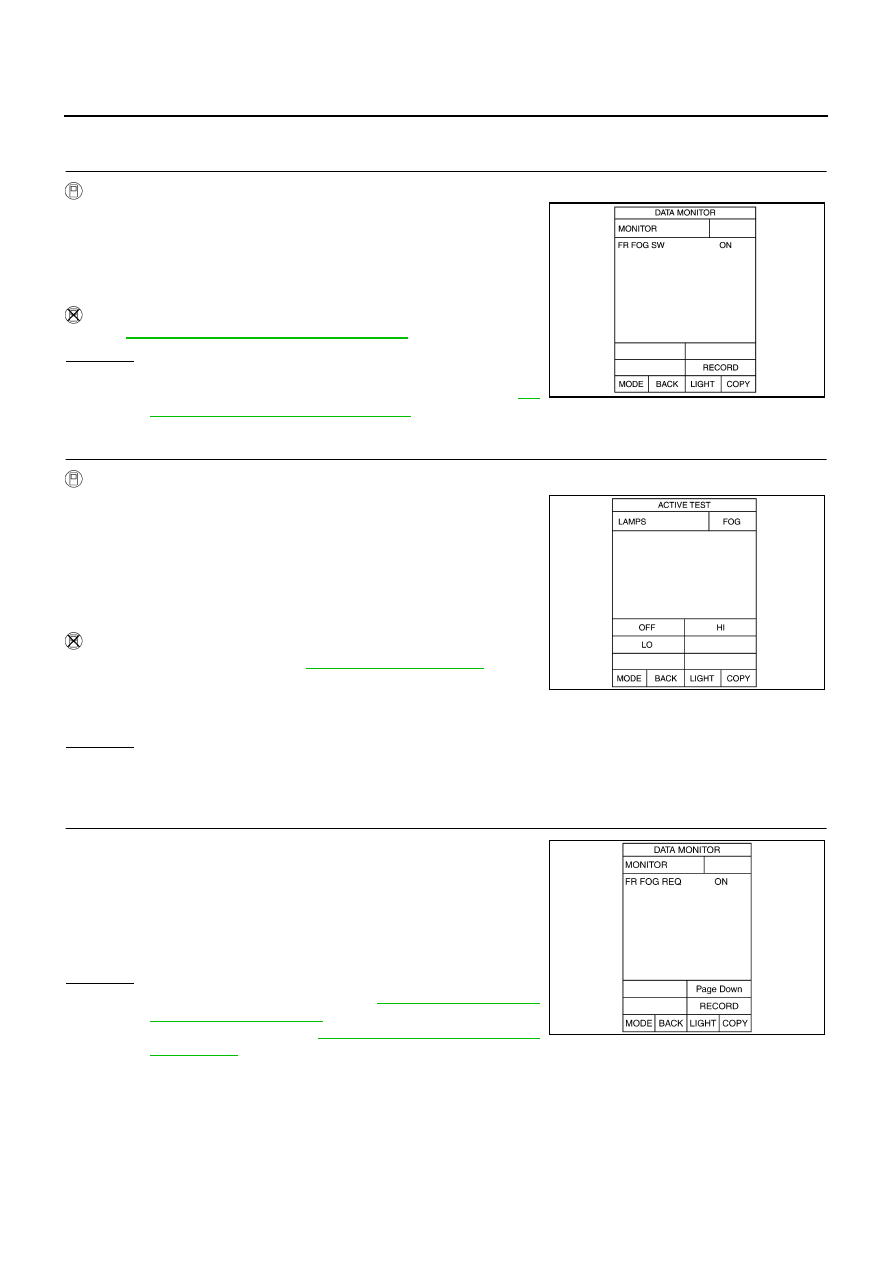

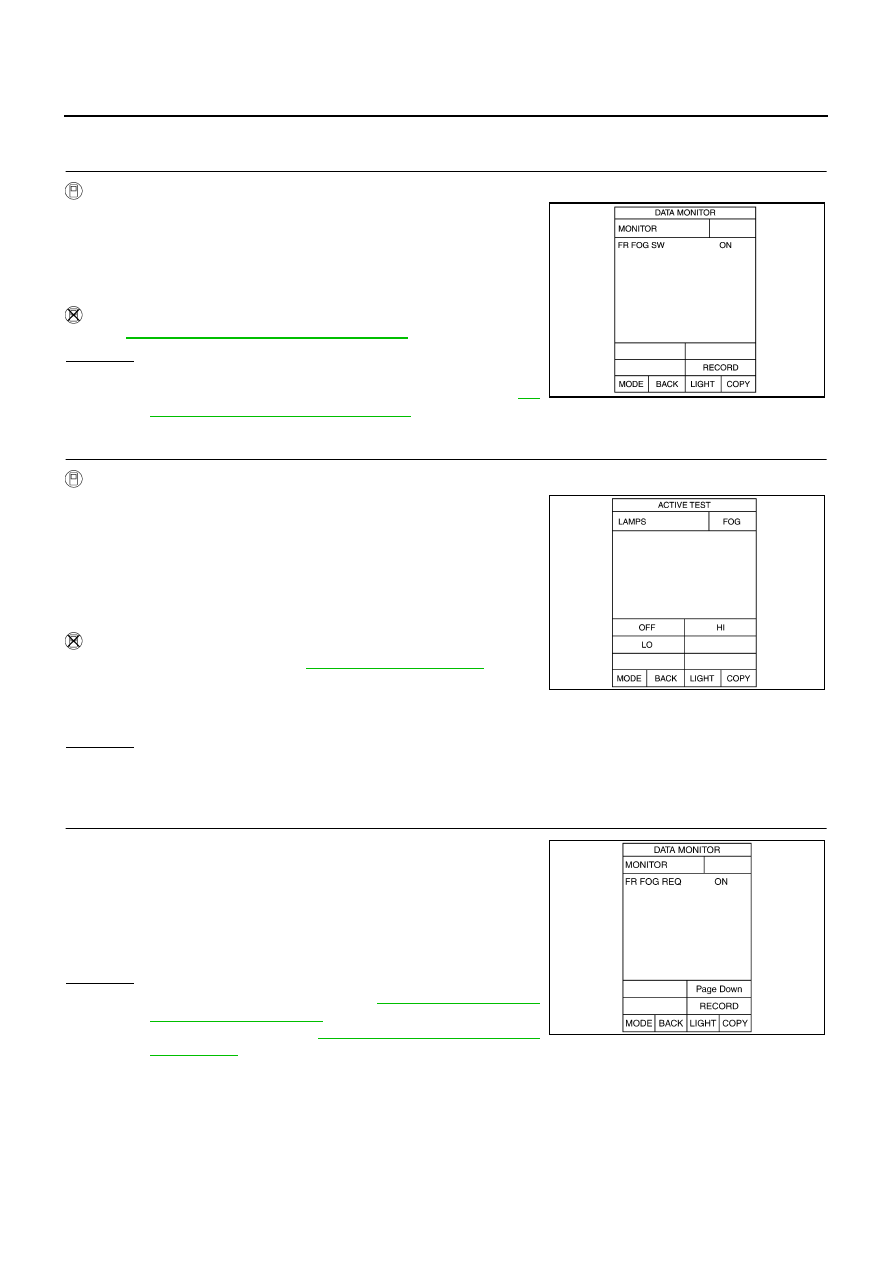

CHECK COMBINATION SWITCH INPUT SIGNAL

With CONSULT-II

Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “FR FOG SW” turns ON-OFF linked with operation of
front fog lamp switch.

Without CONSULT-II

Refer to

LT-100, "Combination Switch Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Check combination switch (lighting switch). Refer to

LT-

100, "Combination Switch Inspection"

 .

2.

FOG LAMP ACTIVE TEST

With CONSULT-II

1.

Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST”
on “SELECT DIAG MODE” screen.

2.

Select “LAMPS” on “SELECT TEST ITEM” screen.

3.

Touch “FOG” screen.

4.

Make sure front fog lamp operates.

Without CONSULT-II

1.

Start auto active test. Refer to

PG-21, "Auto Active Test"

 .

2.

Make sure front fog lamp operates.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 4.

3.

CHECK IPDM E/R

1.

Select “IPDM E/R” on CONSULT-II, and select “DATA MONI-
TOR” on “SELECT DIAG MODE” screen.

2.

Make sure “FR FOG REQ” turns ON when front fog lamp switch
is in ON position.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-27, "Removal and

Installation of IPDM E/R"

 .

NG

>> Replace BCM. Refer to

BCS-16, "Removal and Installa-

tion of BCM"

 .

When front fog lamp switch
is ON position

: FR FOG SW ON

PKIA7598E

Front fog lamp should operate.

Front fog lamp should operate.

PKIA7748E

When front fog lamp switch
is ON position

: FR FOG REQ ON

SKIA5898E

FRONT FOG LAMP

LT-73

C

D

E

F

G

H

I

J

L

M

A

B

LT

4.

CHECK FOG LAMP INPUT SIGNAL

With CONSULT-II

1.

Turn ignition switch OFF.

2.

Disconnect front combination lamp RH and LH connectors.

3.

Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST”
on “SELECT DIAG MODE” screen.

4.

Select “LAMPS” on “SELECT TEST ITEM” screen.

5.

Touch “FOG” screen.

6.

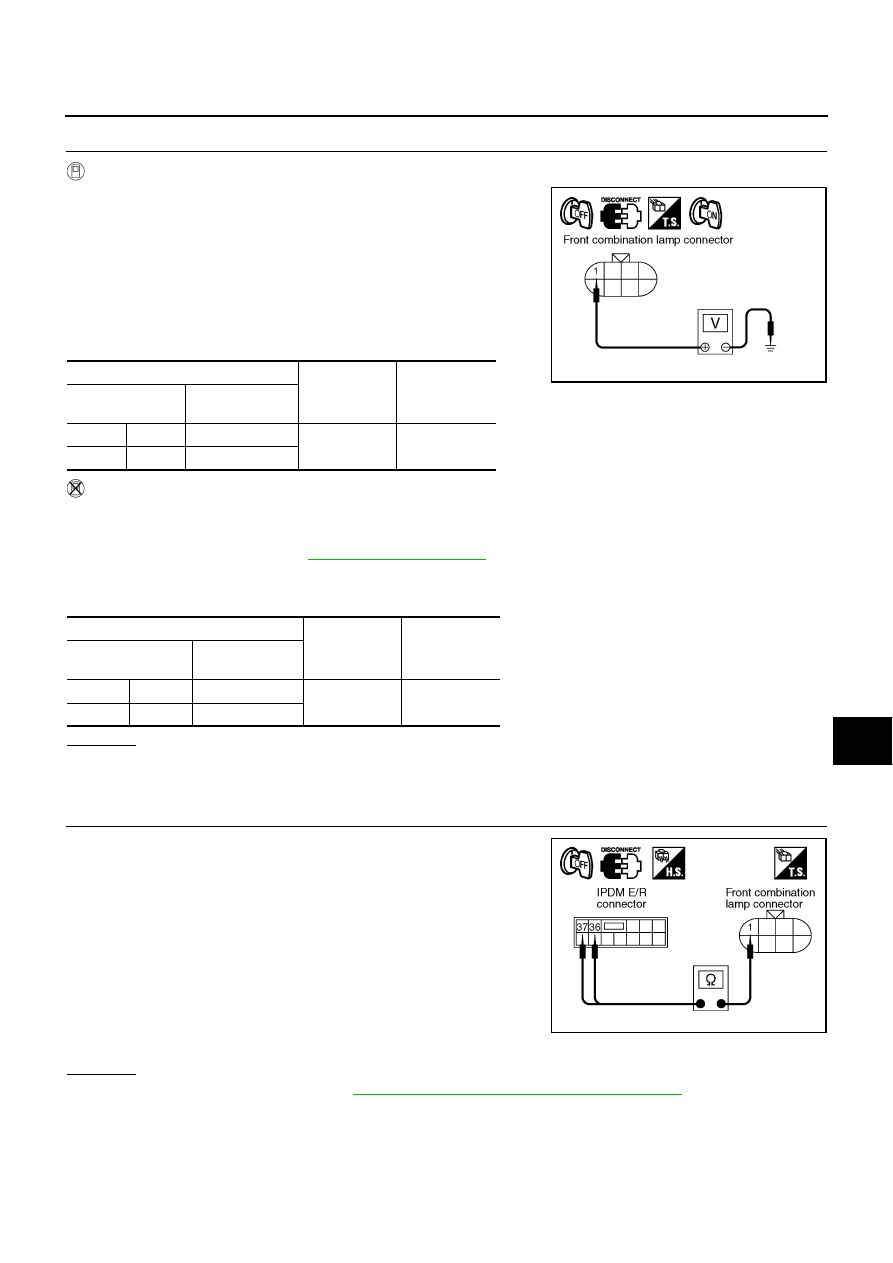

When front fog lamp relay is operating, check voltage between
front combination lamp harness connector and ground.

Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Disconnect front combination lamp RH and LH connectors.

3.

Start auto active test. Refer to

PG-21, "Auto Active Test"

 .

4.

When front fog lamp relay is operating, check voltage between front combination lamp harness connector
and ground.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

CHECK FOG LAMP CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between IPDM E/R harness connector E8 ter-
minal 36 and front combination lamp RH harness connector E24
terminal 1.

4.

Check continuity between IPDM E/R harness connector E8 ter-
minal 37 and front combination lamp LH harness connector E41
terminal 1.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-27, "Removal and Installation of IPDM E/R"

 .

NG

>> Repair harness or connector.

(+)

(

)

Voltage

 Front combination

lamp connector

Terminal

RH

E24

Ground Battery

voltage

LH

E41

1

(+)

(

)

Voltage

 Front combination

lamp connector

Terminal

RH

E24

Ground Battery

voltage

LH

E41

PKIA4889E

36 – 1

: Continuity should exist.

37 – 1

: Continuity should exist.

PKIA4890E

LT-74

FRONT FOG LAMP

6.

CHECK FOG LAMP GROUND

1.

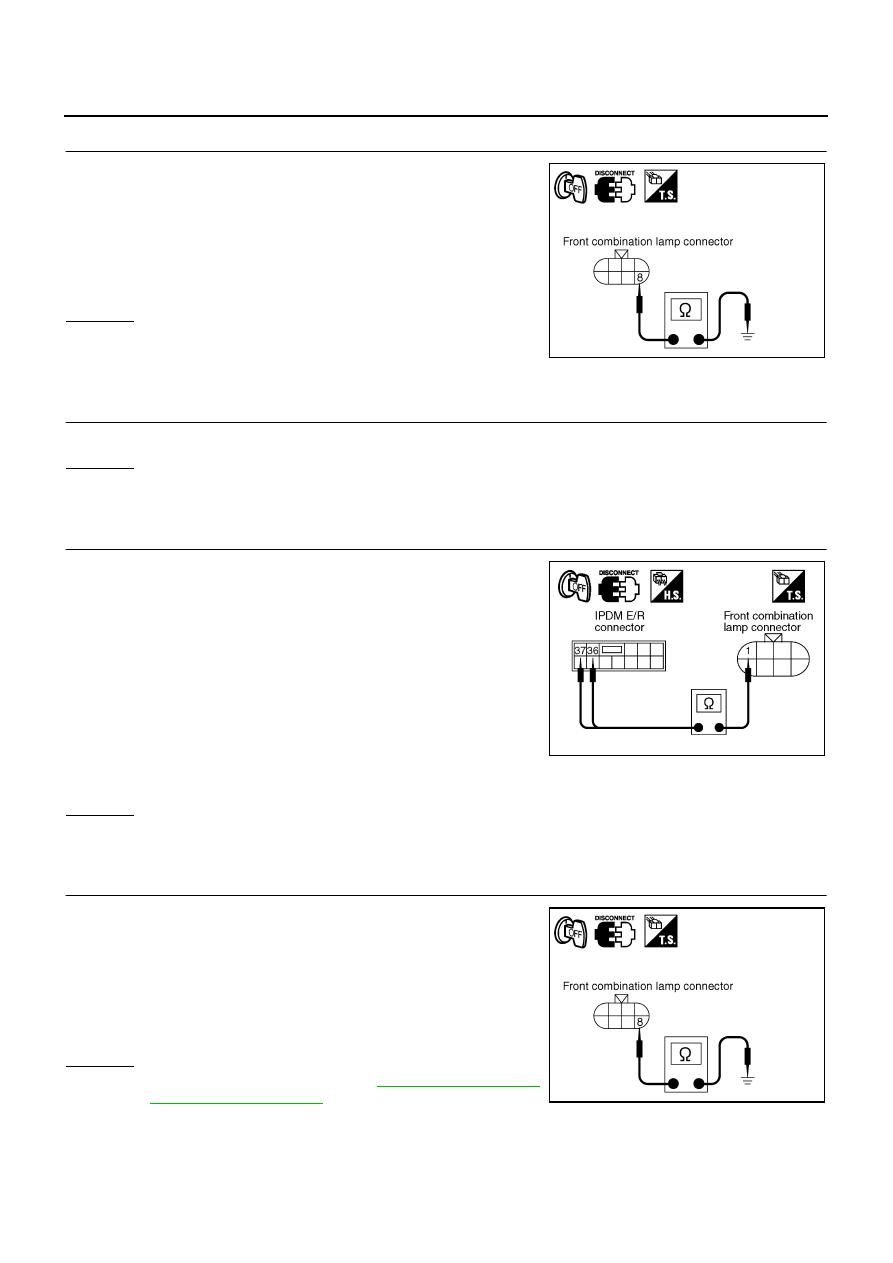

Check continuity between front combination lamp RH harness
connector E24 terminal 8 and ground.

2.

Check continuity between front combination lamp LH harness
connector E41 terminal 8 and ground.

OK or NG

OK

>> Check front fog lamp bulbs.

NG

>> Repair harness or connector.

Front Fog Lamp Does Not Illuminate (One Side)

NKS002OJ

1.

 CHECK BULB

Check bulb of lamp with does not illuminate which does not illuminate.

OK or NG

OK

>> GO TO 2.

NG

>> Replace front fog lamp bulb.

2.

CHECK FOG LAMP CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector and front combination lamp RH
or LH connector.

3.

Check continuity between IPDM E/R harness connector E8 ter-
minal 36 and front combination lamp RH harness connector E24
terminal 1.

4.

Check continuity between IPDM E/R harness connector E8 ter-
minal 37 and front combination lamp LH harness connector E41
terminal 1.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

3.

CHECK FOG LAMP GROUND

1.

Check continuity between front combination lamp RH harness
connector E24 terminal 8 and ground.

2.

Check continuity between front combination lamp LH harness
connector E41 terminal 8 and ground.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-27, "Removal and

Installation of IPDM E/R"

 .

NG

>> Repair harness or connector.

8 – Ground

: Continuity should exist.

8 – Ground

: Continuity should exist.

PKIA4585E

36 – 1

: Continuity should exist.

37 – 1

: Continuity should exist.

PKIA4890E

8 – Ground

: Continuity should exist.

8 – Ground

: Continuity should exist.

PKIA4585E

FRONT FOG LAMP

LT-75

C

D

E

F

G

H

I

J

L

M

A

B

LT

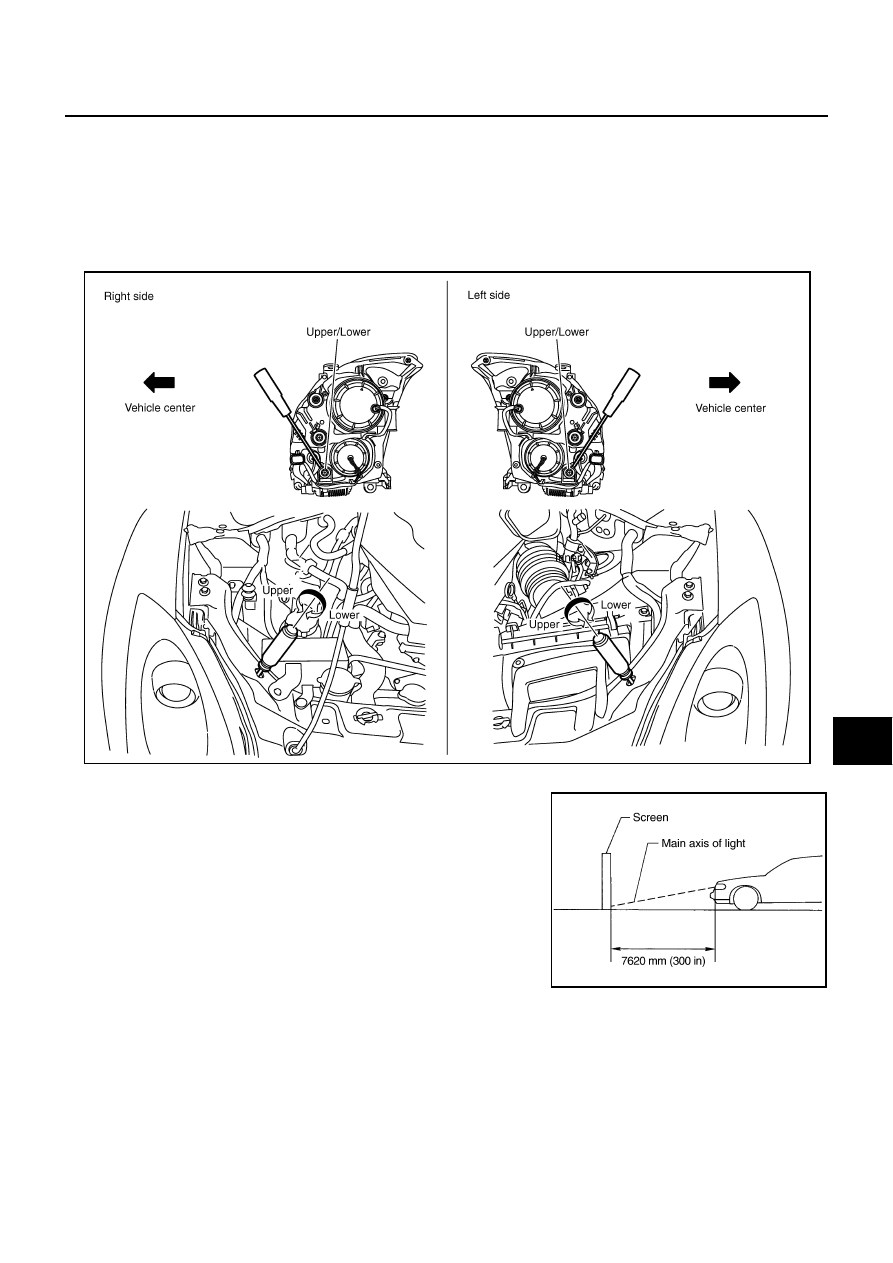

Aiming Adjustment

NKS002OK

The front fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing
aiming adjustment, make sure of the following.

Keep all tires inflated to correct pressure.

Place vehicle on level ground.

See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and
tools). Have the driver or equivalent weight placed in driver seat.

Adjust aiming in the vertical direction by turning the adjusting screw.

1.

Set the distance between the screen and the center of the front
fog lamp lens as shown at left.

2.

Turn front fog lamps ON.

PKIC5945E

PKIC5946E
