BODY SIDE TRIM

EI-31

C

D

E

F

G

H

J

K

L

M

A

B

EI

BODY SIDE TRIM

PFP:76913

Removal and Installation

NIS000GZ

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

REAR SIDE FINISHER
Removal

1.

Remove kicking plate.

2.

Remove body side welt.

3.

Remove rear side finisher.

Installation

Install in the reverse order of removal.

1.

Rear pillar garnish

2.

Body side welt

3.

Front pillar garnish

4.

Dash side finisher

5.

Center mud guard finisher

6.

Kicking plate

7.

Rear side finisher

8.

Cap

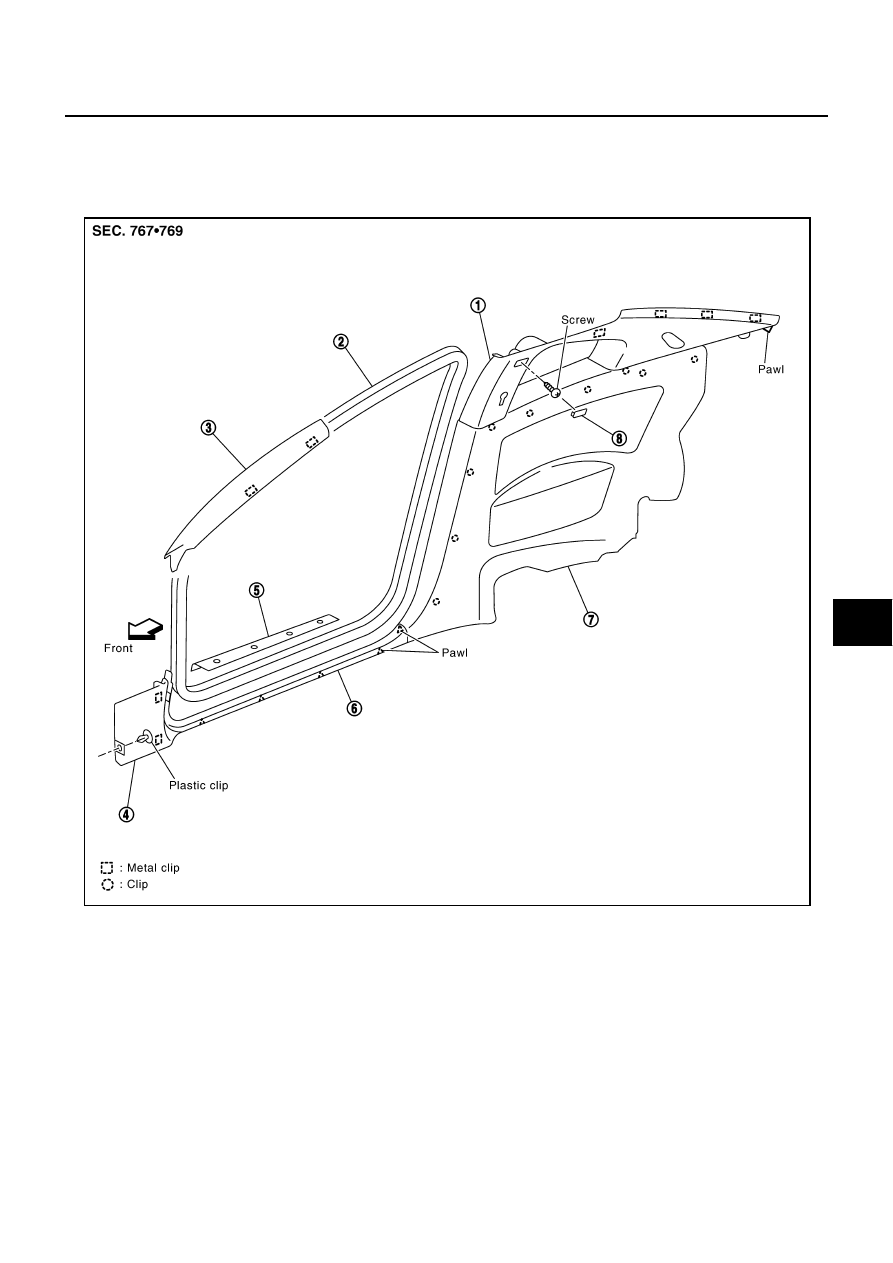

PIIA3574E

EI-32

BODY SIDE TRIM

REAR PILLAR GARNISH
Removal

1.

Remove rear seat cushion. Refer to

SE-140, "REAR SEAT"

 .

2.

Remove front seat belt shoulder anchor bolts. Refer to

SB-4, "SEAT BELTS"

 .

3.

Remove rear seat belt floor anchor bolts. Refer to

SB-4, "SEAT BELTS"

 .

4.

Remove kicking plate.

5.

Remove body side welt.

6.

Remove rear side finisher.

7.

Remove rear pillar garnish.

Installation

Install in the reverse order of removal.

FRONT PILLAR GARNISH
Removal

1.

Remove kicking plate.

2.

Remove body side welt.

3.

Remove front pillar garnish.

Installation

Install in the reverse order of removal.

KICKING PLATE
Removal

Remove kicking plate.

Installation

Install in the reverse order of removal.

CENTER MUD GUARD FINISHER
Removal

 Remove center mud guard finisher.

Installation

Install in the reverse order of removal.

DASH SIDE FINISHER
Removal

1.

Remove kicking plate.

2.

Remove body side welt.

3.

Remove dash side finisher.

NOTE:

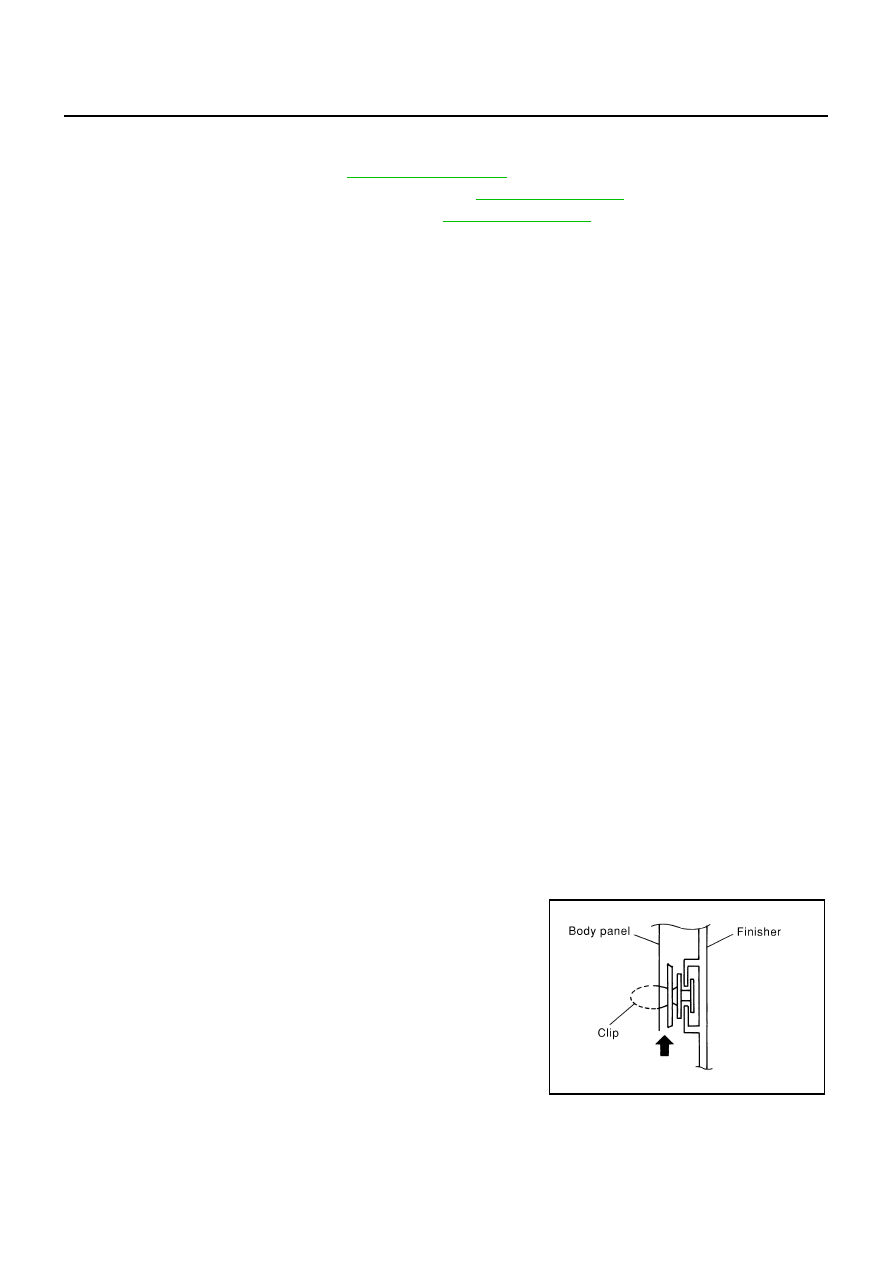

Insert screw driver rolled with cloth between panel on vehicle and
clips (as indicated with arrow), and disconnect clips.

Installation

Install in the reverse order of removal.

NOTE:
To install, check if all clips are matched over holes of panel on vehicle, then push on.

SIIA0810E

REAR PARCEL SHELF FINISHER

EI-33

C

D

E

F

G

H

J

K

L

M

A

B

EI

REAR PARCEL SHELF FINISHER

PFP:79910

Removal and Installation

NIS000H0

REMOVAL

1.

Remove rear seat. Refer to

SE-140, "REAR SEAT"

 .

2.

Remove kicking plate. Refer to

EI-31, "BODY SIDE TRIM"

 .

3.

Remove body side welt. Refer to

EI-31, "BODY SIDE TRIM"

 .

4.

Remove front seat belt floor shoulder anchor bolts. Refer to

SB-4, "SEAT BELTS"

 .

5.

Remve rear seat belt floor anchor bolts. Refer to

SB-4, "SEAT BELTS"

 .

6.

Remove rear side finisher. Refer to

EI-31, "BODY SIDE TRIM"

 .

7.

Remove rear pillar garnish. Refer to

EI-31, "BODY SIDE TRIM"

 .

8.

Remove rear seatback striker cover.

9.

Remove clips of rear parcel shelf finisher.

10. Remove child anchor cover .

11. Remove high-mounted stop lamp and electrical parts connector.

12. Remove rear parcel shelf finisher.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

●

Confirm hooks of rear parcel shelf finisher are completely inserted into holes on vehicle side.

●

Confirm clips are matched over holes on vehicle side, then push on.

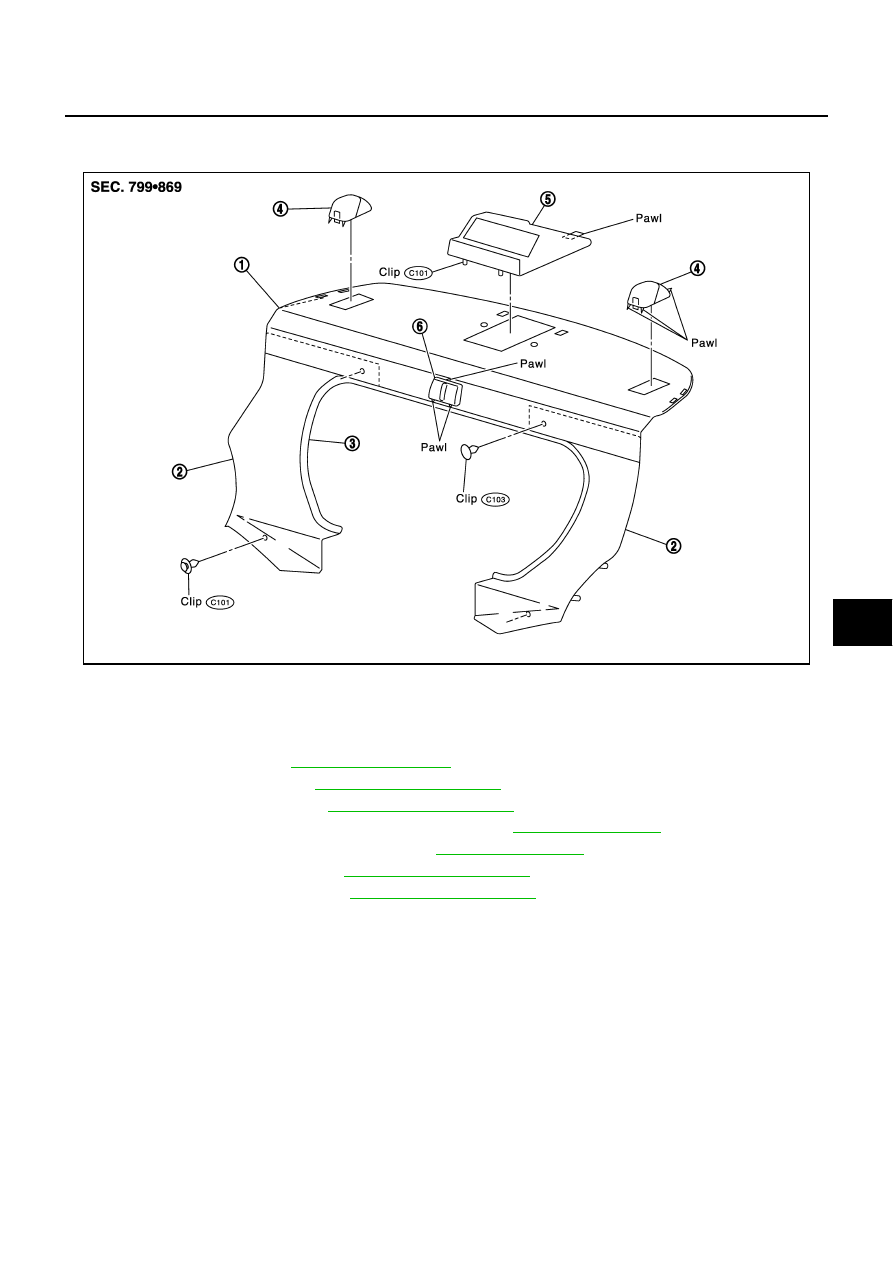

PIIA3575E

1.

Rear parcel shelf finisher

2.

Rear seatback trim

3.

Rear seatback welt

4.

Child anchor cover

5.

High-mounted stop lamp

6.

Rear seatback striker cover

EI-34

FLOOR TRIM

FLOOR TRIM

PFP:74902

Removal and Installation

NIS000H1

REMOVAL

1.

The battely terminal is removed and waits for three minutes.

2.

Remove front seat and rear seat cushion. Refer to

SE-134, "Removal and Installation"

  and

SE-140,

"Removal and Installation"

 .

3.

Remove instrument side panel (left and right). Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

4.

Remove center console. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

5.

Remove kicking plate. Refer to

EI-31, "BODY SIDE TRIM"

 .

6.

Remove body side welt. Refer to

EI-31, "BODY SIDE TRIM"

 .

7.

Remove rear side finisher. Refer to

EI-31, "BODY SIDE TRIM"

 .

8.

Remove dash side finisher. Refer to

EI-31, "BODY SIDE TRIM"

 .

9.

Remove screw of foot-rest and remove plate.

10. Turn flat-bladed screw driver in counter-clockwise, and remove

foot-rest from stud bolts on vehicle.

11. Remove foot-rest.

12. Remove front seat belt floor anchor bolts. Refar to

SB-4, "SEAT

BELTS"

 .

13. Remove air bag cpu assembly braket. Refar to

SRS-52, "DIAG-

NOSIS SENSOR UNIT"

 .

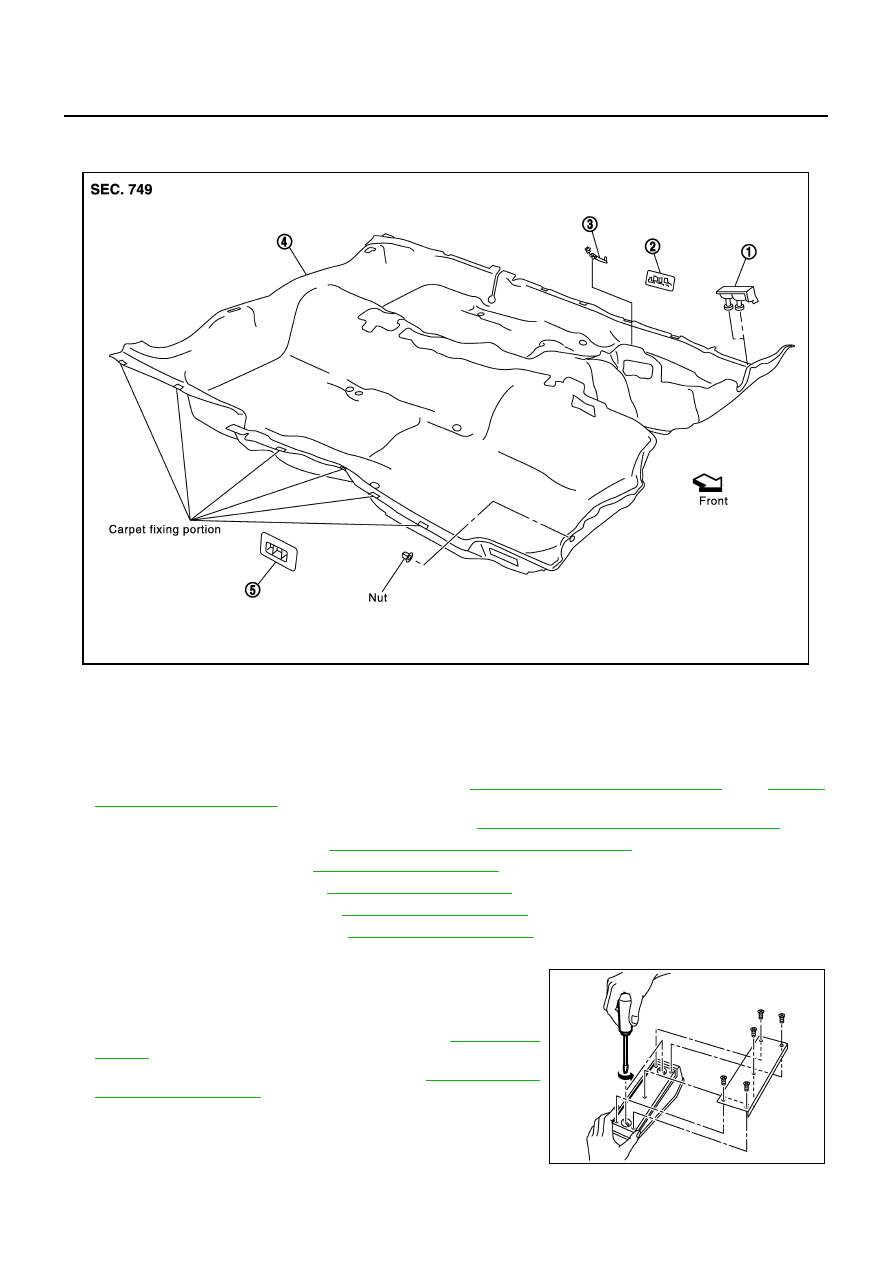

PIIA3581E

1.

Foot-rest (driver)

2.

Foot-grille (left)

3.

Carpet hook

4.

Floor carpet

5.

Foot-grille (right)
