DTC P0447 EVAP CANISTER VENT CONTROL VALVE

EC-429

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

NBS000T6

1.

INSPECTION START

Do you have CONSULT-II?

Yes or No

Yes

>> GO TO 2.

No

>> GO TO 3.

2.

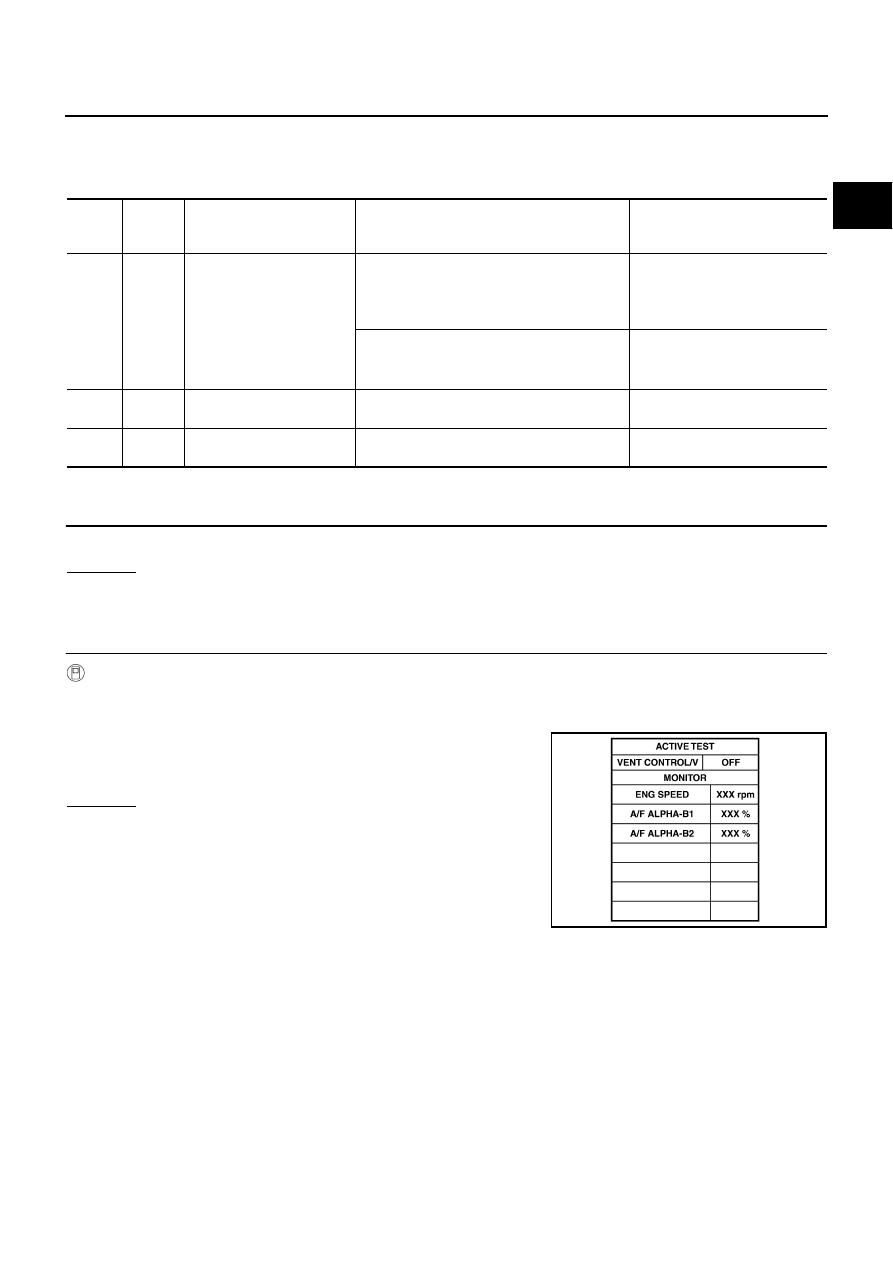

CHECK EVAP CANISTER VENT CONTROL VALVE CIRCUIT

 With CONSULT-II

1.

Turn ignition switch OFF and then turn ON.

2.

Select “VENT CONTROL/V” in “ACTIVE TEST” mode with CONSULT-II.

3.

Touch “ON/OFF” on CONSULT-II screen.

4.

Check for operating sound of the valve.
Clicking noise should be heard.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 3.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

111

W

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]

●

For a few seconds after turning ignition
switch OFF

0 - 1.5V

[Ignition switch: OFF]

●

More than a few seconds passed after turn-
ing ignition switch OFF

BATTERY VOLTAGE
(11 - 14V)

117

GY/L

EVAP canister vent control
valve

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

119

120

P
L

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

PBIB1679E

EC-430

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

3.

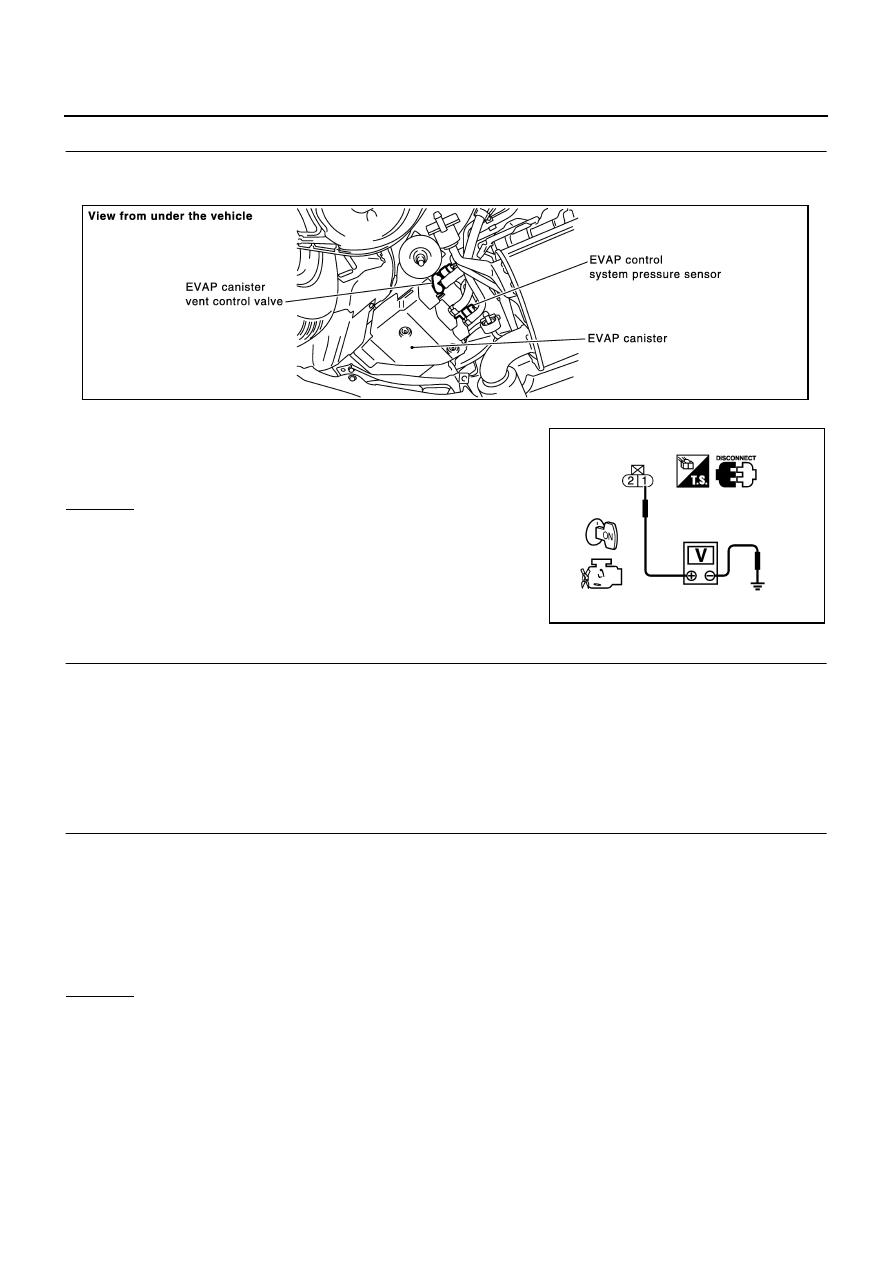

CHECK EVAP CANISTER VENT CONTROL VALVE POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister vent control valve harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between EVAP canister vent control valve termi-
nal 1 and ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E123, B41

●

Harness for open or short between EVAP canister vent control valve and IPDM E/R

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK EVAP CANISTER VENT CONTROL VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND

SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 117 and EVAP canister vent control valve terminal 2.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

Voltage: Battery voltage

PBIB1086E

PBIB0152E

Continuity should exist.

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

EC-431

C

D

E

F

G

H

I

J

K

L

M

A

EC

6.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors B1, M12

●

Harness connectors M72, F102

●

Harness for open or short between EVAP canister vent control valve and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK RUBBER TUBE FOR CLOGGING

1.

Turn ignition switch OFF.

2.

Disconnect rubber tube connected to EVAP canister vent control valve.

3.

Check the rubber tube for clogging.

OK or NG

OK

>> GO TO 8.

NG

>> Clean the rubber tube using an air blower.

8.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-431, "Component Inspection"

 .

OK or NG

OK

>> GO TO 9.

NG

>> Replace EVAP canister vent control valve.

9.

CHECK INTERMITTENT INCIDENT

Refer to

EC-151, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

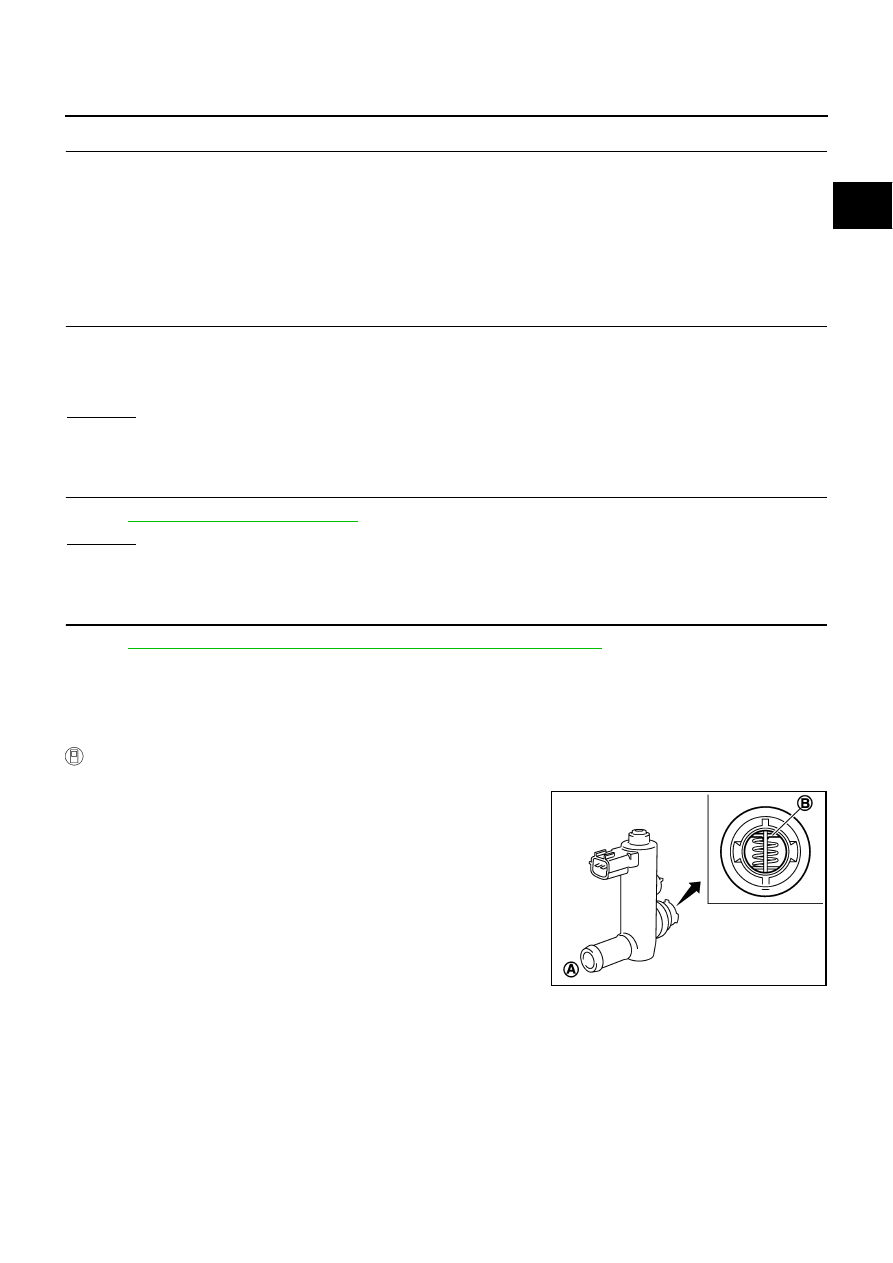

Component Inspection

NBS000T7

EVAP CANISTER VENT CONTROL VALVE

 With CONSULT-II

1.

Remove EVAP canister vent control valve from EVAP canister.

2.

Check portion B  of EVAP canister vent control valve for being
rusted.
If NG, replace EVAP canister vent control valve.
If OK, go to next step.

3.

Reconnect harness connectors disconnected.

4.

Turn ignition switch ON.

PBIB1033E

EC-432

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

5.

Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.

6.

Check air passage continuity and operation delay time.
Make sure new O-ring is installed properly.

Operation takes less than 1 second.

If NG, replace EVAP canister vent control valve.
If OK, go to next step.

7.

Clean the air passage (Portion A  to B ) of EVAP canister vent control valve using an air blower.

8.

Perform step 6 again.

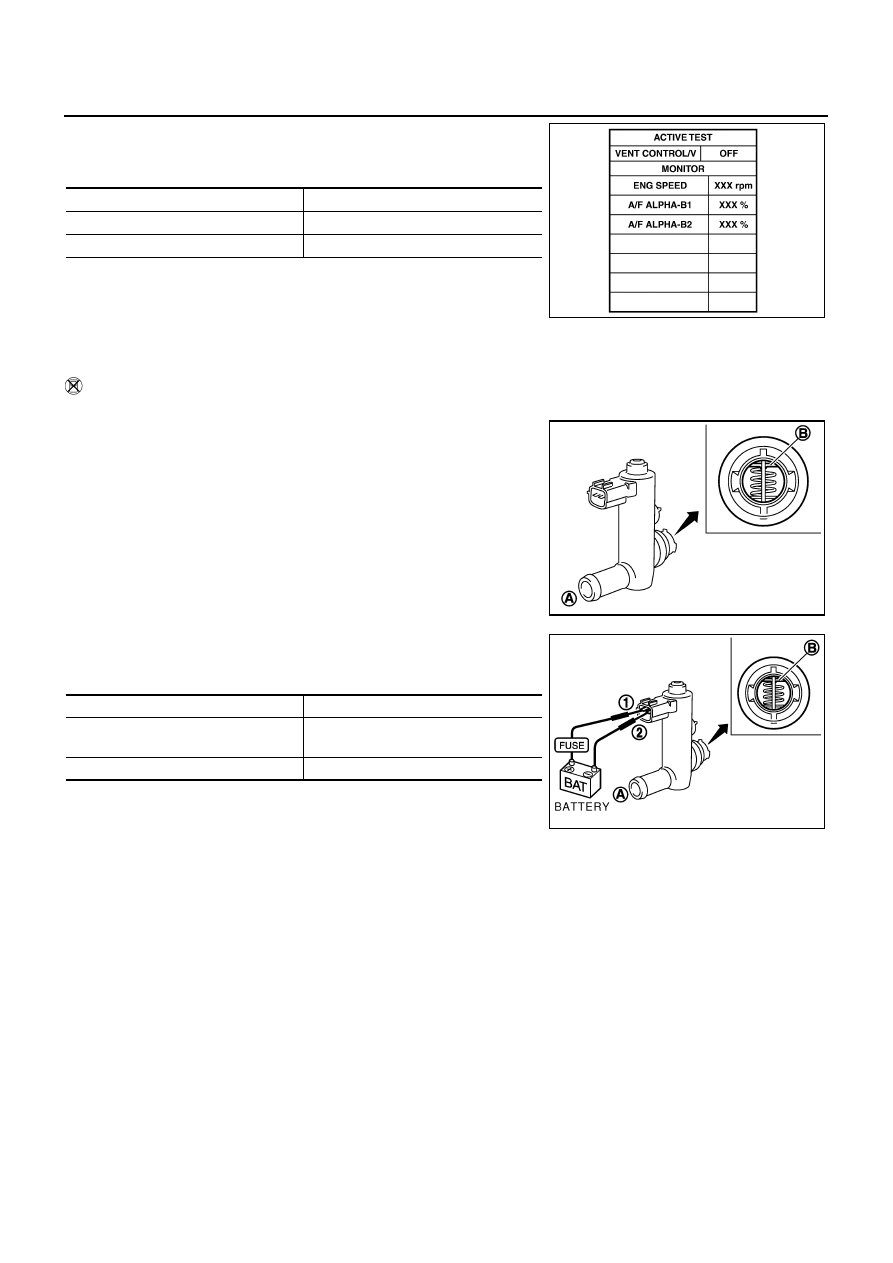

 Without CONSULT-II

1.

Remove EVAP canister vent control valve from EVAP canister.

2.

Check portion B  of EVAP canister vent control valve for being
rusted.

3.

Check air passage continuity and operation delay time under the
following conditions.
Make sure new O-ring is installed properly.

Operation takes less than 1 second.

If NG, replace EVAP canister vent control valve.
If OK, go to next step.

4.

Clean the air passage (Portion A  to B ) of EVAP canister vent control valve using an air blower.

5.

Perform step 3 again.

Condition VENT CONTROL/V

Air passage continuity between A and B

ON

No

OFF

Yes

PBIB1679E

PBIB1033E

Condition

Air passage continuity between A and B

12V direct current supply between
 terminals 1 and 2

No

OFF

Yes

PBIB1034E
