Infiniti G35 (V35). Manual - part 267

COMBINATION METERS

DI-15

C

D

E

F

G

H

I

J

L

M

A

B

DI

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector.

3.

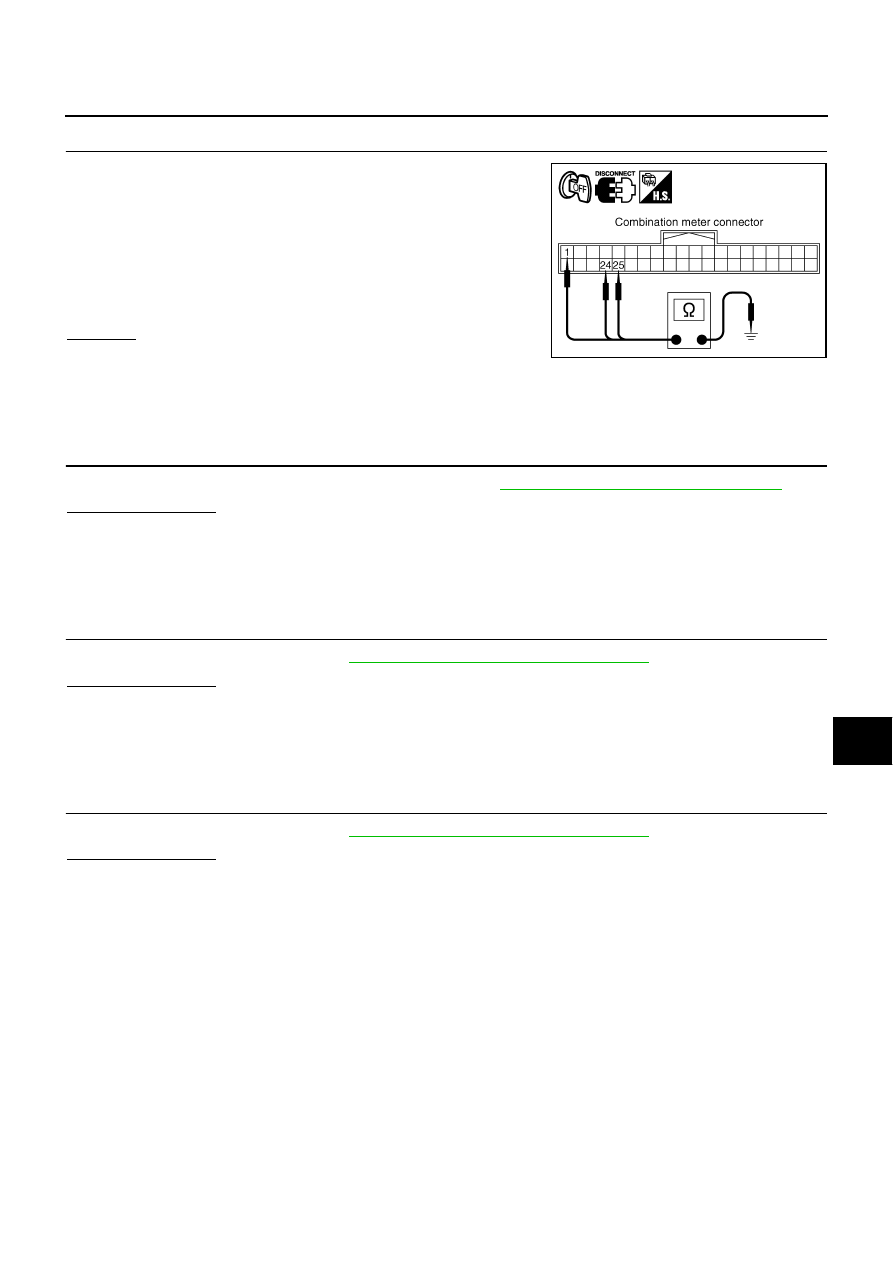

Check continuity between combination meter harness connector
M19 terminals 1 (B), 24 (B), 25 (B) and ground.

OK or NG

OK

>> INSPECTION END

NG

>> Repair harness or connector.

Vehicle Speed Signal Inspection

NKS000KM

Symptom: Speedometer and odo/trip meter indication is malfunction.

1.

CHECK VDC/TCS/ABS CONTROL UNIT SELF-DIAGNOSIS

Preform self-diagnosis of VDC/TCS/ABS control unit. Refer to

BRC-25, "CONSULT-II Functions (ABS)"

 .

Self-diagnosis results

No malfunction detected >> Replace combination meter.
Malfunction detected >> Check applicable parts, and repair or replace corresponding parts.

Engine Speed Signal Inspection

NKS000KN

Symptom: Tachometer indication is malfunction.

1.

CHECK ECM SELF-DIAGNOSIS

Perform self-diagnosis of ECM. Refer to

EC-121, "CONSULT-II Function (ENGINE)"

 .

Self-diagnosis results

No malfunction detected >> Replace combination meter.
Malfunction detected >> Check applicable parts, and repair or replace corresponding parts.

Engine Coolant Temperature Signal Inspection

NKS000KO

Symptom: Water temperature gauge indication is malfunction.

1.

CHECK ECM SELF-DIAGNOSIS

Preform self-diagnosis of ECM. Refer to

EC-121, "CONSULT-II Function (ENGINE)"

 .

Self-diagnosis results

No malfunction detected >> Replace combination meter.
Malfunction detected >> Check applicable parts, and repair or replace corresponding parts.

Fuel Level Sensor Signal Inspection

NKS000KP

Symptom:

●

Fuel gauge indication is malfunction.

●

Low-fuel warning lamp indication is irregular.

NOTE:
The following symptoms are not malfunction.

Fuel gauge

●

Depending on vehicle position or driving circumstances, the fuel in the tank varies, and the pointer may
fluctuate.

●

If the vehicle is fueled with the ignition switch ON, the pointer moves slowly.

Low-fuel warning lamp

●

Depending on vehicle position or driving circumstances, the fuel in the tank varies, and the warning lamp
ON timing may change.

1 (B) – Ground

: Continuity should exist.

24 (B) – Ground

25 (B) – Ground

PKIB2677E

DI-16

COMBINATION METERS

1.

CHECK HARNESS CONNECTOR

Check combination meter and fuel level sensor unit terminals (meter side, unit side, harness side) for loose-
ness or bent terminals.

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

2.

CHECK COMBINATION METER CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and fuel level sensor
unit (sub) connector.

3.

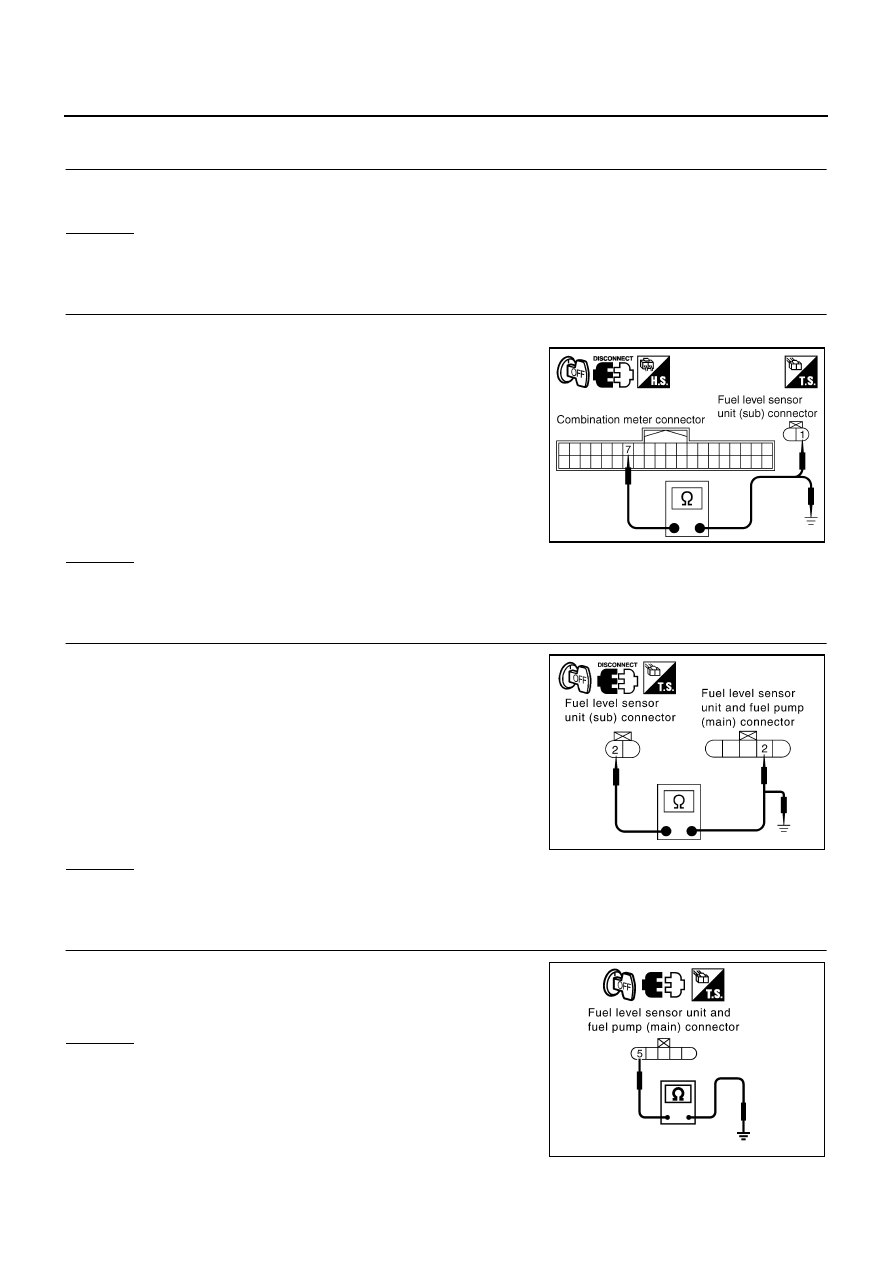

Check continuity between combination meter harness connector
M19 terminal 7 (W/B) and fuel level sensor unit (sub) harness
connector B28 terminal 1(W/B).

4.

Check continuity between combination meter harness connector
M19 terminal 7 (W/B) and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

3.

CHECK FUEL LEVEL SENSOR CIRCUIT

1.

Disconnect fuel level sensor unit and fuel pump (main) connec-
tor.

2.

Check continuity between fuel level sensor unit (sub) harness
connector B28 terminal 2 (Y) and fuel level sensor unit and fuel
pump (main) harness connector B27 terminal 2 (Y).

3.

Check continuity between fuel level sensor unit (sub) harness
connector B28 terminal 2 (Y) and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair harness or connector.

4.

CHECK GROUND CIRCUIT

Check continuity between fuel level sensor unit and fuel pump
(main) harness connector B27 terminal 5 (B/W) and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair harness or connector.

7 (W/B) – 1 (W/B)

: Continuity should exist.

7 (W/B) – Ground

: Continuity should not exist.

PKIB2678E

2 (Y) – 2 (Y)

: Continuity should exist.

2 (Y) – Ground

: Continuity should not exist.

PKIB3822E

5 (B/W) – Ground

: Continuity should exist.

PKIB5336E

COMBINATION METERS

DI-17

C

D

E

F

G

H

I

J

L

M

A

B

DI

5.

CHECK FUEL LEVEL SENSOR

Check fuel level sensor units. Refer to

DI-18, "FUEL LEVEL SENSOR UNIT"

 .

OK or NG

OK

>> Check fuel level sensor unit installation, and check whether the float arm interferes or binds with

any of the internal components in the fuel tank. Repair or replace malfunctioning part, if neces-
sary.

NG

>> Replace fuel level sensor unit and fuel pump (main) or fuel level sensor unit (sub).

Fuel Gauge Pointer Fluctuates, Indicator Wrong Value or Varies

NKS000KQ

1.

CHECK FUEL GAUGE FLUCTUATION

Test drive vehicle to see if gauge fluctuates only during driving or at the instant of stopping.

Does the indication value vary only during driving or at the instant of stopping?

YES

>> The pointer fluctuation may be caused by fuel level change in the fuel tank. Condition is normal.

NO

>> Ask the customer about the situation when the symptom occurs in detail, and perform the trouble

diagnosis.

Fuel Gauge Does Not Move to FULL position

NKS000KR

1.

QUESTION 1

Does it take a long time for the pointer to move to FULL position?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

QUESTION 2

Was the vehicle fueled with the ignition switch ON?

YES

>> Be sure to fuel the vehicle with the ignition switch OFF. Otherwise, it will take a long time to move

to FULL position because of the characteristic of the fuel gauge.

NO

>> GO TO 3.

3.

QUESTION 3

Is the vehicle parked on an incline?

YES

>> Check the fuel level indication with vehicle on a level surface.

NO

>> GO TO 4.

4.

QUESTION 4

During driving, does the fuel gauge pointer move gradually toward EMPTY position?

YES

>> Check the fuel level sensor unit. Refer to

DI-18, "FUEL LEVEL SENSOR UNIT"

 .

NO

>> The float arm may interfere or bind with any of the components in the fuel tank.

DI-18

COMBINATION METERS

Electrical Components Inspection

NKS000KS

FUEL LEVEL SENSOR UNIT

For removal, refer to

FL-5, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY"

 .

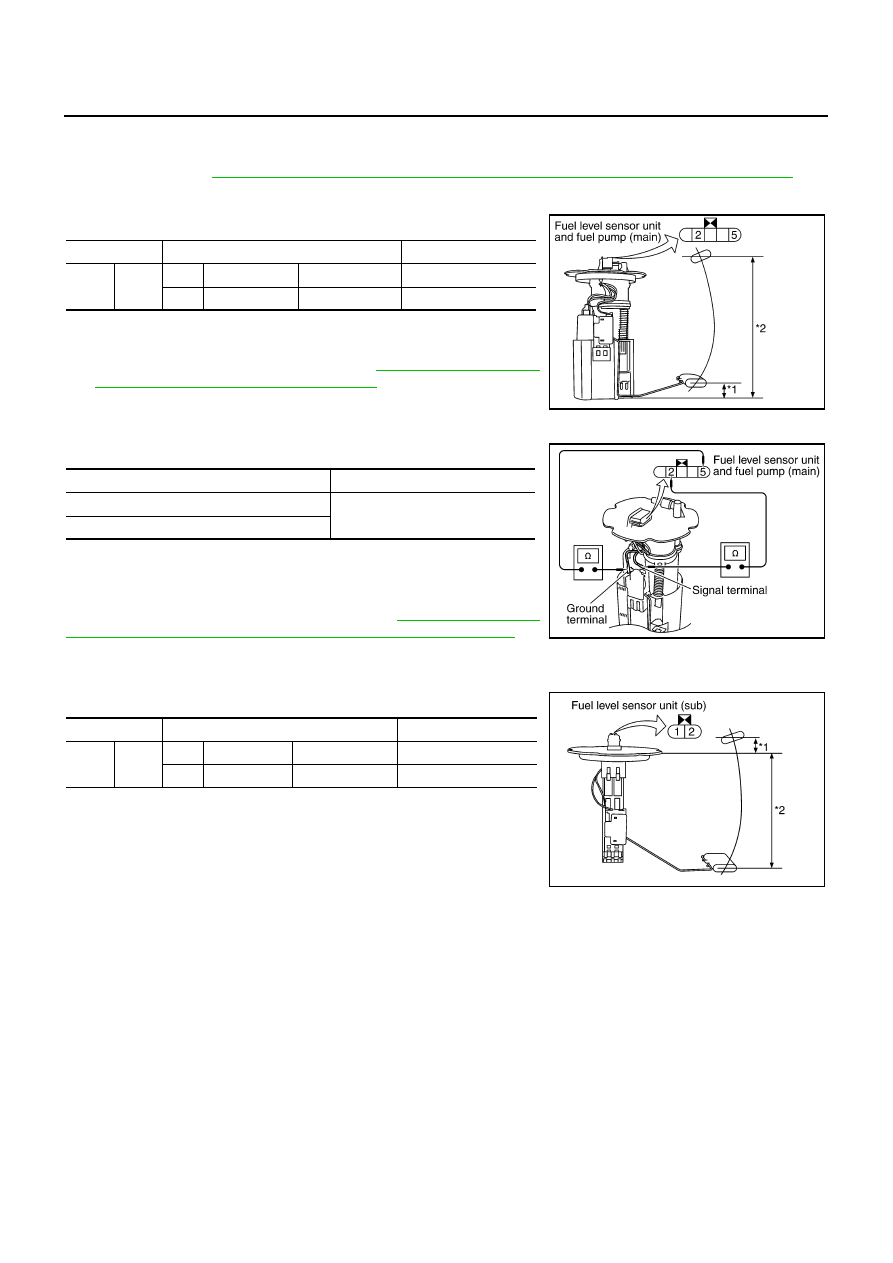

Fuel Level Sensor Unit and Fuel Pump (Main)

Check the resistance between terminals 2 and 5.

*1 and *2: When float rod is in contact with stopper.

●

If the results of check are NG, check the fuel level sensor unit
and fuel pump (main) harness. Refer to

DI-18, "Fuel Level Sen-

sor Unit and Fuel Pump (Main) Harness"

 .

Fuel Level Sensor Unit and Fuel Pump (Main) Harness

Check the continuity between the following terminals.

●

If the results of check are NG, replace fuel pump assembly.

●

If the results of check are OK, replace fuel level sensor unit.

NOTE:
When replacing fuel level sensor unit, refer to

FL-5, "FUEL LEVEL

SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY"

  in

FL section.

Fuel Level Sensor Unit (Sub)

Check the resistance between terminals 1 and 2.

*1 and *2: When float rod is in contact with stopper.

Terminal

Float position

[mm (in)]

Resistance value [

Ω

]

2

5

*1

Empty

30 (1.18)

Approx. 80

*2

Full

210 (8.27)

Approx. 3

SKIB1307E

Terminal

Continuity

2 - Signal terminal

Yes

5 - Ground terminal

SKIA3582E

Terminal

Float position

[mm (in)]

Resistance value [

Ω

]

1

2

*1

Full

9.4 (0.37)

Approx. 3

*2

Empty

179 (7.05)

Approx. 43

SKIB1308E
