BRC-1

BRAKE CONTROL SYSTEM

F  BRAKES

CONTENTS

C

D

E

G

H

I

J

K

L

M

SECTION

A

B

BRC

BRAKE CONTROL SYSTEM

VDC/TCS/ABS

PRECAUTIONS .......................................................... 3

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for Battery Service ................................ 3
Precautions for Brake System .................................. 3
Precautions for Brake Control  .................................. 4

PREPARATION ........................................................... 5

Special Service Tools  ............................................... 5
Commercial Service Tools ........................................ 5

ON-VEHICLE SERVICE  ............................................. 6

Adjustment of Steering Angle Sensor Neutral Posi-
tion ........................................................................... 6

SYSTEM DESCRIPTION  ............................................ 7

System Diagram ....................................................... 7
Functions .................................................................. 7

VDC ....................................................................... 7
TCS ....................................................................... 7
ABS ....................................................................... 7
EBD ....................................................................... 8

Operation That Is Not “System Error”  ...................... 8

VDC ....................................................................... 8
TCS ....................................................................... 8
ABS ....................................................................... 8

Hydraulic Pressure Control System Diagram ........... 9
CAN Communication ................................................ 9

SYSTEM DESCRIPTION  ...................................... 9

TROUBLE DIAGNOSIS ............................................ 10

Fail-Safe Function  .................................................. 10

VDC/TCS SYSTEM ............................................. 10
ABS, EBD SYSTEM ............................................ 10

How to Perform Trouble Diagnoses  ....................... 10

BASIC CONCEPT  ............................................... 10
DIAGNOSIS FLOW CHART  ................................11
ASKING COMPLAINTS  ...................................... 12
EXAMPLE OF DIAGNOSIS SHEET  ................... 12

Component Parts Location ..................................... 13
Schematic .............................................................. 14
Wiring Diagram — VDC — ..................................... 15

Control Unit Input/Output Signal Standard  ............. 23

REFERENCE VALUE FROM CONSULT-II  ......... 23

CONSULT-II Functions (ABS)  ................................ 25

CONSULT-II MAIN FUNCTION  ........................... 25

CONSULT-II SETTING PROCEDURE  ................... 25
Self-Diagnosis ........................................................ 25

DESCRIPTION .................................................... 25
OPERATION PROCEDURE ................................ 25
ERASE MEMORY  ............................................... 26
DISPLAY ITEM LIST  ........................................... 26

Data Monitor  ........................................................... 28

OPERATION PROCEDURE ................................ 28
DISPLAY ITEM LIST  ........................................... 28

Active Test  .............................................................. 30

OPERATION PROCEDURE ................................ 30
TEST ITEM .......................................................... 31

For Fast and Accurate Diagnosis  ........................... 32

PRECAUTIONS FOR DIAGNOSIS  ..................... 32

Basic Inspection  ..................................................... 33

BRAKE FLUID LEVEL AND LEAK INSPECTION ... 33
INSPECTION FOR LOOSENESS OF POWER
SYSTEM TERMINALS  ........................................ 33
INSPECTION OF ABS WARNING LAMP,
VDC OFF INDICATOR LAMP, SLIP INDICATOR
LAMP AND BRAKE WARNING LAMP  ................ 33

TROUBLE DIAGNOSIS FOR SYSTEM .................... 35

Wheel Sensor System  ............................................ 35

INSPECTION PROCEDURE  .............................. 35

Engine System  ....................................................... 37

INSPECTION PROCEDURE  .............................. 37

VDC/TCS/ABS Control Unit 1 ................................. 37

INSPECTION PROCEDURE  .............................. 37

Pressure Sensor System ........................................ 38

INSPECTION PROCEDURE  .............................. 38

Steering Angle Sensor System ............................... 40

INSPECTION PROCEDURE  .............................. 40

Yaw Rate/Side G Sensor System ........................... 41

INSPECTION PROCEDURE  .............................. 41

Solenoid and VDC Change-Over Valve System ..... 43

INSPECTION PROCEDURE  .............................. 43

BRC-2

Actuator Motor and Motor Relay System ................ 44

INSPECTION PROCEDURE ............................... 44

Actuator Relay System  ........................................... 46

INSPECTION PROCEDURE ............................... 46

Stop Lamp Switch System  ...................................... 47

INSPECTION PROCEDURE ............................... 47

VDC/TCS/ABS Control Unit Power and Ground
System .................................................................... 48

INSPECTION PROCEDURE ............................... 48

When “SHIFT POSITION ERROR” Appears in Self-
Diagnostic results Display (A/T Models)  ................. 50

INSPECTION PROCEDURE ............................... 50

VDC/TCS/ABS Control Unit 2 ................................. 50

INSPECTION PROCEDURE ............................... 50

Brake Fluid Level Switch System  ........................... 51

INSPECTION PROCEDURE ............................... 51

RAS Control Unit System (With RAS)  .................... 51

INSPECTION PROCEDURE ............................... 51

CAN Communication Circuit  ................................... 52

INSPECTION PROCEDURE ............................... 52

Component Inspection ............................................ 52

VDC OFF SWITCH .............................................. 52
ABS MOTOR RELAY AND ACTUATOR RELAY ... 52
VDC/TCS/ABS ACTUATOR  ................................ 53

TROUBLE DIAGNOSIS FOR SYMPTOMS  .............. 54

Excessive ABS Function Operation Frequency ...... 54
Unexpected Pedal Reaction  ................................... 54

The Braking Distance Is Long .................................55
The ABS Function Does Not Operate .....................55
Pedal Vibration or ABS Operation Sound Occurs ...55
Vehicle Jerks During VDC/TCS/ABS Control ..........56

WHEEL SENSOR  ......................................................58

Removal and Installation .........................................58

REMOVAL ............................................................58
INSTALLATION ....................................................58

VDC/TCS/ABS CONTROL UNIT  ..............................59

Removal and Installation .........................................59

REMOVAL ............................................................59
INSTALLATION ....................................................59

SENSOR ROTOR  ......................................................60

Removal and Installation .........................................60

REMOVAL ............................................................60
INSTALLATION ....................................................60

VDC/TCS/ABS ACTUATOR  ......................................61

Removal and Installation .........................................61

G-SENSOR ................................................................62

Removal and Installation .........................................62

REMOVAL ............................................................62
INSTALLATION ....................................................62

STEERING ANGLE SENSOR  ...................................63

Removal and Installation .........................................63

REMOVAL ............................................................63
INSTALLATION ....................................................63

PRECAUTIONS

BRC-3

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

[VDC/TCS/ABS]

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

NFS000KN

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Battery Service

NFS000KO

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

Precautions for Brake System

NFS0006H

Recommended fluid is brake fluid “DOT 3”. Refer to

MA-10, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"

 .

Do not reuse drained brake fluid.

Be careful not to splash brake fluid on painted surface of body. If brake fluid is splashed on painted sur-
faces of body immediately wipe it off with cloth and then wash it away with water.

Do not use mineral oils such as gasoline or kerosene to clean. They will ruin rubber parts and cause
improper operation.

Use a flare nut wrench when removing flare nuts, and use a flare
nut crowfoot and torque wrench when tighten brake tube flare
nuts.

Brake system is an important safety part. If a brake fluid leak is
detected, always disassemble the affected part. If a malfunction
is detected, replace part with a new one.

Before working, turn ignition switch OFF and disconnect con-
nectors of VDC/TCS/ABS control unit or the battery cable from
the negative terminal.

When installing brake piping, be sure to check torque.

WARNING:

Clean brake pads and shoes with a waste cloth, then wipe with a dust collector.

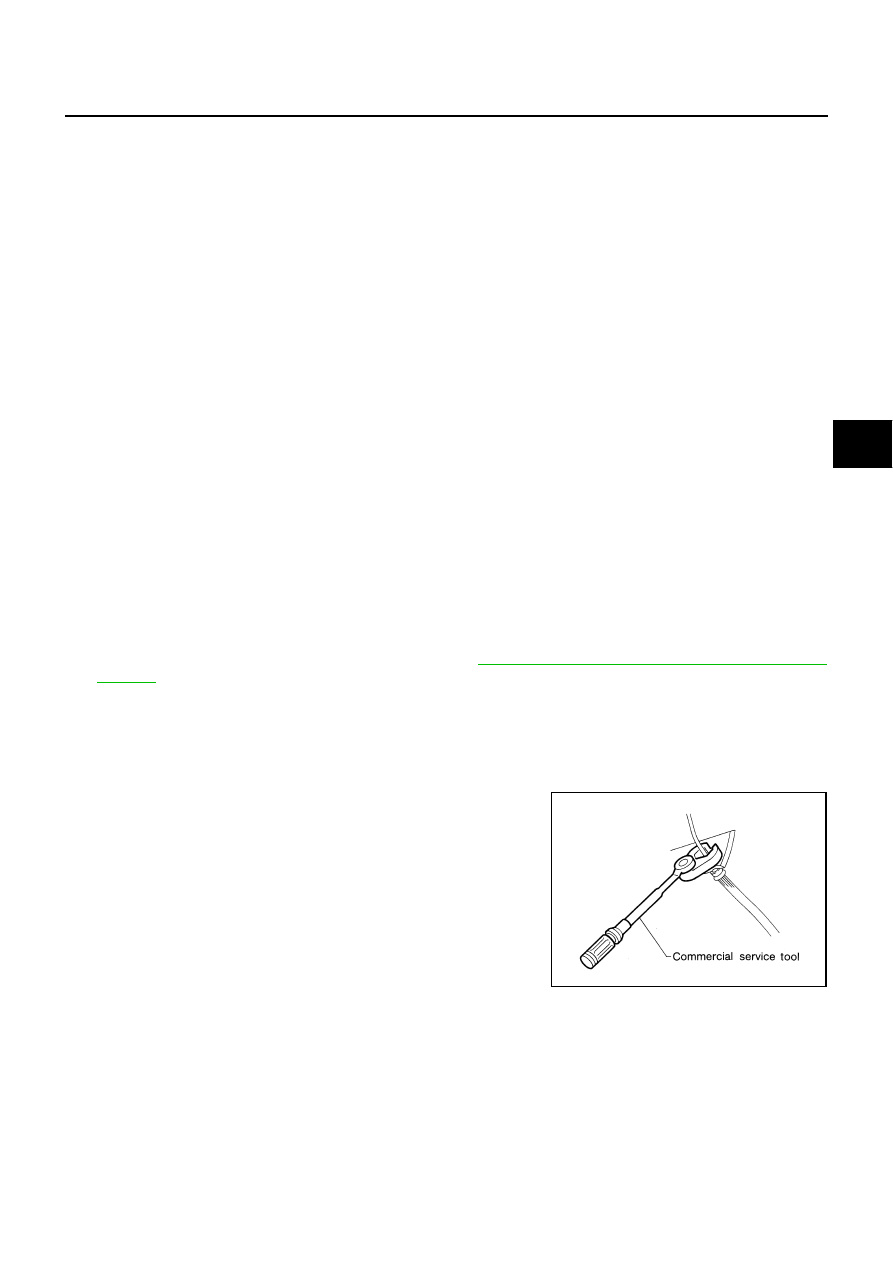

SBR686C

BRC-4

[VDC/TCS/ABS]

PRECAUTIONS

Precautions for Brake Control

NFS0006I

During ABS operation, brake pedal lightly vibrates and a mechanical sound may be heard. This is normal.

Just after starting vehicle after turning ignition switch ON, brake pedal may vibrate or motor operating
sound may be heard from engine compartment. This is a normal condition of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.

When an error is indicated by ABS or another warning lamp, collect all necessary information from cus-
tomer (what symptoms are present under what conditions) and check for simple causes before starting
diagnostic servicing. Besides electrical system inspection, check brake booster operation, brake fluid
level, and fluid leaks.

If tire size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.

If there is a radio, antenna, or antenna lead-in wire (including wiring) near VDC/TCS/ABS control unit,
ABS function may have a malfunction or error.

If aftermarket parts (car stereo, CD player, etc.) Have been installed, check for incidents such as harness
pinches, open circuits, and improper wiring.

If the following components are replaced with non-genuine components or converted, VDC OFF indicator
lamp and SLIP indicator lamp may turn on or the VDC system may not operate properly. Components
related to suspension (shock absorber, strut, spring, bush, etc.), Tires, wheels (exclude specified size),
components related to brake (pad, rotor, caliper, etc.), Components related to engine (Muffler, ECM, etc.),
Components related to body reinforcement (roll bar, Tower bar, etc.).

Driving in the condition of breakage or excessive wear of suspension, tires or components related to
brakes may cause VDC OFF indicator lamp and SLIP indicator lamp to turn on, and the   VDC system
may not operate properly.

When the TCS or VDC is activated by sudden acceleration or sudden turn, some sound may occur if
brake pedal is used. The sound is a result of the normal operation of the TCS and VDC.

When driving on roads which have extreme slopes (such as mountainous roads) or high banks (such as
sharp carves on a freeway), the VDC may not operate normally, or VDC OFF indicator lamp or VDC OFF
indicator lamp and SLIP indicator lamp may turn on. However, this is not a malfunction, if normal opera-
tion can be resumed after restarting engine.

Sudden turns (such as spin turns, acceleration turns), drifting, etc. When VDC function is OFF (VDC OFF
switch ON) may cause yaw rate/side G sensor system to indicate a malfunction. However, this is not a
malfunction if normal operation can be resumed after restarting engine. Then erase memory of self-diag-
nosis.















Content   ..  233  234  235  236   ..
