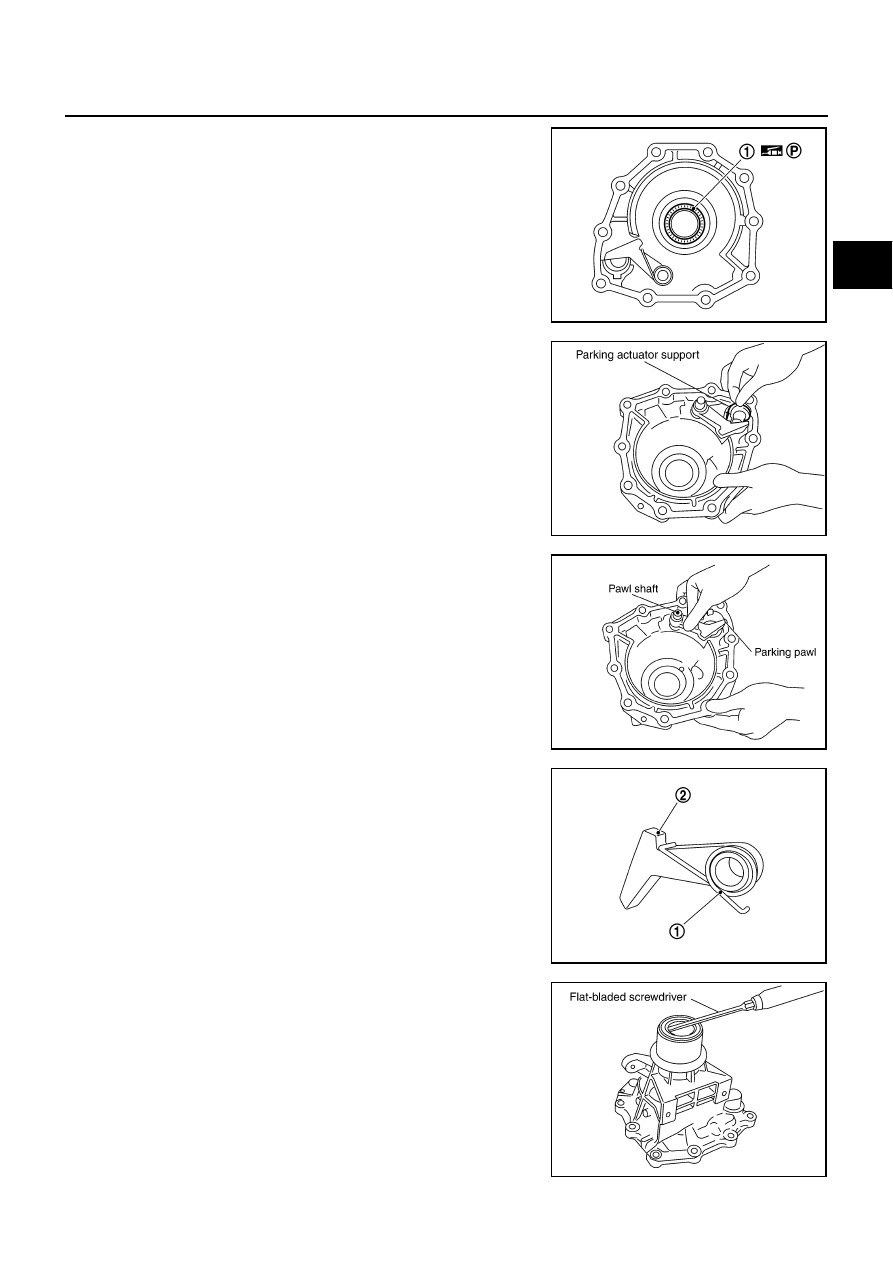

15. Remove needle bearing (1) from rear extension.

16. Remove parking actuator support from rear extension.

17. Remove parking pawl (with return spring) and pawl shaft from

rear extension.

18. Remove return spring (1) from parking pawl (2).

19. Remove rear oil seal from rear extension.

CAUTION:

Be careful not to scratch rear extension.

SCIA6179J

SCIA3423E

SCIA3424E

SCIA6180J

SCIA3524E

AT-240

ON-VEHICLE SERVICE

INSPECTION

●

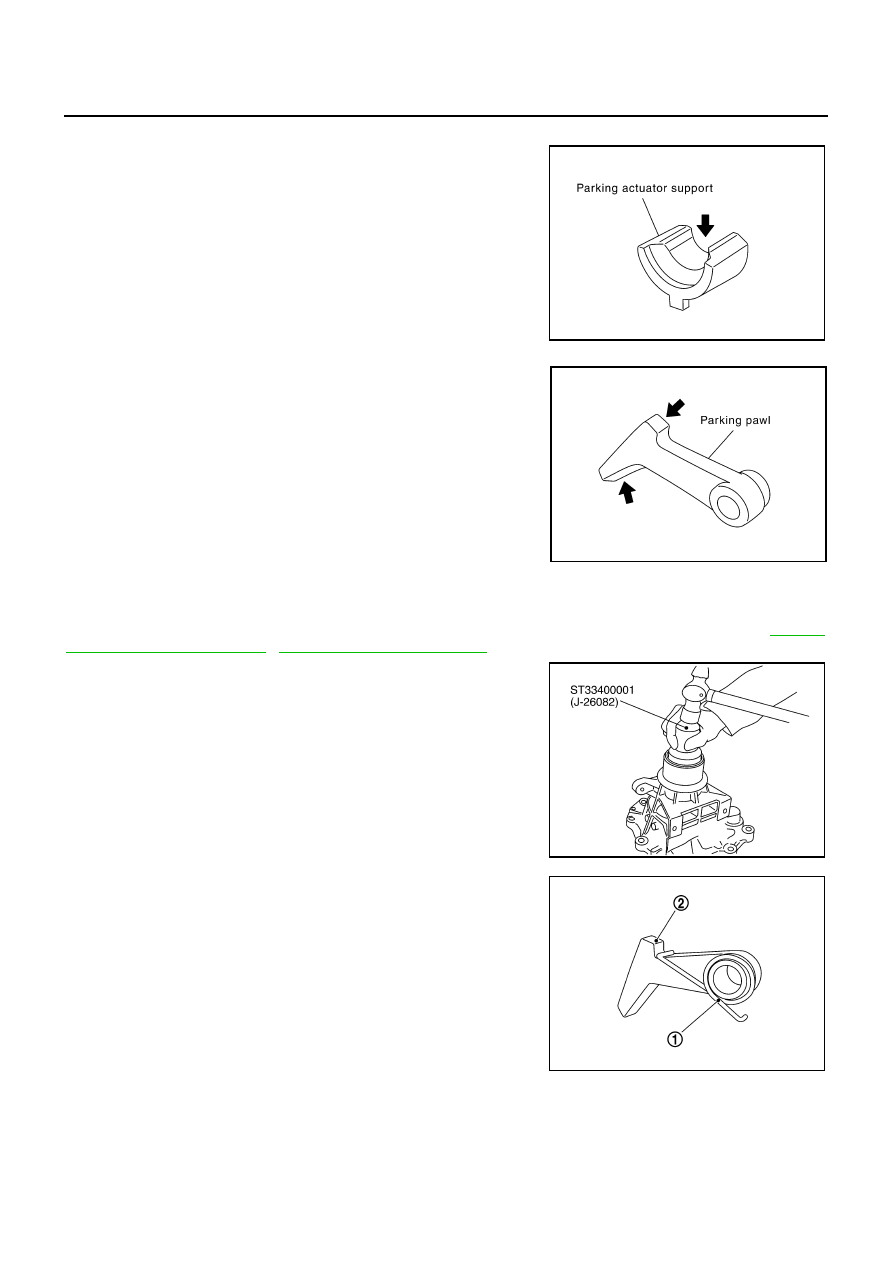

If the contact surface on parking actuator support, parking pawl,
etc. has excessive wear, abrasion, bend, or any other damage,
replace the components.

INSTALLATION

CAUTION:

After completing installation, check A/T position, A/T fluid leakage and A/T fluid level. Refer to

AT-216,

"Checking of A/T Position"

 ,

AT-12, "Checking A/T Fluid"

 .

1.

As shown in the figure, use a drift to drive rear oil seal into the
rear extension until it is flush.

CAUTION:

●

Do not reuse rear oil seal.

●

Apply ATF to rear oil seal.

2.

Install return spring (1) to parking pawl (2).

SCIA5143E

SCIA5144E

SCIA5311E

SCIA6180J

ON-VEHICLE SERVICE

AT-241

D

E

F

G

H

I

J

K

L

M

A

B

AT

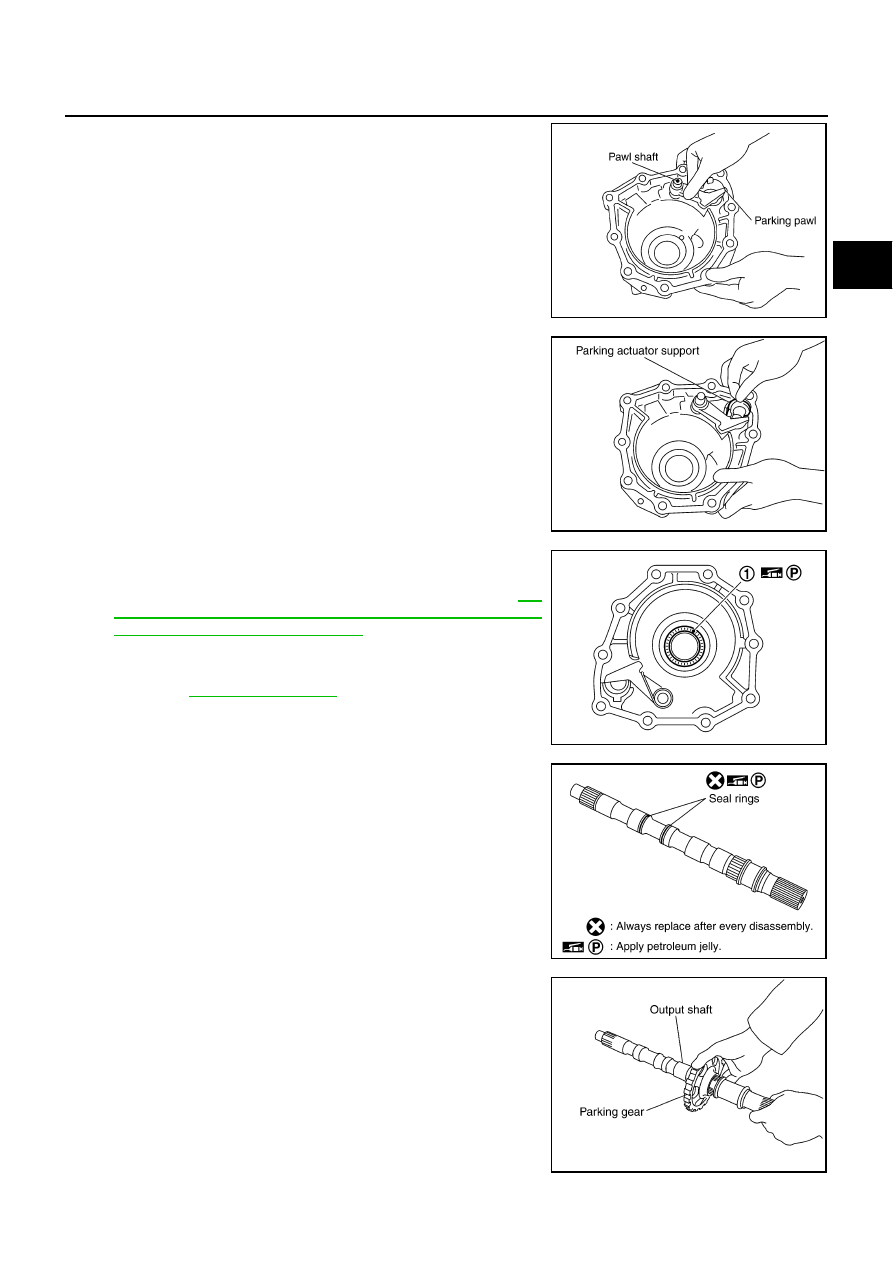

3.

Install parking pawl (with return spring) and pawl shaft to rear
extension.

4.

Install parking actuator support to rear extension.

5.

Install needle bearing (1) to rear extension.

CAUTION:

●

Take care with direction of needle bearing. Refer to

AT-

262, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

 .

●

Apply petroleum jelly to needle bearing (1).

Refer to GI section to make sure icons (symbol marks) in the fig-
ure. Refer to

GI-10, "Components"

 .

6.

Install seal rings to output shaft.

CAUTION:

●

Do not reuse seal rings.

●

Apply petroleum jelly to seal rings.

7.

Install parking gear to output shaft.

SCIA3424E

SCIA3423E

SCIA6179J

SCIA5209E

SCIA5247E

AT-242

ON-VEHICLE SERVICE

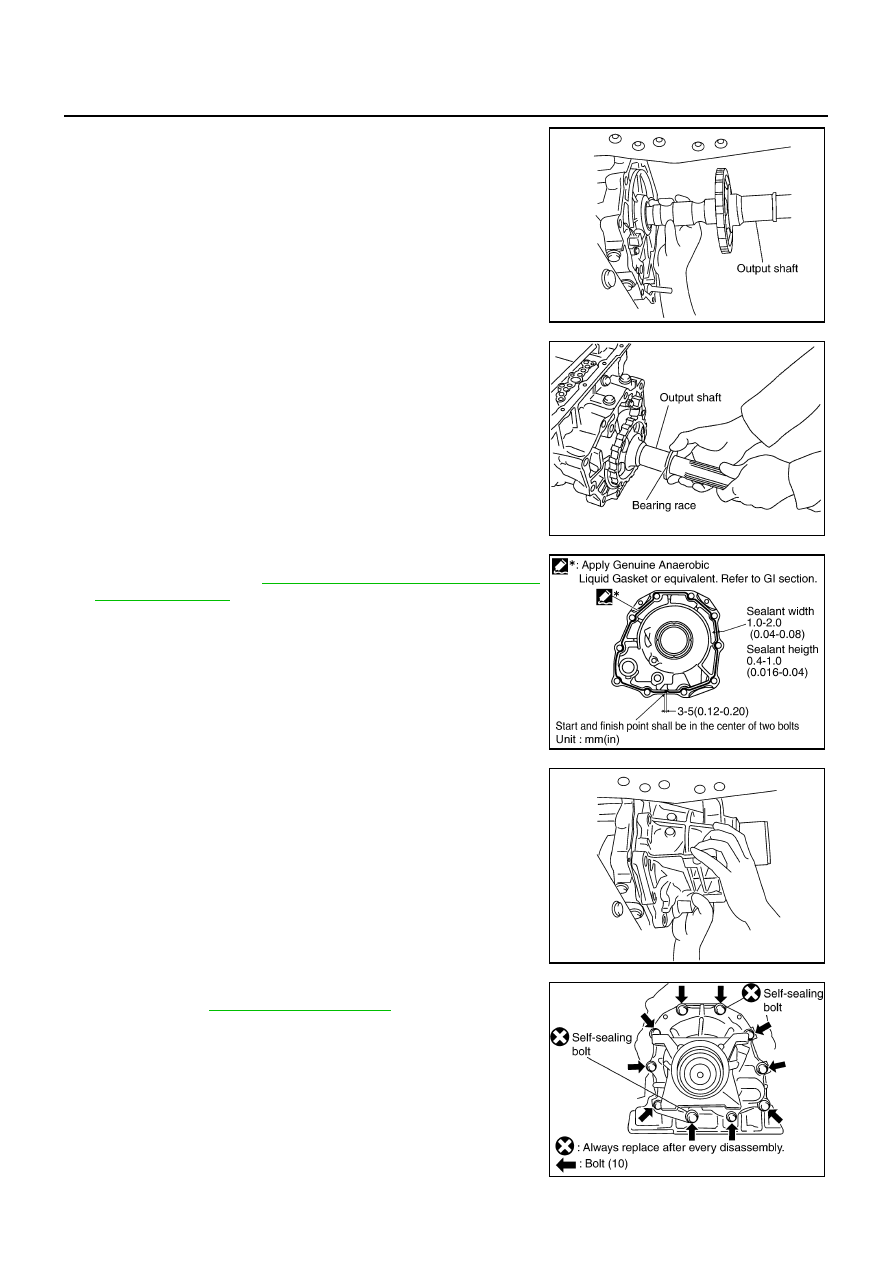

8.

Install output shaft in transmission case.

9.

Install bearing race to output shaft.

10. Apply recommended sealant (Genuine Anaerobic Liquid Gasket

or equivalent. Refer to

GI-46, "Recommended Chemical Prod-

ucts and Sealants"

 .) to rear extension assembly as shown in

the figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.

11. Install rear extension assembly to transmission case. (With nee-

dle bearing.)

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.

12. Tighten rear extension assembly mounting bolts to specified

torque. Refer to

AT-236, "COMPONENTS"

 .

CAUTION:

Do not reuse self-sealing bolts.

SCIA5246E

SCIA5245E

SCIA8228E

SCIA3431E

SCIA6941E
