AIR BREATHER HOSE

Removal and Installation

INFOID:0000000001327459

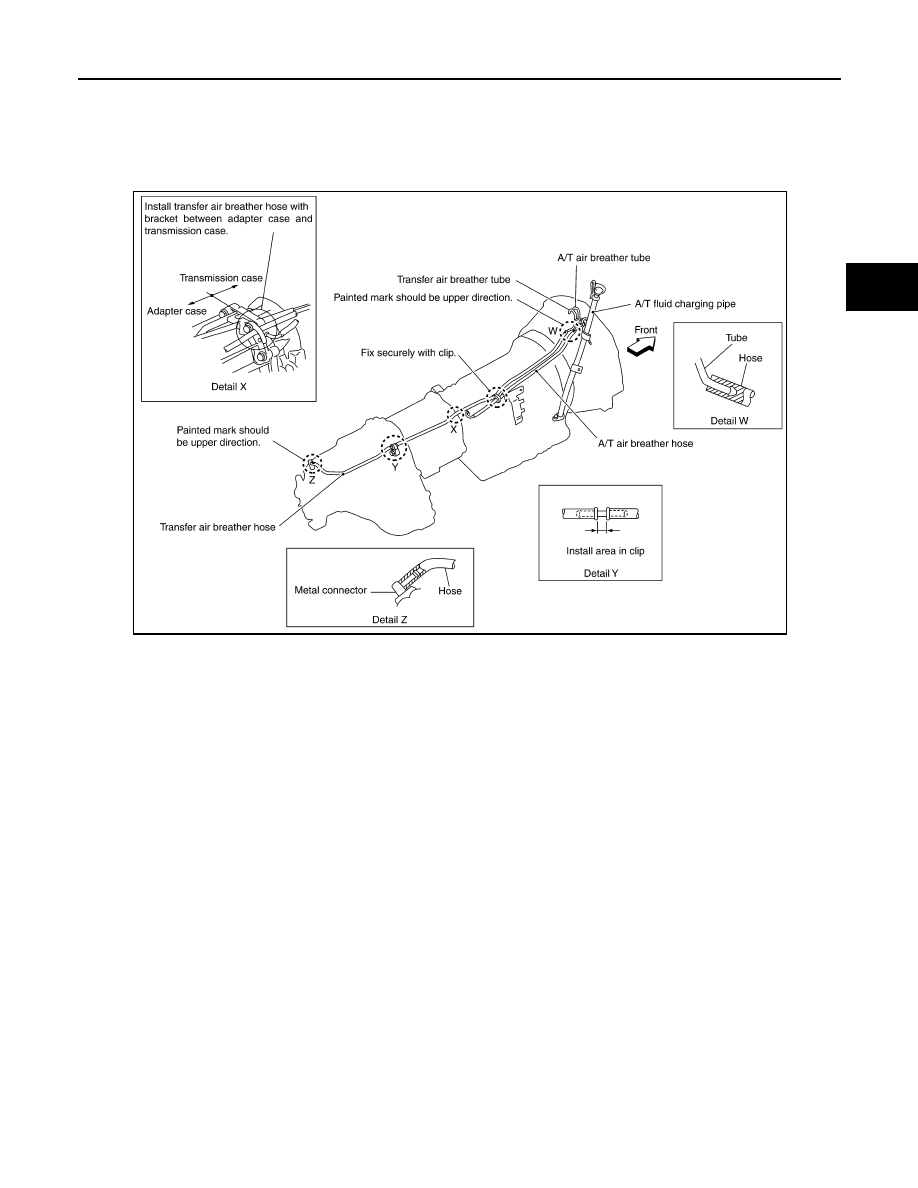

Refer to the figure for air breather hose removal and installation information.

CAUTION:

• Make sure there are no pinched or restricted areas on the air breather hose caused by bending or

winding when installing it.

• Be sure to insert air breather hose to transfer tube (metal connector) until hose end reaches the

tube's base and another hose end reaches the tube bend R portion of A/T fluid charging pipe.

SDIA2408E

TF-40

< SERVICE INFORMATION >

TRANSFER ASSEMBLY

TRANSFER ASSEMBLY

Removal and Installation

INFOID:0000000001327460

REMOVAL

1.

Remove tunnel stay with power tool. Refer to

RSU-6, "Removal and Installation"

.

2.

Remove exhaust front tube with power tool. Refer to

EX-3

.

3.

Remove front and rear propeller shaft. Refer to

PR-4

 and

PR-7

.

4.

Disconnect transfer assembly harness connector and separate harness from transfer assembly.

5.

Remove air breather hose. Refer to

TF-39

.

6.

Support transfer assembly and transmission assembly with a jack.

7.

Remove engine rear member with power tool. Refer to

EM-112

 (VQ35DE) or

EM-237

 (VK45DE).

8.

Remove transfer mounting bolts and separate transfer from transmission.

CAUTION:

Secure transfer assembly to a jack.

INSTALLATION

Note the following, and install in the reverse order of removal.
• When installing the transfer to the transmission, install the mount-

ing bolts following the standard below.

• After the installation, check the fluid level and for fluid leakage.

Refer to

TF-10, "Inspection"

.

Disassembly and Assembly

INFOID:0000000001327461

COMPONENTS

Bolt  No.

1

2

3

4

Quantity

4

3

2

1

Bolt length “

” mm (in)

75 (2.95)

45 (1.77)

40 (1.57)

30 (1.18)

Tightening torque
N·m (kg-m, ft-lb)

37 (3.8, 27)

SDIA2284E

TRANSFER ASSEMBLY

TF-41

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

TF

N

O

P

DISASSEMBLY

Front Case and Rear Case

1.

Remove drain plug and filler plug.

1.

Drive chain

2.

Front drive shaft rear bearing

3.

Front drive shaft

4.

Front drive shaft front bearing

5.

Sprocket

6.

Mainshaft

7.

Needle bearing

8.

Snap ring

9.

Mainshaft bearing

10. Front case

11.

Front oil seal

12. Mainshaft oil seal

13. Oil cover

14. Electric controlled coupling

15. Spacer

16. Snap ring

17. O-ring

18. Oil gutter

19. Drain plug

20. Baffle plate

21. Rear bearing

22. Snap ring

23. Spacer

24. Rear oil seal

25. Companion flange

26. Self-lock nut

27. Breather tube

28. Rear case

29. Harness bracket

30. Retainer

31. Filler plug

32. Gasket

1: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-44, "Recommended Chemical Product and Sealant"

.

2: Apply Genuine Silicone RTV or equivalent. Refer to

GI-44, "Recommended Chemical Product and Sealant"

.

Refer to

GI-8, "Component"

 for symbols not described on the above.

SDIA3608E

TF-42

< SERVICE INFORMATION >

TRANSFER ASSEMBLY

2.

Remove mainshaft oil seal from front case, using a flat-bladed
screwdriver.

CAUTION:

Be careful not to damage the front case and mainshaft.

3.

Remove front oil seal from front case, using a flat-bladed screw-
driver.

CAUTION:

Be careful not to damage the front case and front drive
shaft.

4.

Remove self-lock nut.

5.

Put a matching mark on the end of mainshaft. The mark should
be in line with the mark on the companion flange.

CAUTION:

For matching mark, use paint. Do not damage mainshaft.

6.

Remove companion flange, using a puller.

CAUTION:

Be careful not to damage the companion flange.

PDIA0253E

PDIA0255E

SDIA2378E

PDIA0258E
