TROUBLE DIAGNOSES WORK FLOW

LAN-17

< SERVICE INFORMATION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

N

O

P

CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

CREATE INTERVIEW SHEET

Fill out the symptom described by the customer, vehicle condition, and CAN system type on the interview
sheet.

SKIB8889E

LAN-18

< SERVICE INFORMATION >

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSES WORK FLOW

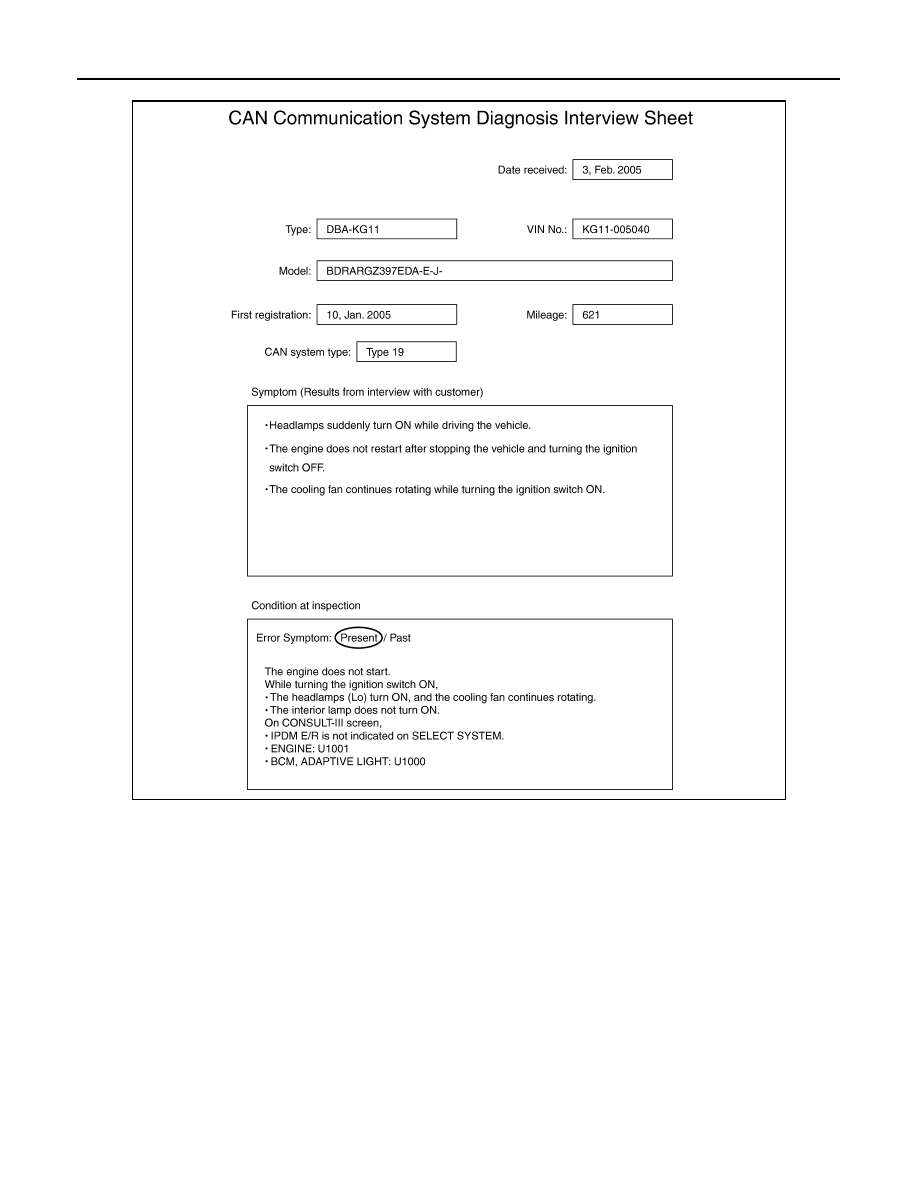

Interview Sheet (Example)

COLLECT DATA

Collect CONSULT-III Data

Print out or save the following CONSULT-III data.
• SELF-DIAG RESULTS
• CAN DIAG SUPPORT MNTR (“ECU list” included)
NOTE:

PKID1211E

TROUBLE DIAGNOSES WORK FLOW

LAN-19

< SERVICE INFORMATION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

N

O

P

Some items may not be needed depending on CAN system type of vehicle.

Create On-board Diagnosis Copy Sheet

Display the trouble diagnosis result of CAN communication with the on-board diagnosis function on the vehicle
monitor, etc. Copy them on the on-board diagnosis copy sheet.
NOTE:
• For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT-III

is not available.)

PKID1212E

LAN-20

< SERVICE INFORMATION >

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSES WORK FLOW

• For the details, refer to

LAN-58, "Data Sheet"

.

CREATE DIAGNOSIS SHEET

NOTE:
Be sure to use the diagnosis sheet for the correct CAN system type.

Print Diagnosis Sheet

Print the diagnosis sheet for the applicable CAN system type.

Check Collected Data

Make sure that all ECUs are received, referring to “ECU list”.

SKIB8722E
