SQUEAK AND RATTLE TROUBLE DIAGNOSES

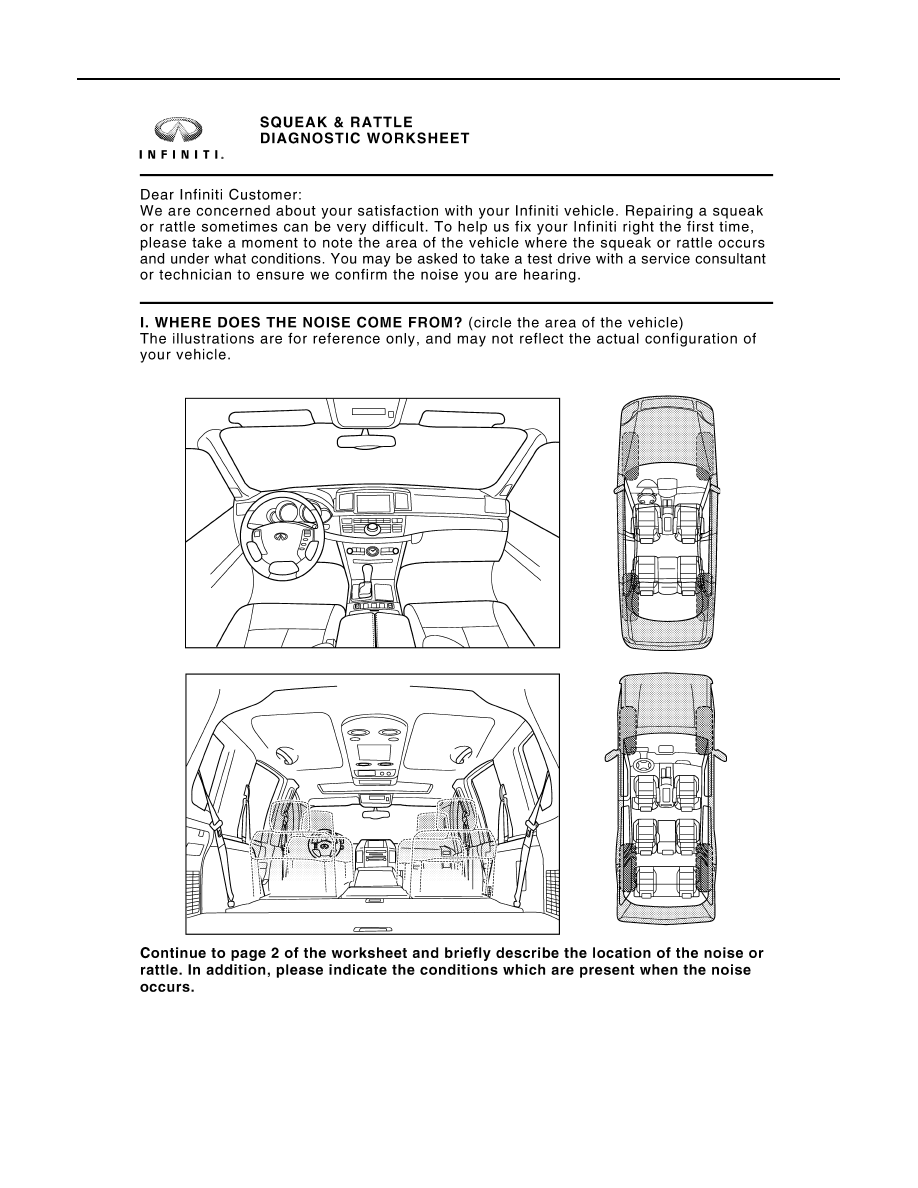

Diagnostic Worksheet

INFOID:0000000001328086

PIIB8741E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-9

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

IP

N

O

P

PIIB8742E

IP-10

< SERVICE INFORMATION >

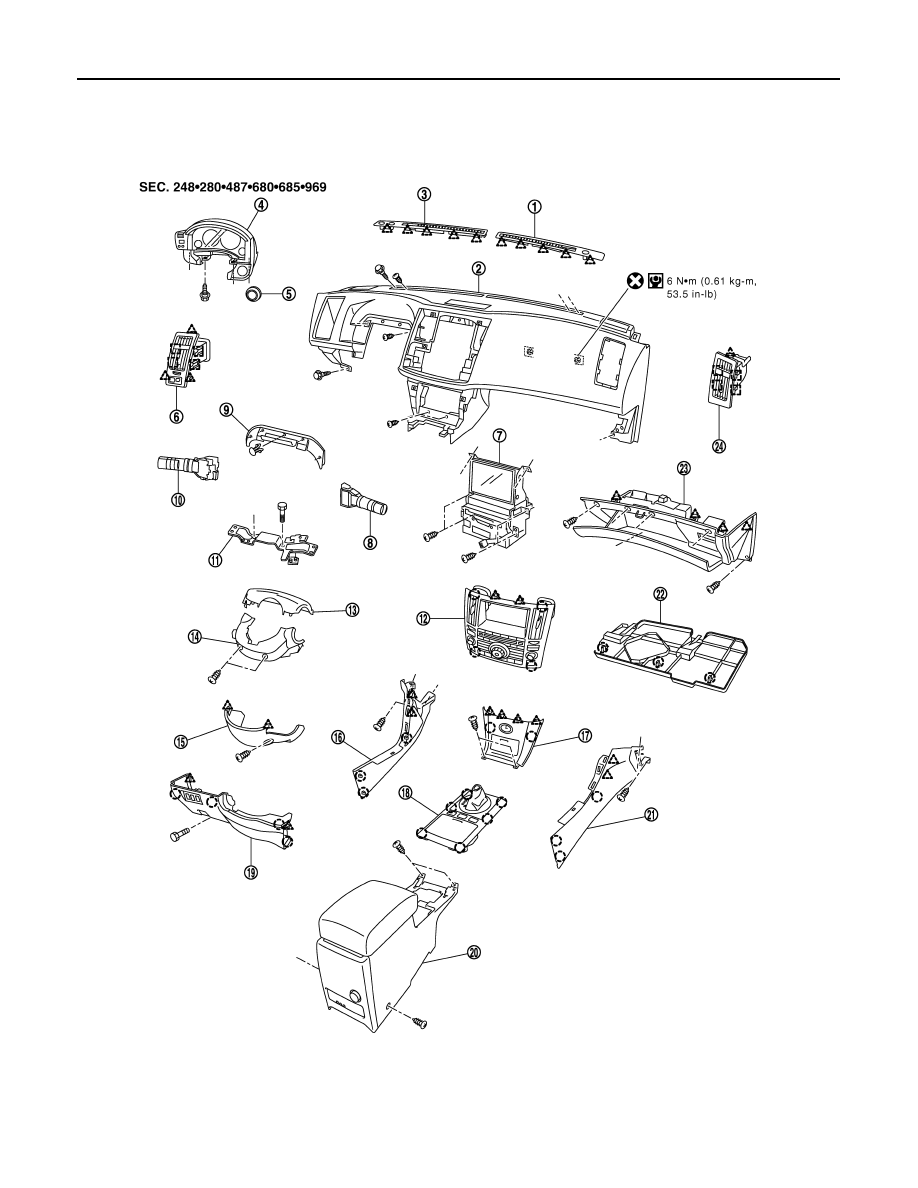

INSTRUMENT PANEL ASSEMBLY

INSTRUMENT PANEL ASSEMBLY

Component Parts Location

INFOID:0000000001328087

1.

Front defroster grille (RH)

2.

Instrument panel and pad

3.

Front defroster grille (LH)

4.

Combination meter assembly

5.

Steering lock escutcheon

6.

Side ventilation (LH)

7.

Display unit and audio unit

8.

Wiper and washer switch

9.

Rubber

PIIB8532E

INSTRUMENT PANEL ASSEMBLY

IP-11

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000001328088

WORK STEP

When removing instrument panel and pad, combination meter, display unit and audio unit, center console take
steps in the order shown by the numbers below.

CAUTION:

• Disconnect both battery cables in advance.
• Disconnect air bag system line in advance.
• Never temper with air bag lid or force air bag lid to open, as this may adversely affect air bag perfor-

mance.

• Be careful not to scratch pad and other parts.

10. Lighting and turn signal switch

11.

Combination meter bracket

12. Cluster lid C

13. Steering column upper cover

14. Steering column lower cover

15. Steering column front lower cover

16. Instrument side panel (LH)

17. Instrument clock finisher assembly

18. A/T console finisher assembly

19. Instrument driver lower panel

20. Center console

21. Instrument side panel (RH)

22. Instrument lower cover

23. Instrument passenger lower panel

24. Side ventilation (RH)

: Clip

: Pawl

: Metal clip

Parts

Reference

page

Instrument

panel and pad

Combination

meter

Display unit

and audio unit

Center console

(A)

Front kicking plate (RH/LH)

EI-38

[1]

[1]

(B)

Dash side finisher (RH/LH)

EI-38

[2]

[2]

(C)

Front pillar garnish (RH/LH)

EI-38

[3]

(D)

A/T select lever knob

AT-205

[4]

[1]

(E)

Instrument clock finisher assembly

(E) Instrument
Clock Finisher

[5]

[2]

(F)

A/T console finisher assembly

(F) A/T Console

Finisher

[6]

[3]

(G)

Instrument side panel (RH/LH)

(G) Instrument

Side Panel

(RH/LH)

[7]

[4]

(H)

Center console

(H) Center

Console

[8]

[5]

(I)

Instrument lower cover

(I) Instrument

Lower Cover

[9]

(J)

Instrument passenger lower panel

(J) Instrument

Passenger Lower

Panel

[10]

(K)

Instrument driver lower panel

(K) Instrument

Driver Lower

Panel

[11]

[3]

(L)

Steering column front lower cover

(L) Steering

Column Front

Lower Cover

[12]

[4]

(M)

Steering column lower cover

(M) Steering

Column Lower

Cover

[13]

[5]

(N)

Steering column upper cover

(N) Steering

Column Upper

Cover

[14]

[6]
