CRANKSHAFT

Unit: mm (in)

*: Total indicator reading

MAIN BEARING

Connecting rod big end diameter (Without bearing)

55.000 - 55.013 (2.1654 - 2.1659)

—

Side clearance

0.20 - 0.35 (0.008 - 0.014)

0.40 (0.016)

Main journal diameter. “Dm” grade

Standard

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W
Grade No. X
Grade No. Y
Grade No. 4
Grade No. 7

59.974 - 59.975 (2.3612 - 2.3612)

59.973 - 59.974 (2.3611 - 2.3612)

59.972 - 59.973 (2.3611 - 2.3611)
59.971 - 59.972 (2.3611 - 2.3611)

59.970 - 59.971 (2.3610 - 2.3611)

59.969 - 59.970 (2.3610 - 2.3610)
59.968 - 59.969 (2.3609 - 2.3610)
59.967 - 59.968 (2.3609 - 2.3609)
59.966 - 59.967 (2.3609 - 2.3609)
59.965 - 59.966 (2.3608 - 2.3609)
59.964 - 59.965 (2.3608 - 2.3608)
59.963 - 59.964 (2.3607 - 2.3608)
59.962 - 59.963 (2.3607 - 2.3607)
59.961 - 59.962 (2.3607 - 2.3607)
59.960 - 59.961 (2.3606 - 2.3607)
59.959 - 59.960 (2.3606 - 2.3606)
59.958 - 59.959 (2.3605 - 2.3606)
59.957 - 59.958 (2.3605 - 2.3605)
59.956 - 59.957 (2.3605 - 2.3605)
59.955 - 59.956 (2.3604 - 2.3605)
59.954 - 59.955 (2.3604 - 2.3604)
59.953 - 59.954 (2.3603 - 2.3604)
59.952 - 59.953 (2.3603 - 2.3603)
59.951 - 59.952 (2.3603 - 2.3603)

Pin journal diameter. “Dp”

Standard

Grade No. 0

51.968 - 51.974 (2.0460 - 2.0462)

Grade No. 1

51.962 - 51.968 (2.0457 - 2.0460)

Grade No. 2

51.956 - 51.962 (2.0455 - 2.0457)

Center distance “r”

40.66 - 40.74 (1.6008 - 1.6039)

Taper (Difference between “A” and “B”)

Limit

0.002 (0.0001)

Out-of-round (Difference between “X” and “Y”)

0.002 (0.0001)

Crankshaft runout (TIR*)

Standard

Less than 0.05 (0.002)

Limit

0.10 (0.0039)

Crankshaft end play

Standard

0.10 - 0.25 (0.0039 - 0.0098)

Limit

0.30 (0.0118)

SEM645

SBIA0535E

EM-158

< SERVICE INFORMATION >

[VQ35DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

Undersize

Unit: mm (in)

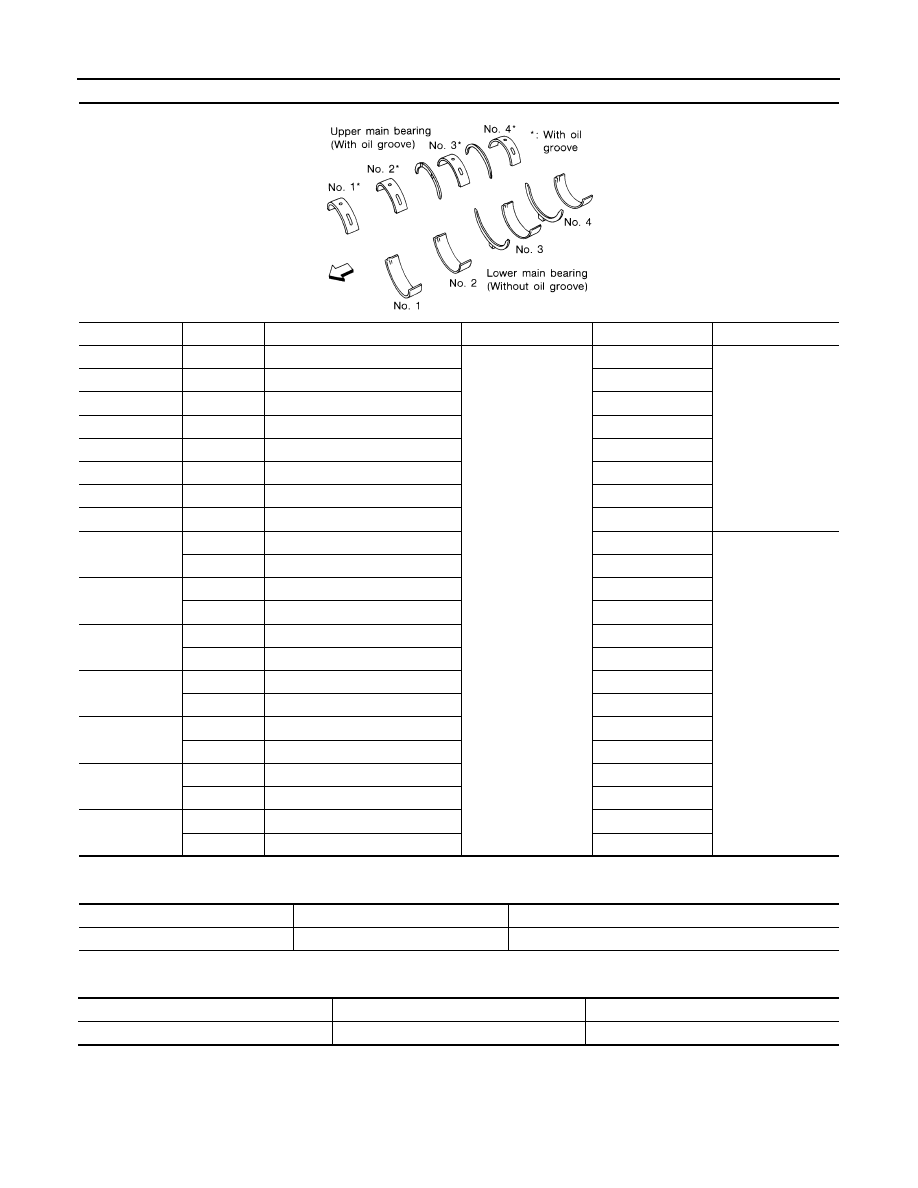

Main Bearing Oil Clearance

Unit: mm (in)

*: Actual clearance

CONNECTING ROD BEARING

Grade number

UPR/LWR

Thickness

Width

Identification color

Remarks

0

—

2.000 - 2.003 (0.0787 - 0.0789)

19.9 - 20.1

(0.783 - 0.791)

Black

Grade is the same
for upper and lower
bearings.

1

—

2.003 - 2.006 (0.0789 - 0.0790)

Brown

2

—

2.006 - 2.009 (0.0790 - 0.0791)

Green

3

—

2.009 - 2.012 (0.0791 - 0.0792)

Yellow

4

—

2.012 - 2.015 (0.0792 - 0.0793)

Blue

5

—

2.015 - 2.018 (0.0793 - 0.0794)

Pink

6

—

2.018 - 2.021 (0.0794 - 0.0796)

Purple

7

—

2.021 - 2.024 (0.0796 - 0.0797)

White

01

UPR

2.003 - 2.006 (0.0789 - 0.0790)

Brown

Grade is different for
upper and lower
bearings.

LWR

2.000 - 2.003 (0.0787 - 0.0789)

Black

12

UPR

2.006 - 2.009 (0.0790 - 0.0791)

Green

LWR

2.003 - 2.006 (0.0789 - 0.0790)

Brown

23

UPR

2.009 - 2.012 (0.0791 - 0.0792)

Yellow

LWR

2.006 - 2.009 (0.0790 - 0.0791)

Green

34

UPR

2.012 - 2.015 (0.0792 - 0.0793)

Blue

LWR

2.009 - 2.012 (0.0791 - 0.0792)

Yellow

45

UPR

2.015 - 2.018 (0.0793 - 0.0794)

Pink

LWR

2.012 - 2.015 (0.0792 - 0.0793)

Blue

56

UPR

2.018 - 2.021 (0.0794 - 0.0796)

Purple

LWR

2.015 - 2.018 (0.0793 - 0.0794)

Pink

67

UPR

2.021 - 2.024 (0.0796 - 0.0797)

White

LWR

2.018 - 2.021 (0.0794 - 0.0796)

Purple

SEM175F

Items

Thickness

Main journal diameter

0.25 (0.0098)

2.132 - 2.140 (0.0839 - 0.0843)

Grind so that bearing clearance is the specified value.

Items

Standard

Limit

Main bearing oil clearance

0.035 - 0.045 (0.0014 - 0.0018)*

0.065 (0.0026)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-159

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Undersize

Unit: mm (in)

Connecting Rod Bearing Oil Clearance

Unit: mm (in)

*: Actual clearance

Grade number

Thickness

mm (in)

Identification color (mark)

0

1.500 - 1.503 (0.0591 - 0.0592)

Black

1

1.503 - 1.506 (0.0592 - 0.0593)

Brown

2

1.506 - 1.509 (0.0593 - 0.0594)

Green

Items

Thickness

Crank pin journal diameter

0.25 (0.0098)

1.626 - 1.634 (0.0640 - 0.0643)

Grind so that bearing clearance is the specified value.

Items

Standard

Limit

Connecting rod bearing oil clearance

0.034 - 0.059 (0.0013 - 0.0023)*

0.070 (0.0028)

EM-160

< SERVICE INFORMATION >

[VK45DE]

PRECAUTIONS

SERVICE INFORMATION

PRECAUTIONS

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000001524895

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NVIS/IVIS (NISSAN/INFINITI

VEHICLE IMMOBILIZER SYSTEM - NATS).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NVIS/IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6.

Perform a self-diagnosis check of all control units using CONSULT-III.

Precaution for Drain Engine Coolant and Engine Oil

INFOID:0000000001325752

Drain engine coolant and engine oil when engine is cooled.

Precaution for Disconnecting Fuel Piping

INFOID:0000000001325753

• Before starting work, make sure no fire or spark producing items are in the work area.
• Release fuel pressure before disconnecting and disassembly.
• After disconnecting pipes, plug openings to stop fuel leakage.

Precaution for Removal and Disassembly

INFOID:0000000001325754

• When instructed to use SST, use specified tools. Always be careful to work safely, avoid forceful or unin-

structed operations.

• Exercise maximum care to avoid damage to mating or sliding surfaces.
• Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.
• Mark and arrange disassembly parts in an organized way for easy troubleshooting and assembly.
• When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally

opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be used
where noted in the step.

Precaution for Inspection, Repair and Replacement

INFOID:0000000001325755

Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
