AV-42

< SERVICE INFORMATION >

AUDIO

Installation is the reverse order of removal.

Disassembly and Assembly of Audio Unit

INFOID:0000000001328692

DISASSEMBLY

Remove audio unit screws (8) and display screws (4) and unified meter and A/C amp. screws (2) with power
tool and remove brackets.

ASSEMBLY

Assembly is the reverse order of disassembly.
NOTE:
Use appropriate screws for each, as screws for audio unit and display unit are different from that for unified
meter and A/C amp.

Removal and Installation for A/C and AV Switch

INFOID:0000000001328693

REMOVAL

1.

Remove cluster lid C (1). Refer to

IP-10

.

2.

Remove screws (3) and remove A/C and AV switch (2) from cluster lid C (1).

INSTALLATION

Installation is the reverse order of removal.

1.

Display

2.

Bracket (LH)

3.

Audio unit

4.

Screw (For metal)

5.

Screw (For plastic)

6.

Bracket (RH)

7.

Unified meter and A/C amp.

SKIB8678E

1.

Cluster lid C

2.

A/C and AV switch

3.

Screws

PKID0425E

AUDIO

AV-43

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

AV

N

O

P

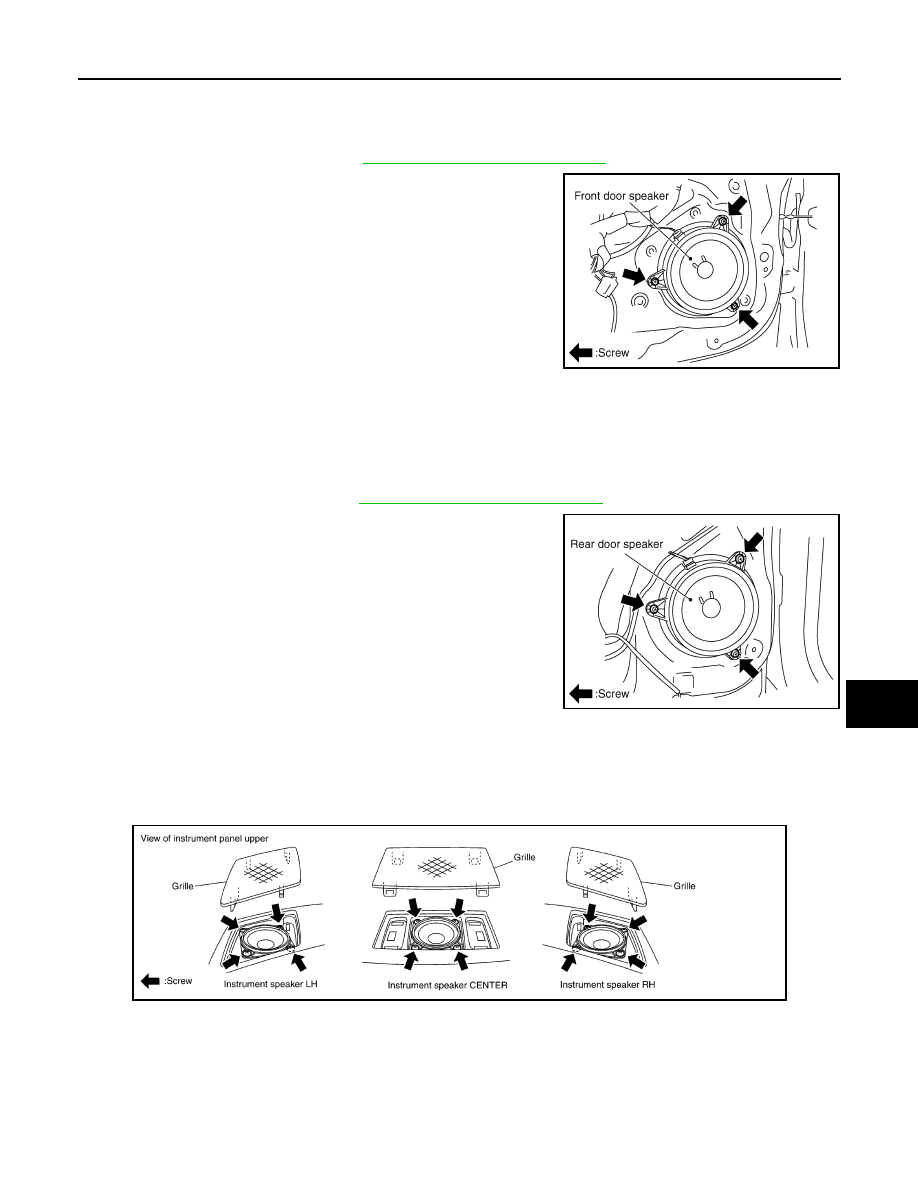

Removal and Installation for Front Door Speaker

INFOID:0000000001328694

REMOVAL

1.

Remove front door finisher. Refer to

EI-36, "Component Parts Location"

.

2.

Remove screws (3) and remove front door speaker.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation for Rear Door Speaker

INFOID:0000000001328695

REMOVAL

1.

Remove rear door finisher. Refer to

EI-36, "Component Parts Location"

.

2.

Remove screws (3) and remove rear door speaker.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation for Instrument Speaker

INFOID:0000000001328696

REMOVAL

1.

Remove grille from instrument panel.

2.

Remove screws (4) and disconnect connector.

3.

Remove instrument speaker.

INSTALLATION

Installation is the reverse order of removal.

SKIA5803E

SKIA5804E

SKIA5805E

AV-44

< SERVICE INFORMATION >

AUDIO

Removal and Installation for Tweeter

INFOID:0000000001328697

REMOVAL

1.

Remove rear pillar upper garnish assembly. Refer to

EI-45, "Component Parts Location"

.

2.

Remove screws (4), and disconnect connector.

3.

Remove tweeter.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation for Woofer (BOSE System)

INFOID:0000000001328698

REMOVAL

1.

Open luggage floor board.

2.

Remove speaker clamp and harness clip.

3.

Disconnect connector.

4.

Remove woofer.

CAUTION:

Connectors must be placed in the left side, when installed.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation for BOSE Speaker Amp

INFOID:0000000001328699

REMOVAL

1.

Remove luggage side box assembly. Refer to

EI-45, "Component Parts Location"

.

2.

Remove nuts (3) with power tool, and remove BOSE speaker
amp. from luggage room floor.

SKIA5806E

SKIA5807E

SKIB8776E

AUDIO

AV-45

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

AV

N

O

P

3.

Remove nuts (2) with power tool, and remove assist bracket.

4.

Remove nuts (4) with power tool, and remove bracket.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation of Satellite Radio Tuner

INFOID:0000000001328700

REMOVAL

1.

Remove luggage side box assembly. Refer to

EI-45, "Component Parts Location"

.

2.

Remove nuts (A) and remove satellite radio tuner (1) from lug-
gage room floor.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation of Satellite Radio Antenna

INFOID:0000000001328701

: Vehicle front

REMOVAL

1.

Remove luggage floor trim. Refer to

EI-45, "Component Parts Location"

.

2.

Remove assist grip (rear). Refer to

EI-43

.

3.

Pull down headlining and obtain space for work between vehicle and headlining.

4.

Remove nut (A), and then disconnect connector (1).

5.

Remove satellite radio antenna.

INSTALLATION

Installation is the reverse order of removal.

SKIA5809E

SKIB8650E

SKIB8668E

Roof antenna mounting nut

: 4.5 N·m (0.46 kg-m, 40 in-lb)
