TROUBLE DIAGNOSIS

After disconnecting intake sensor connector M254, measure resis-
tance between terminals 1 and 2 at sensor side. Refer to the table
below.

If NG, replace intake sensor.

Temperature

°

C (

°

F)

Resistance k

Ω

−

15 (5)

12.34

−

10 (14)

9.62

−

5 (23)

7.56

0 (32)

6.00

5 (41)

4.80

10 (50)

3.87

15 (59)

3.15

20 (68)

2.57

25 (77)

2.12

30 (86)

1.76

35 (95)

1.47

40 (104)

1.23

45 (113)

1.04

RJIA2034E

CONTROLLER

ATC-97

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

CONTROLLER

Removal and Installation of A/C and AV Switch

INFOID:0000000001328200

REMOVAL

Refer to

AV-42, "Removal and Installation for A/C and AV Switch"

.

INSTALLATION

Installation is basically the reverse order of removal.

ATC-98

< SERVICE INFORMATION >

AUTO AMP

AUTO AMP

Removal and Installation of Unified Meter and A/C Amp

INFOID:0000000001328201

REMOVAL

1.

Remove audio unit. Refer to

AV-41, "Removal and Installation of Audio Unit"

.

2.

Remove mounting screws, and then remove unified meter and
A/C amp.

INSTALLATION

Installation is basically the reverse order of removal.

SJIA1603E

AMBIENT SENSOR

ATC-99

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

AMBIENT SENSOR

Removal and Installation

INFOID:0000000001328202

REMOVAL

1.

Remove front grille. Refer to

EI-22

.

2.

Disconnect ambient sensor connector, and then remove ambi-
ent sensor.

INSTALLATION

Installation is basically the reverse order of removal.

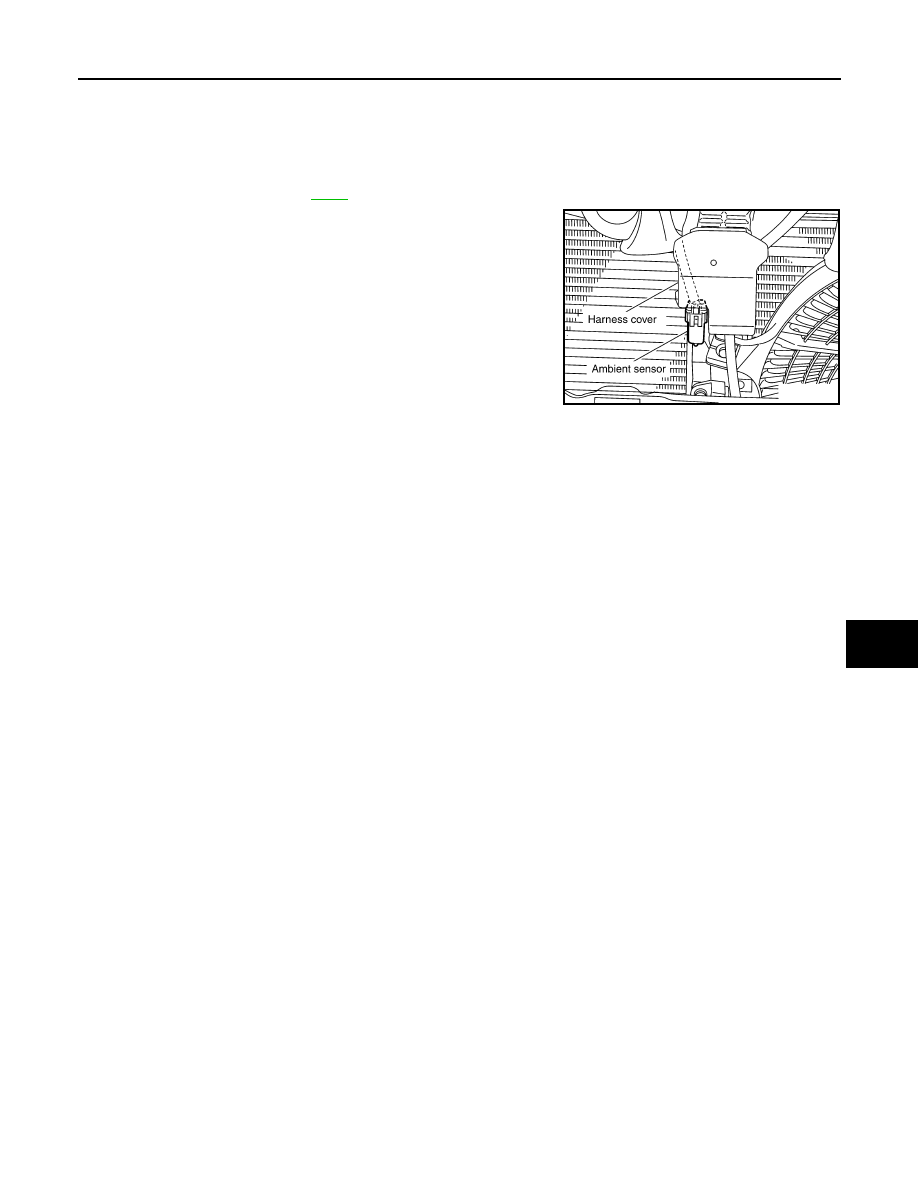

RJIA2016E
