EXL-208

< ON-VEHICLE REPAIR >

[XENON TYPE]

LICENSE PLATE LAMP

LICENSE PLATE LAMP

Exploded View

INFOID:0000000003135421

Removal and Installation

INFOID:0000000003135422

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the door handle cover. Refer to

INT-38, "Exploded View"

.

2.

Remove the screw. And then remove the license plate lamp.

3.

Disconnect the license plate lamp connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000003135423

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove the back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Turn the bulb socket (1) counterclockwise and unlock it.

3.

Remove the bulb (2) from the socket.

1.

License plate lamp

JPLIA0929ZZ

JPLIA0930ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-209

< SERVICE DATA AND SPECIFICATIONS (SDS)

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000003135424

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI)

H9 (Halogen)

65

Headlamp (LO)

D2S (XENON)

35

Front turn signal lamp

W21W

21

Parking lamp

W5W

5

Front side marker lamp

W5W

5

Front fog lamp

H8

35

Rear combination lamp

Stop lamp/Tail lamp

LED

—

Rear side marker lamp

LED

—

Rear turn signal lamp

PY21W (Amber)

21

Back-up lamp

W16W

16

License plate lamp

W5W

5

High-mounted stop lamp

LED

—

EXL-210

< BASIC INSPECTION >

[HALOGEN TYPE]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000003533917

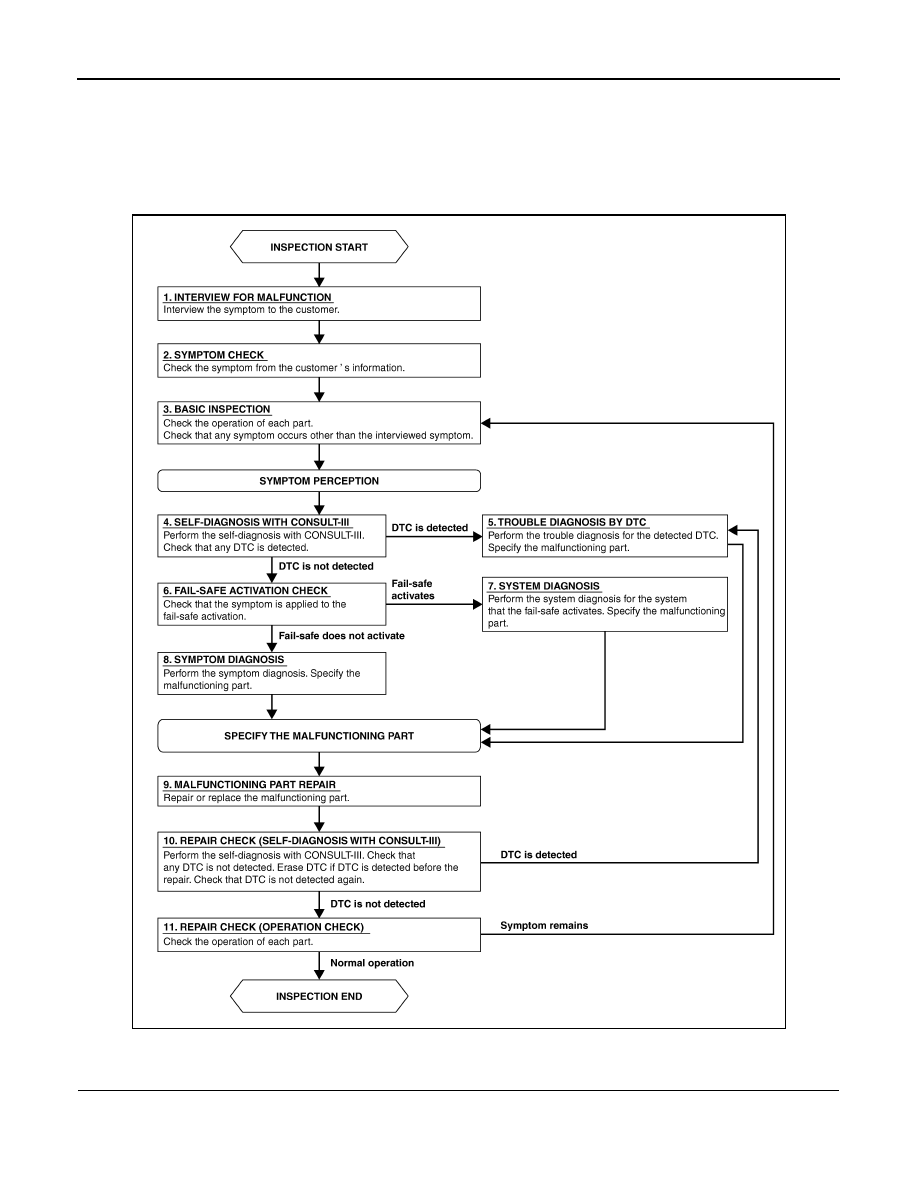

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the symptom to the customer.

JPLIA0313GB

DIAGNOSIS AND REPAIR WORKFLOW

EXL-211

< BASIC INSPECTION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

>> GO TO 2.

2.

SYMPTOM CHECK

Check the symptom from the customer's information.

>> GO TO 3.

3.

BASIC INSPECTION

Check the operation of each part. Check that any symptom occurs other than the interviewed symptom.

>> GO TO 4.

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self-diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9.

6.

FAIL-SAFE ACTIVATION CHECK

Check that the symptom is applied to the fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system that the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9.

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9.

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self-diagnosis with CONSULT-III. Check that any DTC is not detected. Erase DTC if DTC is
detected before the repair. Check that DTC is not detected again.

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 11.

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?

YES

>> INSPECTION END

NO

>> GO TO 3.
