Infiniti EX35. Manual - part 412

CCS

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

CCS-183

< ECU DIAGNOSIS >

[LDW & LDP]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

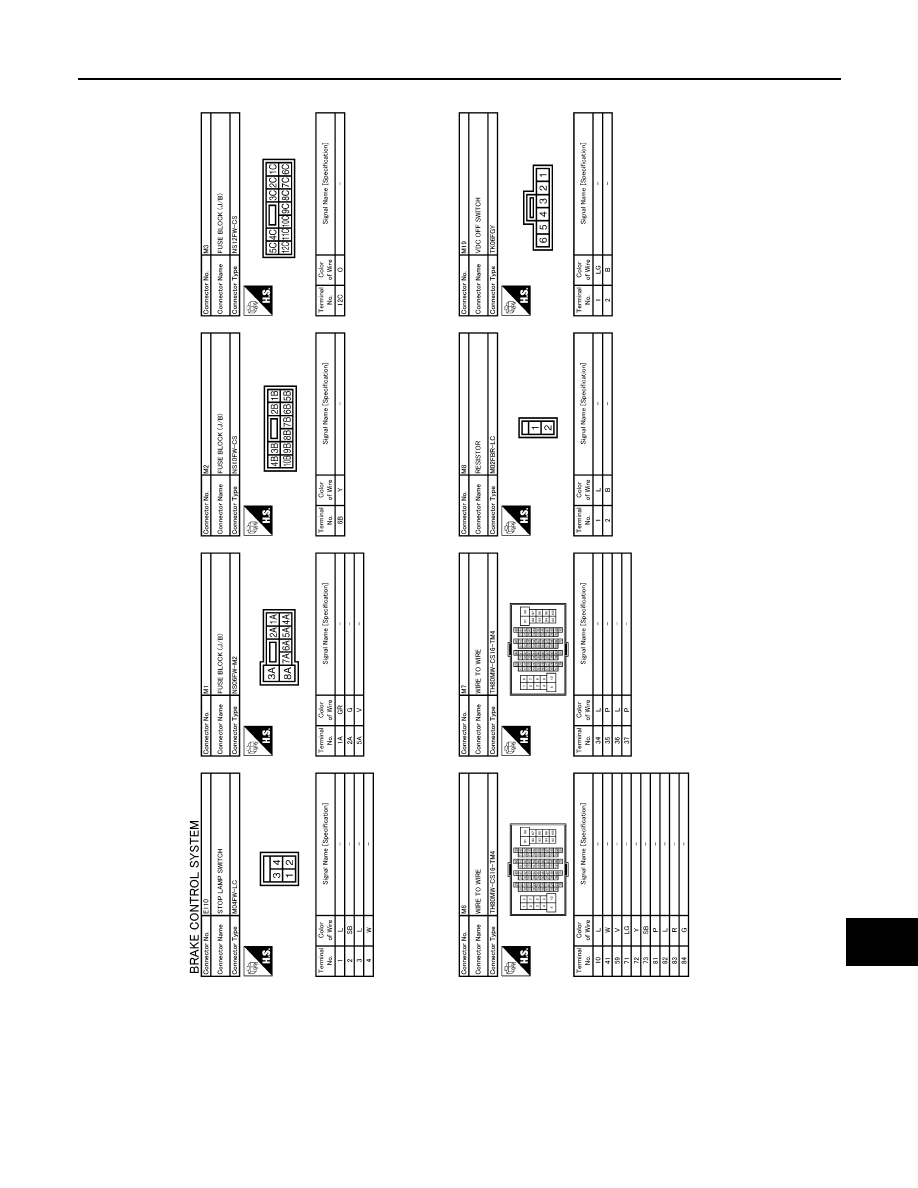

JCFWM0121GB

CCS-184

< ECU DIAGNOSIS >

[LDW & LDP]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Fail-Safe

INFOID:0000000003554294

ABS, EBD SYSTEM

If ABS malfunction electrically, ABS warning lamp, VDC OFF indicator lamp, SLIP indicator lamp will turn on. If
EBD malfunction electrically, brake warning lamp, ABS warning lamp, VDC OFF indicator lamp and SLIP indi-
cator lamp will turn on. Simultaneously, the VDC/TCS/ABS become one of the following conditions of the fail-
safe function.

JCFWM0122GB

CCS

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

CCS-185

< ECU DIAGNOSIS >

[LDW & LDP]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

• For malfunction of ABS, only the EBD is activated and the condition of vehicle is the same condition of vehi-

cles without TCS/ABS system.
NOTE:
ABS self-diagnosis sound may be heard. That is a normal condition because a self-diagnosis for “Ignition
switch ON” and “The first starting” are being performed.

• For malfunction of EBD, EBD and ABS become inoperative, and the condition of vehicle is the same as the

condition of vehicles without TCS/ABS, EBD system.

VDC / TCS

If VDC/TCS/ABS system malfunction electrically, VDC OFF indicator lamp, SLIP indicator lamp are turned on,
and the condition of vehicle is the same as the condition of vehicles without VDC/TCS control.

CAUTION:

If the Fail-Safe function is activated, then perform self-diagnosis for VDC/TCS/ABS control system.

LDW/LDP SYSTEM

• In case of malfunction in the LDW/LDP system, lane departure warning lamp is turned ON, and the condition

of vehicle is the same as the condition of vehicles without LDW/LDP control.

• In case of malfunction in the VDC/TCS/ABS system, lane departure warning lamp is turned ON, and the

condition of vehicle is the same as the condition of vehicles without LDW/LDP control.

DTC No. Index

INFOID:0000000003554295

DTC

Items (CONSULT screen terms)

Reference

C1101

RR RH SENSOR-1

BRC-35, "DTC Logic"

C1102

RR LH SENSOR-1

C1103

FR RH SENSOR-1

C1104

FR LH SENSOR-1

C1105

RR RH SENSOR-2

BRC-38, "DTC Logic"

C1106

RR LH SENSOR-2

C1107

FR RH SENSOR-2

C1108

FR LH SENSOR-2

C1109

BATTERY VOLTAGE [ABNORMAL]

BRC-41, "DTC Logic"

C1110

CONTROLLER FAILURE

BRC-43, "DTC Logic"

C1111

PUMP MOTOR

BRC-44, "DTC Logic"

C1114

MAIN RELAY

BRC-46, "DTC Logic"

C1115

ABS SENSOR [ABNORMAL SIGNAL]

BRC-48, "DTC Logic"

C1116

STOP LAMP SW

BRC-51, "DTC Logic"

C1120

FR LH IN ABS SOL

BRC-53, "DTC Logic"

C1121

FR LH OUT ABS SOL

BRC-55, "DTC Logic"

C1122

FR RH IN ABS SOL

BRC-53, "DTC Logic"

C1123

FR RH OUT ABS SOL

BRC-55, "DTC Logic"

C1124

RR LH IN ABS SOL

BRC-55, "DTC Logic"

C1125

RR LH OUT ABS SOL

BRC-55, "DTC Logic"

C1126

RR RH IN ABS SOL

BRC-53, "DTC Logic"

C1127

RR RH OUT ABS SOL

BRC-55, "DTC Logic"

C1130

ENGINE SIGNAL 1

BRC-57, "DTC Logic"

C1142

PRESS SEN CIRCUIT

BRC-58, "DTC Logic"

C1143

ST ANG SEN CIRCUIT

BRC-60, "DTC Logic"

C1144

ST ANG SEN SIGNAL

BRC-62, "DTC Logic"

C1145

YAW RATE SENSOR

BRC-63, "DTC Logic"

C1146

SIDE G-SEN CIRCUIT

CCS-186

< ECU DIAGNOSIS >

[LDW & LDP]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

C1147

USV LINE [FL-RR]

BRC-66, "DTC Logic"

C1148

USV LINE [FR-RL]

C1149

HSV LINE [FL-RR]

C1150

HSV LINE [FR-RL]

C1153

EMERGENCY BRAKE

BRC-43, "DTC Logic"

C1154

PNP POSI SIG

BRC-69, "DTC Logic"

C1155

BR FLUID LEVEL LOW

BRC-71, "DTC Logic"

C1170

VARIANT CORDING

BRC-43, "DTC Logic"

C1185

ACC CONT

BRC-73, "DTC Logic"

C1B00

LDP) CAMERA MALF

CCS-149, "DTC Logic"

C1B04

LDP) ICC STG SW MALF

CCS-150, "DTC Logic"

C1B05

LDP) APP SEN MALF

CCS-151, "DTC Logic"

C1B06

LDP) TCM MALF

CCS-152, "DTC Logic"

U0100

LDP) ECM CAN CIR2

CCS-153, "DTC Logic"

U0101

LDP) TCM CAM CAN CIR2

CCS-154, "DTC Logic"

U0104

LDP) ICC CAM CAN CIR2

CCS-155, "DTC Logic"

U0405

LDP) ICC CAM CAN CIR1

CCS-156, "DTC Logic"

U1000

CAN COMM CIRCUIT

BRC-74, "DTC Logic"

U1002

SYSTEM COMM (CAN)

U1100

ACC COMM CIRCUIT

BRC-75, "DTC Logic"

U1500

LDP) CAM CAN CIR1

CCS-157, "DTC Logic"

U1501

LDP) CAM CAN CIR2

CCS-158, "DTC Logic"

DTC

Items (CONSULT screen terms)

Reference
