Infiniti EX35. Manual - part 173





AV

AROUND VIEW MONITOR SYSTEM

AV-473

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

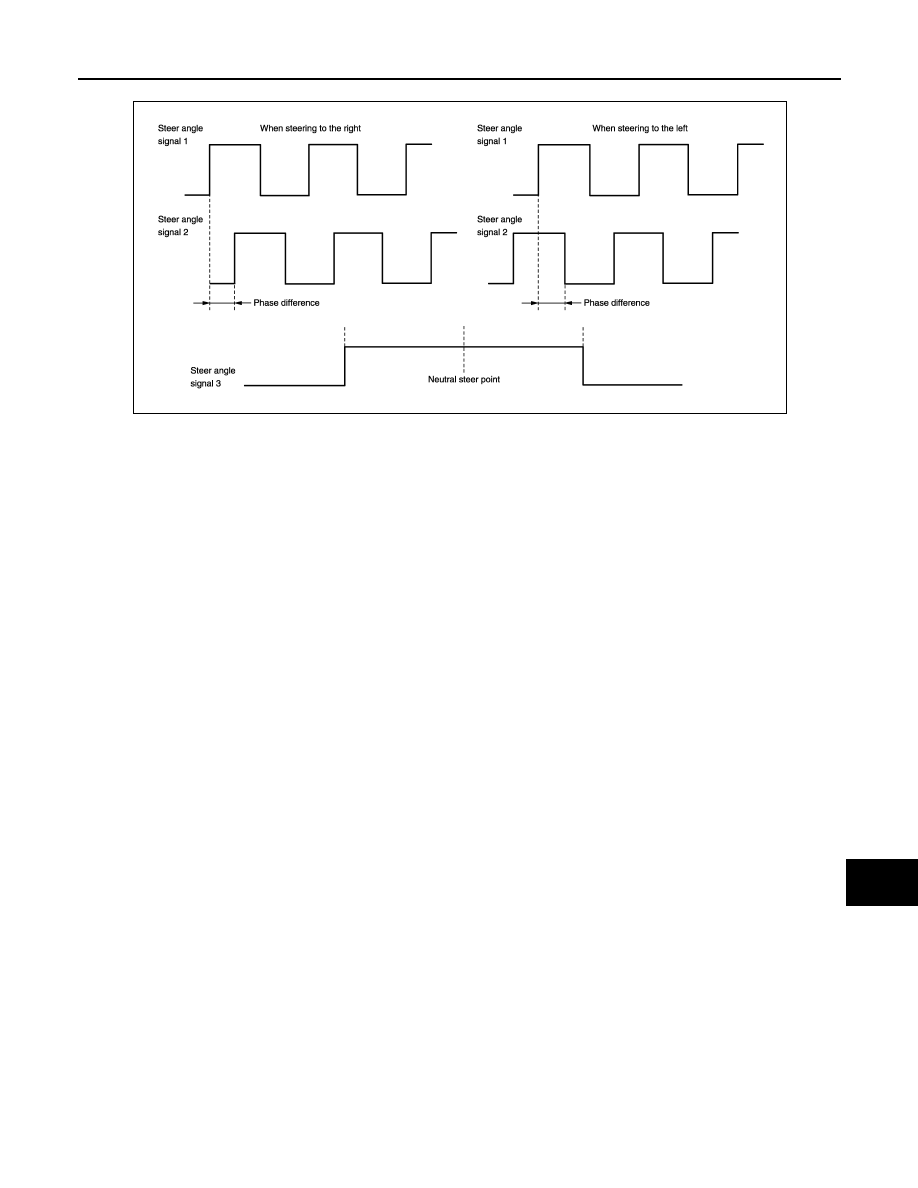

Correction of steering neutral position

Around view monitor control unit corrects the steering neutral position during driving according to the vehicle
speed signal and steering angle sensor signal.

JSNIA0708GB

AV-474

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AROUND VIEW MONITOR SYSTEM

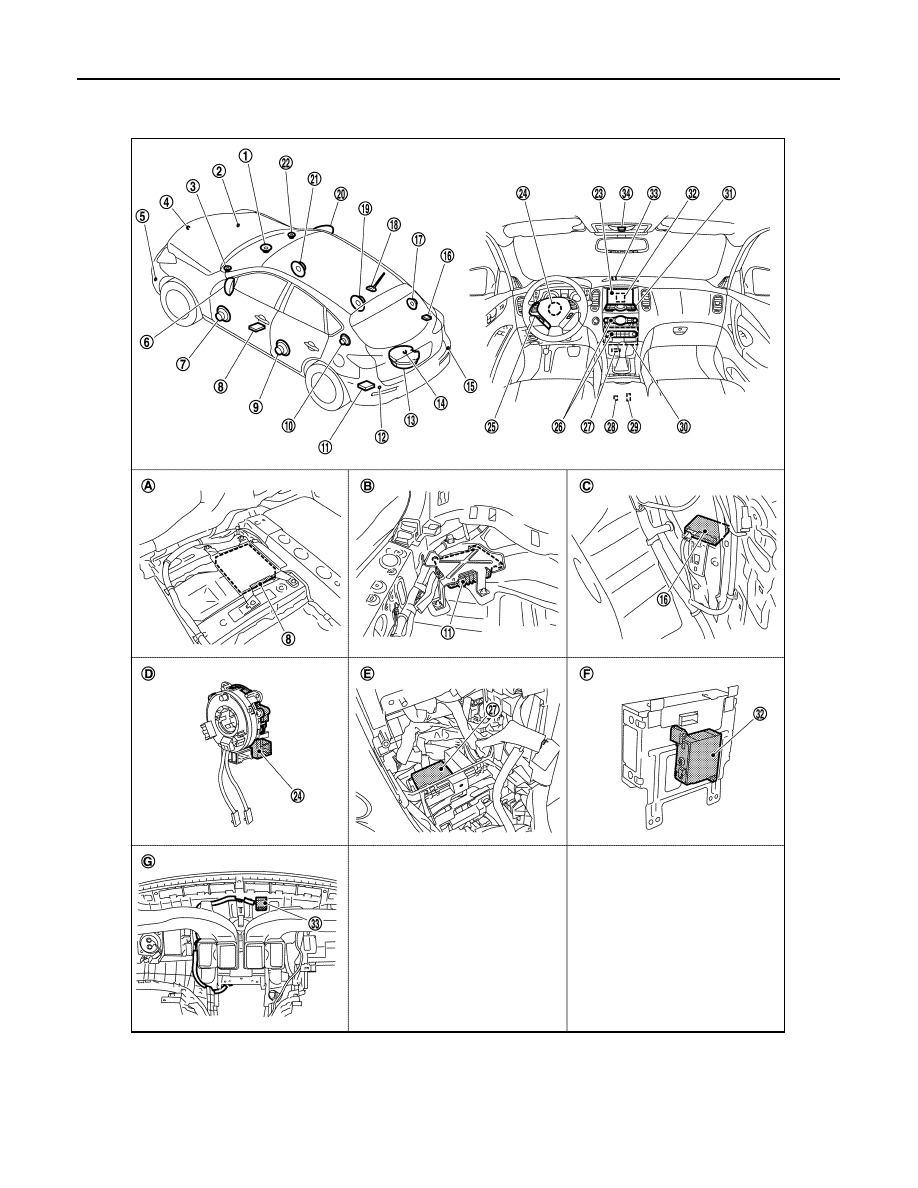

Component Parts Location

INFOID:0000000003579819

1.

Center speaker

2.

Corner sensor front RH

3.

Front squawker LH

4.

Front camera

5.

Corner sensor front LH

6.

Side camera LH

JPNIA0911ZZ

AV

AROUND VIEW MONITOR SYSTEM

AV-475

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000003160622

7.

Front door speaker LH

8.

• Around view monitor control unit

(with around view monitor)

• Camera control unit (with rear view

monitor)

9.

Rear door speaker LH

10. Rear squawker LH

11. BOSE amp.

12. Corner sensor rear LH

13. Woofer

14. • Rear camera (with around view

monitor)

• Rear view camera (with rear view

monitor)

15. Corner sensor rear RH

16. Buzzer

17. Rear squawker RH

18. Antenna base (antenna amp and sat-

ellite antenna)

19. Rear door speaker RH

20. Side camera RH

21. Front door speaker RH

22. Front squawker RH

23. Display unit

24. Steering angle sensor

25. Steering switch

26. Preset switch

27. Sonar control unit (with around view

monitor)

28. iPod connector

29. Auxiliary input jacks

30. AV control unit

31. Multifunction switch

32. iPod adapter

33. GPS antenna

34. Microphone

A.

Under front seat (LH side)

B.

Luggage floor (LH side)

C.

Luggage side RH

D.

Spiral cable part

E.

Cluster lid C removed condition

F.

Rear view of the display unit

G.

Instrument panel rear side

Part name

Description

AV CONTROL UNIT

• Image on display is switched to around view monitor by serial communication

between AV control unit and display unit.

• Warning displayed in around view monitor image is illustrated.

DISPLAY UNIT

• Camera image signal is transmitted from around view monitor control unit, and

RGB signal for warning display is transmitted from AV control unit.

• Around view monitor image is switched by serial communication between AV

control unit and display unit.

MULTIFUNCTION SWITCH

It transmits the CAMERA switch signal via AV communication to AV control unit.

AROUND VIEW MONITOR CONTROL UNIT

• It supplies power to front camera, rear camera, and side camera, superimpos-

es the images from each camera, and then outputs them to display unit.

• It receives the CAMERA switch signal and reverse signal from AV control unit

via AV communication.

• Superimpose the guiding line, predicted course line and sonar indicator to the

camera image that outputs to display unit.

• It performs the reception/transmission of communication signal with each cam-

era.

• Input the sensor signal from steering angle sensor, and then control the pre-

dicted course line.

• It transmits the information received/transmitted with sonar control unit via AV

communication to AV control unit.

FRONT CAMERA

• It inputs the power supply from around view monitor control unit and outputs

the image of the vehicle front to around view monitor control unit.

• It performs the reception/transmission of the communication signal with

around view monitor control unit.

REAR CAMERA

• It inputs the power supply from around view monitor control unit and outputs

the image of the vehicle rear to around view monitor control unit.

• It performs the reception/transmission of the communication signal with

around view monitor control unit.

SIDE CAMERA LH

• It inputs the power supply from around view monitor control unit and outputs

the image of the vehicle LH to around view monitor control unit.

• It performs the reception/transmission of the communication signal with

around view monitor control unit.

AV-476

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AROUND VIEW MONITOR SYSTEM

SIDE CAMERA RH

• It inputs the power supply from around view monitor control unit and outputs

the image of the vehicle RH to around view monitor control unit.

• It performs the reception/transmission of the communication signal with

around view monitor control unit.

INFRARED LED (AUXILIARY LIGHTING)

It illuminates around the front RH wheel by the power supply from around view
monitor control unit to improve nighttime visibility of Front-Side view.

SONAR CONTROL UNIT (WITH AROUND VIEW
MONITOR)

• It is connected with around view monitor control unit via AV communication and

receives the sonar operation signal from around view monitor control unit.

• It transmits the sonar detection status to around view monitor control unit via

AV communication.

STEERING ANGLE SENSOR

Steering signal necessary for predicted course line control is transmitted to
around view monitor control unit.

Part name

Description
