ENCODER CIRCUIT

YES

>> Replace front power window switch (passenger side). Refer to

PWC-112, "Removal and Installa-

tion"

.

NO

>> Repair or replace harness or connector.

DOOR KEY CYLINDER SWITCH

PWC-33

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

DOOR KEY CYLINDER SWITCH

Description

INFOID:0000000003573497

Power window main switch detects condition of the door key cylinder switch and transmits to BCM as the
LOCK or UNLOCK signals.

Component Function Check

INFOID:0000000003573498

1.

CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

Check (“KEY CYL LK-SW”, “KEY CYL UN-SW”) in “DATA MONITOR” mode for “POWER DOOR LOCK SYS-
TEM” with CONSULT-III. Refer to

DLK-48, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

Is the inspection result normal?

YES

>> Door key cylinder switch is OK.

NO

>> Refer to

PWC-33, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003573499

1.

CHECK DOOR KEY CYLINDER SWITCH SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect front door lock assembly (driver side) (key cylinder switch) connect.

3.

Turn ignition switch ON.

4.

Check voltage between front door lock assembly (driver side) (key cylinder switch) harness connector and
ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK DOOR KEY CYLINDER SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect power window main switch connector.

3.

Check continuity between power window main switch harness connector and front door lock assembly
(driver side) (key cylinder switch) harness connector.

4.

Check continuity between power window main switch harness connector and ground.

Monitor item

Condition

KEY CYL LK-SW

Lock

: ON

Neutral / Unlock

: OFF

KEY CYL UN-SW

Unlock

: ON

Neutral / Lock

: OFF

(+)

(–)

Voltage (V)

(Approx.)

Front door lock assembly (driver side) (key cylinder switch)

Connector

Terminal

D15

5

Ground

5

6

Power window main switch

Front door lock assembly (driver side) (key cylinder

switch)

Continuity

Connector

Terminal

Connector

Terminal

D8

4

D15

6

Existed

6

5

PWC-34

< COMPONENT DIAGNOSIS >

DOOR KEY CYLINDER SWITCH

Is the inspection result normal?

YES

>> Replace power window main switch. Refer to

PWC-112, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT

Check continuity between front door lock assembly (driver side) (key cylinder switch) harness connector and
ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK DOOR KEY CYLINDER SWITCH

Check front door lock assembly (driver side) (key cylinder switch).
Refer to

PWC-34, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace front door lock assembly (driver side) (key cylinder switch). Refer to

PWC-34, "Compo-

nent Inspection"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000003573500

COMPONENT INSPECTION

1.

CHECK DOOR KEY CYLINDER SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect front door lock assembly (driver side) (key cylinder switch) connector.

3.

Check front door lock assembly (driver side) (key cylinder switch).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace front door lock assembly (driver side) (key cylinder switch). Refer to

DLK-244, "DOOR

LOCK : Removal and Installation"

.

Power window main switch

Ground

Continuity

Connector

Terminal

D8

4

Not existed

6

Front door lock assembly (driver side) (key cylinder switch)

Ground

Continuity

Connector

Terminal

D15

4

Existed

Front door lock assembly (driver side) (key cylinder switch)

Key position

Continuity

Connector

Terminal

D15

5

4

Unlock

Existed

Neutral / Lock

Not existed

6

Lock

Existed

Neutral / Unlock

Not existed

POWER WINDOW SERIAL LINK

PWC-35

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW SERIAL LINK

Description

INFOID:0000000003573501

Power window main switch, front power window switch (passenger side), and BCM transmit and receive the
signal by power window serial link.
The signal mentioned below is transmitted from BCM to power window main switch, front power window (pas-
senger side).
•  Keyless power window down signal
The signal mentioned below is transmitted from power window main switch to front power window switch (pas-
senger side).
• Passenger side door window operation signal
• Power window control by key cylinder switch signal
• Power window lock switch signal
• Retained power operation signal

Component Function Check

INFOID:0000000003573502

1.

CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

Check (“CDL LOCK SW ”, “CDL UNLOCK SW”) in “DATA MONITOR” mode for “POWER DOOR LOCK SYS-
TEM” with CONSULT-III. Refer to

DLK-48, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

Is the inspection result normal?

YES

>> Power window serial link is OK.

NO

>> Refer to

PWC-35, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003573503

1.

CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

1.

Close doors of driver side and passenger side.

2.

Check signal between BCM harness connector and ground with oscilloscope when door lock and unlock
switch (driver side and passenger side) is turned to “LOCK” or “UNLOCK”.

3.

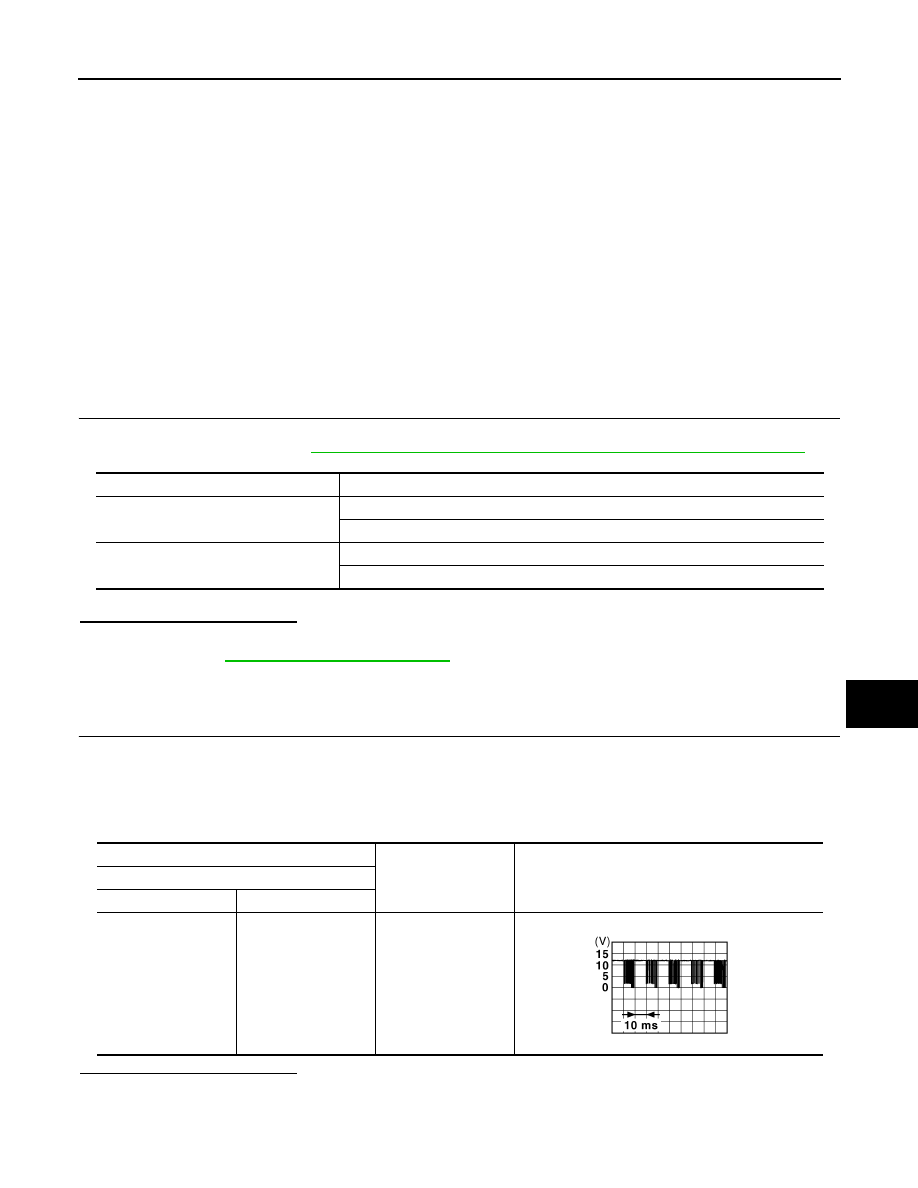

Check that signals which are shown in the figure below can be detected during 10 seconds just after door
lock and unlock switch (driver side and passenger side) is turned to “LOCK” or “UNLOCK”.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

Monitor item

Condition

CDL LOCK SW

LOCK

: ON

UNLOCK

: OFF

CDL UNLOCK SW

LOCK

: OFF

UNLOCK

: ON

(+)

(–)

Signal

(Reference value)

BCM

Connector

Terminal

M123

132

Ground

JPMIA0013GB
