Hyundai Santa Fe (2006 year). Manual - part 704





HA -194

HEATING, VENTILATION AND AIR CONDITIONING

4) Is the measured voltage within specifications?

YES

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

NO

Substitute with a known-good A/C Control Unit and check for proper operation.
If the problem is corrected, replace A/C Control Unit and then go to "Verification of Vehicle Repair" procedure.

VERIFICATION OF VEHICLE REPAIR

E9F02EC4

After a repair, it is essential to verify that the fault has been corrected.

1.

Connect scantool and select "Diagnostic Trouble Codes(DTCs)" mode and then clear DTC.

2.

Operate the vehicle and monitor the DTC on the scantool.

3.

Are any DTCs present?

YES

Go to the applicable troubleshooting procedure.

NO

System is performing to specification at this time.

BLOWER AND A/C CONTROLS (AUTOMATIC)

HA -195

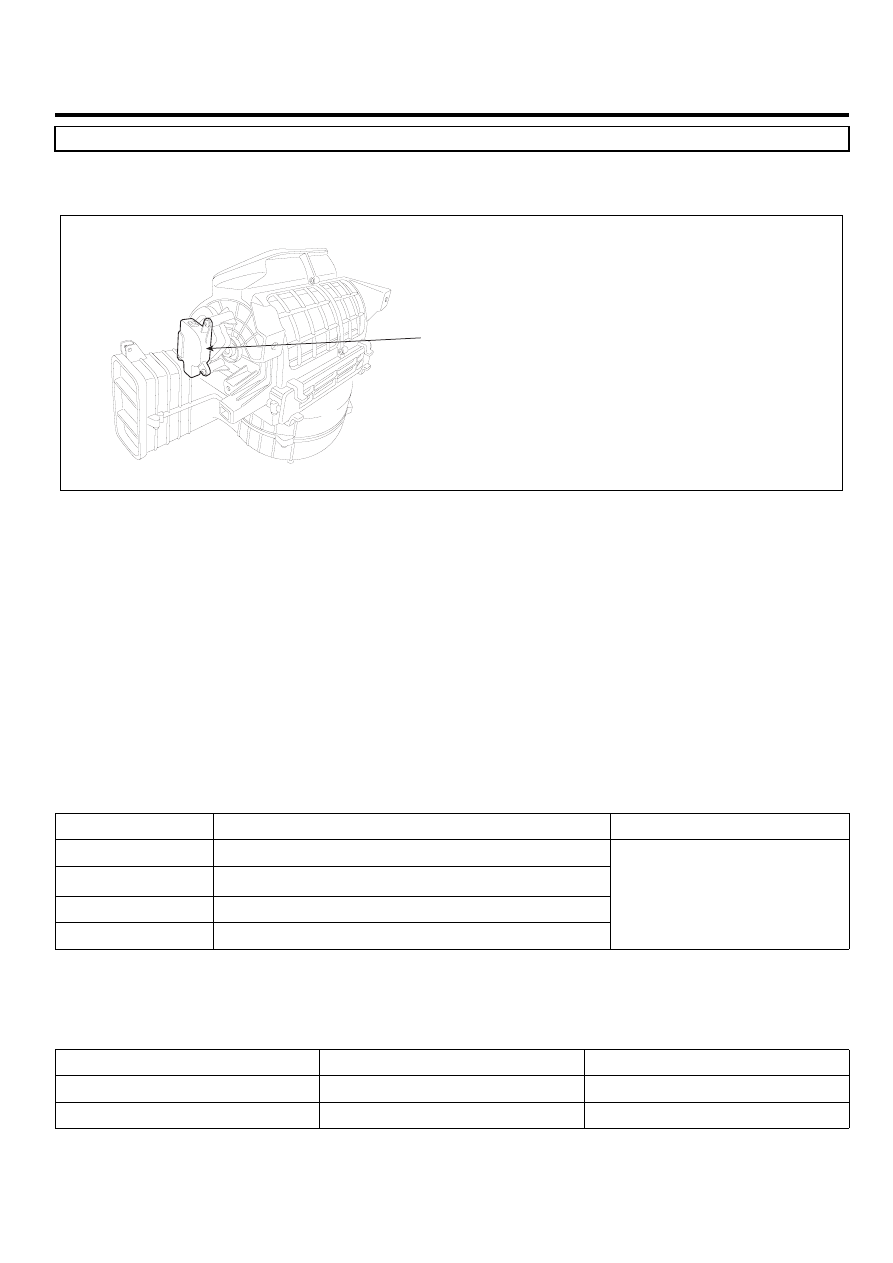

DTC B2408 INTAKE MOTOR FAILURE

COMPONENT LOCATION

EF1AEBEF

Intake Door Actuator

SCMHA6701L

GENERAL DESCRIPTION

EBF43D13

Intake door located at heater unit controls the inlet of car. When driver operates the intake switch, A/C controller recir-
culationeives mode signal from intake switch and operates intake door actuator to turn intake door to intended position.
(with fresh mode signal, intake door is closed and with fresh mode signal, intake door is opened.

DTC DESCRIPTION

EDEFA576

The A/C controller sets DTC B2408 if the intake motor Doesn’t move to intended position within 40sec(The A/C controller
attempts to move the intake door for a 2 second duration at a freshquency of 3 times every 20 seconds before storing a
DTC.)

DTC DETECTING CONDITION

E70DC6B0

Item

Detecting Condition

Possible cause

DTC Strategy

• Voltage check

Threshold value

• < 0.1V

Detecting time

• 0.3 sec

FAIL SAFE

-

• Poor connection of

connected part

• Open circuit in harness
• Short circuit in harness
• Faulty Intake potentiometer

SPECIFICATION

E6B3190E

Voltage value of Intake potentiometer as a function of position of Intake door

Door position

Voltage

Threshold value

Fresh

0.3±0.15V

Voltage value 0.08V or less

Recirculation

4.7±0.15V

Voltage value 4.9V or more

HA -196

HEATING, VENTILATION AND AIR CONDITIONING

MONITOR SCANTOOL DATA

E73BFCC6

1.

Connect scantool to Data Link Connector(DLC).

2.

Engine "ON"

3.

Monitor the "Intake Potentiometer" Parameter on the Scantool while operating Intake switch.

1.2 CURRENT DATA

FIX

SCRN FULL

PART GRPH HELP

14.0  C

12.0  C

12.0  C

13.0  C

0.00 V

84.69 %

51.76 %

255

22.7   %

HEATER WATER TEMP.SNSR

IN-CAR TEMP.SENSOR

AMBIENT AIR TEMP.SNS

EVAPORATIVE SENSOR

DRIVER PHOTO SENSOR

AIR MIX POPENTIO.(DR.)

DIRECTION POTENIO.DR.

PASSENGER PHOTO SENSOR

INTAKE SENSOR

1.1 DIAGNOSTIC TROUBLE CODES

NUMBER OF DTC : 1 ITEMS

PART

ERAS

HELP

B2408 INTAKE MOTOR

Fig 1 : The current data in abnormal state.
Fig 2 : DTC B2408.

Fig. 1

Fig. 2

EQBF529A

4.

Are the DTC B2408 present and is parameter of "Intake Potentiometer" fixed?

There is any fault in Intake potentiometer. If the parameter of "Intake potentiometer" is 30% or less when the actua-

tor operates to the fresh position, or If the parameter is 60% and more when the actuator operates to the recirculation
position.

YES

Go to "Inspection" procedure.

NO

Fault is intermittent caused by poor contact in the sensor’s and/or A/C controller’s connector or was repaired and
A/C controller memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of
Vehicle Repair" procedure.

BLOWER AND A/C CONTROLS (AUTOMATIC)

HA -197

TERMINAL AND CONNECTOR INSPECTION

E0CEF15E

1.

Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or
damage.

3.

Has a problem been found?

YES

Repair as necessary and go to "Verification of Vehicle Repair" procedure.

NO

Go to "Signal circuit inspection" procedure.

SIGNAL CIRCUIT INSPECTION

E0DD314B

1.

Check for open in harness.

1) Ignition "OFF"

2) Disconnect Intake potentiometer.

3) Measure resistance between terminal "3,4" of Intake potentiometer and terminal "22,23" of A/C control unit.

Specification : Approx. 0 Ω

1

2

3

4

6

9

10

12

13

14

15

16

17

18

19

20

21

22

23

24

*

* *

*

25

26

*

*

3

4

5

6

7

3. Motor
4. Motor

5. Potentiometer ground
6. Potentiometer signal
7. Sensor reference voltage(+5V)

SCMHA6569L

4) Is the measured resistance within specifications?

YES

Go to "Check for short to ground in harness" procedure.

NO

Check for open in signal harness. Repair as necessary and go to "Verification of Vehicle Repair" procedure.
