Hyundai: Engine D4FA. Manual - part 81





DIESEL CONTROL SYSTEM

FLA -195

4.

Monitor "FUEL PRESSURE MEASURED", "RAIL PRESS. REGULATOR1", "INJ. PUMP REGULATOR" parameter
on the Scantool.

SPECIFICATION :

Idle(without load)

Accelerating(stall test)

Diagnosis

INJ. PUMP REGULATOR

38 ± 5%

32 ± 5%

duty decreases

FUEL PRESSURE

MEASURED

28.5 ± 5 Mpa

145 ± 10 Mpa

press. increases

RAIL PRESS.

REGULATOR1

19 ± 5%

48 ± 5%

duty increases

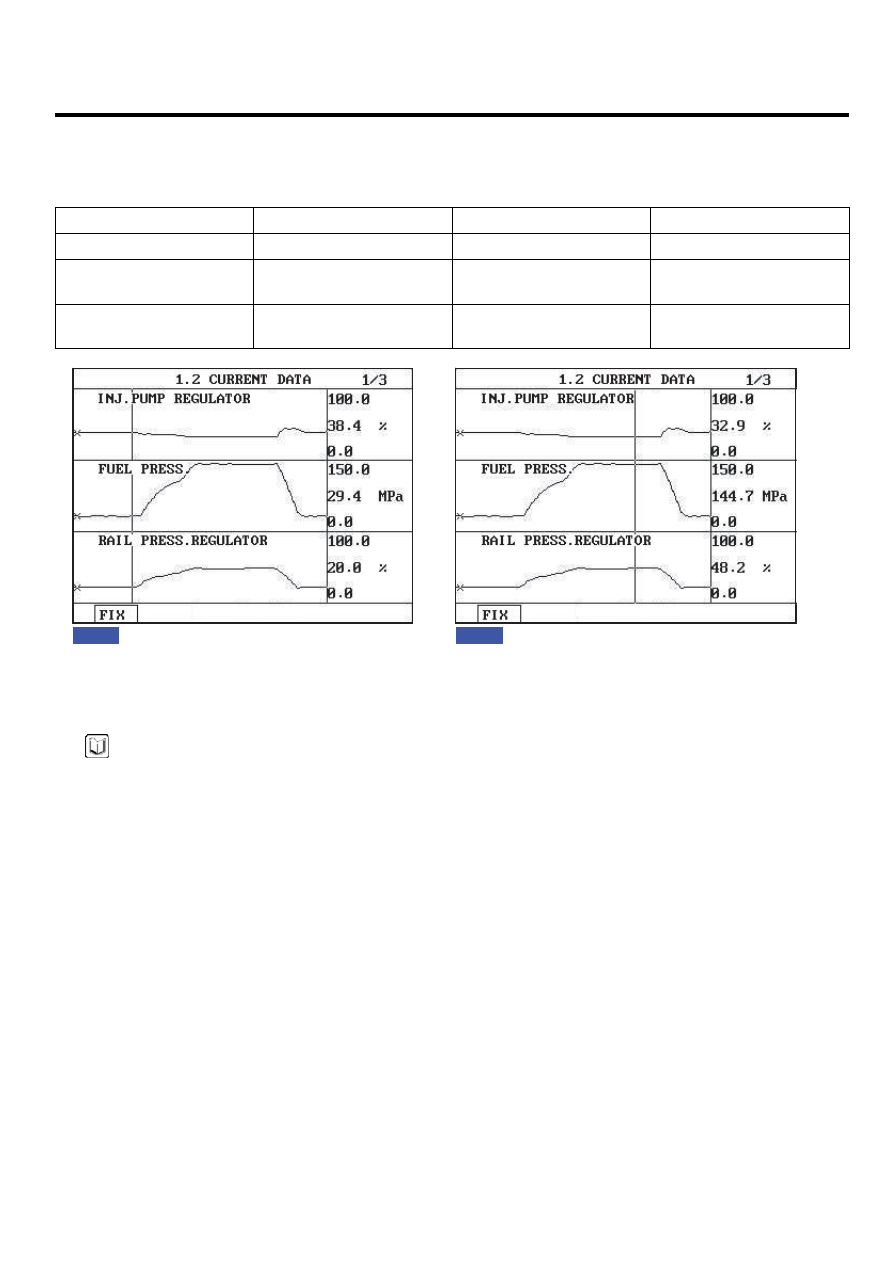

Fig.1

Fig.2

Fig.1) The position of curser on the graph represents idle data.
Fig.2) Data during acceleration(stall test).

EGNG013U

NOTE

The waveform of fuel pressure regulator valve installed at high pressure pump(fuel detecting MPROP) shows 38%
duty at idle, duty drops to approx. 32% at acceleration to raise rail pressure. Duty drop means the decrease of
current.
→ Fuel delivered to common rail increases as current drops.

The waveform of rail pressure regulator valve installed at common rail shows 19% duty at idle, duty rises to approx.
48% at acceleration to raise rail pressure. Duty rise means the increase of current.
→ If current rises, the returning quantity of fuel deliverd to common rail decreases and common rail pressure rises.

TERMINAL AND CONNECTOR INSPECTION

E6661C32

1.

Electrical systems consist of a lot of harness and connectors, poor connection of terminals can cause various prob-
lems and damge of component.

2.

Perform checking procedure as follows.

1)

Check damage of harness and terminals : Check terminals for contact resistance, corrosion and deformation.

2)

Check connecting condition of ECM and component connector : Check terminal seperation, damage of locking
device and connecting condition between terminal and wiring.

FLA -196

FUEL SYSTEM

NOTE

Disconnect the pin which requires checking at male connector and insert it to the terminal at female connector for
checking connecting condition. ( after checking, reconnect the pin at correct position. )

3.

Is the problem found?

YES

▶ Repair the trouble causing part and go to "Verification of Vehicle Repair".

NO

▶ Go to "Power Circuit Inspection".

POWER CIRCUIT INSPECTION

E8569595

1.

IG KEY "OFF", ENGINE "OFF".

2.

Disconnect RPS connector.

3.

IG KEY "ON".

4.

Measure the voltage of RPS connector terminal "1".

Specification : 4.8V~5.1V

5.

Is the measured voltage within the specification?

YES

▶ Go to "Signal Circuit Inspection".

NO

▶ Repair open in RPS power circuit and go to "Verification of Vehicle Repair".
[ Check between RPS connector terminal 1 and ECM connector terminal28. ]

SIGNAL CIRCUIT INSPECTION

EE1A1AA9

1.

Check signal circuit voltage

1)

IG KEY "OFF", ENGINE "OFF".

2)

Disconnect RPS connector.

3)

IG KEY "ON".

4)

Measure the voltage of RPS connector terminal 2.

Specification : 4.8V~5.1V

5)

Is the measured voltage within the specification?

YES

▶ Go to "Component Inspection".

DIESEL CONTROL SYSTEM

FLA -197

NO

▶ Repair short to ground in signal circuit and go to "Verification of Vehicle Repair".

COMPONENT INSPECTION

ED51384B

1.

Visual Inspection of RPS

1)

IG KEY "OFF", ENGINE "OFF".

2)

Disconnect RPS connector.

3)

Check if corrosion and damage in RPS terminal is detected.

4)

Check RPS mounting torque and oil leakage.

5)

Are the problems relevant to RPS found?

YES

▶ Replace RPS if necessary and go to "Verification of Vehicle Repair".

NO

▶ Go to "RPS waveform Inspection".

2.

RPS Waveform Inspection

1)

IG KEY "OFF", ENGINE "OFF".

2)

Connect RPS connector.

3)

Connect an Oscilloscope to RPS connector terminal 2.

4)

After turning engine "ON", Check waveform at idle and during acceleration.

Specification : Refer to "Signal Waveform & Data" of "General Information".

5)

Does RPS waveform look similar to standard "Signal Waveform & Data"?

YES

▶ go to "Verification of Vehicle Repair".

NO

▶ Replace RPS and go to "Verification of Vehicle Repair".

VERIFICATION OF VEHICLE REPAIR

E1F86919

After a repair, it is essential to verify that the fault is corrected.

1.

After connecting Scantool select "DIAGNOSTIC TROUBLE CODES(DTCs)" mode.

2.

Clear recorded DTC using Scantool.

3.

Drive the vehicle within DTC "Enable conditions" in "General information".

FLA -198

FUEL SYSTEM

4.

After selecting "DIAGNOSTIC TROUBLE CODES(DTCs)" mode and check if DTC is recorded again.

5.

Are any DTCs recorded ?

YES

▶ Go to the DTC guide of recorded NO. in Scantool.

NO

▶ System operates within specification.
