55

REPLACEMENT PARTS - Door

DOOR

A

B

C

D

E

F

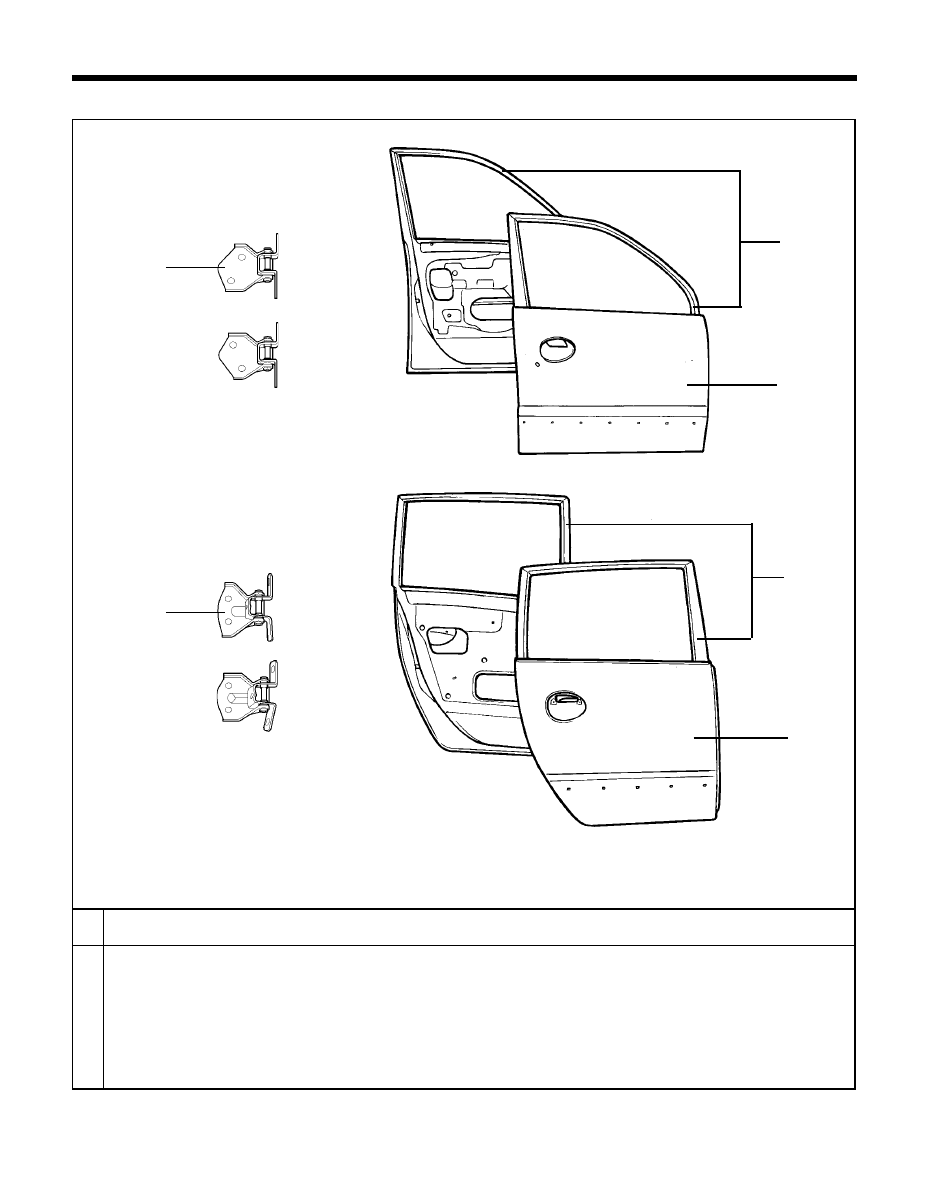

FRONT DOOR PANEL ASSEMBLY,

LH/RH

FRONT DOOR OUTER PANEL,

LH/RH

FRONT DOOR HINGE ASSEMBLY,

LH/RH

REAR DOOR PANEL ASSEMBLY,

LH/RH

REAR DOOR OUTER PANEL,

LH/RH

REAR DOOR HINGE ASSEMBLY,

LH/RH

PART NAME

CON-0870/CON-0872/CON-0873

D

E

A

B

F

C

BODY
DIMENSIONS

58

GENERAL

1.

Basically, all measurements in this manual are taken with a
tracking gauge.

2.

When a measuring tape is used, check to be sure there is no
elongation, twisting or bending.

3.

For measuring dimensions, both projected dimension and ac-
tual-measurement dimension are used in this manual.

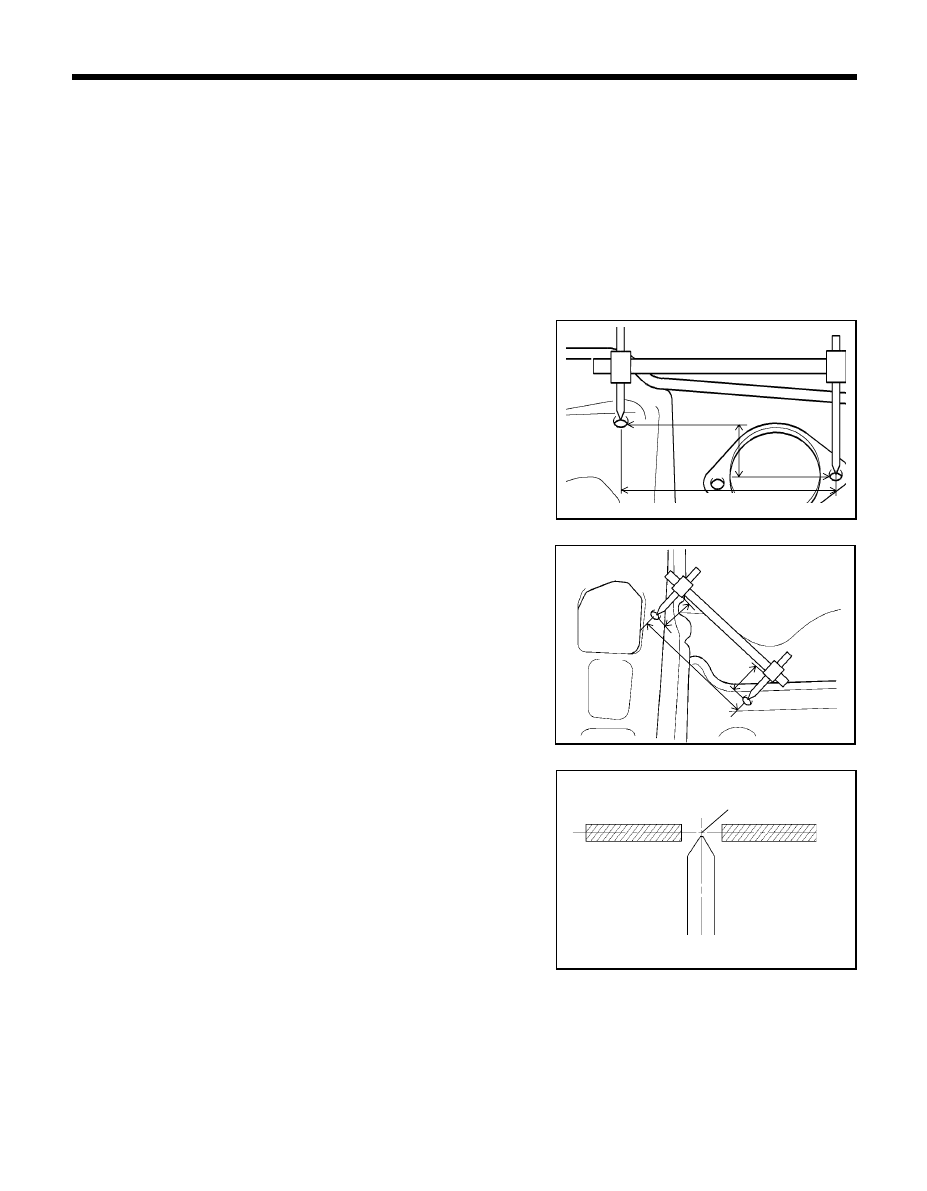

ACTUAL-MEASUREMENT DIMENSIONS

1.

These dimensions indicate the actual linear distance between
measurement points, and are the reference dimensions for use
if a tracking gauge is used for measurement.

2.

Measure by first adjusting both probes to the same length (A=A')

NOTE
Check the probes and gauge itself to make sure there is no
free play.

MEASUREMENT POINT

1.

Measurements should be taken at the hole center.

DIM0010

DIM0020

DIM0030

Height

Hole center

MEASUREMENT METHOD

PROJECTED DIMENSIONS

1.

These are the dimensions measured when the measurement
points are projected into the reference plane, and are the
reference dimensions used for body alterations.

2.

If  the length of the tracking gauge probes are adjustable, make
the measurement by lengthening one probe by the amount
equivalent to the difference in height of  the two surfaces.

BODY DIMENSIONS - General

Actually-measured dimension

A

A'

Projected dimension

59

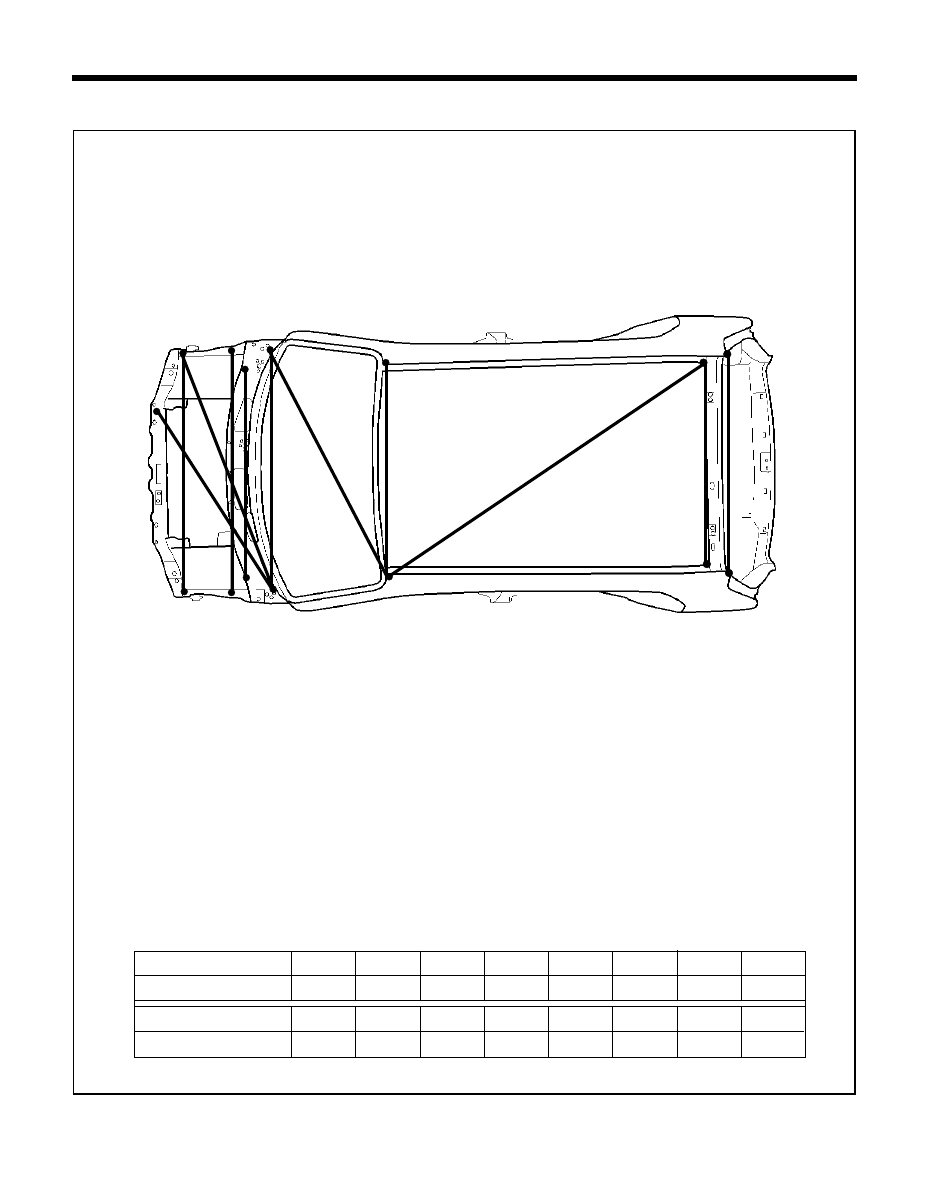

UPPER BODY

Point symbol

Length (mm)

Point symbol

Length (mm)

D-D'

D-A'

G-G'

E-F'

E-D'

E-E'

A-A'

B-B'

C-C'

* These dimensions indicated in this figure are actual-measurement dimensions.

UPPER

  H

H-D

BODY DIMENSIONS - Upper body

                                C'



B



C

                                       D'

                       G

                       E

F'     G'



D



A

A'

B'

   E'

1238

1253

1071

1333

976

1360

F-F'

917

    F

1218

1751

976

1136
