BODY
CONSTRUCTION

12

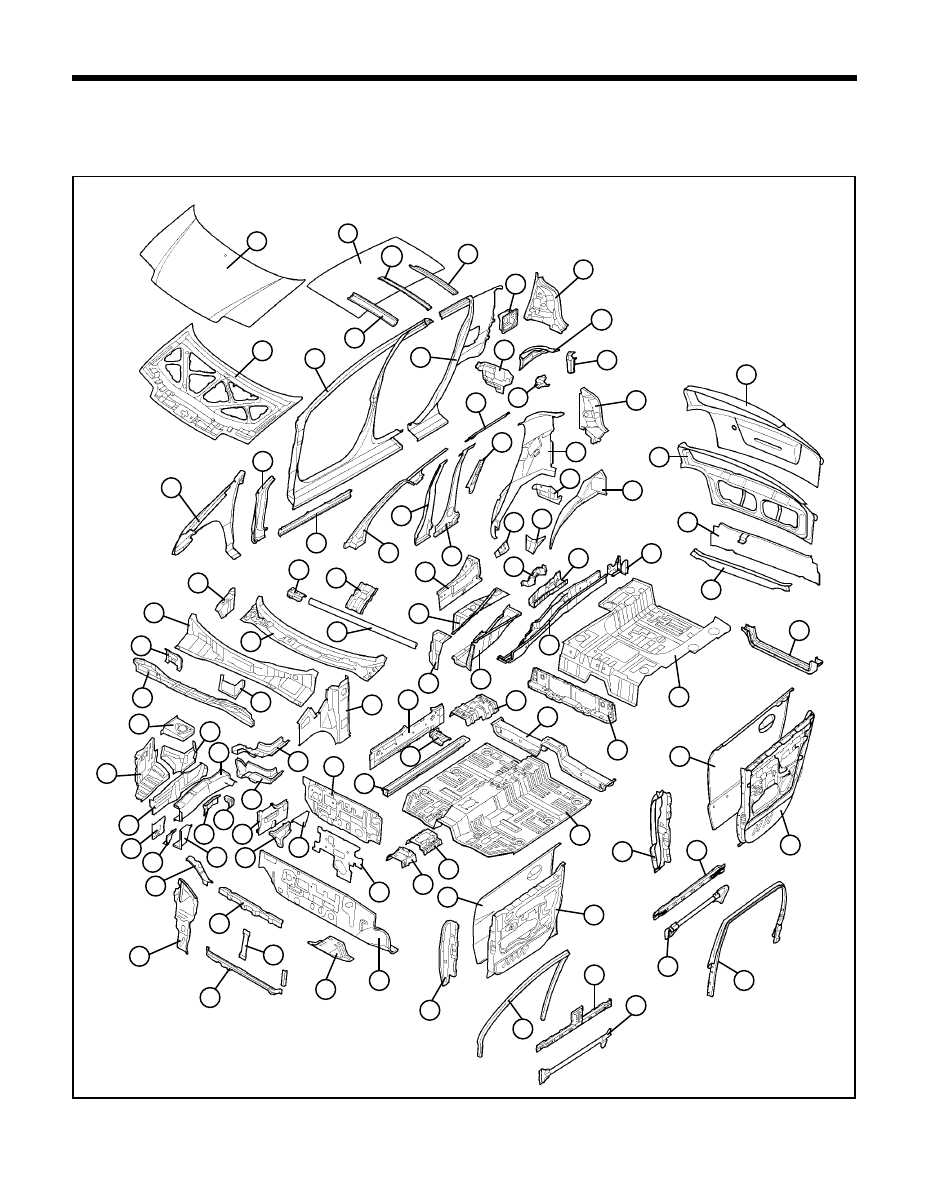

BODY CONSTRUCTION - Body components

BODY COMPONENTS

Body construction will sometimes differ depending on specifications and country of destination. Therefore, please keep
in mind that the information contained herein is based on vehicles for general destination.

CON-0050

82

58

59

57

60

61

62

65

67

68

70

69

75

74

78

83

63

56

52

54

55

71

37

53

64

51

47

49

50

24

48

23

22

13

19

18

17

2

1

3

9

5

8

4

6

10

15

14

16

11

12

27

26

7

21

20

86

88

87

91

89

90

97

96

95

94

25

30

32

31

84

85

77

76

79

80

81

35

72

39

73

38

36

28

29

42

33

92

43

93

41

40

44

45

66

46

34

13

BODY CONSTRUCTION - Body components

1. Head lamp support panel

2. Radiator support upper side member
3. Radiator support upper center member
4. Radiator support center member
5. Radiator support center cross member
6. Dash panel
7. Dash panel reinforcement
8. Dash lower center reinforcement
9. Side sill inner front extension
10. Dash lower side reinforcement
11. Dash lower side panel
12. Dash anti pad
13. Front side inner member
14. Front side member inner reinforcement
15. Battery tray mounting bracket
16. Sub frame front mounting bracket
17. Sub frame front mounting reinforcement
18. Front side outer member gusset
19. Front side outer member
20. Front side rear lower member
21. Front side rear upper member
22. Fender apron inner panel
23. Fender apron inner front panel
24. Front shock absorber cover panel
25. Center floor panel
26. TGS lever mounting reinforcement
27. ESPS mounting reinforcement
28. Center floor rear reinforcement
29. Front seat cross member
30. Center floor side member
31. Side sill inner panel
32. Front seat rear side mounting bracket
33. Rear floor panel
34. Rear front side member
35. Rear floor side reinforcement
36. Rear floor side extension
37. Rear floor side support
38. Rear floor front side support
39. Side sill inner rear extension
40. Rear shock absorber outer side mounting bracket
41. Rear bumper mounting bracket
42. Rear floor front cross member
43. Rear floor center cross member
44. Back panel
45. Rear transverse member
46. Front pillar inner lower panel
47. Cowl inner lower panel
48. Plenum chamber guide bracket
49. Cowl inner lower center reinforcement
50. Cowl front outer panel

51. Cowl top outer panel
52. Cowl side panel
53. Cowl cross bar
54. Steering column mounting plate
55. Cowl cross bar mounting bracket
56. Fender panel
57. Roof panel
58. Roof center rail
59. Roof rear rail
60. Roof front rail
61. Front side outer panel
62. Rear side outer panel
63. Front pillar outer reinforcement
64. Side sill outer reinforcement
65. Fuel filler housing
66. Quarter outer rear lower extension
67. Rear combination lamp housing panel
68. Rear seat belt upper mounting bracket
69. Quarter outer rear upper extension
70. Quarter outer rear center extension
71. Front inner upper pillar
72. Center inner pillar
73. Center pillar outer reinforcement
74. Front seat belt upper mounting bracket
75. Roof side inner rail
76. Quarter inner panel
77. Wheel house inner panel
78. Quarter inner rear panel
79. Quarter inner rear lower extension
80. Wheel house inner front extension
81. Quarter pillar reinforcement
82. Hood outer panel
83. Hood inner panel
84. Tail gate outer panel
85. Tail gate inner panel
86. Front door outer panel
87. Front door inner panel
88. Front door hinge face reinfrocement
89. Front door upper member
90. Front door beam
91. Front door frame
92. Rear door outer panel
93. Rear door inner panel
94. Rear door hinge face reinforcement
95. Rear door upper member
96. Rear door beam
97. Rear door frame

14

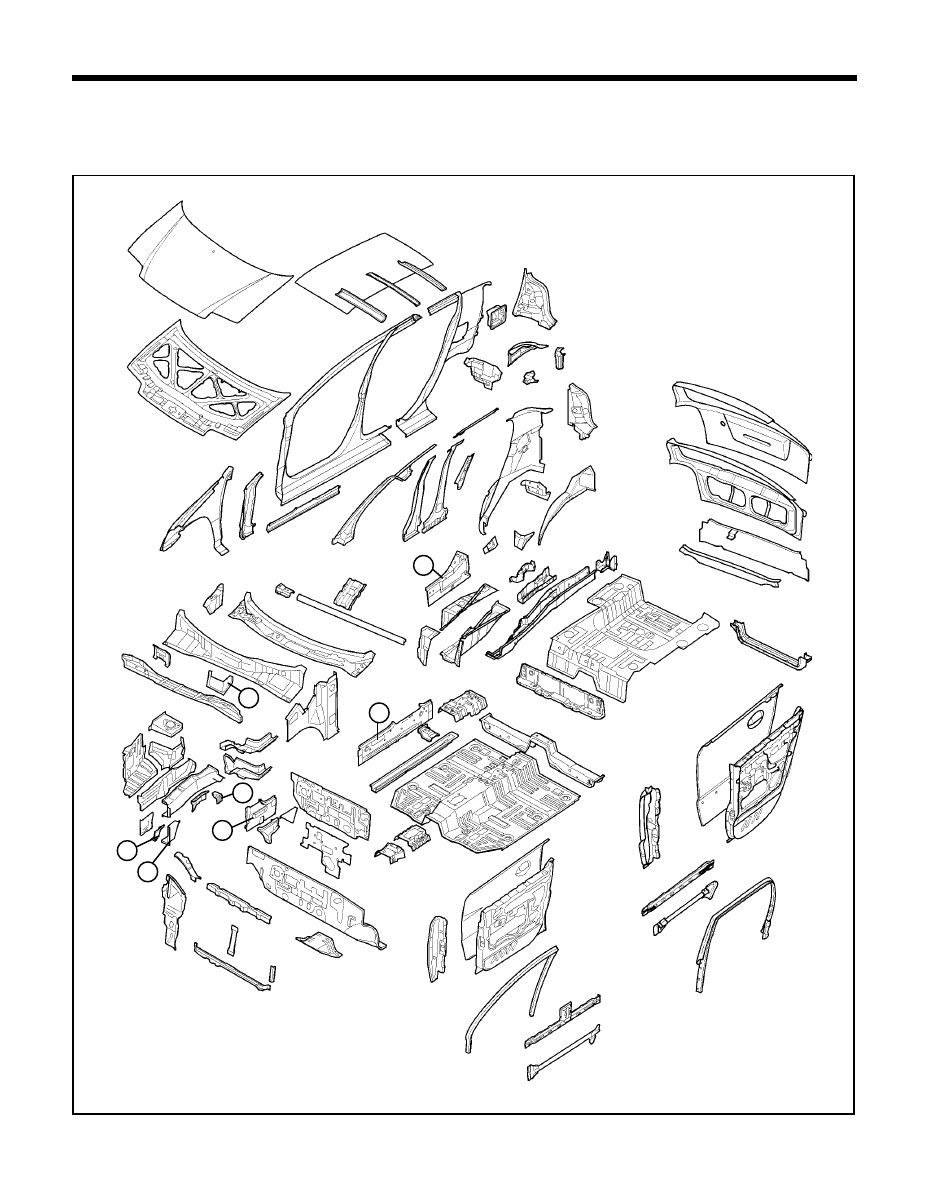

BODY CONSTRUCTION - Zinc-galvanized steel panels (For domestic)

ZINC-GALVANIZED STEEL PANELS

Because galvanized steel panel has excellent resistance, it is used in areas which have a high possibility of painting
deficiency below.

CON-0050

1

3

4

2

7

6

5
