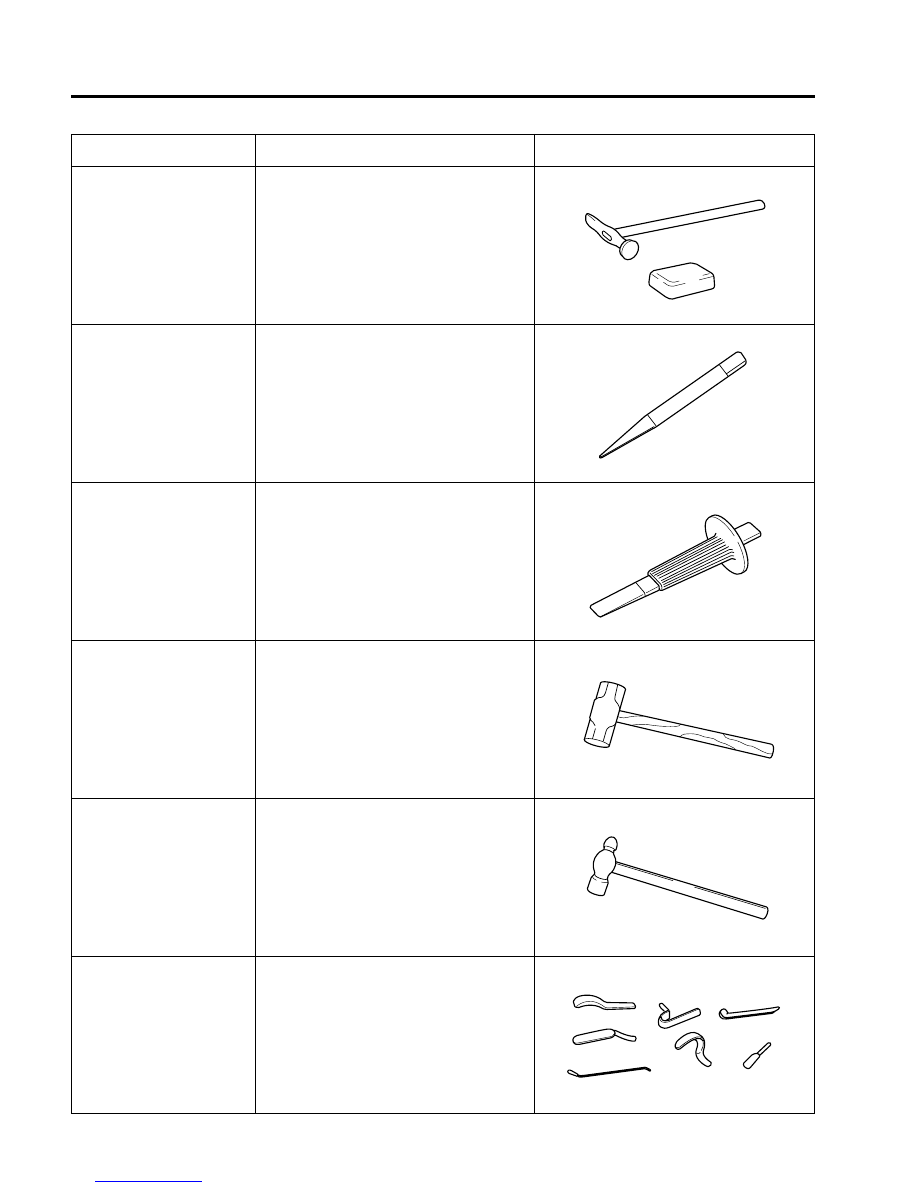

BT-8

BODY MODIFICATION TOOLS

Body hammer and dolly

Center punch

Plane chisel

Weight hammer

Bowl pin hammer

Spoon

-

Cut and disassemble a panel

Used when greater force is required

Used when smaller force is required

HANDHELD TOOLS

Name

Used for

Figure

Punch a hole in the middle of a spot

welding area

A3EB3532

A3EB3533

A3EB3534

A3EB3535

A3EB3536

A3EB3537

Used for an area where not reached by

hand

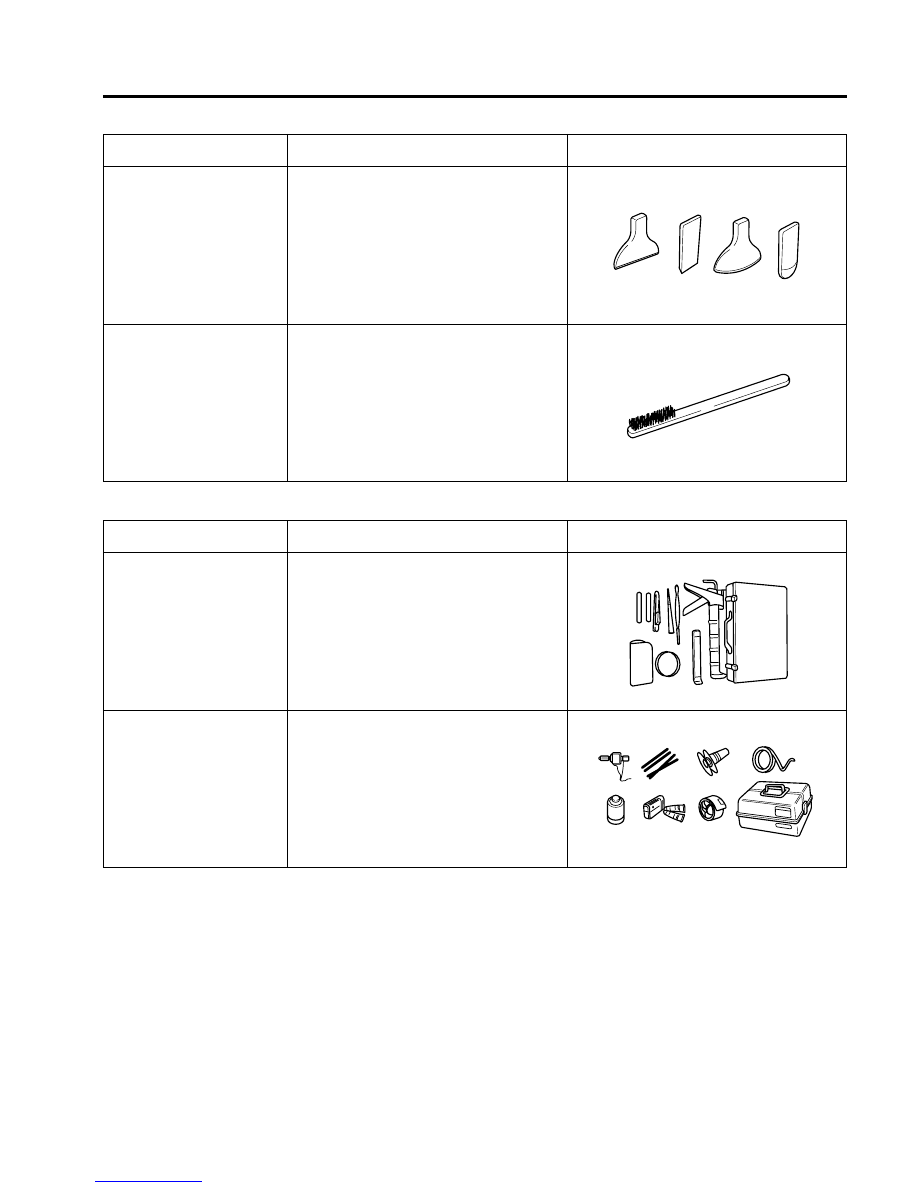

BODY MODIFICATION TOOLS

BT-9

Body chisel

Wire brush

Name

Used for

Figure

A3EB3538

A3EB3539

Remove paints, rust, slag on welded

area which are hard to recognize

Window tool set

Repair window collar

Repair plastic parts

Name

Used for

Figure

A3EB3540

A3EB3541

Bend rough body line damaged or sheet

metal etc.

REPAIR TOOLS  SET

Repair tool set for

plastics

Plastic Parts

PP

POLYPROPYLENE(PP) BUMPER
REPAIRABILITY

............................................. PP - 2

BUMPER  REPAIR  PROCEDURE ................... PP - 3
REPAIR METHOD FOR PP BUMPER ............. PP - 4

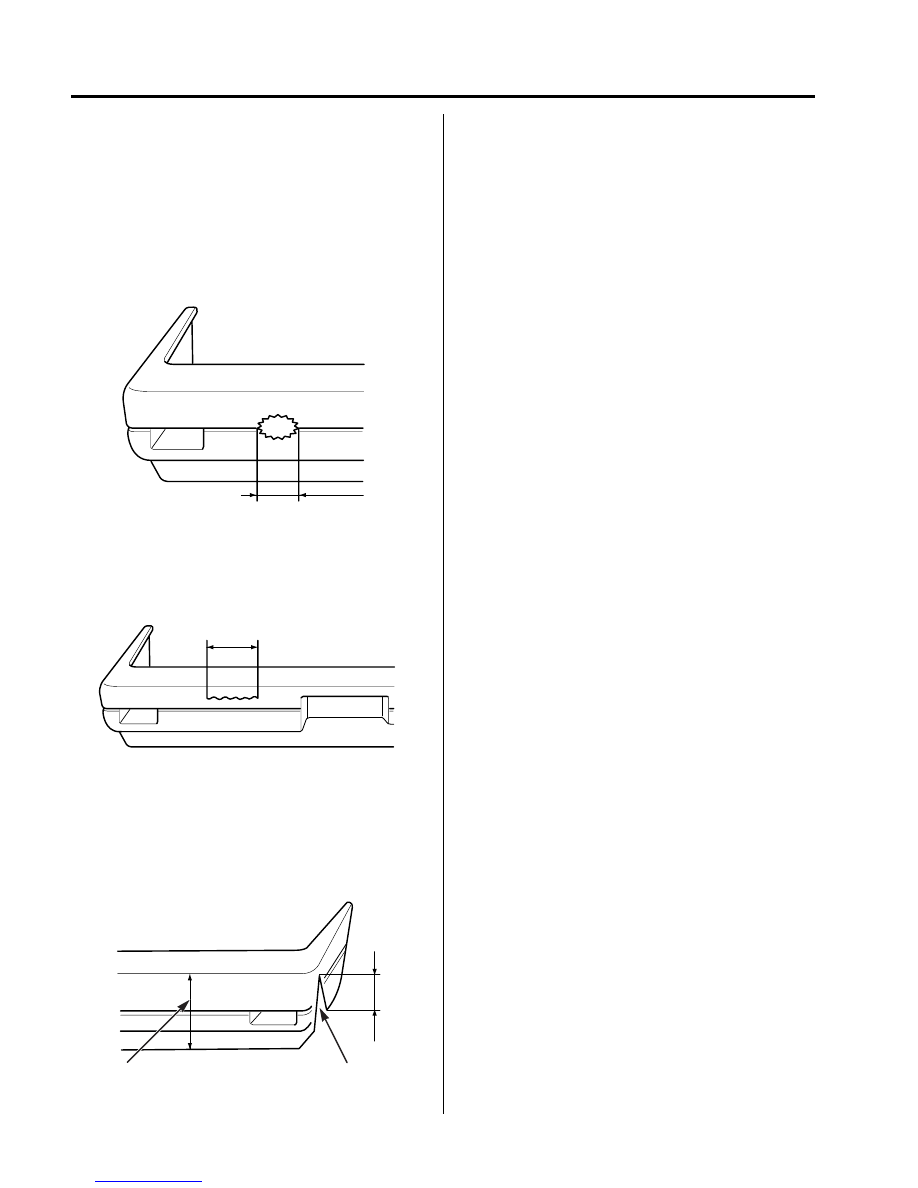

PP-2

PLASTIC PARTS

POLYPROPYLENE(PP) BUMPER

REPAIRABILITY

The three types of damaged bumpers shown below can be
repaired. Because of cost and quality considerations,
bumpers with more damage may be repaired, but replacing
the bumper is encouraged.

1.

If a hole on a bumper is less than 2 in.(50 mm).

2.

If a crack on a bumper is less than 100 mm(4 in).

3.

If a crack on bumper sectionis [A] is less than 100
mm (4 in) (less than half of the bumper height).

A3EB3601

A3EB3602

Bumper height

Crack on section [A]

A3EB3603
