CP-2

CORROSION PROTECTION

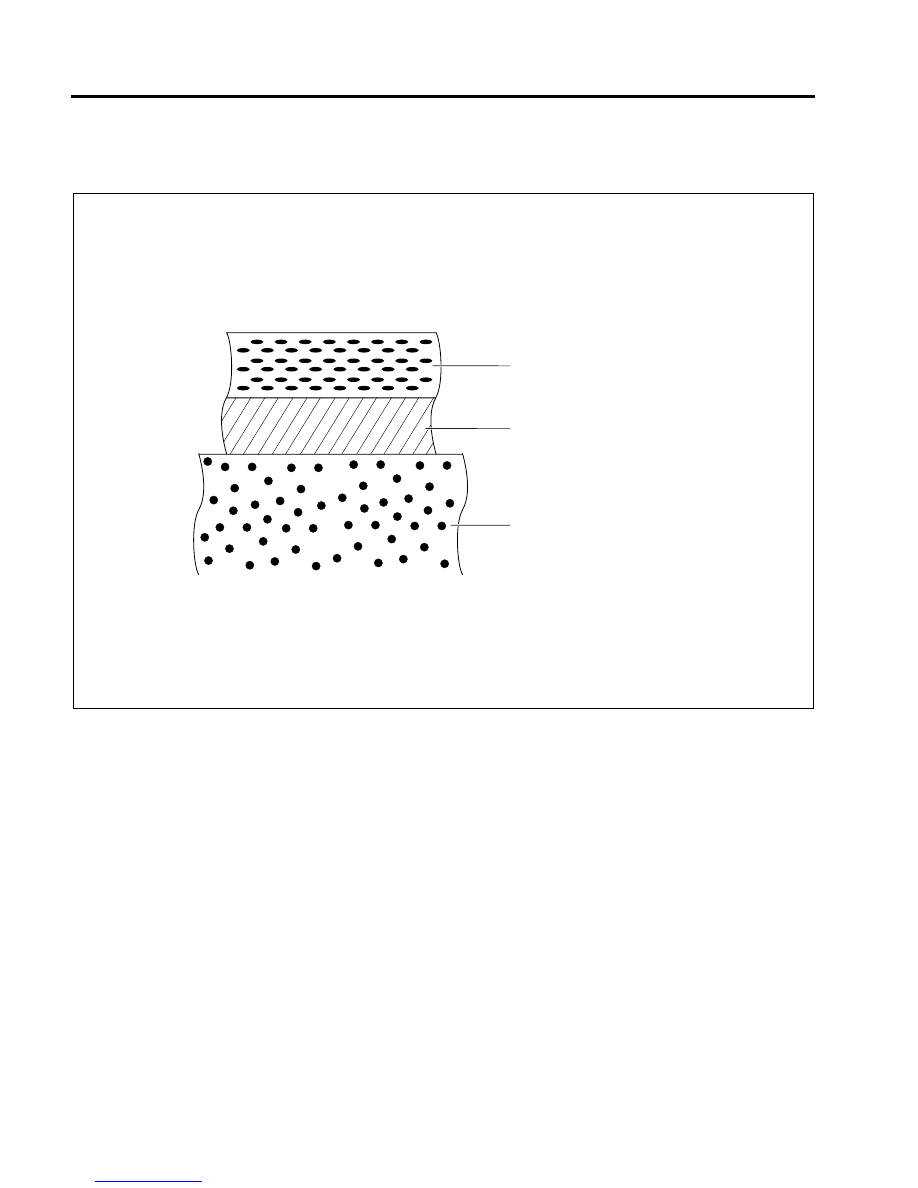

ZINC-PHOSPHATE COAT & CATIONIC ELECTRODEPOSITION PRIMER

In order to improve the adhesion of the paint coat on the steel panel, and also to improve the corrosion resistance, the entire
body is coated with a film of Zinc-phosphate and a cationic electrodeposition primer.

BMCCP6020

Cationic electrodeposition primer

Zinc-phosphate film

Body steel panel

CORROSION PROTECTION

CP-3

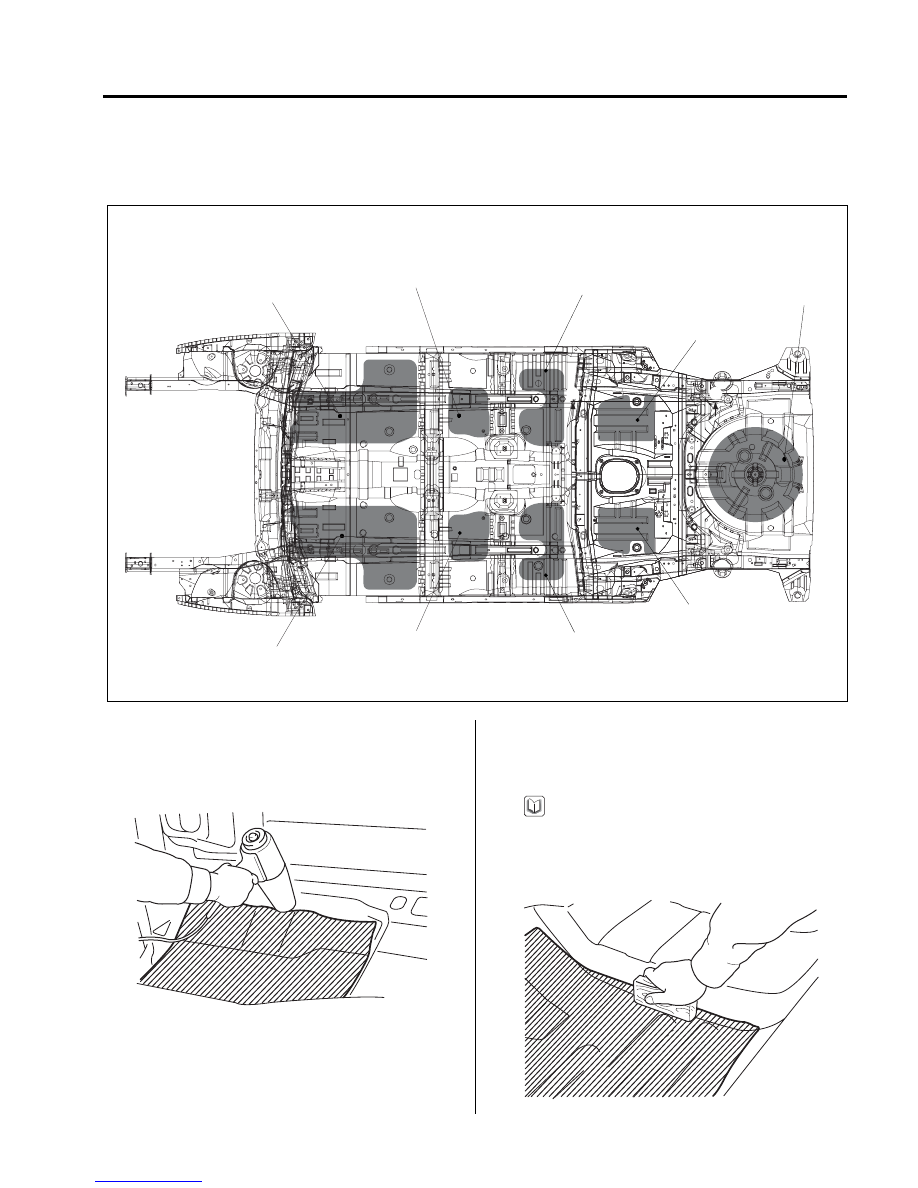

1.

Heat the "antivibration pad" with a blow drier to soften
it.

2.

Align the antivibration pad layer in the position where
it is to be installed, and then press it down with a roller
or a block of wood so that it adheres well.

NOTE

An infrared lamp can also be used to heat both the
antivibration pad layer and the body panels(be sure to
wear gloves).

BMCCP6041

BMCCP6042

ATTACHMENT OF ANTIVIBRATION PADS

Antivibration pads are attached to the upper surface of the floor and at the interior side of the dash panel in order to absorb
vibrations and shut out exhaust gas heat. If these antivibration pads are peeled off in the course of replacement or repair of
a welded panel, cut and attach replacement material (in the shape shown in the figure).

BFDCP6201

F

F

84123-1H000

84127-1H000

84125-2L000

84181-1H000

84171-1H000

84115-2L000

84117-1H000

84113-1H000

84193-2L000

CP-4

CORROSION PROTECTION

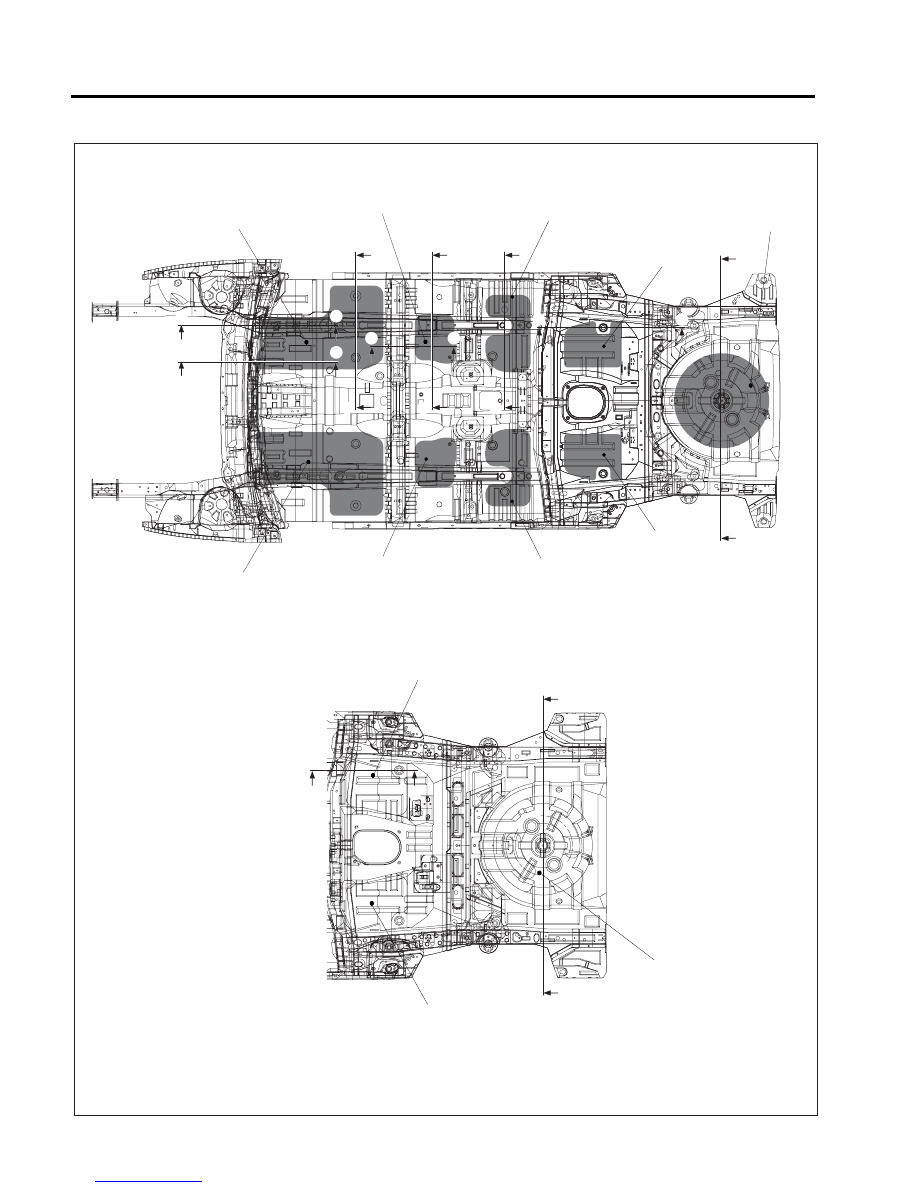

ANTIVIBRATION PADS-LOCATION & SECTION

F

F

H

H

BEDCP6202

[ 5 Door ]

[Wagon ]

G

G

C

C

D

D

E

E

H

H

A

A

B

B

I

I

84123-1H000

84127-1H000

84125-2L000

84181-1H000

84171-1H000

84115-2L000

84181-2L200

84171-2L200

84193-2L000

84117-1H000

84113-1H000

84193-2L000

CORROSION PROTECTION

CP-5

BFDCP6207

BFDCP6205

BFDCP6206

BFDCP6204

BFDCP6203

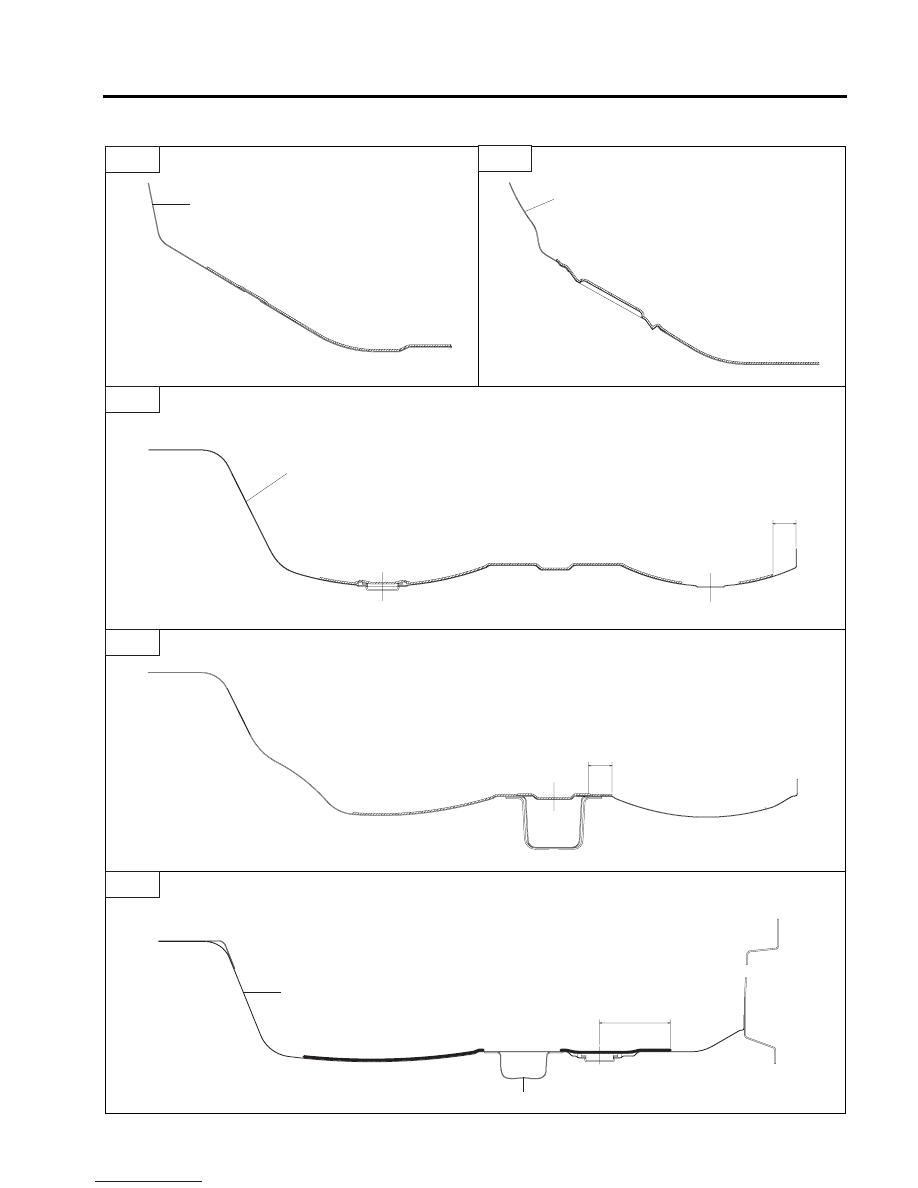

B - B

C - C

A - A

D - D

E - E

Dash panel

Dash panel

Center floor panel

Center floor side member

Center floor panel

24mm

25mm

82mm
