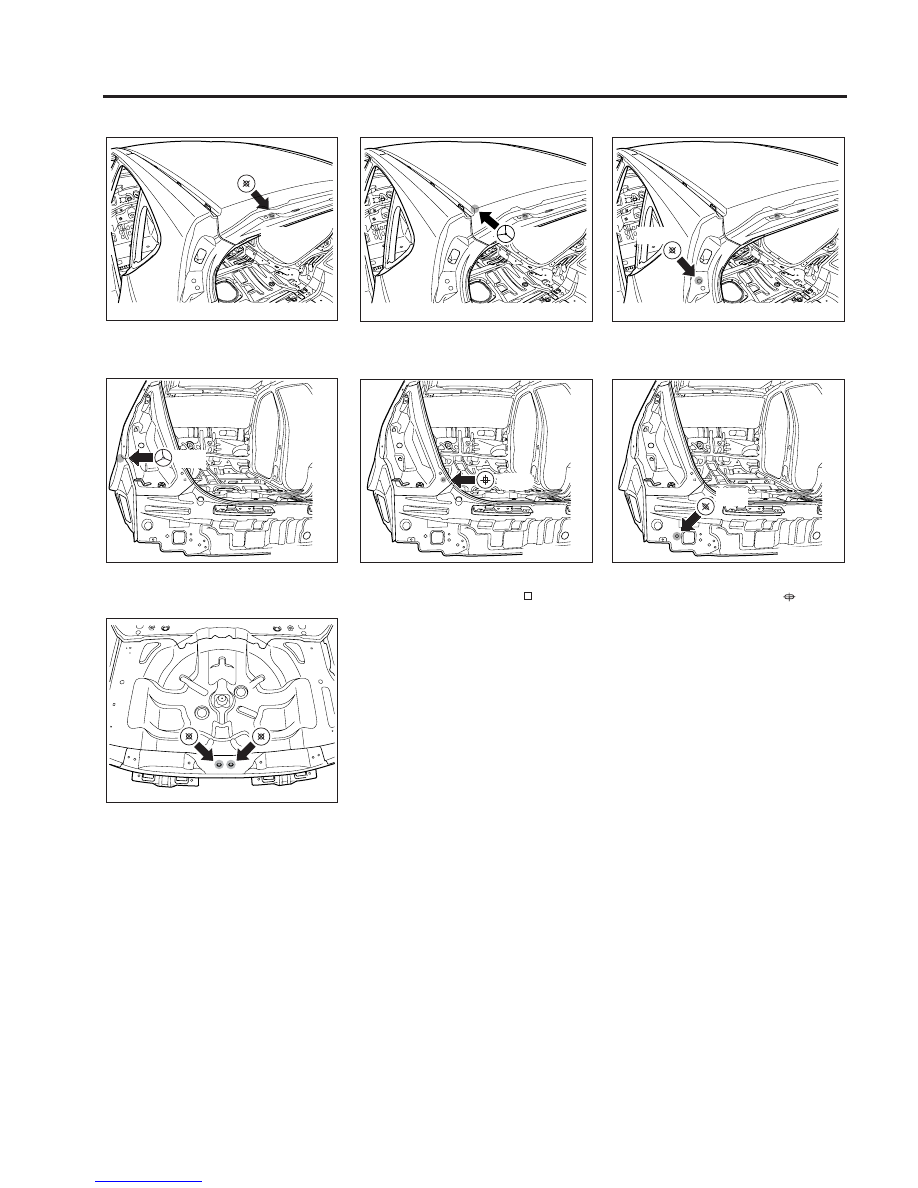

BODY DIMENSIONS

BD-13

Tail gate hinge mounting hole
                                                  (ø12)

Side outer rear corner

 Tail gate striker mounting hole
                                                  (ø11)

Roof rear corner

Rear bumper mounting hole
                                        (   7.5X7.5)

Gas lifter mounting passage hole
                                                  (ø11)

Rear bumper mounting hole
                                          (    18X20)

BFDBD6134

BFDBD6134B

BFDBD6134A

BFDBD6405

A,A'

B,B'

C,C'

BFDBD6135

BFDBD6135A

BFDBD6135B

D,D'

E,E'

F,F'

G'

G

BD-14

BODY DIMENSIONS

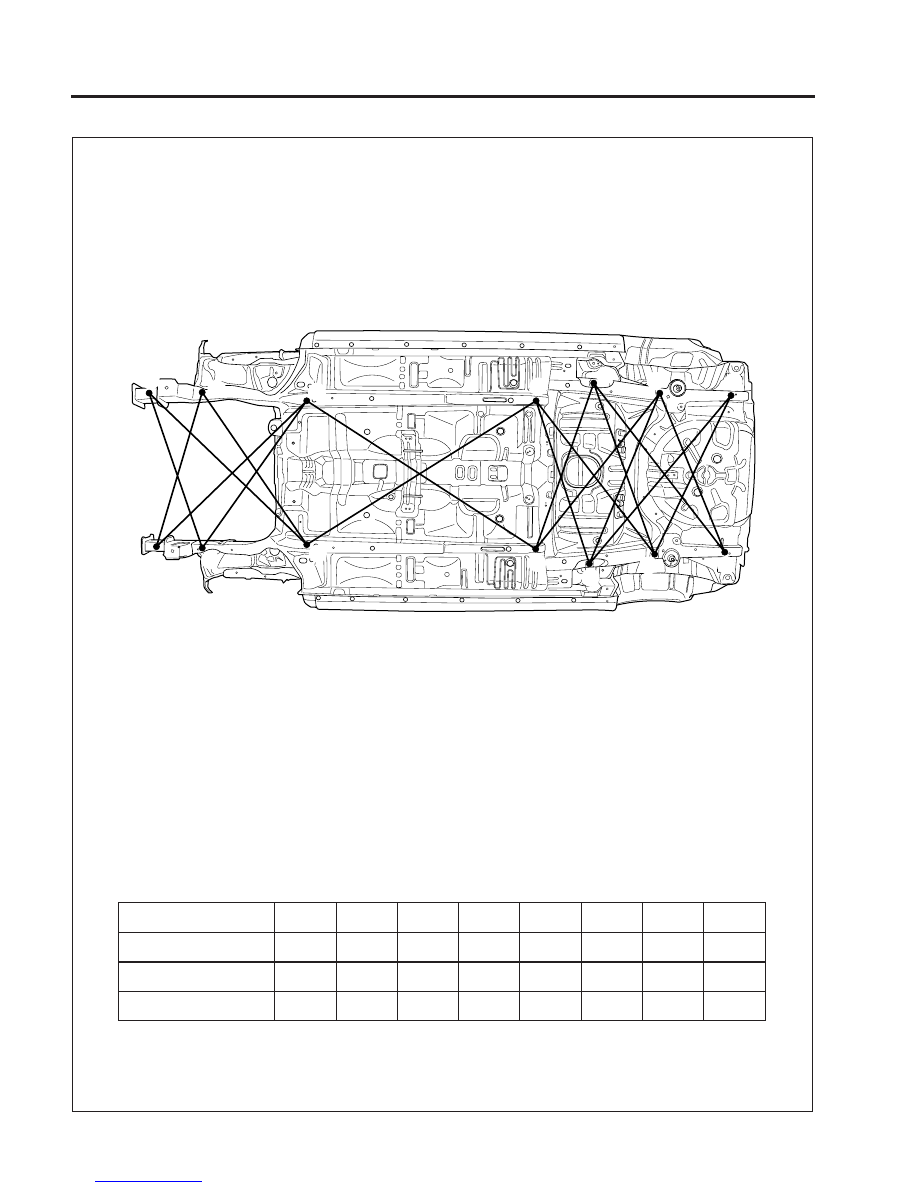

UNDER BODY (PROJECTED DIMENSIONS)

*  These dimensions indicated in this figure are projected dimensions.

Point symbol

Length(mm)

Point symbol

Length(mm)

Point symbol

Length(mm)

A-A'

I-I'

O-J

B-B'

J-J'

A-C

C-C'

O-A

C-E

D-D'

O-C

E-F

E-E'

O-E

F-G

F-F'

O-F

G-H

G-G'

O-G

H-J

H-H'

O-H

1004

1061

178

1000

998

295

1000

174

763

630

184

1312

832

-73

363

848

-81

420

1100

98

489

993

131

BFDBD6201A

A

C

E

F

H

G

J

0

I

A

B

C

D

E

F

H

G

J

I'

A'

B'

C'

D'

E'

F'

H'

G'

J'

BODY DIMENSIONS

BD-15

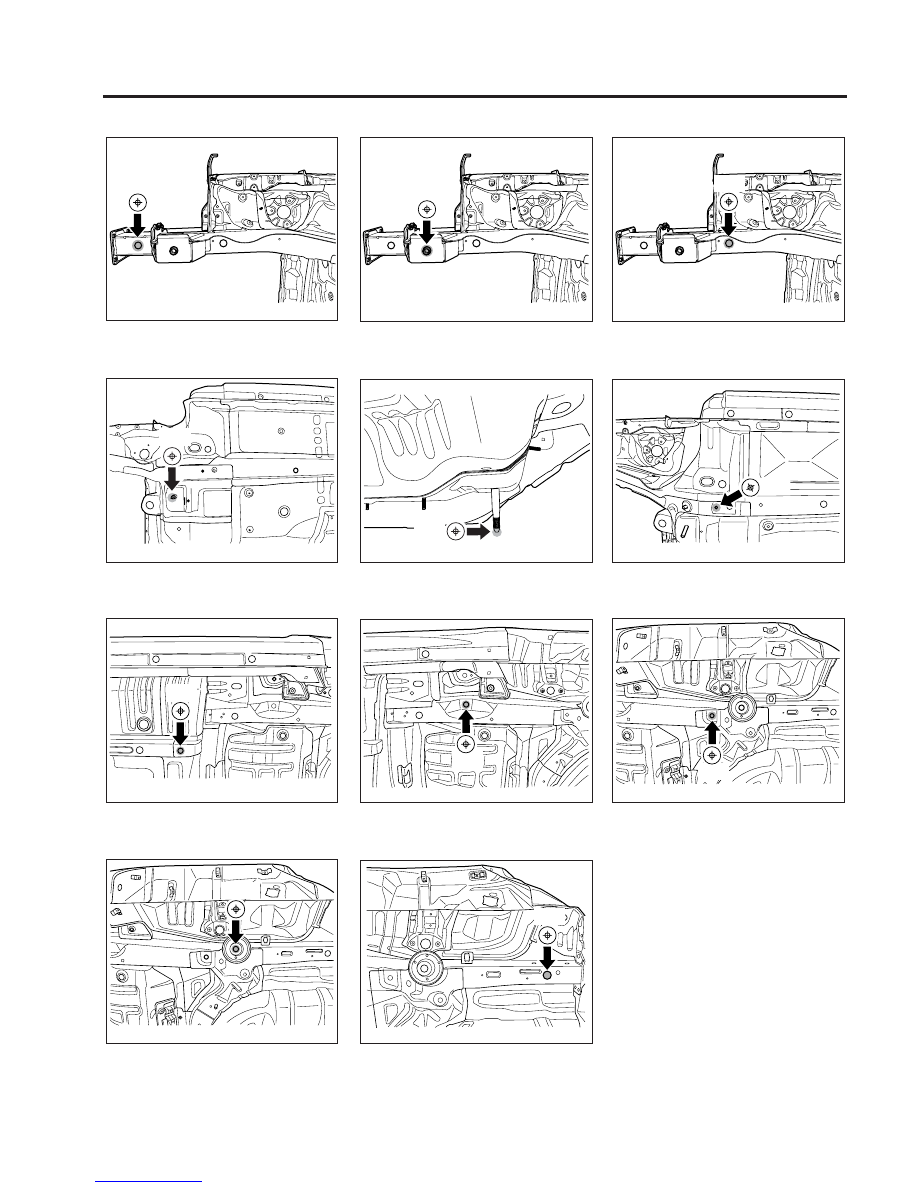

Tooling hole                               (ø25)

Subframe mounting bolt

Tooling and paint drain hole
                                                  (ø20)

Subframe mounting pipe         (ø25)

Subframe mounting bolt

Rear suspension mounting hole
                                                 (ø21)

Tooling hole                               (ø25)

Tooling hole                               (ø11)

Cross member mounting hole
                                                  (ø19)

Spring mounting hole                (ø20)

Tooling hole                                  (ø25)

BFDBD6136

BFDBD6136A

BEDBD6503

BFDBD6137

BFDBD6136B

BEDBD6504

BFDBD6138

BFDBD6140

BFDBD6140A

BFDBD6141

A,A'

B,B'

C,C'

D,D'

D,D'

E,E'

F,F'

G,G'

BFDBD6139

H,H'

I,I'

J,J'

BD-16

BODY DIMENSIONS

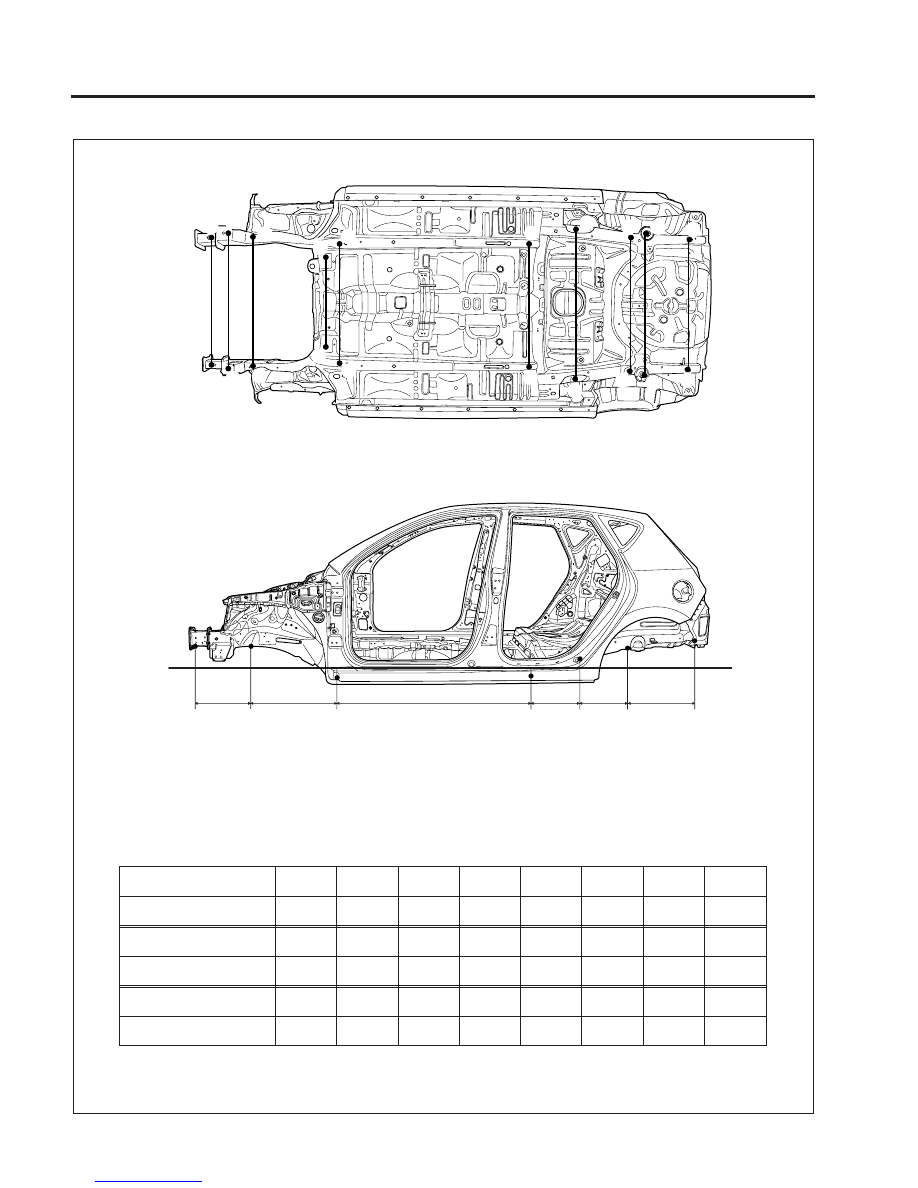

UNDER BODY (ACTUAL-MEASUREMENT DIMENSIONS)

*  These dimensions indicated in this figure are actual-measurement dimensions.

Point symbol

Length(mm)

Point symbol

Length(mm)

A-C

H-J'

A-E'

C-E'

E-F'

F-G'

F-H'

G-H'

G-J'

1045

1110

1422

1219

1558

1055

1227

1128

1390

BFDBD6501A

A

C

E

F

H

G

J

A'

C'

E'

F'

H'

G'

J'
