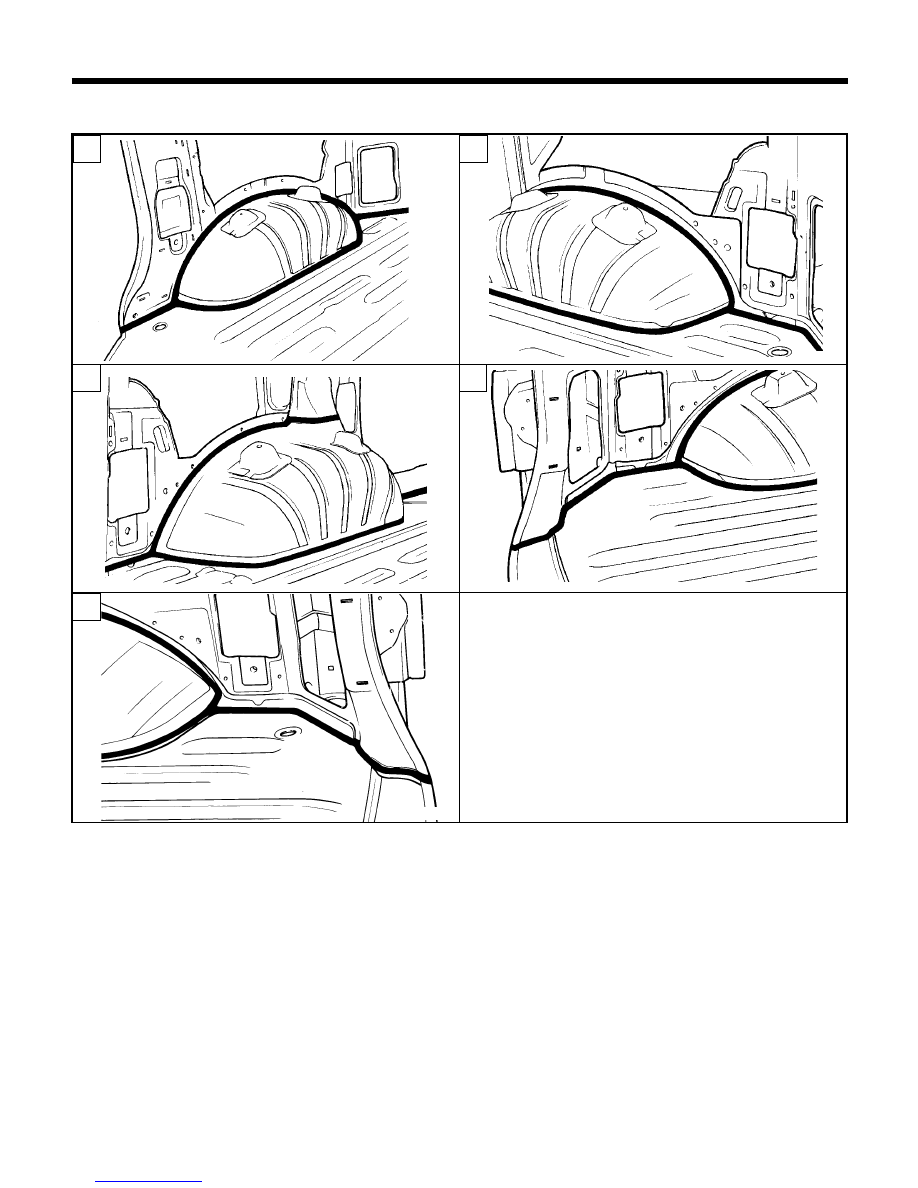

BODY SEALING LOCATIONS - Floor

17

15

16

13

14

SEAC0170

SEAC0140

SEAC0150

SEAC0160

SEAC0180

CORROSION
PROTECTION

132

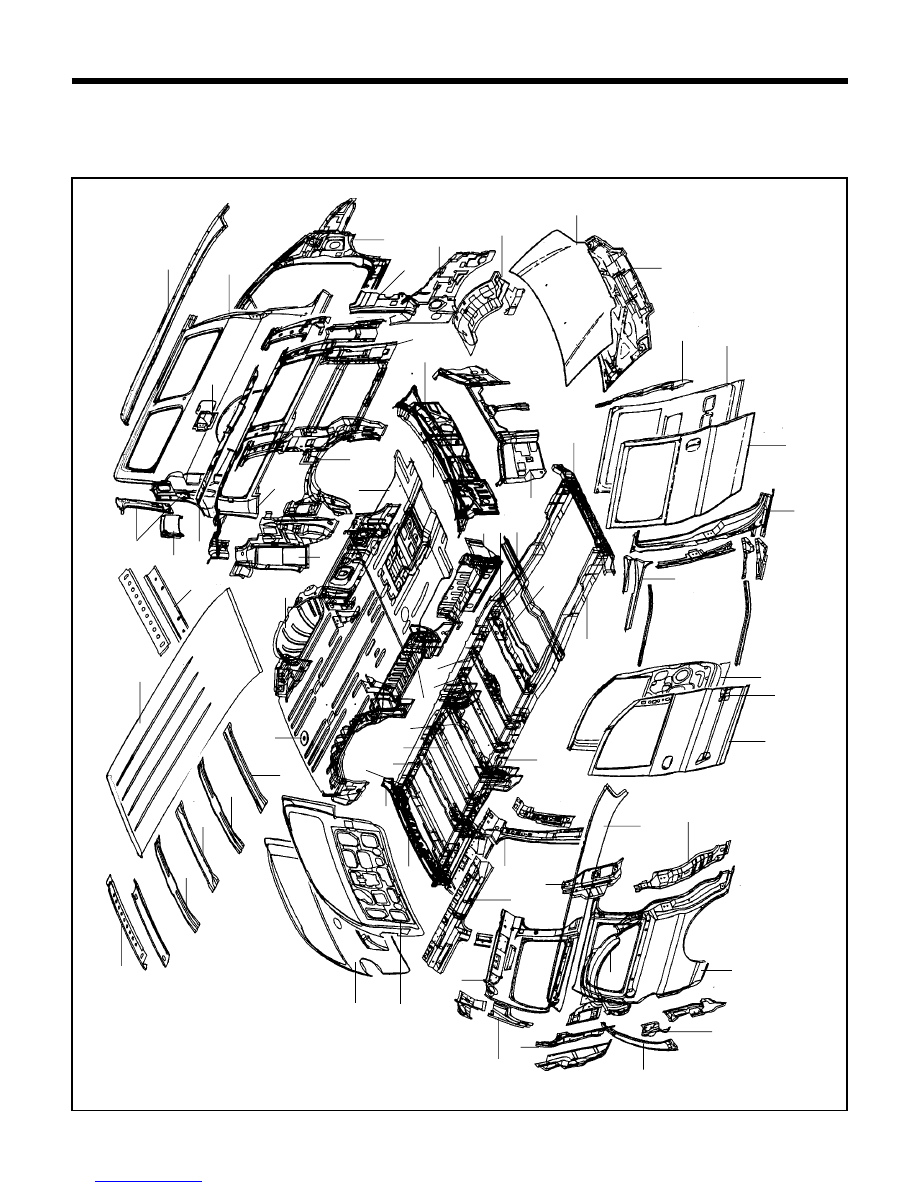

ZINC - GALVANIZED STEEL PANELS

Because galvanized steel panel has excellent resistance, it is used in areas which have a high possibility of painting
deficiency below.

CORROSION PROTECTION - Zinc - Galvanized steel panels

AAAC0050

28

27

26

25

23

29

21

35

24

58

59

62

1

60

41

42

32

36

15

22

33

31

30

52

19

51

14

4

5

17

6

34

2

7

8

18

9

10

11

12

16

54

56

55

57

13

20

46

3

38

43

63

65

64

45

47

44

50

37

40

39

48

49

66

67

53

61

133

CORROSION PROTECTION - Zinc - galvanized steel panel

No.

PART NAME

Front end crossmember. (**)

Front sidemember. (**)

Rear side member.

Crossmember No.1.

Crossmember No.2.

Crossmember No.3.

Crossmember No.4.

Crossmember No.5.

Crossmember No.6.

Crossmember No.7.

Crossmember No.8.

Crossmember No.9-1.

Rear end crossmember. (**)

Radiator support panel. (**)

Center floor panel. (**)

Rear floor panel. (**)

Front step panel. (**)

Rear step panel. (**)

Rear wheel house panel. (**)

Quarter inner lower panel

Dash panel. (**)

Cowl panel. (**)

Front apron inner panel.

Front wheel house panel. (**)

Front apron outer panel.

Front pillar panel. (**)

Quarter outer panel (LH). (**)

Roof side outer panel (LH). (**)

Fuel filler neck bracket.

Quarter outer rear extension. (**)

Gusset panel (LH). (**)

Quarter inner panel (LH). (**)

Quarter inner upper panel (LH).

"D" inner pillar (LH).

Quarter inner lower panel (LH).

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

No.

PART NAME

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

Wheel house outer rear panel (LH). (**)

Quarter outer panel (RH). (**)

Roof side outer panel (RH). (**)

Quarter outer rear extension (RH). (**)

Gusset panel (RH). (**)

"B" outer pillar (RH). (**)

Rear door side outer rail. (**)

"C" pillar lower reinforcement (RH).

Quarter inner panel (RH). (**)

Roof side inner reinforcement (RH).

"B" inner pillar (RH).

"C" inner pillar (RH).

"D" inner pillar (RH).

"D" pillar upper reinforcement.

Wheel house outer rear panel (RH). (**)

Roof panel.

Roof front rail.

Roof rear rail.

Roof bow (A).

Roof bow (B).

Roof bow (C).

Roof bow (D).

Hood outer panel. (**)

Hood inner panel. (**)

Rear door outer panel. (**)

Rear door inner panel. (**)

Front door hinge face reinforcement. (**)

Front door outer panel. (**)

Front door inner panel. (**)

Front door reinforcement beam. (**)

Tail gate outer panel. (**)

Tail gate inner panel. (**)

(**)  ZINC - GALVANIZED STEEL PANEL
