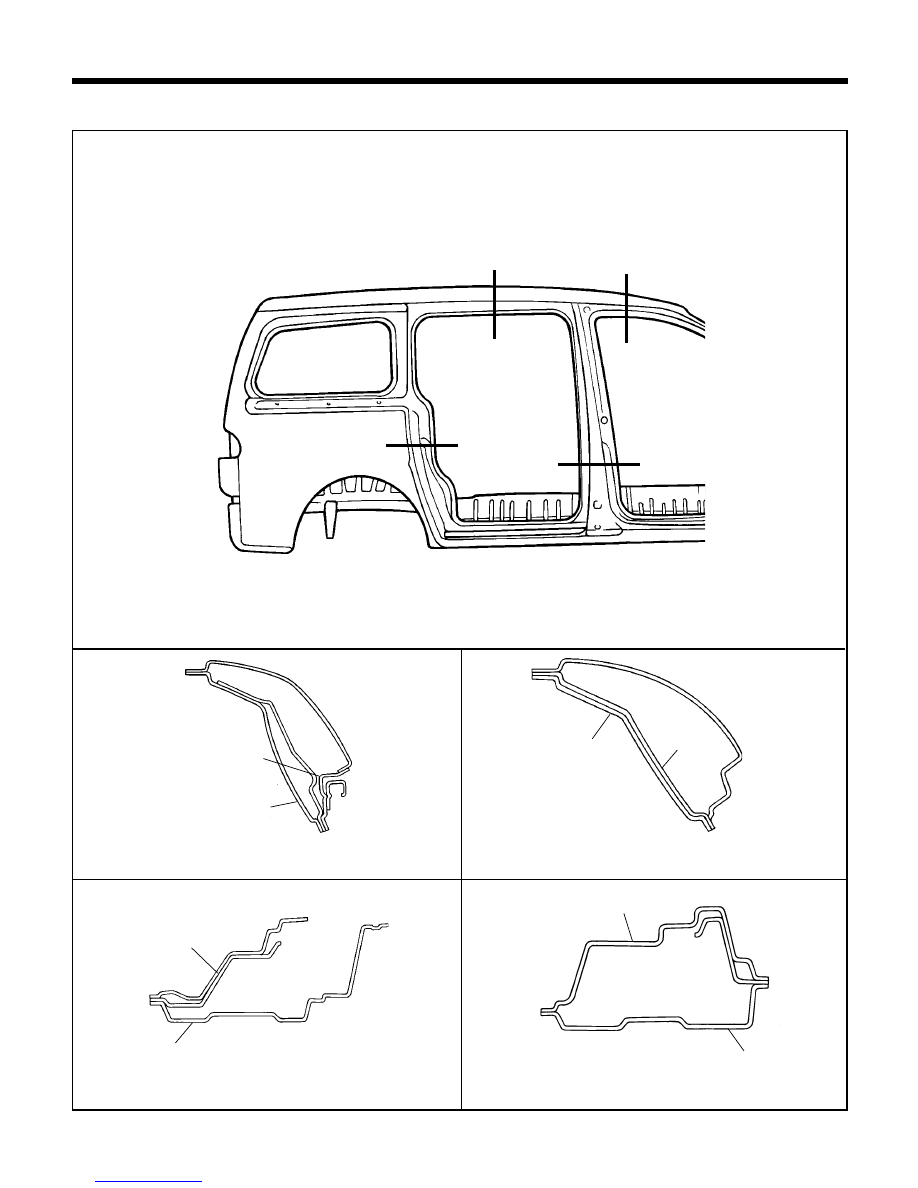

BODY CONSTRUCTION - Side body

REAR END STRUCTURE (LONG BODY)

CRAS1400

1

2

3

4

5

6

7

8

9

10

12

13

14

15

16

17

18

19

20

21

22

23

24

25

11

26

27

31

BODY CONSTRUCTION - Side body

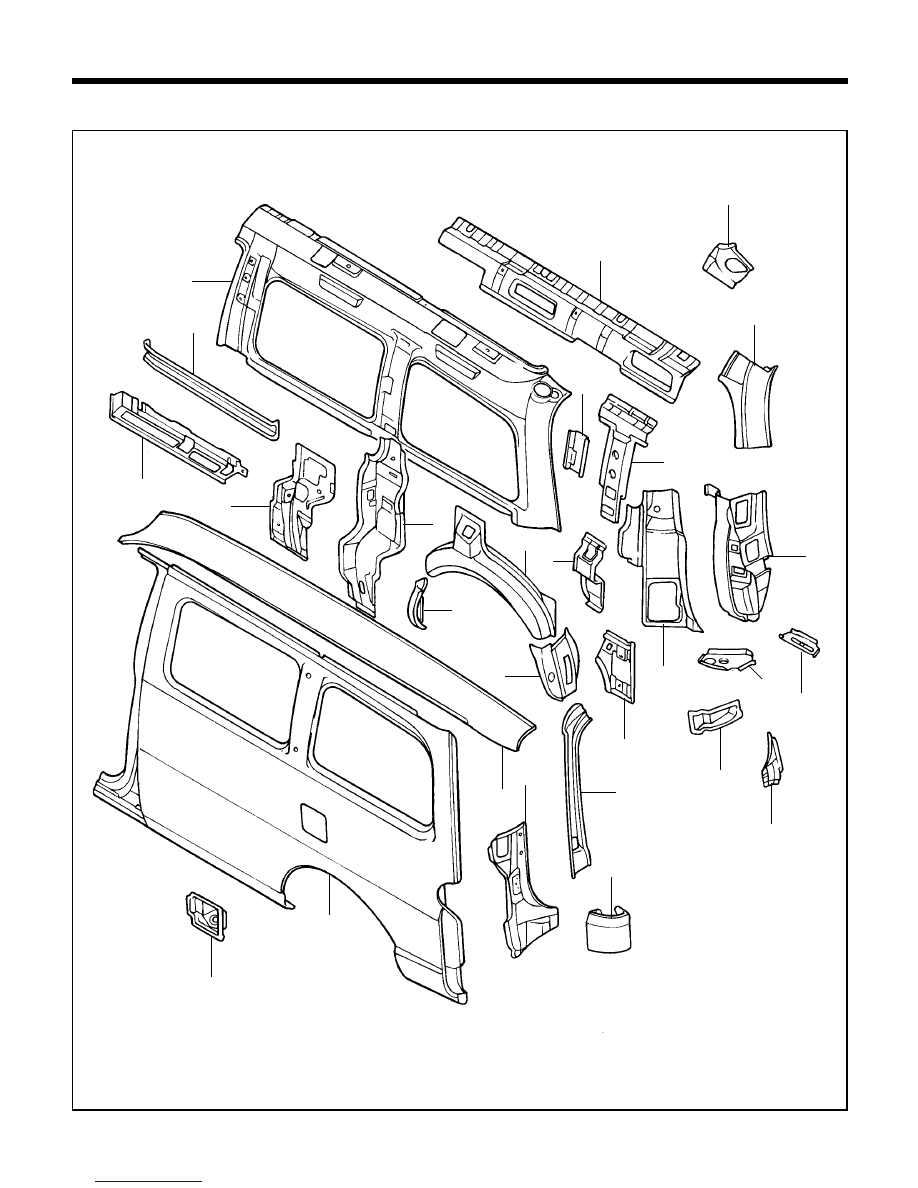

REAR END STRUCTURE

No.

PART NAME

Quarter outer panel.

Roof side outer panel.

Fuel filler neck braket.

Quarter outer rear upper extension.

Quarter outer rear lower extension.

Rear gusset panel.

Quarter inner panel.

Roof side inner reinforcement.

"C" pillar upper reinforcement.

Seat belt "C" pillar reinforcement.

"C" inner panel.

Center sidemember.

Lower sidemember.

Wheel house outer panel rear.

Wheel house outer lower panel rear.

Wheel house outer lower front.

Seat belt "D" bracket.

"D" inner panel.

"D" pillar lower reinforcement.

"D" pillar lower extension.

"D" pillar support.

Jack bracket.

"D" pillar cover.

"D" pillar upper reinforcement.

"D" pillar upper extension.

"C" pillar lower extension.

Seat belt mounting reinforcement.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

32

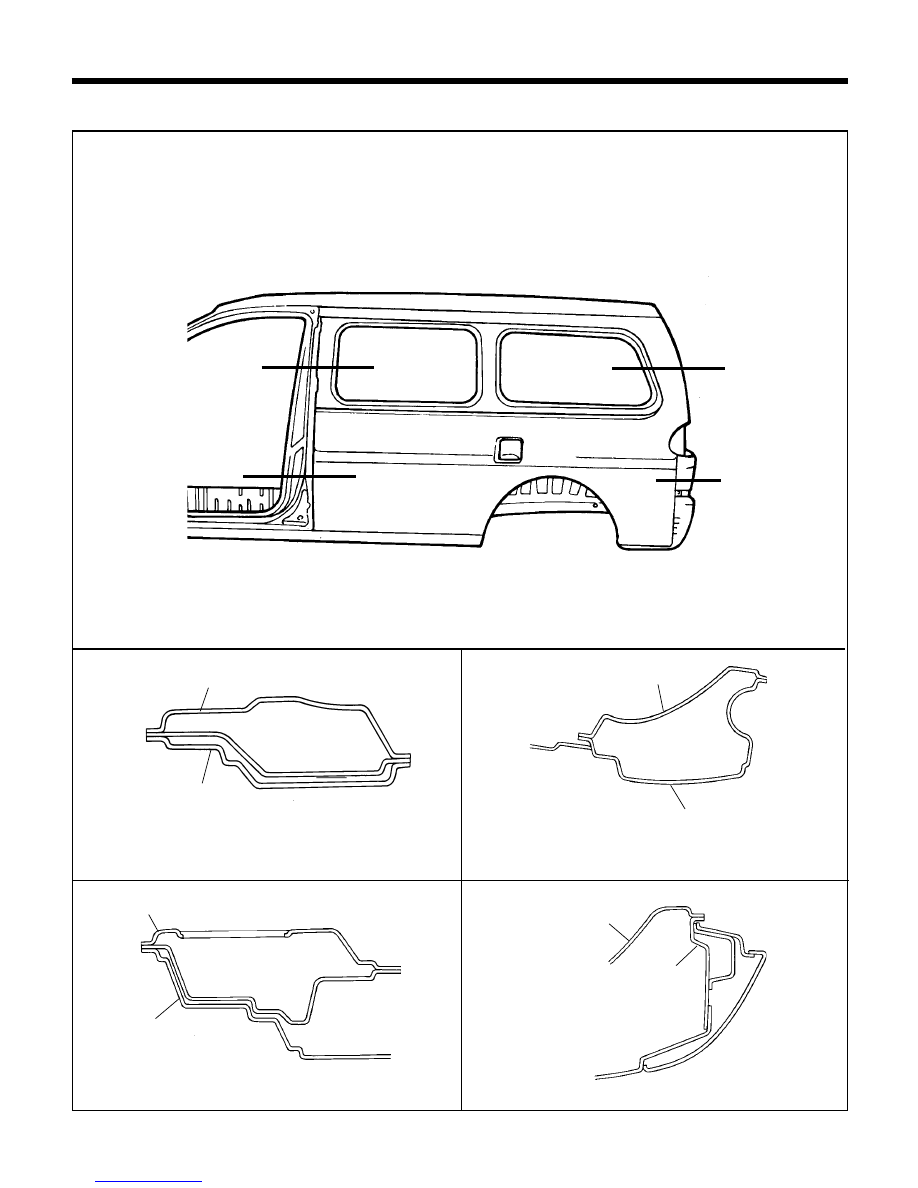

BODY CONSTRUCTION - Side body

REAR END STRUCTURE (LH)

(Cross - Sectional Views)

SECTION C - C'

SECTION D - D'

CRAS1130

CRAS1140

Quarter inner panel

Quarter outer panel

Quarter inner panel

Quarter outer panel

SECTION A - A'

CRAS1100

CRAS1120

Quarter inner panel

Quarter outer panel

Front inner complete pillar

Quarter outer panel

CRAS1110

SECTION B - B'

A

A'

Ð

Ð

Ð

Ð

Ð

Ð

Ð

Ð

Ð

Ð

B

B'

Ð

Ð

Ð

Ð

Ð

Ð

Ð

Ð

Ð

Ð

C

C'

Ð

Ð

Ð

Ð

Ð

Ð

Ð

Ð

Ð

Ð

D

Ð

Ð

Ð

Ð

Ð

D'

Ð

Ð

Ð

Ð

Ð

33

BODY CONSTRUCTION - Side body
