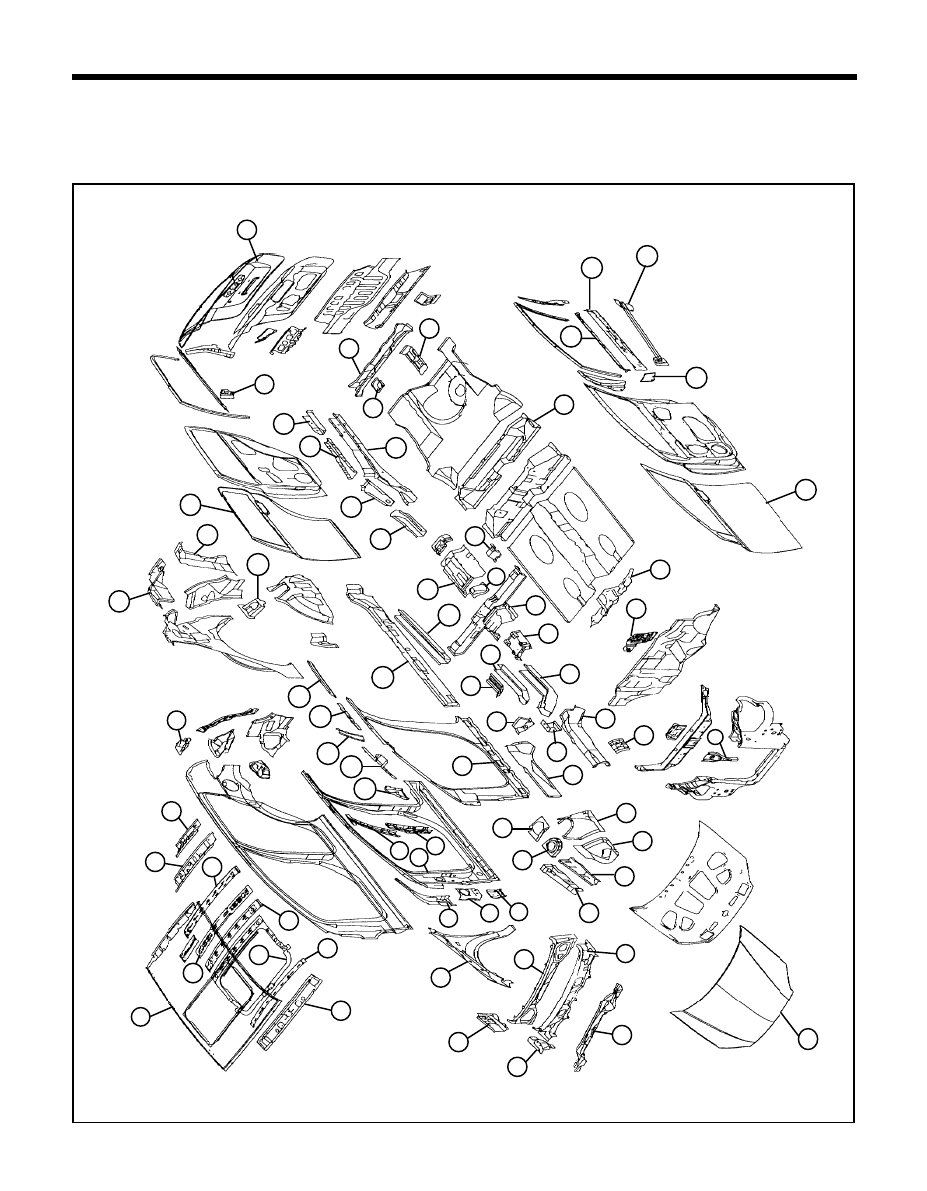

BODY CONSTRUCTION - Zinc-galvanized steel panels

1. Radiator support  upper center panel

2. Radiator support  center reinforcement

3. Dash panel

4. Center floor panel

5. Rear floor extension

6. Rear floor front cross member

7. Rear floor panel

8. Towing hook bracket

9. Rear floor center cross member

10. Rear transverse member

11. Back panel

12. Tail gate inner panel

13. Tail gate outer panel

14. Rear door frame rear reinforcement

15. Rear door inner panel

16. Rear door outer panel

17. Rear floor side member extension

18. Rear floor side member reinforcement

19. Rear floor side member

20. Trailing arm mounting reinforcement

21. Rear floor side front member

22. Parking brake cable mounting bracket

23. Parking brake aperture panel

24. Center floor side member

25. Side sill inner panel

26. Side inner panel

27. Front side rear member

28. Front side rear lower reinforcement

29. Front side rear lower member

30. Front side member rear lower extension

31. Front side outer member

32. Transmission mounting bracket

33. Front side inner member

34. Battery tray leg reinforcement

35. Fender apron inner front panel

36. Fender apron inner panel

37. Cowl under cover extension

38. Front shock absorber cover panel

39. Fender apron upper member

40. Apron upper reinforcement

41. Hood inner panel

42. Hood outer panel

43. Cowl inner lower panel

44. Cowl side outer panel

45. Cowl top outer panel

46. Cowl side upper outer member

47. Cowl inner rear panel

48. Fender panel

49. Front door upper mounting reinforcement

50. Front pillar outer bracket

51. Front door lower mounting bracket

52. Side outer panel

53. Side outer reinforcement

54. Center pillar outer upper reinforcement

55. Center pillar outer lower reinforcement

56. Rear door lower mounting bracket

57. Fuel filler housing

58. Quarter outer rear lower extension

59. Quarter outer rear upper extension

60. Rear combination lamp housing panel

61. Side roof rear lower reinforcement

62. Quarter inner panel

63. Rear spring house cover

64. Wheel house inner front extension

65. Wheel house inner panel

66. Front door outer panel

67. Front door inner panel

68. Front door frame rear reinforcement

16

BODY CONSTRUCTION - High-strength steel panels

HIGH STRENGTH STEEL PANELS

Because High strength steel panel has excellent resistance, it is used in areas which have a high possibility of painting
deficiency below.

TB-0050

67

69

11

10

66

12

13

15

16

17

5

2

3

1

68

22

21

55

54

53

52

51

57

59

58

60

65

64

62

63

49

50

48

45

46

47

44

42

40

43

38

41

39

37

32

33

36

34

35

23

28

29

25

27

24

26

20

30

19

31

14

56

18

61

6

4

72

73

71

70

9

8

7

17

BODY CONSTRUCTION - High-strength steel panels

1. Radiator support  center panel

2. Brake booster reinforcement

3. Dash lower center reinforcement

4. Front seat mounting rear side bracket

5. Rear floor front cross member

6. Towing hook bracket

7. Rear seat rear bracket

8. Rear floor center cross member

9. Tail gate outer panel

10. Rear door reinforcement beam

11. Rear door outer panel

12. Rear floor side member extension

13. Rear floor side member reinforcement

14. Rear floor side member

15. Trailing arm mounting reinforcement

16. Rear floor side front member

17. Parking brake aperture panel

18. Front seat mounting rear inner bracket

19. Front seat cross member

20. Center floor front reinforcement

21. Center floor side member

22. Side sill inner panel

23. Side inner panel

24. Front side rear member

25. Front side rear lower reinforcement

26. Front side rear lower member

27. Front side member rear lower extension

28. Front side outer member

29. Transmission mounting bracket

30. Front side inner member

31. Battery tray leg reinforcement

32. Fender apron inner front panel

33. Fender apron inner panel

34. Cowl under cover extension

35. Front shock absorber cover panel

36. Fender apron upper member

37. Apron upper reinforcement

38. Hood outer panel

39. Cowl inner lower panel

40. Cowl side outer panel

41. Cowl top outer panel

42. Cowl side upper outer member

43. Cowl inner rear panel

44. Fender panel

45. Front door upper mounting reinforcement

46. Front pillar outer bracket

47. Front door lower mounting bracket

48. Side outer reinforcement

49. Center pillar outer upper reinforcement

50. Center pillar outer lower reinforcement

51. Rear door lower mounting bracket

52. Front pillar inner upper reinforcement

53.  Front side belt upper mounting bracket

54. Assist hold mounting bracket

55. Roof side inner rail

56. Tail gate lifter bracket

57. Roof rear upper rail

58. Roof rear lower rail

59. Roof rear center rail

60. Roof center rail

61. Side roof rear lower reinforcement

62. Side roof reinforcement ring

63. Roof center front rail

64. Roof front rail

65. Roof panel

66. Quarter inner upper reinforcement

67. Quarter pillar inner reinforcement

68. Rear spring house cover

69. Front door outer panel

70. Front door hinge lower bracket

71. Front door belt outer rail

72. Front door belt inner rail

73. Front door reinforcement beam

18

BODY CONSTRUCTION - Front body

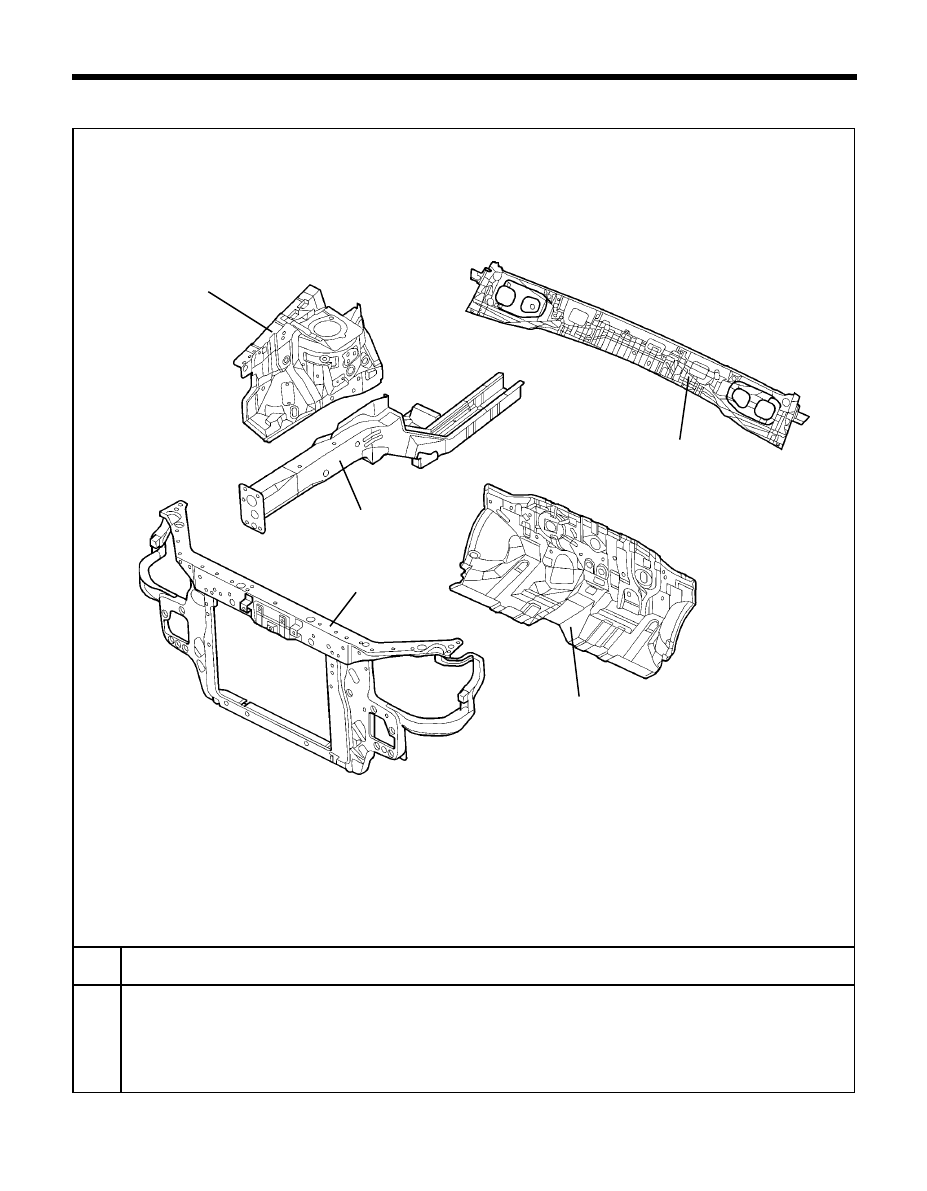

FRONT BODY

TB-60

PART NAME

No.

Radiator support complete member assembly
Fender apron panel assembly

LH/RH

Front side member assembly

LH/RH

Dash panel assembly
Cowl panel assembly

1
2
3
4
5

2

3

4

1

5
