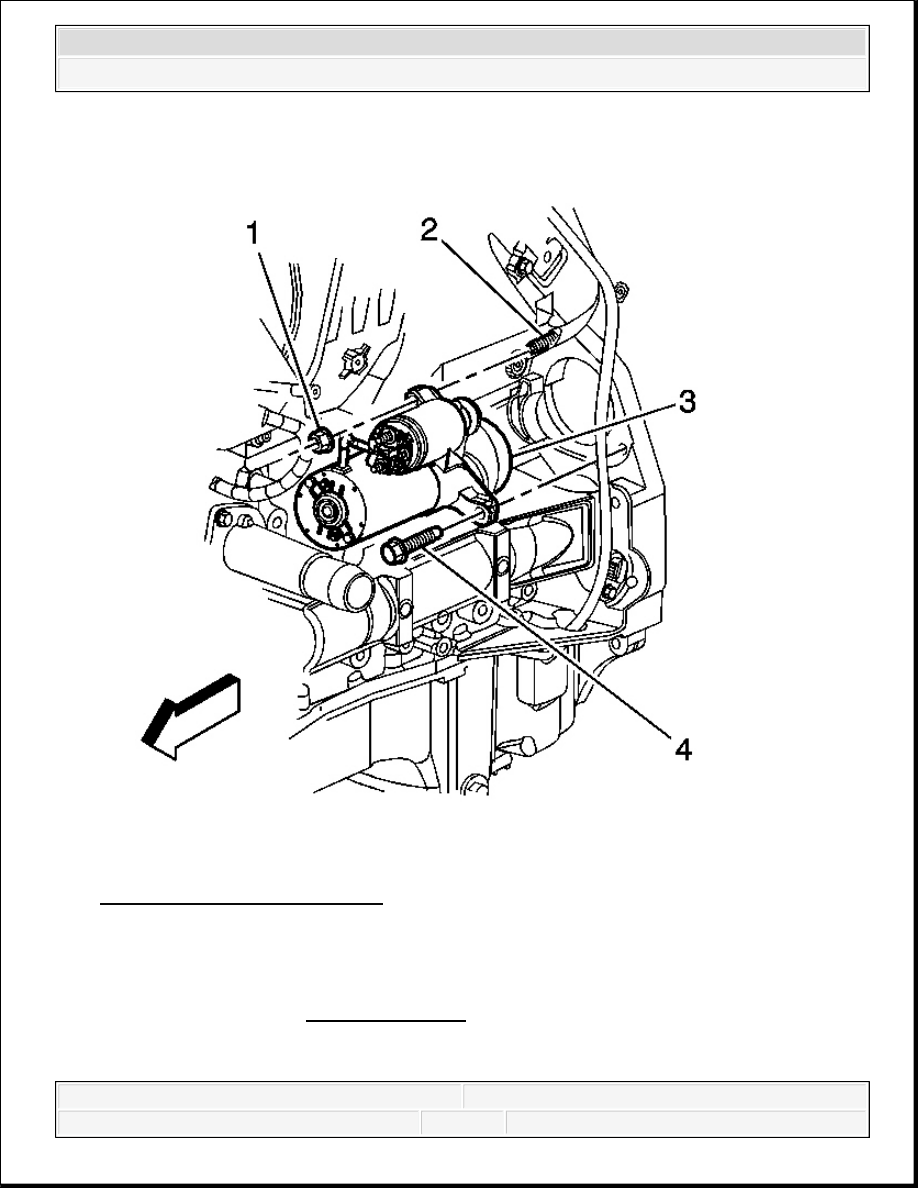

Fig. 47: View Of Starter Motor
Courtesy of GENERAL MOTORS CORP.

1. Position the starter motor (3) over the stud (2).

2. Install the starter motor nut (1) and bolt (4).

NOTE:

Refer to Fastener Notice in Cautions and Notices.

2006 Hummer H3

2006 ENGINE Engine Electrical - H3

Tighten: Tighten the bolt/nut to 50 N.m (37 lb ft).

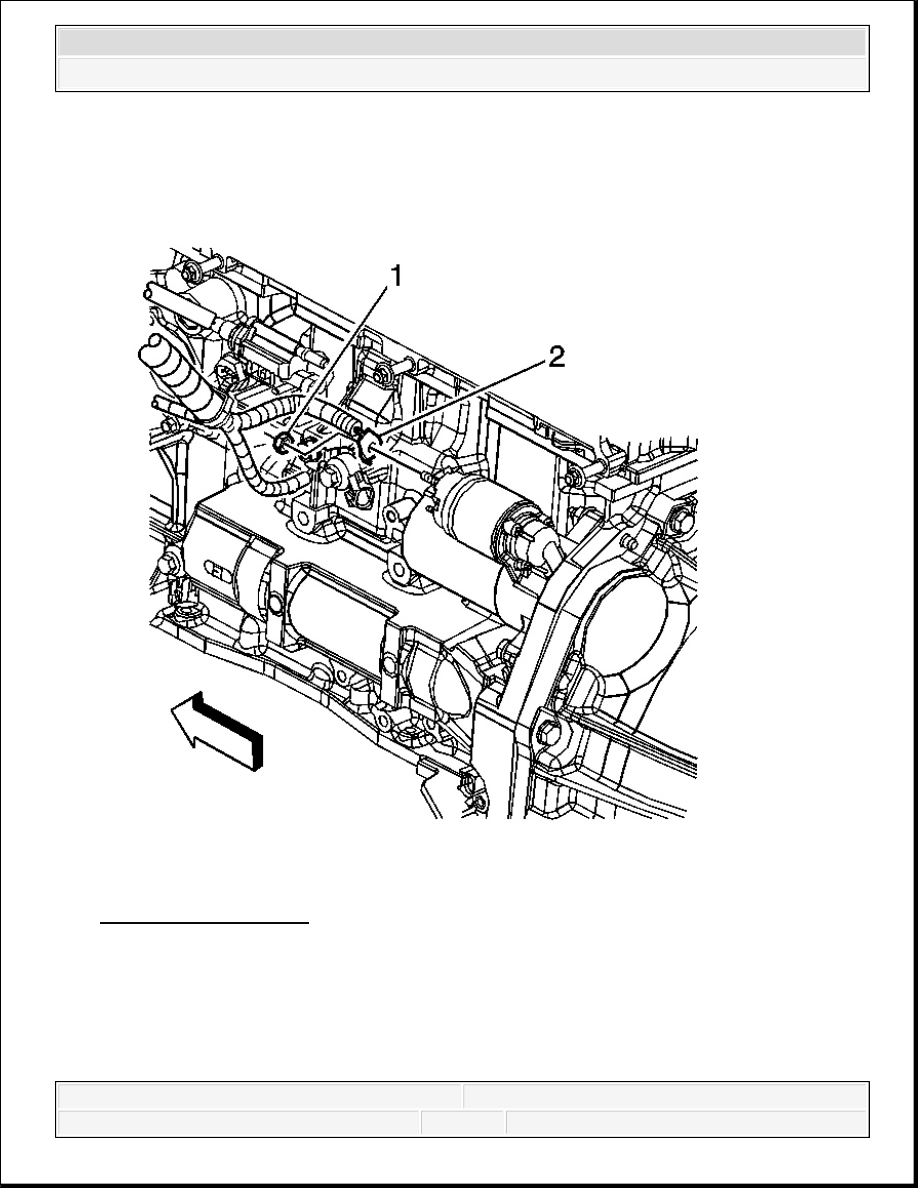

Fig. 48: Starter Wiring
Courtesy of GENERAL MOTORS CORP.

3. Connect the battery positive cable (2) to the starter and install the starter terminal nut (1)

Tighten: Tighten the nut to 9 N.m (80 lb in).

4. Connect the lead to the starter solenoid and install the starter solenoid S terminal nut.

2006 Hummer H3

2006 ENGINE Engine Electrical - H3

Tighten: Tighten the nut to 3.5 N.m (31 lb in).

5. Install the intake manifold. Refer to Intake Manifold Replacement in Engine Mechanical

- 3.5L (L52).

GENERATOR REPLACEMENT

Removal Procedure

1. Disconnect the negative battery cable. Refer to Battery Negative Cable

Disconnect/Connect Procedure.

2. Remove the drive belt. Refer to Drive Belt Replacement (Without A/C) or Drive Belt

Replacement (With A/C) in Engine Mechanical - 3.5L (L52).

3. Raise and support the vehicle only high enough to access the A/C compressor through the

wheelhouse. Refer to Lifting and Jacking the Vehicle in General Information.

4. Remove the left front wheel. Refer to Tire and Wheel Removal and Installation in Tires

and Wheels.

5. Remove the left wheelhouse liner. Refer to Wheelhouse Panel Replacement in Body

Front End.

2006 Hummer H3

2006 ENGINE Engine Electrical - H3

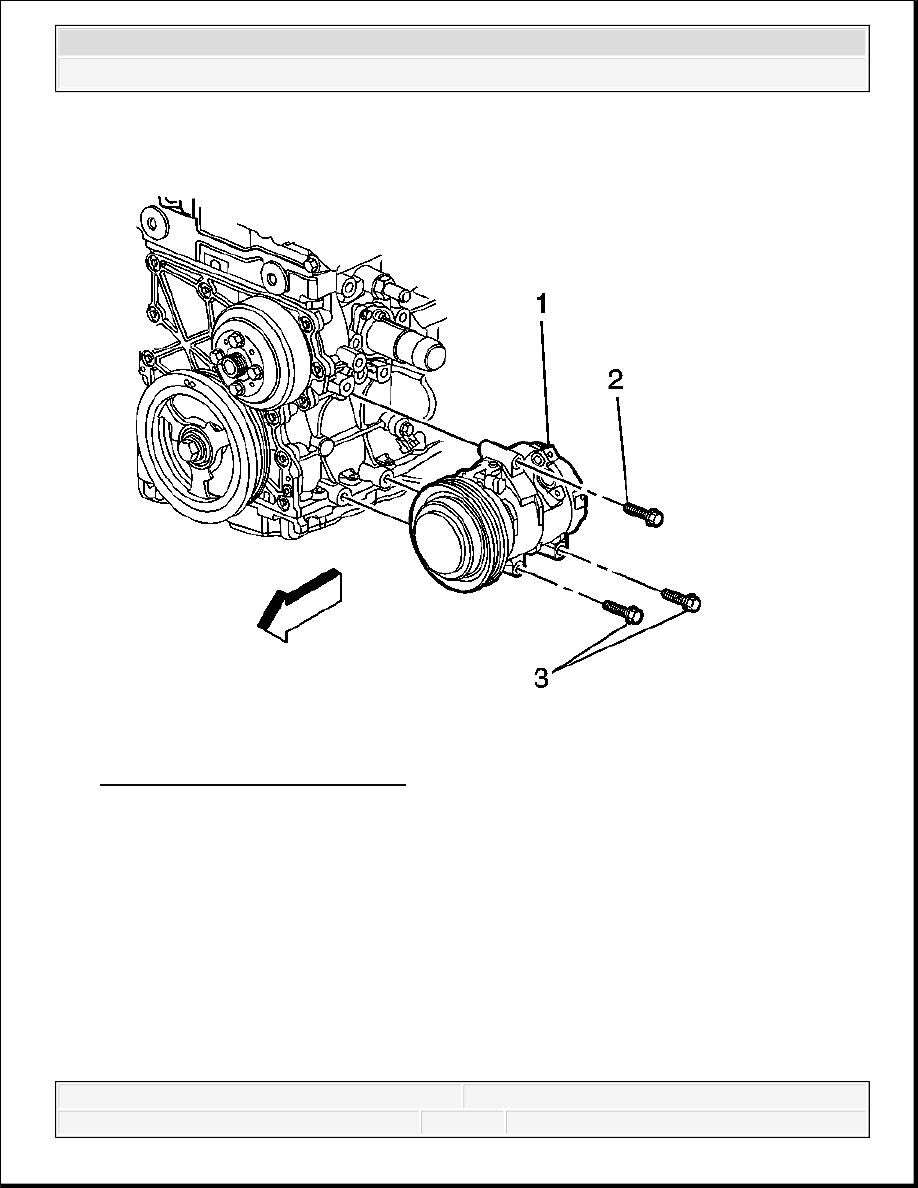

Fig. 49: View Of A/C Compressor
Courtesy of GENERAL MOTORS CORP.

6. Disengage the A/C compressor electrical connector from the bracket.

7. Remove the A/C compressor mounting bolts (2, 3) ONLY.

The upper mounting bolt (2) will remain with the A/C compressor (1).

8. Lower the vehicle.

IMPORTANT: Evacuation of the A/C refrigerant will not be necessary.
