3. Roll the carpet back to access cable grommet.

4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

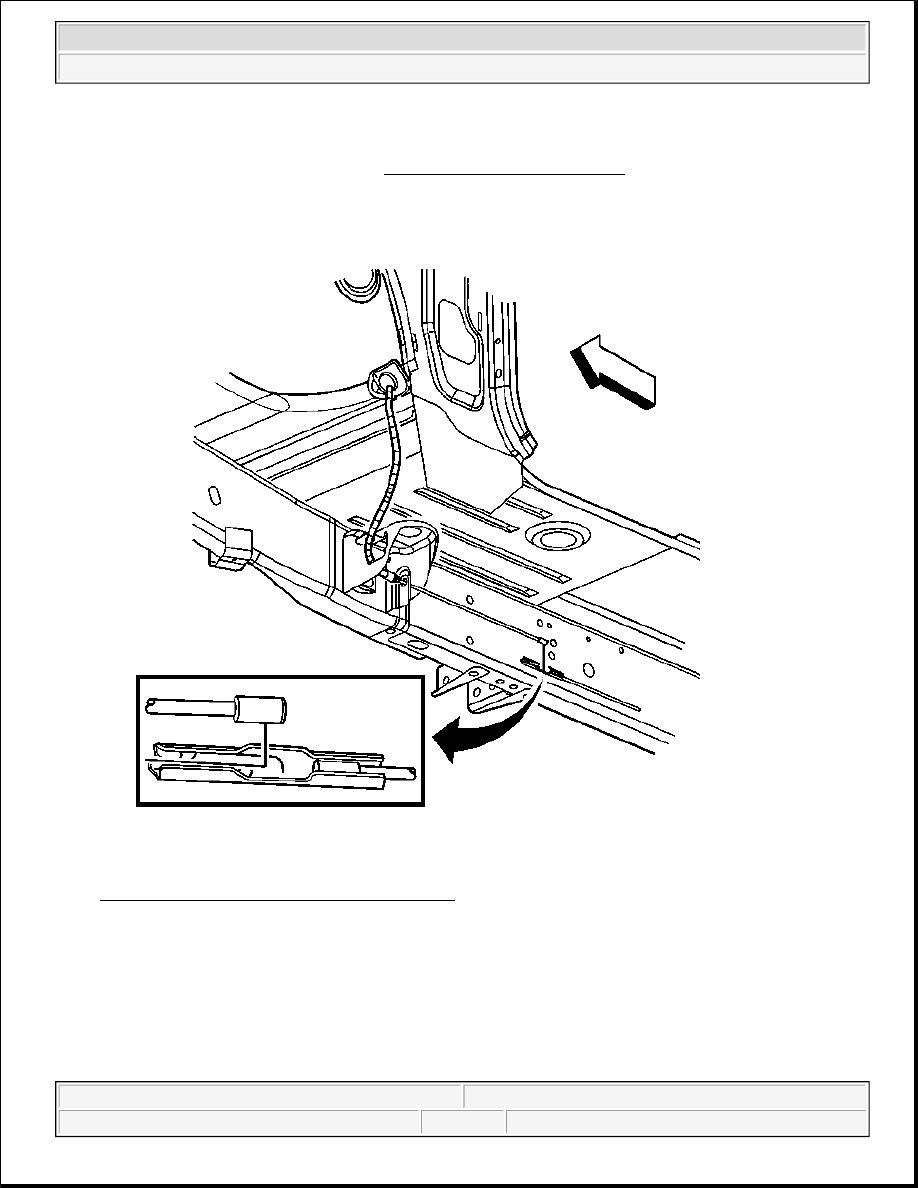

Fig. 22: Front/Intermediate Park Brake Cable
Courtesy of GENERAL MOTORS CORP.

5. Disengage the grommet and the cable from the floor pan.

6. Disconnect the front cable from the rear cable.

7. Remove the cable from the body mount by depressing the retaining tabs.

8. Remove the cable.

Installation Procedure



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2

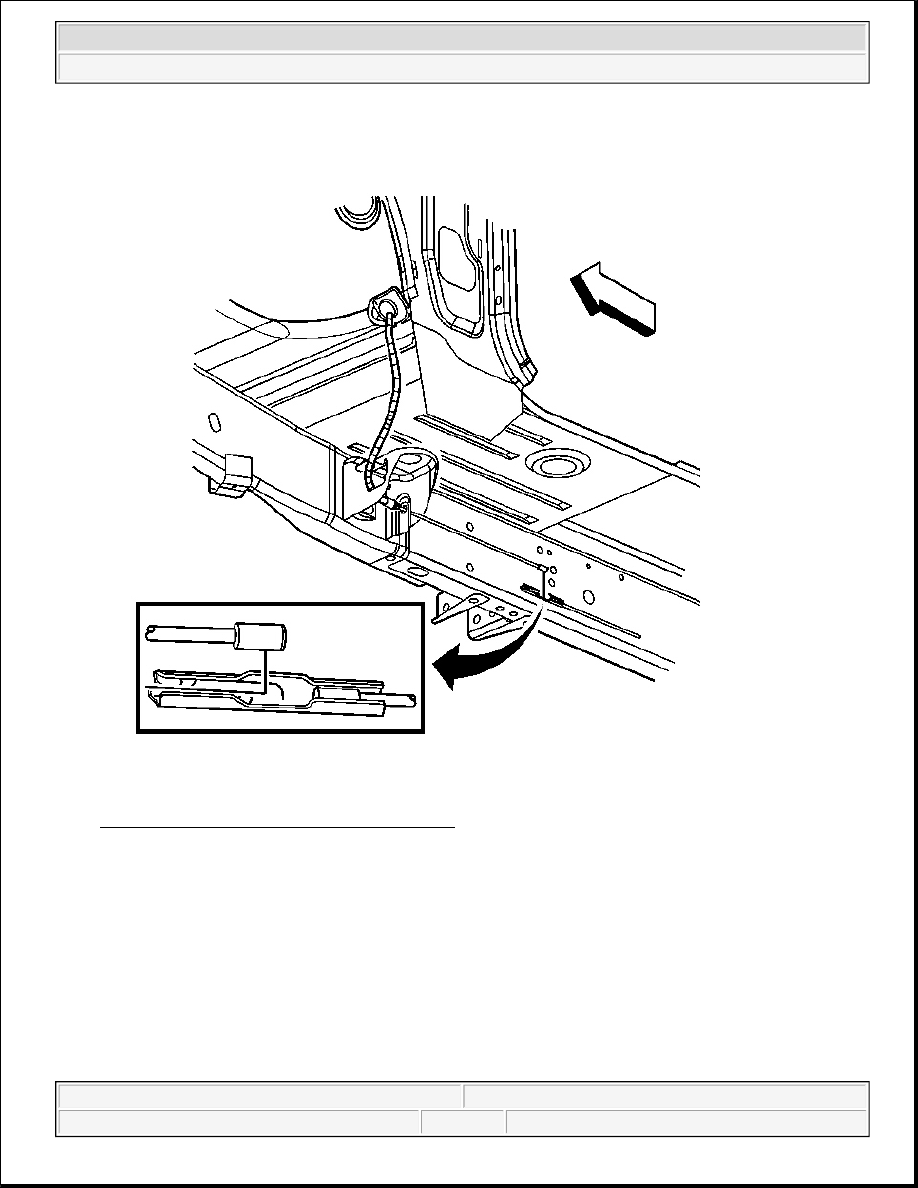

Fig. 23: Front/Intermediate Park Brake Cable
Courtesy of GENERAL MOTORS CORP.

1. Install the cable.

2. Snap the retainer tabs into the body mount.

3. Connect the front cable to the rear cable.

4. Route the cable in through the floor pan and engage the grommet.

5. Remove the safety stands.

6. Lower the vehicle.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2

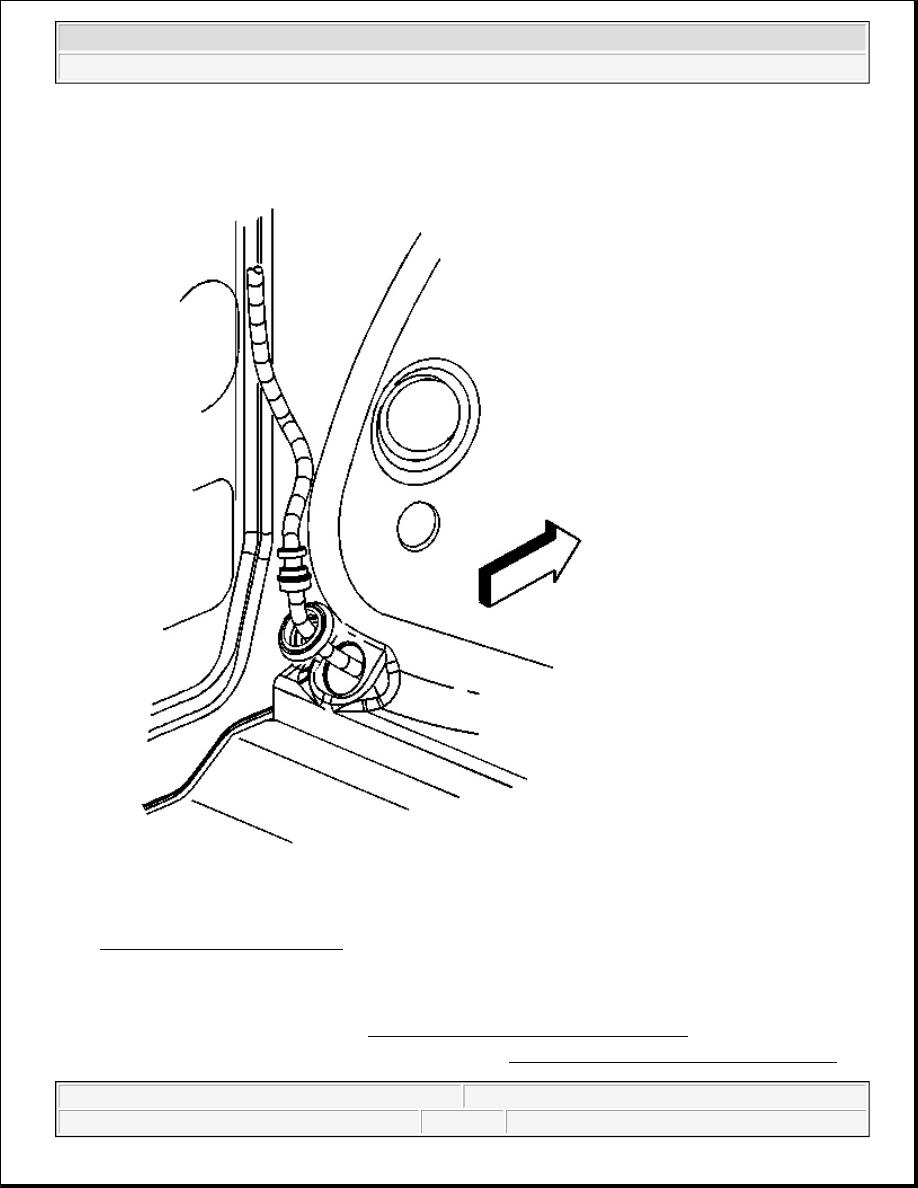

Fig. 24: Access Cable Grommet
Courtesy of GENERAL MOTORS CORP.

7. Roll the carpet into place.

8. Install the park brake pedal. Refer to Park Brake Pedal Assembly Replacement .

9. Enable the park brake cable automatic adjuster. Refer to Enabling the Park Brake Cable Automatic

Adjuster in Park Brake.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



PARK BRAKE CABLE REPLACEMENT - LEFT REAR

Removal Procedure

1. Disable the park brake cable automatic adjuster. Refer to Disabling the Park Brake Cable Automatic

Adjuster .

2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

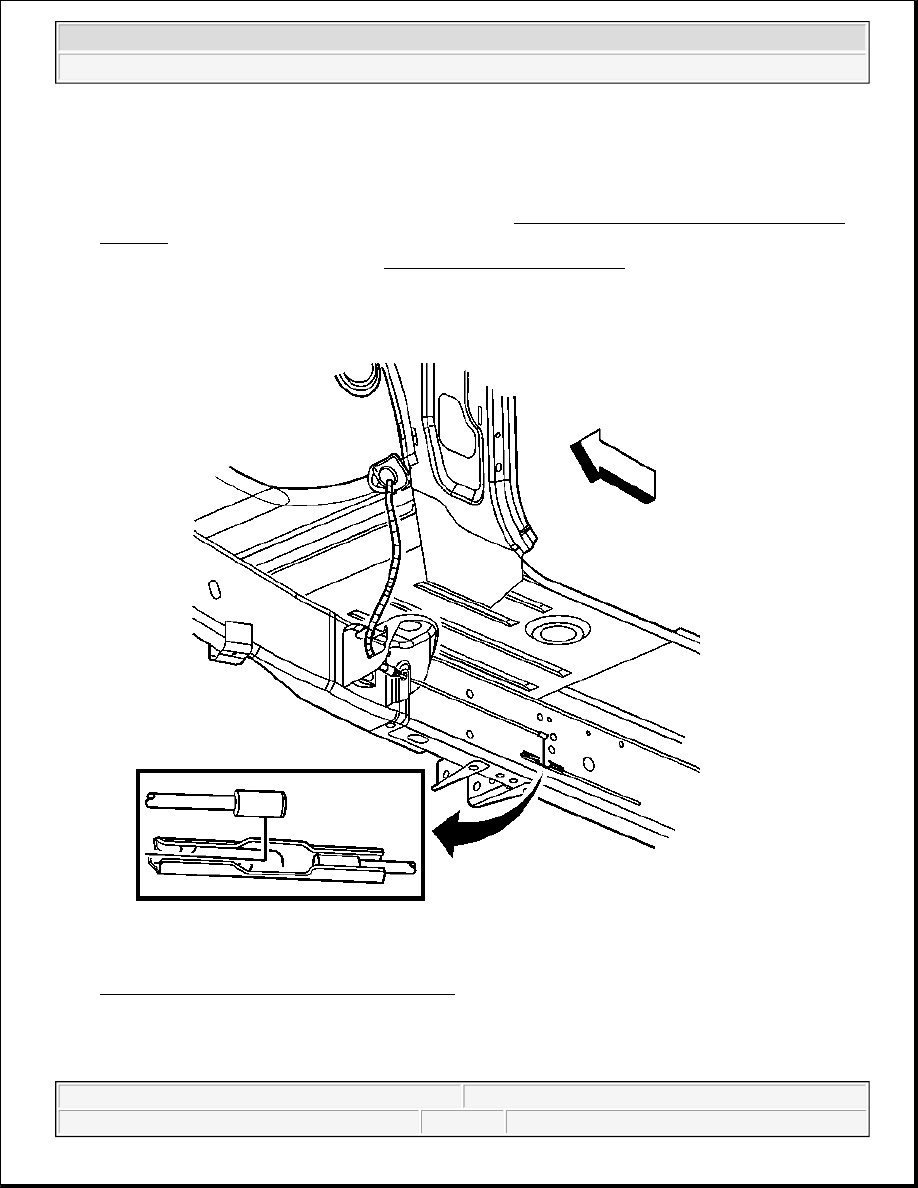

Fig. 25: Front/Intermediate Park Brake Cable
Courtesy of GENERAL MOTORS CORP.

3. Disconnect the left rear cable from the front cable.
